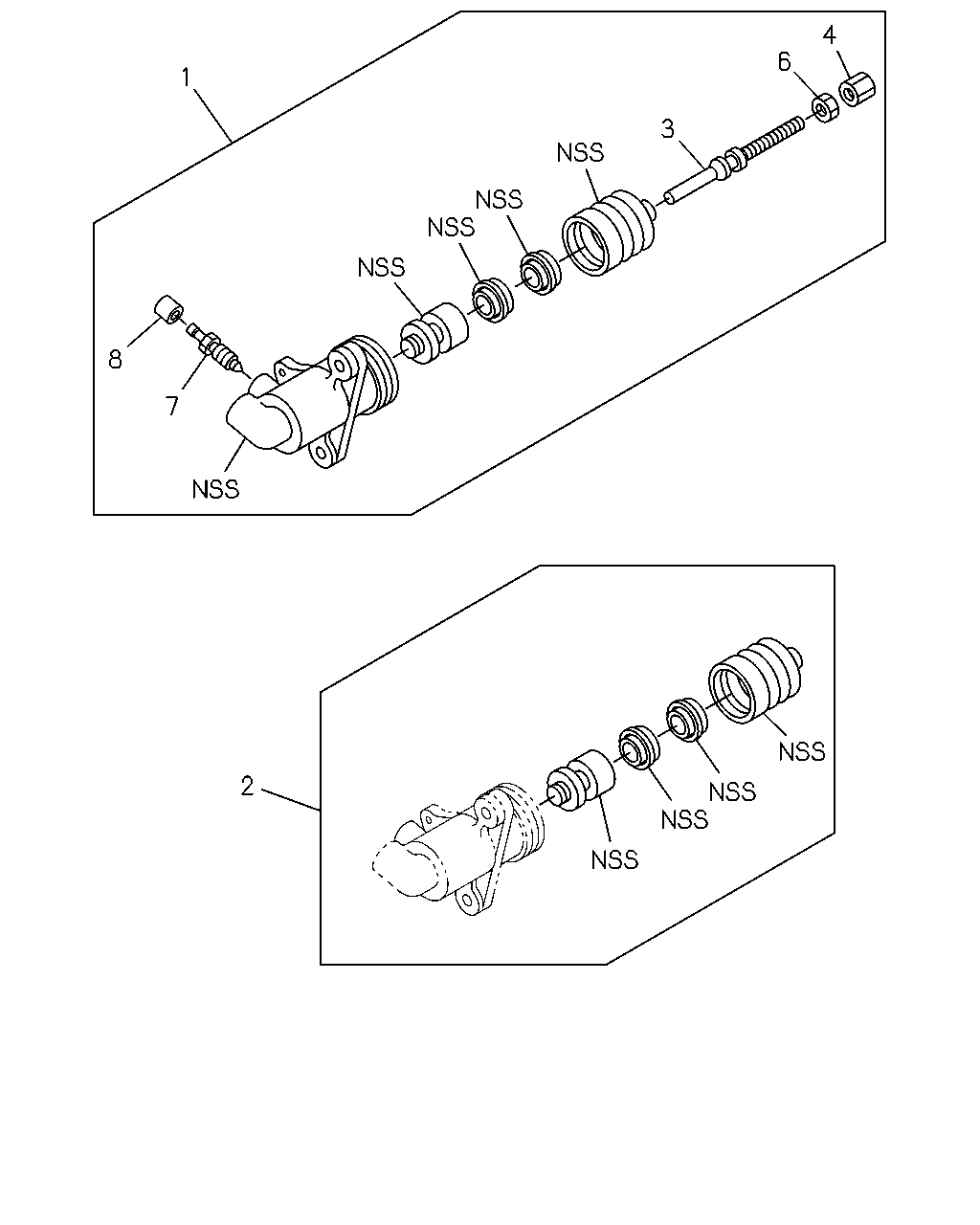

2-06 — CLUTCH SLAVE CYLINDER (#34211) — 46 parça

4 6 1 3 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.780 CYLINDER; SLAVE,CLU FLOOR REMOTE SHIFT<M11>	8-97032-846-1	01	1	9312-9510	●	●
1	00.780 CYLINDER; SLAVE,CLU FLOOR REMOTE SHIFT<M11>	8-97032-846-1	01	1	9511-		●
1	00.780 CYLINDER; SLAVE,CLU	8-97047-972-0	01	1	9312-9607			●
1	00.780 CYLINDER; SLAVE,CLU	8-97160-881-0	01	1	9608-			●
1	00.780 CYLINDER; SLAVE,CLU	8-97032-851-1	01	1	9312-				●
1	00.780 CYLINDER; SLAVE,CLU	8-97032-847-1	01	1	9312-9510					●
1	00.780 CYLINDER; SLAVE,CLU M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-97032-847-1	01	1	9511-9711					●
1	00.780 CYLINDER; SLAVE,CLU M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97032-847-1	01	1	9712-					●	●	●
1	00.780 CYLINDER; SLAVE,CLU M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-709-0	01	1	9712-							●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87831-302-0	01	1	9312-9406	●	●	●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87831-204-0	01	1	9407-9506	●	●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL FLOOR REMOTE SHIFT<M11>	5-87831-204-0	01	1	9507-9510	●	●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87831-402-0	01	1	9407-			●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	5-87831-204-0	01	1	9511-9606		●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-87831-204-0	01	1	9607-9711		●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G)	5-87831-204-0	01	1	9712-		●		●	●	●	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94457-860-0	01	1	9312-9506	●	●		●	●
3	00.780 ROD; PUSH,SLAVE CYL FLOOR REMOTE SHIFT<M11>	8-94457-860-0	01	1	9507-9510	●	●		●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94457-860-0	01	1	9511-9606		●		●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94457-860-0	01	1	9607-9711		●		●	●
3	00.780 ROD; PUSH,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94457-860-0	01	1	9712-		●		●	●	●	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94459-698-0	01	1	9312-			●
3	00.780 ROD; PUSH,SLAVE CYL M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97065-442-0	01	1	9712-							●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD	8-97032-299-0	01	1	9312-9510	●	●			●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-97032-299-0	01	1	9511-9606		●			●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-97032-299-0	01	1	9607-9711		●			●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97032-299-0	01	1	9712-		●			●	●	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD 00.787	9-09644-005-0	01	1	9312-			●	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97065-441-0	01	1	9712-							●
6	00.787 NUT; LK,ROD END M8	9-09111-408-0	01	1	9312-9510	●	●	●	●	●
6	00.787 NUT; LK,ROD END M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) M8	9-09111-408-0	01	1	9511-9606		●	●	●	●
6	00.787 NUT; LK,ROD END M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) M8	9-09111-408-0	01	1	9607-9711		●	●	●	●
6	00.787 NUT; LK,ROD END M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) M8	9-09111-408-0	01	1	9712-		●	●	●	●	●	●
6	00.787 NUT; LK,ROD END M/T MBP6P(RNC),M/T MBP6Q(RNM) 06.822 M10	9-09111-410-0	01	1	9712-							●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	9312-9506	●	●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL FLOOR REMOTE SHIFT<M11> M8X16.5	8-94115-113-0	01	1	9507-9510	●	●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) M8X16.5	8-94115-113-0	01	1	9511-9606		●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) M8X16.5	8-94115-113-0	01	1	9607-9607		●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) M8X16.5	8-94115-113-0	01	1	9608-9711		●	●	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45),M/T MSA5G(S7G) M8X16.5	8-94115-113-0	01	1	9712-		●	●	●	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9312-9506	●	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL FLOOR REMOTE SHIFT<M11> OD=9.5	9-47619-005-0	01	1	9507-9510	●	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) OD=9.5	9-47619-005-0	01	1	9511-9606		●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) OD=9.5	9-47619-005-0	01	1	9607-9607		●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) OD=9.5	9-47619-005-0	01	1	9608-9711		●	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45),M/T MSA5G(S7G) OD=9.5	9-47619-005-0	01	1	9712-		●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
