2-05 — CLUTCH PIPING (#34210) — 291 parça

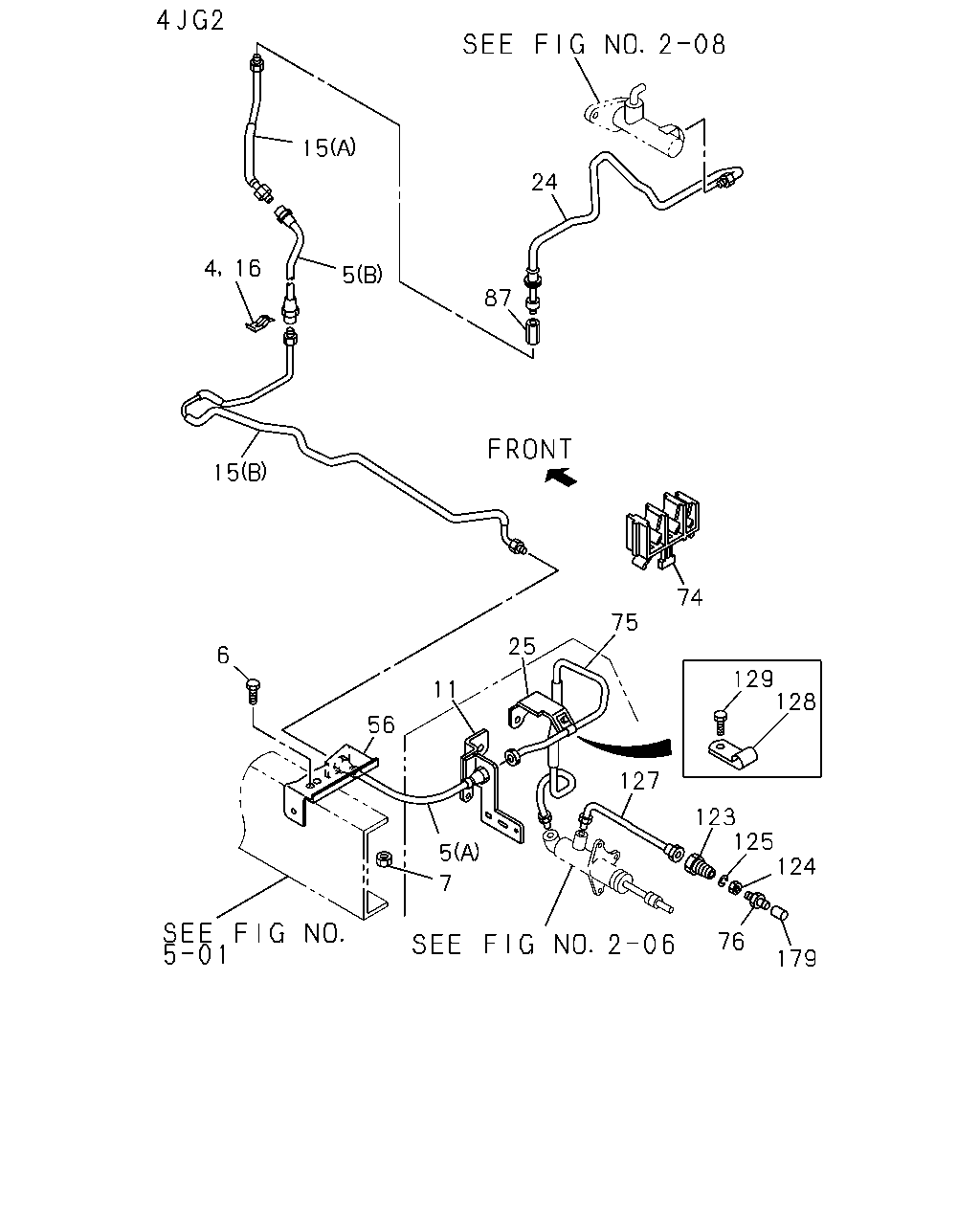

çizim 67512
15 24 16 4 5 87 15 74 75 25 6 129 128 11 56 127 123 125 124 5 7 76 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9312-9510 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9511-9711 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9312-9510 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9511-9711 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9312-9510 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9312- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9312-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9312-9510 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97064-108-1 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA) (A) 		8-97064-108-1 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC<7QV> (A) 		8-97148-640-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-9801 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FLOOR REMOTE SHIFT<M11> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503-9510 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9312-9504 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9505-9510 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9511- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9312- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 9312-9510 ●
11 00.785 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97126-875-0 01 1 9511-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97126-875-0 01 1 9712-9801 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97126-875-0 01 1 9802- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9802- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9312-9510 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9511-9611 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97040-994-0 01 1 9612-9711 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 9712- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97080-903-4 01 1 9312-9510 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97080-903-4 01 1 9511- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-940-2 01 1 9312- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-969-0 01 1 9511- ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97065-312-5 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9511-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-975-3 01 1 9511-9709 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9710-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9612-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9712- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9312-9510 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9511-9611 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9612-9711 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9712- ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9312- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9312-9510 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9511-9611 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97091-944-1 01 1 9612-9711 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 9712- ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9312-9510 ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9511-9611 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97040-993-3 01 1 9612-9711 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 9712- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-336-0 01 1 9810- ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9612-9711 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9712-9809 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 9810- ● ● ● ● ● ● ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9312- ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9312- ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9312-9510 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9511- ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511- ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9312- ●
76 00.785 SCREW; BREATHER
00.780 M8X16.5 		8-94115-113-0 01 1 9312-9607 ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9312-9510 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9511-9611 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9612-9711 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9712- ● ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9612-9711 ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9712- ● ●
123 00.785 UNION; AIR PIPE 8-97013-854-0 01 1 9312-9607 ●
124 00.785 NUT; PIPE UNION
04.681 M16 		9-99111-416-0 01 1 9312-9607 ●
125 00.785 WASHER; LK,PIPE UNION
06.897 ID=16.2 		9-09150-516-0 01 1 9312-9607 ●
127 00.785 PIPE; AIR,UNION TO MAG VLV 8-97062-512-1 01 1 9312-9607 ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9312- ●
129 00.785 BOLT; PIPE CLIP
00.669 M6X12 		0-20800-612-0 02 1 9312-9606 ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607- ●
179 00.785 CAP; BREATHER
00.780 OD=9.5 		9-47619-005-0 01 1 9312-9607 ●

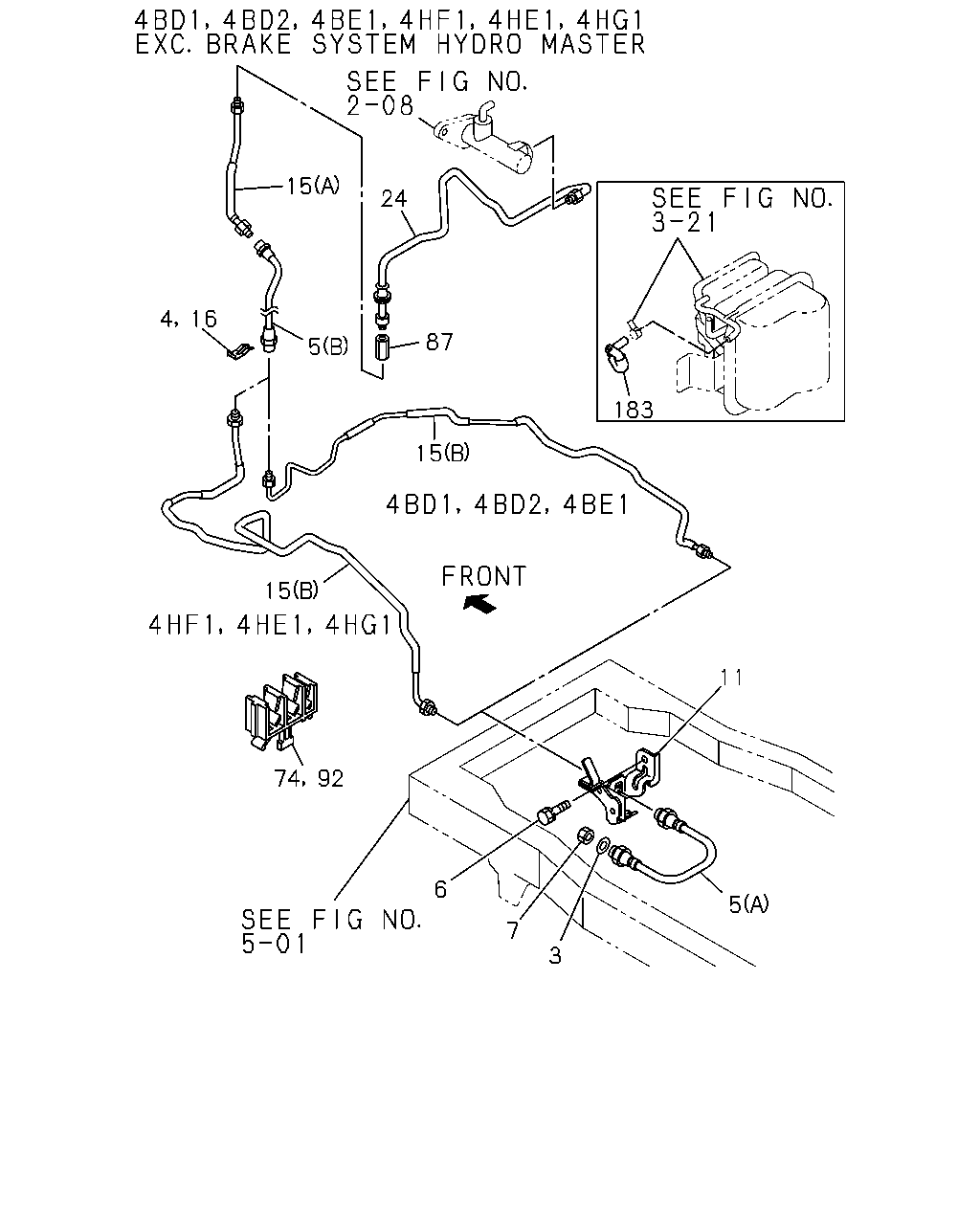

çizim 70491
15 24 16 4 87 5 183 15 15 11 74 92 6 5 7 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9312-9510 ● ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9511-9611 ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 		9-09920-873-1 01 1 9612-9711 ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 		9-09920-873-1 01 1 9712- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9312-9510 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9511-9711 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9312-9510 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9511-9711 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9312-9510 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9312- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9312-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9312-9510 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97064-108-1 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA) (A) 		8-97064-108-1 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC<7QV> (A) 		8-97148-640-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-9801 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FLOOR REMOTE SHIFT<M11> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503-9510 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9312-9504 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9505-9510 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9511- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9312- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 9312-9510 ●
11 00.785 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97126-875-0 01 1 9511-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97126-875-0 01 1 9712-9801 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97126-875-0 01 1 9802- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9802- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9312-9510 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9511-9611 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97040-994-0 01 1 9612-9711 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 9712- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97080-903-4 01 1 9312-9510 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97080-903-4 01 1 9511- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-940-2 01 1 9312- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-969-0 01 1 9511- ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97065-312-5 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9511-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-975-3 01 1 9511-9709 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9710-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9612-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9712- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9312-9510 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9511-9611 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9612-9711 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9712- ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9312- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9312-9510 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9511-9611 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97091-944-1 01 1 9612-9711 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 9712- ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9312-9510 ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9511-9611 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97040-993-3 01 1 9612-9711 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 9712- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-336-0 01 1 9810- ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9612-9711 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9712-9809 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 9810- ● ● ● ● ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9312-9510 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9511- ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511- ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9312-9510 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9511-9611 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9612-9711 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9712- ● ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9612-9711 ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9712- ● ●
92 00.785 CLIP; OIL PIPE
M/T MXA5D(RMF) FRAME STRAIGHT TYPE<7KJ> 04.128 ID=10X2 & 6.4 		8-97103-601-0 04 1 9511-9704 ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.128 ID=10X2 & 6.4 		8-97103-601-0 04 1 9705- ●
92 00.785 CLIP; OIL PIPE
M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9511-9704 ● ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9705-9711 ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9712- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97108-638-0 01 1 9312-9503 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 9504-9611 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97129-873-0 01 1 9612-9711 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 9712- ● ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 9712- ● ● ● ● ●

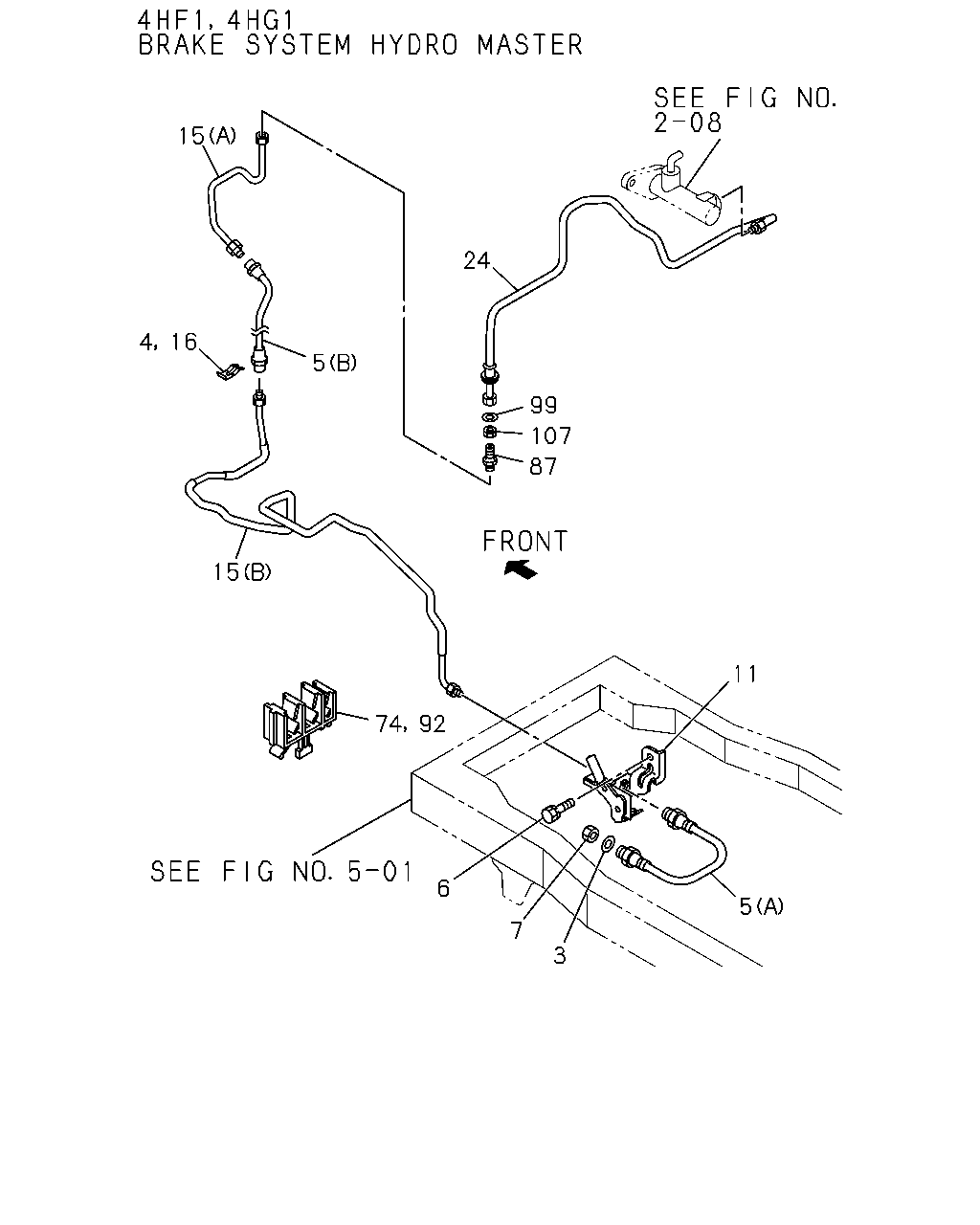

çizim 70493
15 24 16 4 5 99 107 87 15 11 74 92 6 5 7 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9312-9510 ● ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9511-9611 ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 		9-09920-873-1 01 1 9612-9711 ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 		9-09920-873-1 01 1 9712- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9312-9510 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9511-9711 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9312-9510 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9511-9711 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9712- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9312-9510 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9312- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9312-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9712-9802 ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC<7QV> (A) 		8-94377-793-1 01 1 9803- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 9312-9510 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97064-108-1 01 1 9511-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MXA5R(RMT),M/T MXA5S(RNA) (A) 		8-97064-108-1 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC<7QV> (A) 		8-97148-640-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-9801 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FLOOR REMOTE SHIFT<M11> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503-9510 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9312-9504 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9505-9510 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
FLOOR REMOTE SHIFT<M11> 		8-94411-135-0 01 1 9511- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9312- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 9312-9510 ●
11 00.785 BRACKET; FLEX HOSE,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97126-875-0 01 1 9511-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97126-875-0 01 1 9712-9801 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97126-875-0 01 1 9802- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9802- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9312-9510 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97040-994-0 01 1 9511-9611 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97040-994-0 01 1 9612-9711 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 9712- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97080-903-4 01 1 9312-9510 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97080-903-4 01 1 9511- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-940-2 01 1 9312- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-969-0 01 1 9511- ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97065-312-5 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9511-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-975-3 01 1 9511-9709 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9710-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9712- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9612-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9712- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9312-9510 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9511-9611 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9612-9711 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSA5G(S7G) 		8-94167-006-0 01 1 9712- ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9312- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9312-9510 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9511-9611 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97091-944-1 01 1 9612-9711 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 9712- ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9312-9510 ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9511-9611 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97040-993-3 01 1 9612-9711 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 9712- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-336-0 01 1 9810- ● ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9612-9711 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 		8-97129-535-0 01 1 9712-9809 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 9810- ● ● ● ● ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9312-9510 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94424-234-0 01 1 9511- ● ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ●
74 00.785 CLIP; CLU OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511- ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9312-9510 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9511-9611 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9612-9711 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9712- ● ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9612-9711 ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9712- ● ●
92 00.785 CLIP; OIL PIPE
M/T MXA5D(RMF) FRAME STRAIGHT TYPE<7KJ> 04.128 ID=10X2 & 6.4 		8-97103-601-0 04 1 9511-9704 ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.128 ID=10X2 & 6.4 		8-97103-601-0 04 1 9705- ●
92 00.785 CLIP; OIL PIPE
M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9511-9704 ● ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9705-9711 ●
92 00.785 CLIP; OIL PIPE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9712- ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 9612-9711 ●
99 00.785 WASHER; LK,UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 9712- ● ●
107 00.785 NUT; UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 9612-9711 ●
107 00.785 NUT; UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
