6-35 — FRONT DOOR TRIM (#3421) — 73 parça

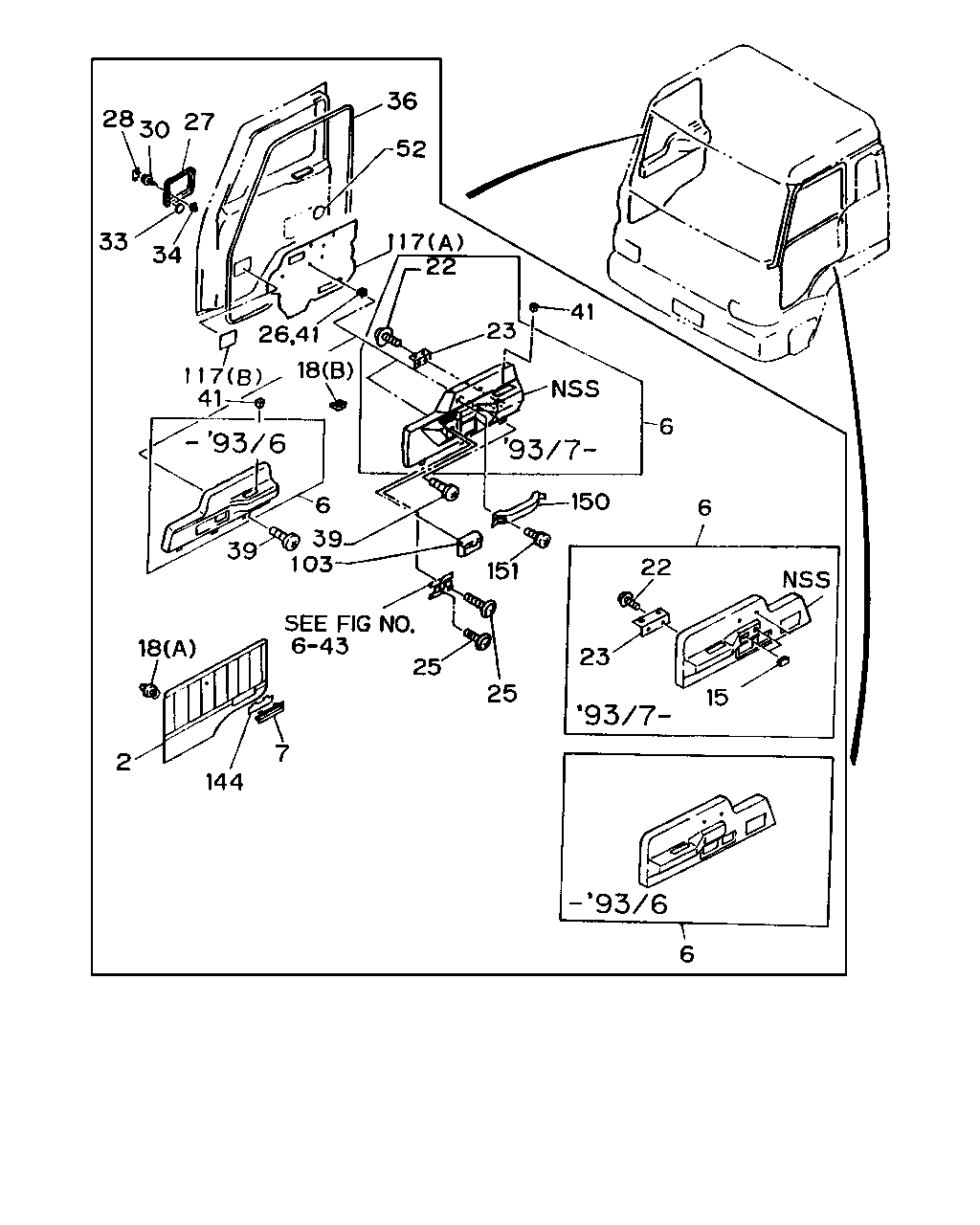

çizim 3854
28 30 27 34 33 36 52 117 41 26 117 22 23 41 6 150 6 151 25 25 103 39 39 6 18 2 144 23 22 15 6 7 41 18
BalonParca AdiParca NoAdetTipApplied Date A B C
2 TRIM; DOOR,LWR 1-73338-310-0 01 1 9002-9306 ●
2 TRIM; DOOR,LWR
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73338-310-0 01 1 9002-9306 ● ●
2 TRIM; DOOR,LWR 1-73337-347-0 01 1 9002-9008 ●
2 TRIM; DOOR,LWR
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-347-0 01 1 9002-9008 ● ●
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-347-0 01 1 9009-9306 ● ● ●
2 TRIM; DOOR,LWR
POWER WINDOW<A30> 		1-73337-429-0 01 1 9009-9306 ● ● ●
2 TRIM; DOOR,LWR
POWER WINDOW<A30> 		1-73337-446-0 01 1 9307- ● ● ●
2 TRIM; DOOR,LWR
POWER WINDOW<A30> 		1-73337-445-0 01 1 9307- ● ● ●
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30> 		1-73338-344-0 01 1 9307- ● ● ●
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30> 		1-73337-468-0 01 1 9307- ● ● ●
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-349-0 01 1 9002-9306 ● ●
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-348-0 01 1 9002-9306 ● ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-418-0 01 1 9009-9306 ● ● ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-417-0 01 1 9009-9306 ● ● ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-460-0 01 1 9307- ● ● ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-441-0 01 1 9307- ● ● ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73338-309-0 01 1 9002-9306 ● ● ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> DARK GRAY 		1-73338-314-0 01 1 9002-9306 ● ● ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73337-467-2 01 1 9307- ● ● ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73337-432-1 01 1 9307- ● ● ●
7 COVER; DOOR OUTLET VENT 1-73337-310-0 02 1 9002-9306 ● ● ●
7 COVER; DOOR OUTLET VENT 1-73338-345-0 02 1 9307- ● ● ●
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> 		1-73337-471-2 02 1 9307- ● ● ●
18 CLIP; DOOR PAD
(A) 		1-09987-119-1 22 1 9002- ● ● ●
18 CLIP; DOOR PAD
(B) 		1-73337-276-0 02 1 9002- ● ● ●
22 SCREW; DOOR TRIM BRKT
POWER WINDOW<A30> M4X12 TAPPING 		9-07076-412-0 04 1 9307- ● ● ●
22 SCREW; DOOR TRIM BRKT
EXC. POWER WINDOW<A30> M4X12 TAPPING 		9-07076-412-0 04 1 9307- ● ● ●
23 BRACKET; DOOR TRIM
POWER WINDOW<A30> 		1-73337-311-1 02 1 9307- ● ● ●
23 BRACKET; DOOR TRIM
EXC. POWER WINDOW<A30> 		1-73337-311-1 02 1 9307- ● ● ●
25 SCREW; ASH TRAY,DOOR
M6X16 TAPPING 		0-71180-616-0 04 1 9002-9306 ● ● ●
25 SCREW; ASH TRAY,DOOR
M6X16 TAPPING 		0-71180-616-0 03 1 9307- ● ● ●
25 SCREW; ASH TRAY,DOOR
M6X30 		0-74110-630-0 01 1 9307- ● ● ●
26 GROMMET; SCREW,ASH TRAY DOOR 1-09983-061-0 04 1 9002-9306 ● ● ●
26 GROMMET; SCREW,ASH TRAY DOOR 1-09983-061-0 03 1 9307- ● ● ●
27 PANEL; ORNAMENT,DOOR 1-71997-511-0 01 1 9002- ● ● ●
27 PANEL; ORNAMENT,DOOR 1-71997-510-0 01 1 9002- ● ● ●
28 MOLDING; DOOR ORNAMENT 1-71997-524-1 04 1 9002- ● ● ●
30 SCREW; DOOR ORNAMENT
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9002- ● ● ●
33 GROMMET; DOOR ORNAMENT 1-09983-090-0 04 1 9002- ● ● ●
34 GROMMET; SCREW,DOOR ORNAMENT 1-09983-061-0 04 1 9002- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
L=3060 		1-76717-063-4 02 1 9002- ● ● ●
39 SCREW; DOOR PAD
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 08 1 9002- ● ● ●
41 GROMMET; SCREW,DOOR PAD 1-09983-061-0 08 1 9002- ● ● ●
52 SEAL; WATER,DOOR LWR
OD=25 BLACK 		1-76798-019-0 03 1 9002-9205 ● ● ●
52 SEAL; WATER,DOOR LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 03 1 9206-9306 ● ● ●
52 SEAL; WATER,DOOR LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 05 1 9206-9306 ● ● ●
52 SEAL; WATER,DOOR LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9307- ● ● ●
103 TRAY ASM; ASH,DOOR
BLACK 		1-76457-036-2 02 1 9002-9306 ● ● ●
103 TRAY ASM; ASH,DOOR
BLACK 		1-76457-036-2 01 1 9307- ● ● ●
103 TRAY ASM; ASH,DOOR 1-76457-046-1 01 1 9307- ● ● ●
117 SEAL ASM; WATER DOOR
(A) 		1-76777-090-0 01 1 9002-9008 ●
117 SEAL ASM; WATER DOOR
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-090-0 01 1 9002-9008 ● ●
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-090-0 01 1 9009-9210 ● ● ●
117 SEAL ASM; WATER DOOR
(B) 		1-76797-023-0 02 1 9204- ● ● ●
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-093-0 01 1 9009-9011 ● ● ●
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-106-0 01 1 9012- ● ● ●
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-108-1 01 1 9012-9306 ● ● ●
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-110-0 01 1 9307- ● ● ●
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30> (A) 		1-76777-087-1 01 1 9211- ● ● ●
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30> (A) 		1-76777-086-1 01 1 9211- ● ● ●
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-083-1 01 1 9002-9210 ● ● ●
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-087-1 01 1 9002-9210 ● ●
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-086-1 01 1 9002-9210 ● ●
144 SHUTTER; DOOR TRIM 1-73337-288-0 02 1 9002- ● ● ●
150 GRIP; ASSIST,DOOR TRIM 1-73618-161-0 01 1 9307- ● ● ●
151 SCREW; ASSIST GRIP,DOOR TRIM
M6X20 		1-09980-550-0 02 1 9307- ● ● ●
çizim 36951
36 28 33 27 30 34
BalonParca AdiParca NoAdetTipApplied Date A B C
27 PANEL; ORNAMENT,DOOR 1-71997-511-0 01 1 9002- ● ● ●
27 PANEL; ORNAMENT,DOOR 1-71997-510-0 01 1 9002- ● ● ●
28 MOLDING; DOOR ORNAMENT 1-71997-524-1 04 1 9002- ● ● ●
30 SCREW; DOOR ORNAMENT
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9002- ● ● ●
33 GROMMET; DOOR ORNAMENT 1-09983-090-0 04 1 9002- ● ● ●
34 GROMMET; SCREW,DOOR ORNAMENT 1-09983-061-0 04 1 9002- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
L=3060 		1-76717-063-4 02 1 9002- ● ● ●
