2-01 — CLUTCH (#34208) — 215 parça

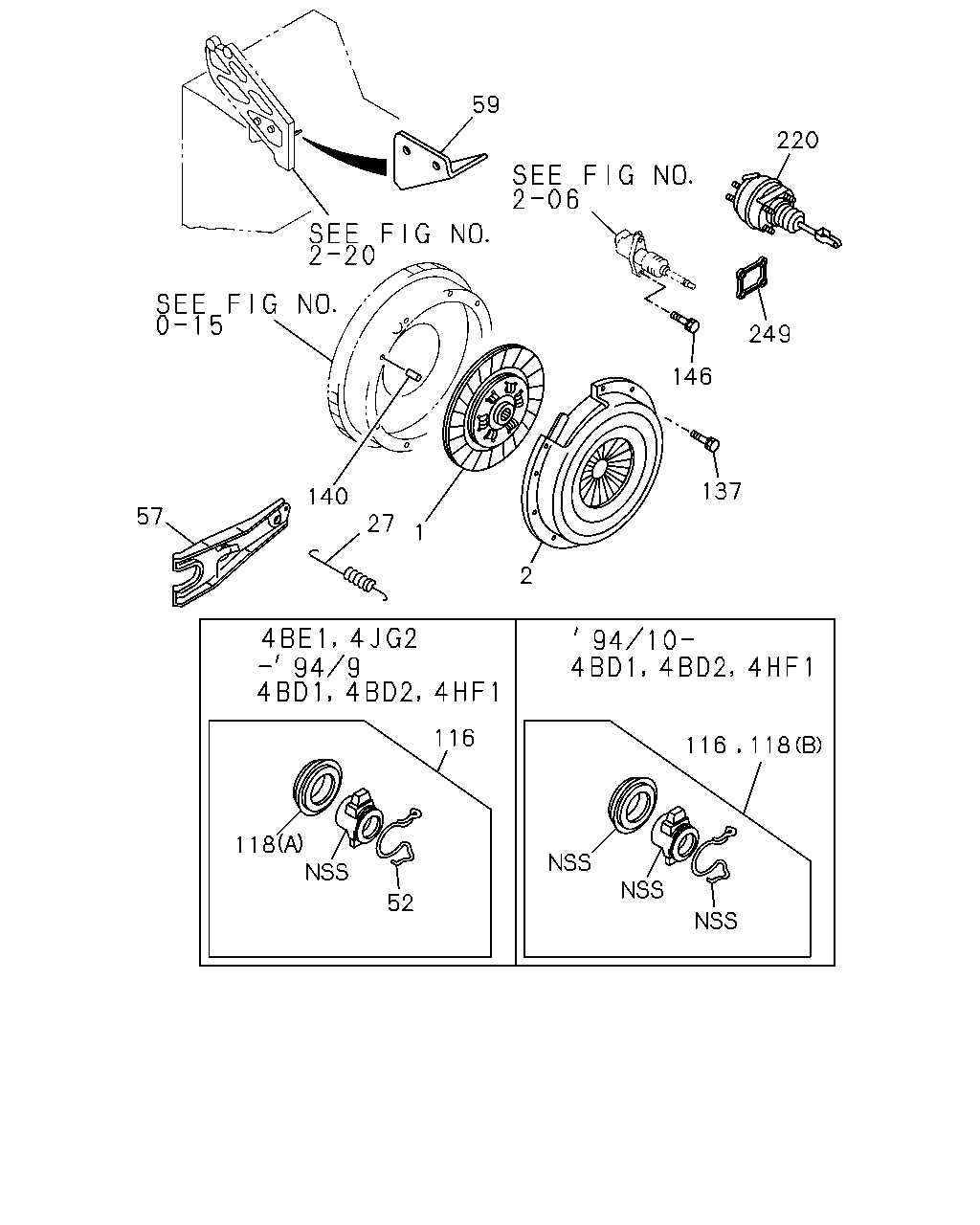

çizim 16876
59 220 249 146 137 140 57 27 1 2 116 116 118 118 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.886 DISC; CLUTCH 8-94462-789-3 01 1 9404-9510 ● ●
1 00.886 DISC; CLUTCH 8-94462-789-3 01 1 9511-9704 ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9312-9403 ● ● ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9404-9503 ●
1 00.886 DISC; CLUTCH 8-97118-840-0 01 1 9504-9511 ●
1 00.886 DISC; CLUTCH 8-97139-129-0 01 1 9512-9701 ●
1 00.886 DISC; CLUTCH 8-97162-966-0 01 1 9702-9704 ●
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 9705-9710 ● ●
1 00.886 DISC; CLUTCH
FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9711-9711 ● ●
1 00.886 DISC; CLUTCH
FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9712- ● ● ●
1 00.886 DISC; CLUTCH 8-97080-564-1 01 1 9312-9509 ●
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9510-9806 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810- ●
1 00.886 DISC; CLUTCH 8-97079-521-0 01 1 9312- ●
1 00.886 DISC; CLUTCH
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97173-595-1 01 1 9712- ●
1 00.886 DISC; CLUTCH
CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-390-1 01 1 9712- ●
1 00.886 DISC; CLUTCH
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97038-832-4 01 1 9712-9712 ●
1 00.886 DISC; CLUTCH
HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97038-832-4 01 1 9801- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94473-182-0 01 1 9312-9510 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94473-182-0 01 1 9511- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97090-843-0 01 1 9312-9504 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9505- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-759-2 01 1 9312- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9312-9710 ●
2 00.859 PLATE ASM; PRESSURE,CLU
FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9711-9711 ●
2 00.859 PLATE ASM; PRESSURE,CLU
FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9712- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97169-534-0 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU
HYDRO BRAKE BOOSTER<7QQ> 		8-97038-831-2 01 1 9712- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9312-9506 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9507-9510 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9511-9711 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9712-9712 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MXA5S(RNA) 		8-94335-691-2 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9801- ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MXA5S(RNA) 		8-97184-359-0 01 1 9801- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9312-9711 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-94321-406-1 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801- ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97184-358-0 01 1 9801- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9312-9506 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5S(R45),M/T MSA5G(S7G) 		8-97017-094-0 01 1 9507- ● ●
57 00.795 FORK; SHIFT,CLU 8-97045-983-0 01 1 9312-9506 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSA5S(S2V),M/T MSA5D(S7N) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9507-9510 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9511-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9712- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9312-9506 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-701-0 01 1 9507- ●
57 00.795 FORK; SHIFT,CLU 8-97022-322-0 01 1 9312- ●
57 00.795 FORK; SHIFT,CLU 8-97045-138-0 01 1 9312-9510 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97045-138-0 01 1 9511-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97045-138-0 01 1 9712-9712 ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97187-936-0 01 1 9801- ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-31341-028-0 01 1 9712- ●
59 00.782 GUIDE; AIR,SLAVE CYL 8-97089-844-1 01 1 9312-9408 ●
116 00.799 BLOCK; SHIFT,CLU 8-97013-553-0 01 1 9312-9409 ● ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9312-9506 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-699-0 01 1 9507- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97089-652-0 01 1 9604-9711 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97089-652-0 01 1 9712- ● ● ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97022-320-0 01 1 9312- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-31320-034-0 01 1 9712- ●
118 00.799 BEARING; CLU RELEASE
(A) 		1-09820-078-0 01 1 9312-9409 ● ● ●
118 00.799 BEARING; CLU RELEASE
(B) 		8-97089-652-0 01 1 9410-9506 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5D(S7N) (B) 		8-97089-652-0 01 1 9507-9510 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (B) 		8-97089-652-0 01 1 9511-9604 ● ●
118 00.799 BEARING; CLU RELEASE
(A) KOYO 		8-94379-499-0 01 1 9312-9506 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5S(R45) (A) KOYO 		8-94379-499-0 01 1 9507- ●
118 00.799 BEARING; CLU RELEASE
(A) 		8-97023-074-0 01 1 9312- ●
118 00.799 BEARING; CLU RELEASE
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-09820-078-0 01 1 9712- ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9312-9406 ● ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9407-9502 ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9503-9510 ● ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9511-9702 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9703-9711 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9712-9801 ● ● ● ●
137 00.862 BOLT; CLU COVER
FLOOR REMOTE SHIFT<M11> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9802- ● ● ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9312-9611 ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9612- ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 12 1 9312-9611 ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 12 1 9612- ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9407-9502 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9312-9406 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9407-9502 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9503-9510 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9511-9711 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9712-9801 ● ● ● ●
140 00.862 PIN; STRAIGHT
FLOOR REMOTE SHIFT<M11> L=25 		8-94410-361-0 02 1 9802- ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9312- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9407-9502 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9312-9510 ● ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9511-9606 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9607-9711 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712- ● ● ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-929-3 01 1 9312-9510 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-929-3 01 1 9511-9703 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9704-9711 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9712- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-928-2 01 1 9312-9510 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) POWER ASSIST CLUTCH(S2T) 		8-97048-928-2 01 1 9511-9703 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9704-9711 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9712- ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9704-9711 ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9712- ● ● ● ● ●

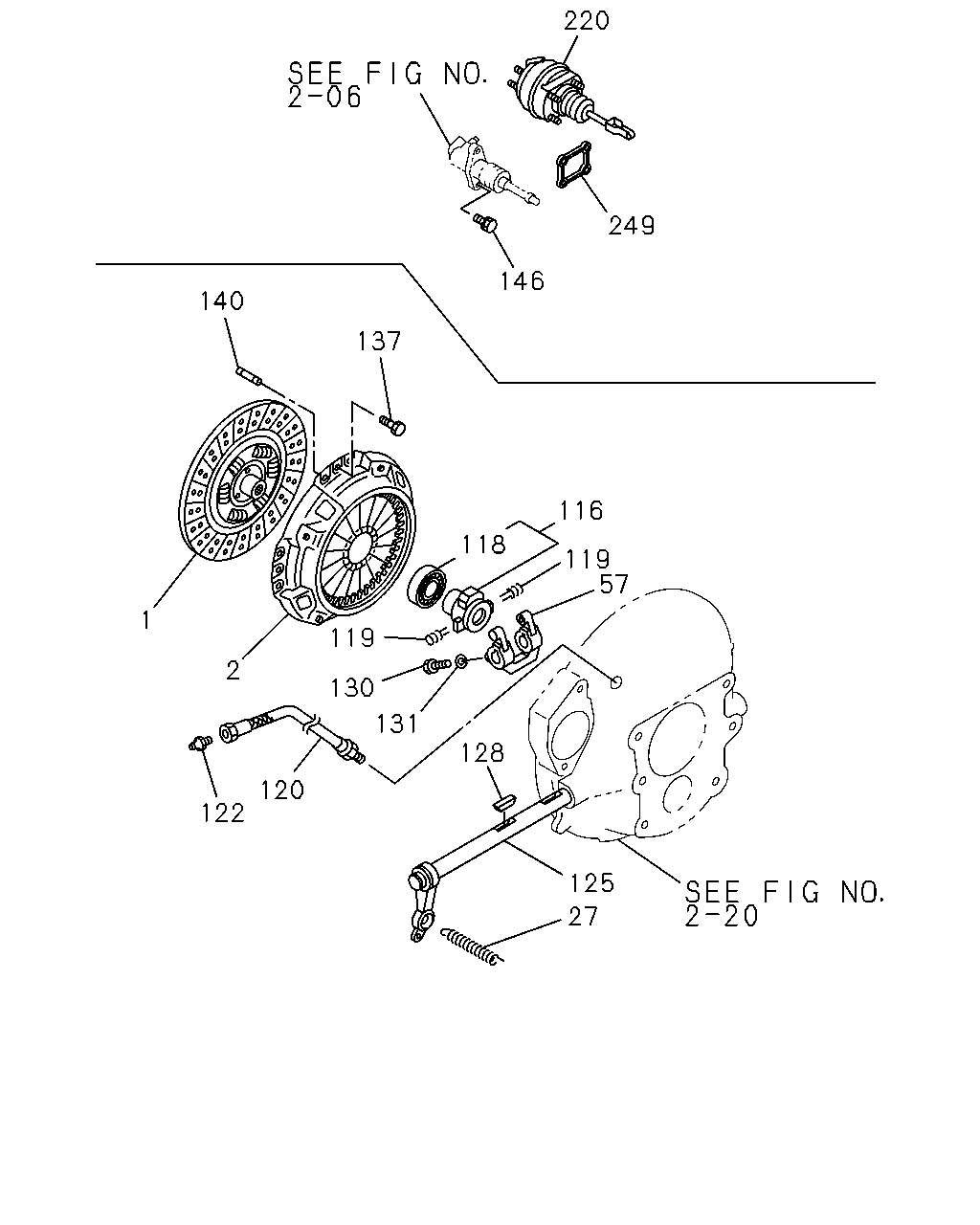

çizim 70529
220 249 146 140 137 116 118 119 57 1 119 2 130 131 128 120 122 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.886 DISC; CLUTCH 8-94462-789-3 01 1 9404-9510 ● ●
1 00.886 DISC; CLUTCH 8-94462-789-3 01 1 9511-9704 ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9312-9403 ● ● ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9404-9503 ●
1 00.886 DISC; CLUTCH 8-97118-840-0 01 1 9504-9511 ●
1 00.886 DISC; CLUTCH 8-97139-129-0 01 1 9512-9701 ●
1 00.886 DISC; CLUTCH 8-97162-966-0 01 1 9702-9704 ●
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 9705-9710 ● ●
1 00.886 DISC; CLUTCH
FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9711-9711 ● ●
1 00.886 DISC; CLUTCH
FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9712- ● ● ●
1 00.886 DISC; CLUTCH 8-97080-564-1 01 1 9312-9509 ●
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9510-9806 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810- ●
1 00.886 DISC; CLUTCH 8-97079-521-0 01 1 9312- ●
1 00.886 DISC; CLUTCH
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97173-595-1 01 1 9712- ●
1 00.886 DISC; CLUTCH
CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-390-1 01 1 9712- ●
1 00.886 DISC; CLUTCH
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97038-832-4 01 1 9712-9712 ●
1 00.886 DISC; CLUTCH
HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97038-832-4 01 1 9801- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94473-182-0 01 1 9312-9510 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94473-182-0 01 1 9511- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97090-843-0 01 1 9312-9504 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9505- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-759-2 01 1 9312- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9312-9710 ●
2 00.859 PLATE ASM; PRESSURE,CLU
FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9711-9711 ●
2 00.859 PLATE ASM; PRESSURE,CLU
FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9712- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97169-534-0 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU
HYDRO BRAKE BOOSTER<7QQ> 		8-97038-831-2 01 1 9712- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9312-9506 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9507-9510 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9511-9711 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-94335-691-2 01 1 9712-9712 ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MXA5S(RNA) 		8-94335-691-2 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK
FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9801- ● ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MXA5S(RNA) 		8-97184-359-0 01 1 9801- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9312-9711 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-94321-406-1 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801- ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97184-358-0 01 1 9801- ●
57 00.795 FORK; SHIFT,CLU 8-97045-983-0 01 1 9312-9506 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSA5S(S2V),M/T MSA5D(S7N) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9507-9510 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9511-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) 		8-97045-983-0 01 1 9712- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9312-9506 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-701-0 01 1 9507- ●
57 00.795 FORK; SHIFT,CLU 8-97022-322-0 01 1 9312- ●
57 00.795 FORK; SHIFT,CLU 8-97045-138-0 01 1 9312-9510 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97045-138-0 01 1 9511-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97045-138-0 01 1 9712-9712 ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97187-936-0 01 1 9801- ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-31341-028-0 01 1 9712- ●
116 00.799 BLOCK; SHIFT,CLU 8-97013-553-0 01 1 9312-9409 ● ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9312-9506 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-699-0 01 1 9507- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97089-652-0 01 1 9604-9711 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97089-652-0 01 1 9712- ● ● ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97022-320-0 01 1 9312- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-31320-034-0 01 1 9712- ●
118 00.799 BEARING; CLU RELEASE
(A) 		1-09820-078-0 01 1 9312-9409 ● ● ●
118 00.799 BEARING; CLU RELEASE
(B) 		8-97089-652-0 01 1 9410-9506 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5D(S7N) (B) 		8-97089-652-0 01 1 9507-9510 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (B) 		8-97089-652-0 01 1 9511-9604 ● ●
118 00.799 BEARING; CLU RELEASE
(A) KOYO 		8-94379-499-0 01 1 9312-9506 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5S(R45) (A) KOYO 		8-94379-499-0 01 1 9507- ●
118 00.799 BEARING; CLU RELEASE
(A) 		8-97023-074-0 01 1 9312- ●
118 00.799 BEARING; CLU RELEASE
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		1-09820-078-0 01 1 9712- ●
119 00.797 SPRING; SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.844 		1-31329-015-0 01 1 9712- ●
119 00.797 SPRING; SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.844 		1-31329-014-0 01 1 9712- ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) L=705 		1-09364-850-0 01 1 9712- ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
M/T MBP6P(RNC),M/T MBP6Q(RNM) 08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 9712- ●
125 00.805 SHAFT; CLU
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		8-97038-833-1 01 1 9712- ●
128 00.833 KEY; FEATHER,CLU SHAFT
M/T MBP6P(RNC),M/T MBP6Q(RNM) 		9-09867-008-0 02 1 9712- ●
130 00.833 SCREW; SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 08.977 M8X14 		9-06120-814-0 01 1 9712- ●
131 00.833 WASHER; LK,SHIFT FORK
M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.002 ID=8.2 		9-09150-508-0 01 1 9712- ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9312-9406 ● ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9407-9502 ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9503-9510 ● ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9511-9702 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9703-9711 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9712-9801 ● ● ● ●
137 00.862 BOLT; CLU COVER
FLOOR REMOTE SHIFT<M11> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9802- ● ● ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9312-9611 ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9612- ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 12 1 9312-9611 ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 12 1 9612- ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9407-9502 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9312-9406 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9407-9502 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9503-9510 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9511-9711 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9712-9801 ● ● ● ●
140 00.862 PIN; STRAIGHT
FLOOR REMOTE SHIFT<M11> L=25 		8-94410-361-0 02 1 9802- ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9312- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9407-9502 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9312-9510 ● ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9511-9606 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9607-9711 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712- ● ● ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-929-3 01 1 9312-9510 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-929-3 01 1 9511-9703 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9704-9711 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9712- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-928-2 01 1 9312-9510 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) POWER ASSIST CLUTCH(S2T) 		8-97048-928-2 01 1 9511-9703 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9704-9711 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA5S(RNA) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9712- ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9704-9711 ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9712- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
