◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

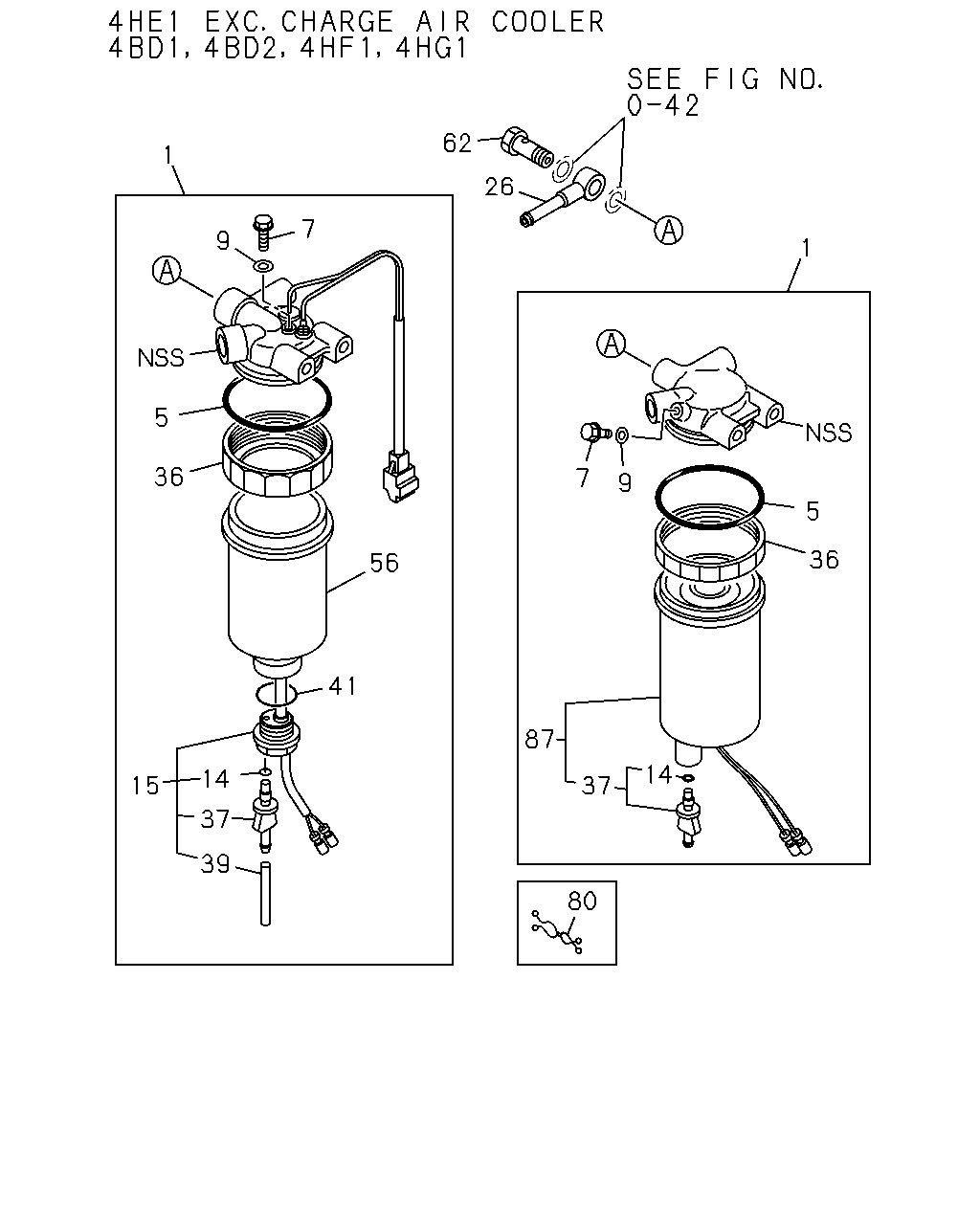

1-45 — WATER SEDIMENTER; FUEL (#34204) — 816 parça
çizim 68141
1 7 9 5 36 56 41 14 15 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9312-9506 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9312-9506 ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9507-9510 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9507-9510 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9511-9606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9511-9606 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9607-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9607-9611 ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9612-9705 ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-3 01 1 9712- ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9312-9510 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9511-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9612-9711 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97188-042-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312-9510 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9312-9510 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9511-9711 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		1-09623-491-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9312-9506 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9312-9506 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9507-9510 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9507-9510 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9511-9606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9511-9606 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9712- ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9312-9506 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9312-9506 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9507-9510 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9507-9510 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9511-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9511-9611 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9712- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9312-9506 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9312-9506 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9507-9510 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9507-9510 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9511-9606 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9511-9606 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9712- ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9312-9506 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9312-9506 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9507-9510 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9507-9510 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9511-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9511-9611 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9712- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9312-9510 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9511-9611 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9612-9711 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-377-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9312-9506 ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9507-9808 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD2 ENG(RLW) 		8-94447-156-0 01 1 9809- ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ●
15 03.890 SENSOR ASM; SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9312-9510 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9511-9611 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9612-9711 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 9809- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9312-9506 ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9507-9803 ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9804- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312-9510 ●
36 03.890 RING; BODY TO CASE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9312-9510 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9511-9711 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9712- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9312-9510 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9511-9611 ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9612-9711 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9312-9506 ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9507-9803 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9804- ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9804-9808 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD2 ENG(RLW) 		8-94453-746-0 01 1 9809- ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9312-9510 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9511-9611 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9612-9711 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9804-9808 ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9809- ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER 5-13211-030-0 01 1 9312-9510 ●
56 03.890 CASE; FUEL SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9312-9510 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9511-9711 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-1 01 1 9804-9808 ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9809- ● ● ● ● ●
çizim 68173
1 1 7 7 9 9 5 5 36 36 56 41 87 14 14 15 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9312-9506 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9312-9506 ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9507-9510 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9507-9510 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9511-9606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9511-9606 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9607-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9607-9611 ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9612-9705 ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-3 01 1 9712- ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9312-9510 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9511-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9612-9711 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97188-042-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312-9510 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9312-9510 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9511-9711 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		1-09623-491-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9312-9506 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9312-9506 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9507-9510 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9507-9510 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9511-9606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9511-9606 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9712- ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9312-9506 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9312-9506 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9507-9510 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9507-9510 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9511-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9511-9611 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9712- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9312-9506 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9312-9506 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9507-9510 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9507-9510 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9511-9606 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9511-9606 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9712- ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9312-9506 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9312-9506 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9507-9510 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9507-9510 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9511-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9511-9611 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9712- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9312-9510 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9511-9611 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9612-9711 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-377-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9312-9506 ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9507-9808 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD2 ENG(RLW) 		8-94447-156-0 01 1 9809- ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ●
15 03.890 SENSOR ASM; SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9312-9510 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9511-9611 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9612-9711 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 9809- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9312-9506 ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9507-9803 ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9804- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312-9510 ●
36 03.890 RING; BODY TO CASE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9312-9510 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9511-9711 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9712- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9312-9510 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9511-9611 ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9612-9711 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9312-9506 ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9507-9803 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9804- ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9804-9808 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD2 ENG(RLW) 		8-94453-746-0 01 1 9809- ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9312-9510 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9511-9611 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9612-9711 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9804-9808 ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9809- ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER 5-13211-030-0 01 1 9312-9510 ●
56 03.890 CASE; FUEL SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9312-9510 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9511-9711 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-1 01 1 9804-9808 ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9809- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9804-9808 ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9809- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4BD2 ENG(RLW) 		8-97219-363-0 01 1 9809- ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9809- ● ● ● ● ●
çizim 69182
62 1 26 7 9 1 5 36 7 9 5 36 56 41 87 14 14 15 37 37 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9312-9506 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9312-9506 ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9507-9510 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9507-9510 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9511-9606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9511-9606 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9607-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9607-9611 ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9612-9705 ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-3 01 1 9712- ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9312-9510 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9511-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9612-9711 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97188-042-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312-9510 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9312-9510 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9511-9711 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		1-09623-491-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9312-9506 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9312-9506 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9507-9510 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9507-9510 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9511-9606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9511-9606 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9712- ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9312-9506 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9312-9506 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9507-9510 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9507-9510 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9511-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9511-9611 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9712- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9312-9506 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9312-9506 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9507-9510 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9507-9510 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9511-9606 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9511-9606 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9712- ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9312-9506 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9312-9506 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9507-9510 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9507-9510 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9511-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9511-9611 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9712- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9312-9510 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9511-9611 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9612-9711 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9712-9808 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-377-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9312-9506 ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) 		8-94447-156-0 01 1 9507-9808 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4BD2 ENG(RLW) 		8-94447-156-0 01 1 9809- ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9809- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 9809- ●
15 03.890 SENSOR ASM; SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9312-9510 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9511-9611 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9612-9711 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9712-9808 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 9809- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9312-9506 ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) 		8-97103-765-0 01 1 9507-9803 ●
15 03.890 SENSOR ASM; SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9804- ●
26 03.163 PIPE; FUEL,IN & OUT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-15411-223-1 02 1 9312-9510 ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-15411-223-1 02 1 9511-9611 ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-15411-223-1 02 1 9612-9711 ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-15411-223-1 02 1 9712- ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-15411-223-1 02 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312-9510 ●
36 03.890 RING; BODY TO CASE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9312-9510 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9511-9711 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9712- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9312-9510 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9511-9611 ● ● ● ●
37 03.890 PLUG; SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9612-9711 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9712-9808 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9312-9506 ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) 		8-94450-148-0 01 1 9507-9803 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9804- ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9804-9808 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4BD2 ENG(RLW) 		8-94453-746-0 01 1 9809- ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9809- ● ● ● ● ●
39 03.890 HOSE; SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94242-117-0 01 1 9312-9510 ● ● ● ● ●
39 03.890 HOSE; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94242-117-0 01 1 9511-9611 ● ● ● ●
39 03.890 HOSE; SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94242-117-0 01 1 9612-9711 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9312-9510 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9511-9611 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9612-9711 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9712-9803 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9804-9808 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9804-9808 ●
41 03.890 GASKET; SENSOR TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9809- ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER 5-13211-030-0 01 1 9312-9510 ●
56 03.890 CASE; FUEL SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9312-9510 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-0 01 1 9511-9711 ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9712-9803 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9804-9808 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-1 01 1 9804-9808 ●
56 03.890 CASE; FUEL SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9809- ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M14X29 EYE BOLT 		9-09906-325-1 02 1 9312-9510 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M14X29 EYE BOLT 		9-09906-325-1 02 1 9511-9611 ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M14X29 EYE BOLT 		9-09906-325-1 02 1 9612-9711 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M14X29 EYE BOLT 		9-09906-325-1 02 1 9712- ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE BOLT 		9-09906-325-1 02 1 9712- ● ● ● ● ●
80 03.890 CLIP; SEDIMENTER
03.680 ID=20 & 12 		8-94328-912-0 01 1 9312-9404 ●
80 03.890 CLIP; SEDIMENTER
4HF1 ENG(RLS) 03.680 ID=20 & 12 		8-94328-912-0 01 1 9312-9404 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9804-9808 ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9809- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4BD2 ENG(RLW) 		8-97219-363-0 01 1 9809- ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9809- ● ● ● ● ●
çizim 69183
6 8 40 7 9 1 4 20 6 8 40 4 29 42 38 5 3 34 36 35 20 19 1 24 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9312-9506 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9312-9506 ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9507-9510 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9507-9510 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9511-9606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9511-9606 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9607-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9607-9611 ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9612-9705 ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-3 01 1 9712- ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9312-9510 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9511-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9612-9711 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97188-042-0 01 1 9712- ● ● ● ● ●
3 03.890 BODY ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13211-192-0 01 1 9712- ● ● ● ● ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13212-146-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312-9510 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9312-9510 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9511-9711 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (B) 		5-09623-075-0 01 1 9712- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		1-09623-491-0 01 1 9712- ● ● ● ● ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-002-0 02 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9312-9506 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9312-9506 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9507-9510 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9507-9510 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9511-9606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9511-9606 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9607-9611 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9612-9705 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9612-9705 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9706-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9706-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD2 ENG(RLW) 03.895 		9-09612-021-0 01 1 9712- ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09612-021-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9312-9506 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9312-9506 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9507-9510 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9507-9510 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9511-9611 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9511-9611 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9612-9711 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 9712- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC) 		8-94132-674-0 01 1 9712- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9712- ● ● ● ● ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-001-0 02 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9312-9506 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9312-9506 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9507-9510 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9507-9510 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9511-9606 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9511-9606 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9607-9611 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9612-9705 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9612-9705 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9706-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9706-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD2 ENG(RLW) 03.895 		9-09571-406-0 01 1 9712- ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9312-9506 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9312-9506 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9507-9510 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9507-9510 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9511-9611 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9511-9611 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9612-9711 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 9712- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC) 		8-94132-675-0 01 1 9712- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER-DUAL<S6B> (C) 		8-94366-685-0 01 1 9312-9403 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> (C) 		8-94366-685-0 01 1 9404-9510 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9511-9702 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9703-9704 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> (C) 		8-94366-685-0 01 1 9703-9704 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(C) 		8-94366-685-0 01 1 9703-9704 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9705-9711 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9712-9801 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9802- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97090-298-2 01 1 9312-9510 ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) (A) 		8-97090-298-2 01 1 9312-9510 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9511-9711 ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9511-9711 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9712-9801 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9712-9801 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9802- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9802- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FUEL FILTER-DUAL<S6B> (D) 		8-97148-721-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER-DUAL<S6B> (E) 		8-97182-048-1 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD2 ENG(RLW) (B) 		8-94135-669-0 01 1 9312-9403 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9705-9711 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9712-9801 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9802- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9802- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97100-742-4 01 1 9511-9611 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97100-742-4 01 1 9612-9704 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97100-742-4 01 1 9705-9710 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9711-9711 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97189-165-0 01 1 9712- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9312-9410 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9411-9510 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9411-9510 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9511-9611 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9511-9611 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9612-9702 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9612-9702 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9409 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9409 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9410-9510 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-9511 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-9511 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9512-9611 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9612-9704 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9705-9711 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9312-9510 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9312-9510 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9511-9704 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9511-9704 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9712-9801 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9802- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9802- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9403 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9403 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9404-9510 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9511-9611 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9612-9702 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9703-9704 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9703-9704 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9705-9711 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9712-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9312-9409 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9312-9409 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9712-9712 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9712- ● ● ● ●
24 03.890 NUT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-9712 ● ● ● ● ●
24 03.890 NUT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9801- ● ● ● ● ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-228-0 01 1 9712- ● ● ● ● ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-225-0 01 1 9712- ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-490-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312-9510 ●
36 03.890 RING; BODY TO CASE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9312-9510 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9511-9711 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9712- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9712- ● ● ● ● ●
38 03.890 FLOAT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-227-0 01 1 9712- ● ● ● ● ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 9712- ● ● ● ● ●
42 03.890 PLATE; BAFFLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-229-0 01 1 9712- ● ● ● ● ●
çizim 70384
21 20 20 19 1 20 19 1 20 19 20 21 20 19 20 21 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9312-9506 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9312-9506 ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9507-9510 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9507-9510 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9511-9606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9511-9606 ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9607-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9607-9611 ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9612-9705 ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9612-9705 ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-2 01 1 9706-9711 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-2 01 1 9706-9711 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BD2 ENG(RLW) 		8-94144-933-3 01 1 9712- ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94144-933-3 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-0 01 1 9312-9506 ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9507- ●
1 03.890 SEDIMENTER; FUEL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9312-9510 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9511-9611 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9612-9711 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94311-522-2 01 1 9712- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97188-042-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER-DUAL<S6B> (C) 		8-94366-685-0 01 1 9312-9403 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> (C) 		8-94366-685-0 01 1 9404-9510 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9511-9702 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9703-9704 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> (C) 		8-94366-685-0 01 1 9703-9704 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(C) 		8-94366-685-0 01 1 9703-9704 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9705-9711 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9712-9801 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9802- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97090-298-2 01 1 9312-9510 ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) (A) 		8-97090-298-2 01 1 9312-9510 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9511-9711 ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9511-9711 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9712-9801 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9712-9801 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9802- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9802- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FUEL FILTER-DUAL<S6B> (D) 		8-97148-721-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER-DUAL<S6B> (E) 		8-97182-048-1 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BD2 ENG(RLW) (B) 		8-94135-669-0 01 1 9312-9403 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9705-9711 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9712-9801 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9802- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9802- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97100-742-4 01 1 9511-9611 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97100-742-4 01 1 9612-9704 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97100-742-4 01 1 9705-9710 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9711-9711 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9712- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97189-165-0 01 1 9712- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9312-9410 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9411-9510 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9411-9510 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9511-9611 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9511-9611 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9612-9702 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9612-9702 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9703-9704 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9712-9712 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9801-9801 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9802- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9409 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9409 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9410-9510 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-9511 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-9511 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9512-9611 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9612-9704 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9705-9711 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9312-9510 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9312-9510 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9511-9704 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9511-9704 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9712-9801 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9802- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9802- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER-DUAL<S6B> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9511-9511 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9403 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9403 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9404-9510 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9511-9611 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9612-9702 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9703-9704 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9703-9704 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9705-9711 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9712-9801 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9802- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9312-9409 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 03 1 9312-9409 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9712-9712 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9705-9711 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9705-9711 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9712- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9712- ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER-DUAL<S6B> 01.540 M8 FLANGE 		0-91150-208-0 02 1 9312-9403 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 01.540 M8 FLANGE 		0-91150-208-0 02 1 9404-9510 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9611 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9612-9702 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9703-9704 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9703-9704 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9705-9711 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9801 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FUEL FILTER-DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9312-9503 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4JG2 ENG(RJC) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9312-9503 ●
21 03.890 NUT; BRKT TO FRAME
4JG2 ENG(RJC) 08.917 M10 FLANGE 		0-91150-210-0 03 1 9504-9506 ● ●
21 03.890 NUT; BRKT TO FRAME
4JG2 ENG(RJC) 08.917 M10 FLANGE 		0-91150-210-0 03 1 9507-9510 ●
21 03.890 NUT; BRKT TO FRAME
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 9511- ●
21 03.890 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9504-9510 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9511-9711 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-9801 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9802- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9705-9801 ● ●
21 03.890 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9802- ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9711-9711 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9712- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
