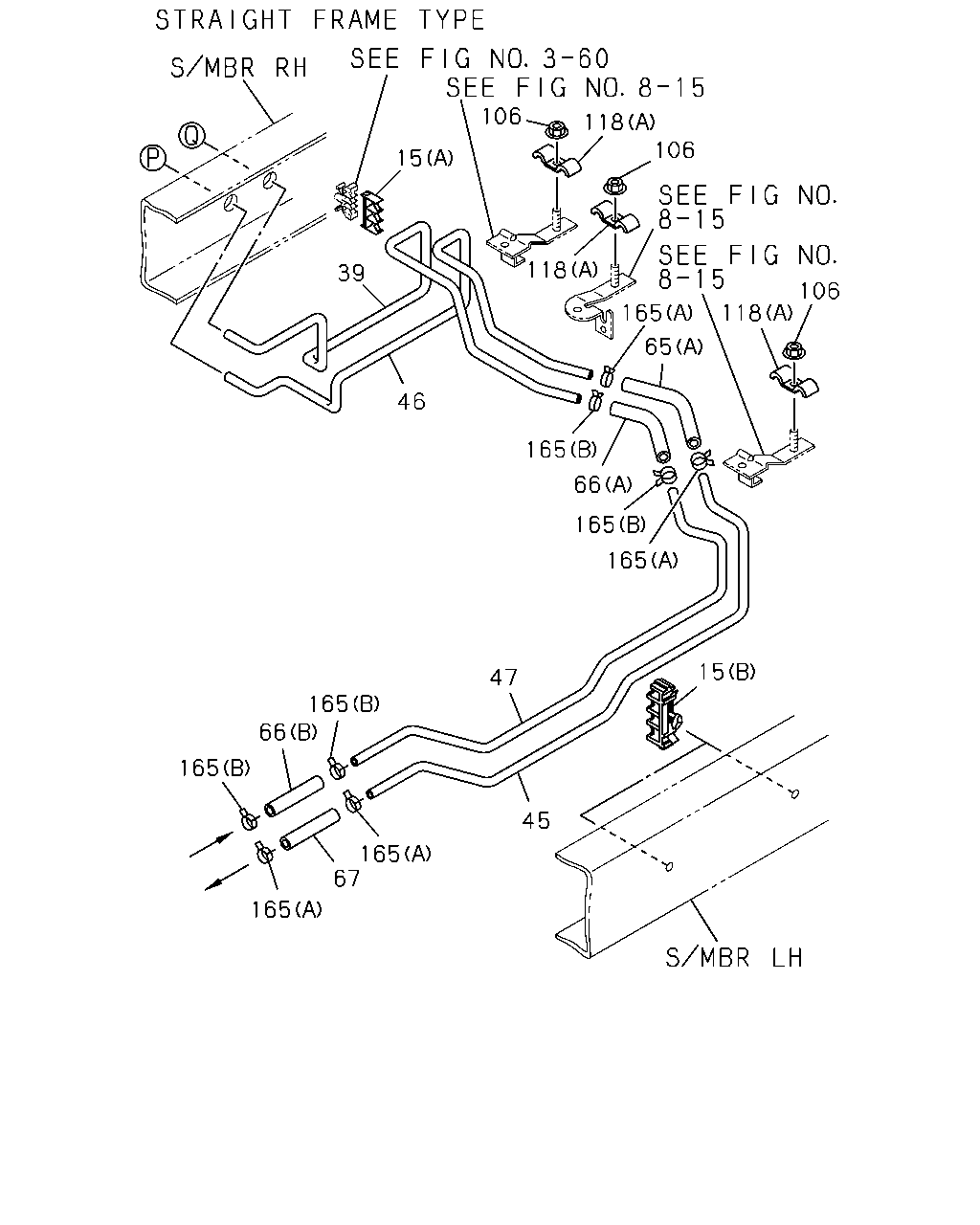

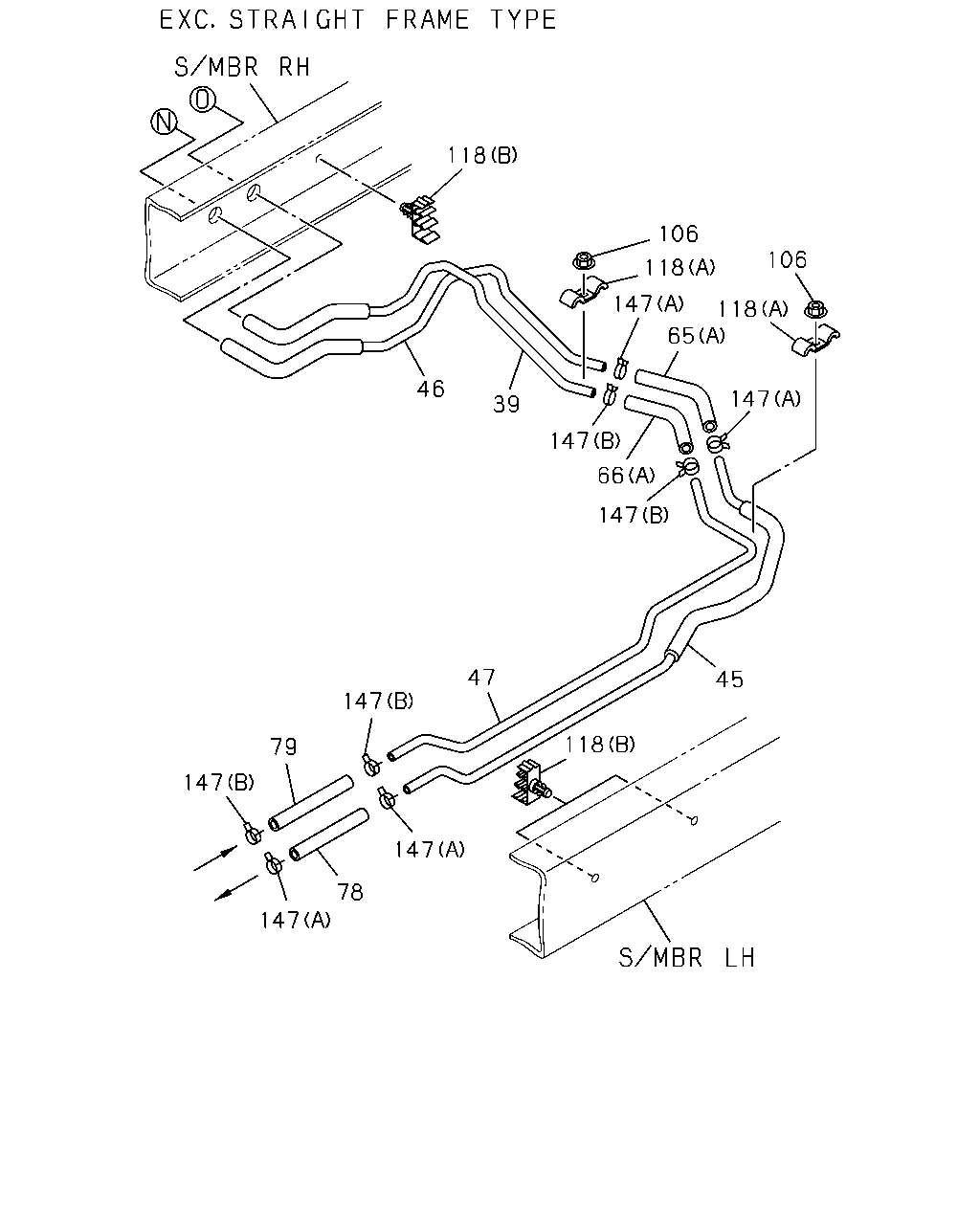

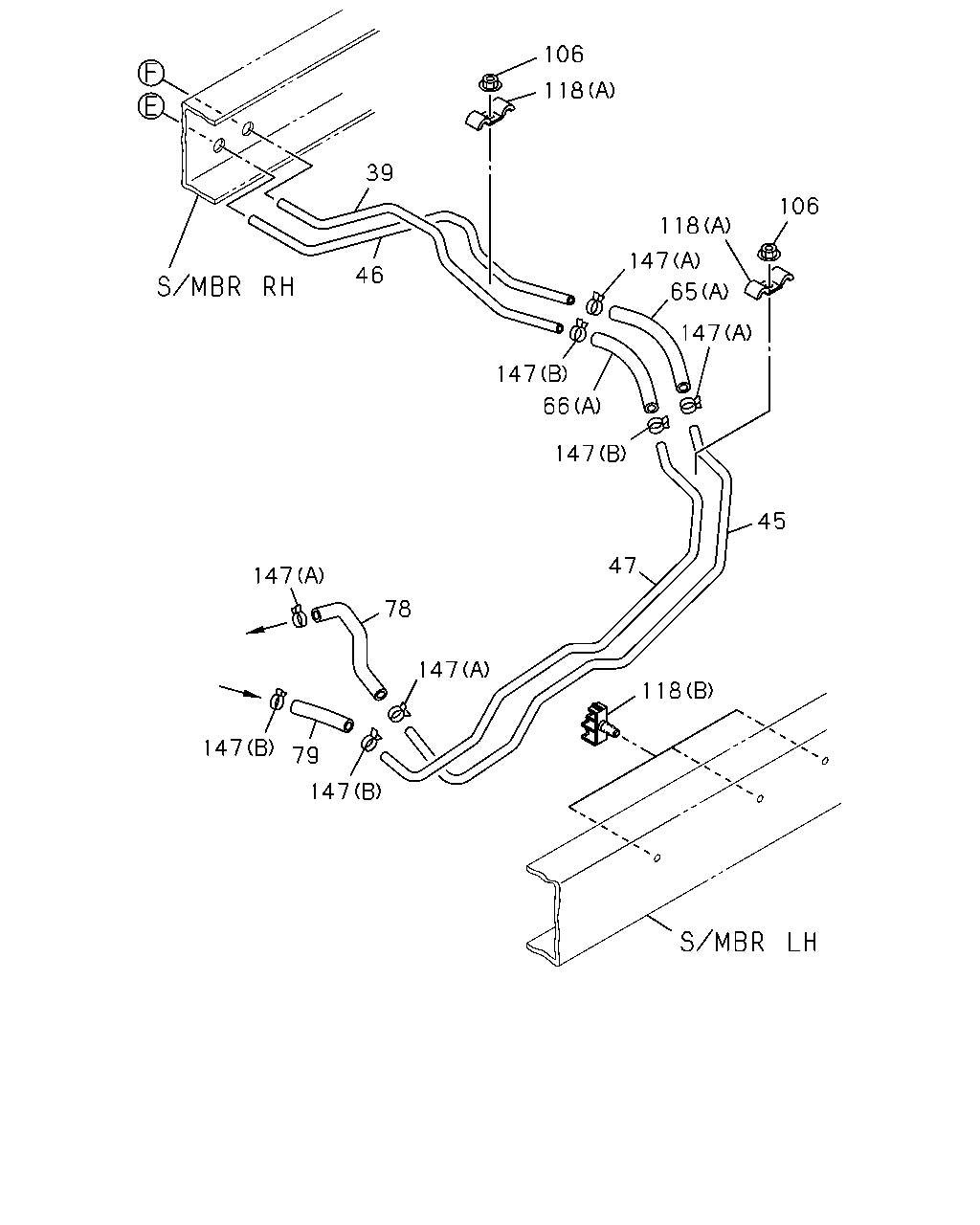

39 |
03.163 PIPE; FUEL
|
8-97066-684-1 |
01 |
1 |
9312-9401 |
● |
|
|
|
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
|
8-97066-684-1 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97065-309-2 |
01 |
1 |
9312-9401 |
|
● |
|
|
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97065-309-2 |
01 |
1 |
9312-9401 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
|
8-97065-309-2 |
01 |
1 |
9402-9510 |
● |
|
|
|
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97065-309-2 |
01 |
1 |
9402-9510 |
|
● |
● |
|
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97065-309-2 |
01 |
1 |
9402-9510 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-309-2 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-309-2 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-309-2 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
39 |
03.163 PIPE; FUEL
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-325-1 |
01 |
1 |
9312-9408 |
|
● |
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-218-0 |
01 |
1 |
9409-9506 |
|
● |
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-218-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97120-218-0 |
01 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-014-1 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-014-1 |
01 |
1 |
9802- |
|
● |
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>
|
8-97041-007-4 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97041-007-4 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
|
8-97149-842-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97149-842-0 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
|
8-97116-552-0 |
01 |
1 |
9511-9603 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97116-552-0 |
01 |
1 |
9604- |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-978-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97145-501-0 |
01 |
1 |
9512-9611 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-501-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-501-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
● |
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-015-1 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
● |
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
M/T MBP6P(RNC),M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-015-1 |
01 |
1 |
9802- |
|
|
|
● |
● |
● |
● |
| |

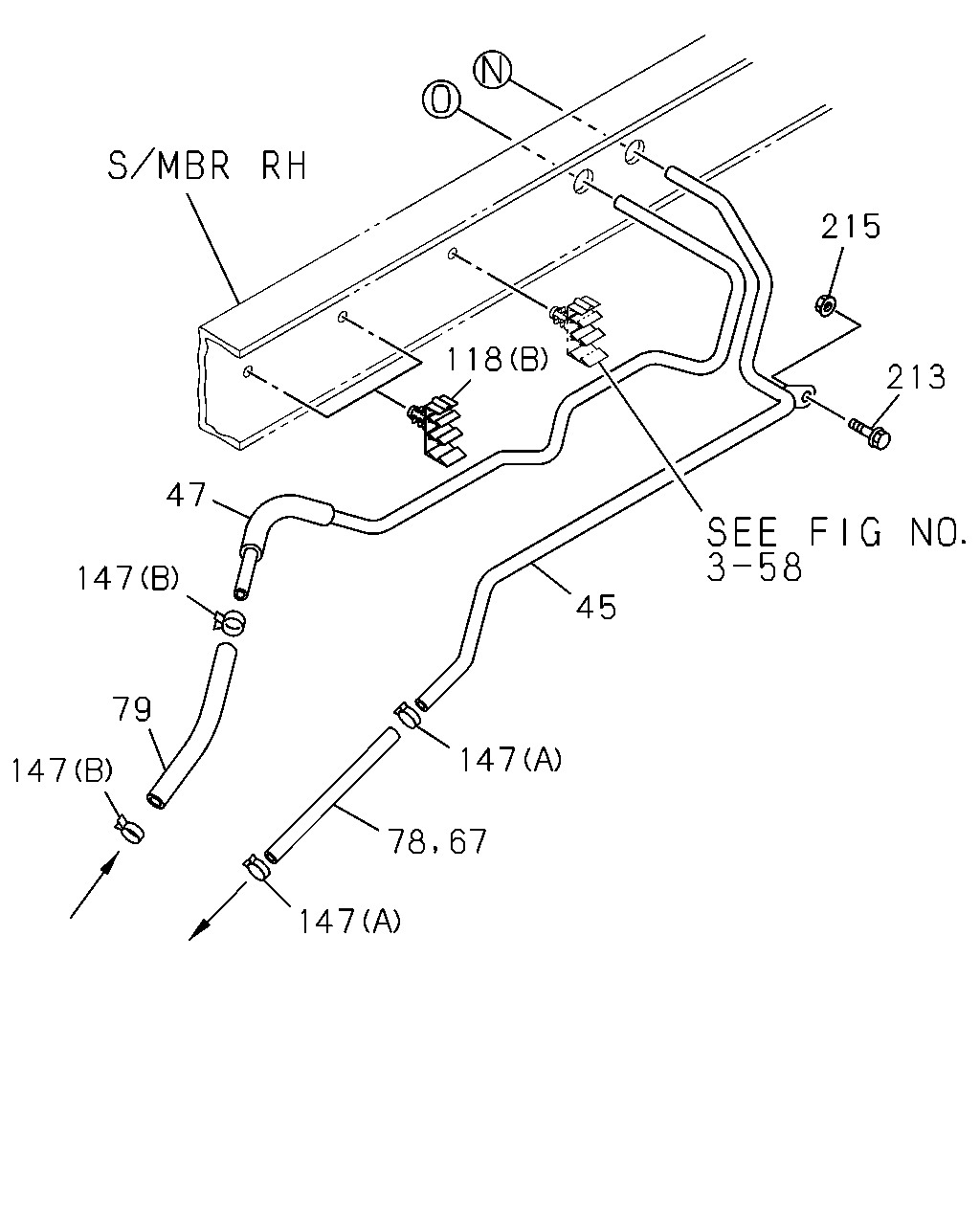

45 |
03.163 PIPE; FUEL,DELIVERY
|
8-97092-301-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97092-301-0 |
01 |
1 |
9312-9510 |
|
● |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97092-301-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-301-0 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-301-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-301-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97073-501-2 |
01 |
1 |
9312-9408 |
|
● |
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-192-0 |
01 |
1 |
9409-9412 |
|
● |
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97125-989-0 |
01 |
1 |
9501-9506 |
|
● |
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97125-989-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97125-989-0 |
01 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97073-498-1 |
01 |
1 |
9312-9401 |
|
● |
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BE1 ENG(RLH)
FUEL TANK 125L,33GAL<NL7>
|
8-97073-498-1 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97073-498-1 |
01 |
1 |
9402-9510 |
|
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97073-498-1 |
01 |
1 |
9511- |
|
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97148-811-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97148-811-0 |
01 |
1 |
9802- |
|
● |
|
● |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
|
8-97103-855-5 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97103-855-5 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>
|
8-97092-306-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-306-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-008-1 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-008-1 |
01 |
1 |
9802- |
|
● |
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
|
8-97085-902-0 |
01 |
1 |
9511-9603 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97085-902-0 |
01 |
1 |
9604- |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-977-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97145-500-1 |
01 |
1 |
9512-9611 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-500-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-500-1 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97129-540-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
|
8-97129-540-1 |
01 |
1 |
9612-9711 |
|
|
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97129-540-1 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-009-1 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
M/T MBP6P(RNC),M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-009-3 |
01 |
1 |
9802- |
|
|
|
● |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4BE1 ENG(RLH)
EXC. FUEL TANK 125L,33GAL<NL7>
|
8-97091-916-4 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |

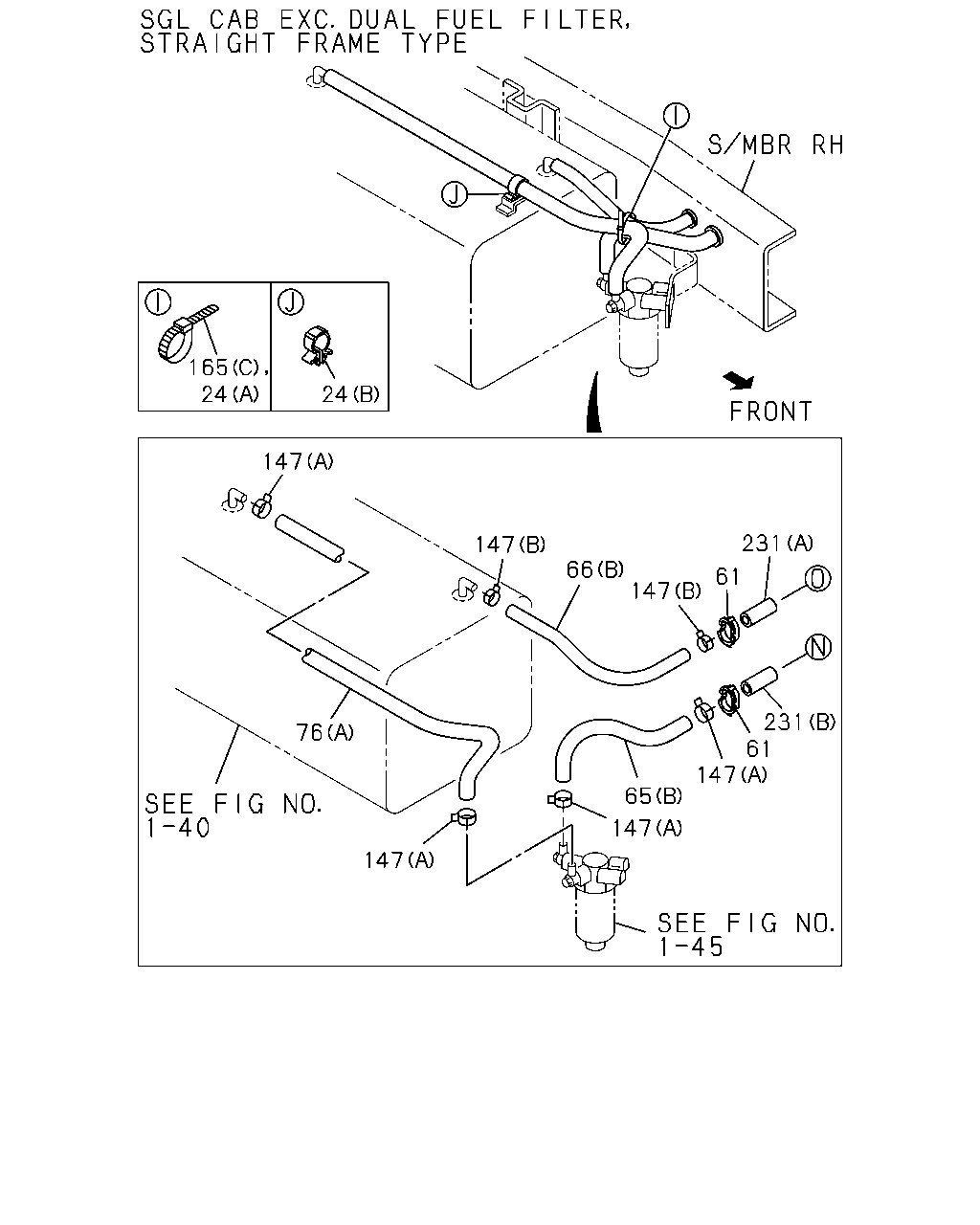

46 |
03.163 PIPE; FUEL,TANK SIDE
|
8-97066-683-1 |
01 |
1 |
9312-9401 |
● |
|
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
|
8-97066-683-1 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97065-306-2 |
01 |
1 |
9312-9401 |
|
● |
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97065-306-2 |
01 |
1 |
9312-9401 |
|
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
|
8-97065-306-2 |
01 |
1 |
9402-9510 |
● |
|
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97065-306-2 |
01 |
1 |
9402-9510 |
|
● |
● |
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97065-306-2 |
01 |
1 |
9402-9510 |
|
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-306-2 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-306-2 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97065-306-2 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97073-500-1 |
01 |
1 |
9312-9408 |
|
● |
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-217-0 |
01 |
1 |
9409-9506 |
|
● |
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-217-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97120-217-0 |
01 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-010-1 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-010-1 |
01 |
1 |
9802- |
|
● |
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>
|
8-97041-005-3 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97041-005-3 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
|
8-97149-841-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97149-841-0 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-976-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97145-499-0 |
01 |
1 |
9512-9611 |
|
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-499-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-499-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-011-1 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
● |
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
M/T MBP6P(RNC),M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-011-1 |
01 |
1 |
9802- |
|
|
|
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
|
8-97092-304-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
|
8-97092-304-0 |
01 |
1 |
9312-9510 |
|
● |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>
|
8-97092-304-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-304-0 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-304-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-304-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-326-2 |
01 |
1 |
9312-9408 |
|
● |
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-193-0 |
01 |
1 |
9409-9412 |
|
● |
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97125-990-0 |
01 |
1 |
9501-9506 |
|
● |
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>
|
8-97125-990-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97125-990-0 |
01 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97094-196-1 |
01 |
1 |
9312-9401 |
|
● |
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BE1 ENG(RLH)
FUEL TANK 125L,33GAL<NL7>
|
8-97094-196-1 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97094-196-1 |
01 |
1 |
9402-9408 |
|
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97120-216-0 |
01 |
1 |
9409-9502 |
|
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
|
8-97128-408-0 |
01 |
1 |
9503-9510 |
|
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97128-408-0 |
01 |
1 |
9511- |
|
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
|
8-97103-856-5 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97103-856-5 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>
|
8-97092-308-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
A/T 4 SPEED-JATCO(RMK)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97092-308-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-012-1 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
M/T MXA5S(RNA)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-012-1 |
01 |
1 |
9802- |
|
● |
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-979-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97145-502-1 |
01 |
1 |
9512-9611 |
|
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-502-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97145-502-1 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97129-541-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
|
8-97129-541-1 |
01 |
1 |
9612-9711 |
|
|
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97129-541-1 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-013-1 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
M/T MBP6P(RNC),M/T MBP6Q(RNM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97171-013-1 |
01 |
1 |
9802- |
|
|
|
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4BE1 ENG(RLH)
EXC. FUEL TANK 125L,33GAL<NL7>
|
8-97094-197-3 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9401 |
● |
|
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9603 |
● |
● |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. HYDRO MASTER<7LT>
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9604-9711 |
|
● |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. HYDRO MASTER<7LT>
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9401 |
|
● |
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9402-9408 |
● |
|
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9402-9408 |
|
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9402-9408 |
|
|
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9409-9510 |
● |
● |
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>,FRAME STRAIGHT
TYPE<7KJ>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9511 |
|
● |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>,FRAME STRAIGHT
TYPE<7KJ>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9512-9711 |
|
● |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>,FRAME STRAIGHT
TYPE<7KJ>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS)
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712-9801 |
|
|
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>,FRAME STRAIGHT
TYPE<7KJ>
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9802- |
|
● |
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS)
03.003
(B)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=250
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
03.003
(B)
L=250
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9802- |
|
● |
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>
03.003
(B)
L=760
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS<V4B>
03.003
(B)
L=760
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9802-9809 |
|
● |
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
03.003
(B)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9810- |
|
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9612-9711 |
|
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER-DUAL<S6B>,HYDRO
MASTER<7LT>
03.003
(B)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER-DUAL<S6B>
03.003
(B)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS<V4B>
03.003
(B)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9810- |
|
|
|
● |
● |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(B)
L=380
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4BD2 ENG(RLW)
(B)
|
8-97185-034-0 |
01 |
1 |
9708- |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
L=700
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(B)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9611 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(B)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612-9711 |
|
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(B)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9603 |
● |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. HYDRO MASTER<7LT>
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9604-9711 |
|
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. HYDRO MASTER<7LT>
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3)
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3)
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9804 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7>
AUSTRALIA EQUIPMENT(RR3)
FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3)
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9804 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9805- |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9805- |
|
|
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3)
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9805- |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9506 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9506 |
|
● |
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9507-9510 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9801 |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9802-9809 |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9802-9809 |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
FUEL FILTER-DUAL<S6B>
EXC. FUEL TANK 125L,33GAL<NL7>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9810- |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9810- |
|
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER-DUAL<S6B>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER-DUAL<S6B>,FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER-DUAL<S6B>,FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER-DUAL<S6B>,FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9802- |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97174-761-1 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9801 |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS<V4B>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9802-9809 |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS<V4B>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9810- |
|
|
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=370
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612- |
|
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9603 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9603 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9604-9611 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,
CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=300
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9612- |
|
|
|
|
● |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=350
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9402- |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BE1 ENG(RLH)
FUEL TANK 125L,33GAL<NL7>
(B)
L=560
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS)
FUEL TANK 125L,33GAL<NL7>
(B)
L=560
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS)
FUEL TANK 125L,33GAL<NL7>
(B)
L=560
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9408 |
● |
|
|
|
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9408 |
|
● |
|
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9408 |
|
|
● |
|
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9409-9510 |
● |
|
|
|
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9409-9510 |
|
● |
● |
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4JG2 ENG(RJC)
|
8-97120-219-0 |
01 |
1 |
9409-9506 |
|
● |
|
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4JG2 ENG(RJC)
|
8-97120-219-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97120-219-0 |
01 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BE1 ENG(RLH)
03.003
L=260
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
03.003
L=260
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BE1 ENG(RLH)
03.003
L=260
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=260
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=260
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BD2 ENG(RLW)
03.003
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9312-9506 |
|
|
|
● |
|
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BD2 ENG(RLW)
03.003
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
03.003
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
|
|
| |
78 |
03.163 HOSE; FUEL,PUMP TO PIPE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9408 |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD1 ENG(LJ6),4BE1 ENG(RLH)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9409-9510 |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
● |
|
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD2 ENG(RLW)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9312-9408 |
|
|
|
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9409-9506 |
|
● |
|
|
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC),4BD2 ENG(RLW)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9409-9506 |
|
|
|
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC),4BD2 ENG(RLW)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD2 ENG(RLW)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9507-9510 |
|
|
|
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9602 |
|
|
|
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9511-9602 |
|
|
|
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9603-9606 |
|
● |
|
● |
● |
● |
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=200
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
9603- |
|
|
|
● |
|
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9511-9611 |
|
● |
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
● |
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9712-9801 |
|
|
|
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9802-9804 |
|
● |
● |
● |
● |
● |
● |
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9802-9804 |
|
|
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9805- |
|
● |
● |
● |
● |
● |
● |
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9805- |
|
|
|
● |
● |
|
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9312-9506 |
|
● |
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9312-9506 |
|
|
● |
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9507-9510 |
|
● |
● |
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9511-9603 |
|
● |
● |
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9511-9603 |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9511-9603 |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9604-9611 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
03 |
1 |
9312-9506 |
|
● |
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
03 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
03 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9312-9404 |
|
● |
|
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9312-9404 |
|
● |
|
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9405-9510 |
● |
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9405-9510 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. BRK WHL LK CONT LSPV<6PH>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. BRK WHL LK CONT LSPV<6PH>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. BRK WHL LK CONT LSPV<6PH>,
FRAMESTRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9401-9404 |
|
● |
|
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
● |
|
|
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
|
● |
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9511-9706 |
|
● |
● |
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9511-9706 |
|
|
|
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9707-9711 |
|
● |
● |
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9707-9711 |
|
|
|
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4BE1 ENG(RLH)
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
04 |
1 |
9312-9404 |
|
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9312-9408 |
● |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9312-9408 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9409-9510 |
● |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9409-9510 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9511-9711 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9712-9801 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9802- |
|
● |
● |
● |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
06 |
1 |
9802- |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9511-9611 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9612-9706 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER-DUAL<S6B>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9612-9706 |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER-DUAL<S6B>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9707-9801 |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9707-9801 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER-DUAL<S6B>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9802- |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
08 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9312-9408 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9312-9408 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9312-9408 |
|
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9409-9506 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9409-9506 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD2 ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9409-9506 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9409-9506 |
|
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9507-9510 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD2 ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>,MINI BUS
CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9507-9510 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9507-9510 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9507-9510 |
|
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FUEL FILTER-DUAL<S6B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9511- |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
9511- |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9312-9510 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9312-9510 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9511-9601 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9511-9601 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9602-9611 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9602-9611 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9612-9706 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9612-9706 |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9612-9706 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9707-9711 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9707-9711 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9312-9406 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9312-9406 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9407-9408 |
|
● |
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9407-9408 |
|
● |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9407-9408 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9407-9408 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9407-9408 |
|
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9409-9506 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9409-9506 |
|
● |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9409-9506 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9507-9510 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9507-9510 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9511-9606 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9511-9606 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9607-9706 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9607-9706 |
|
● |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
9607-9706 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
FUEL FILTER-DUAL<S6B>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9707- |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER-DUAL<S6B>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
9707- |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9312-9406 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9312-9406 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. MINI BUS CHASSIS<V4B>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9407-9510 |
● |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9511-9611 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9511-9611 |
|
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9612-9711 |
|
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9712-9801 |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9712-9801 |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9712-9801 |
|
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD2 ENG(RLW)
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9712-9801 |
|
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. MINI BUS CHASSIS<V4B>,FRAME
STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9802- |
|
● |
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9802- |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9802- |
|
|
|
● |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4BD2 ENG(RLW)
01.219
(B)
ID=13
|
8-94238-571-0 |
04 |
1 |
9802- |
|
|
● |
|
|
|
|
