1 |
03.402 CLEANER ASM; AIR
|
8-97102-675-1 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
1 |

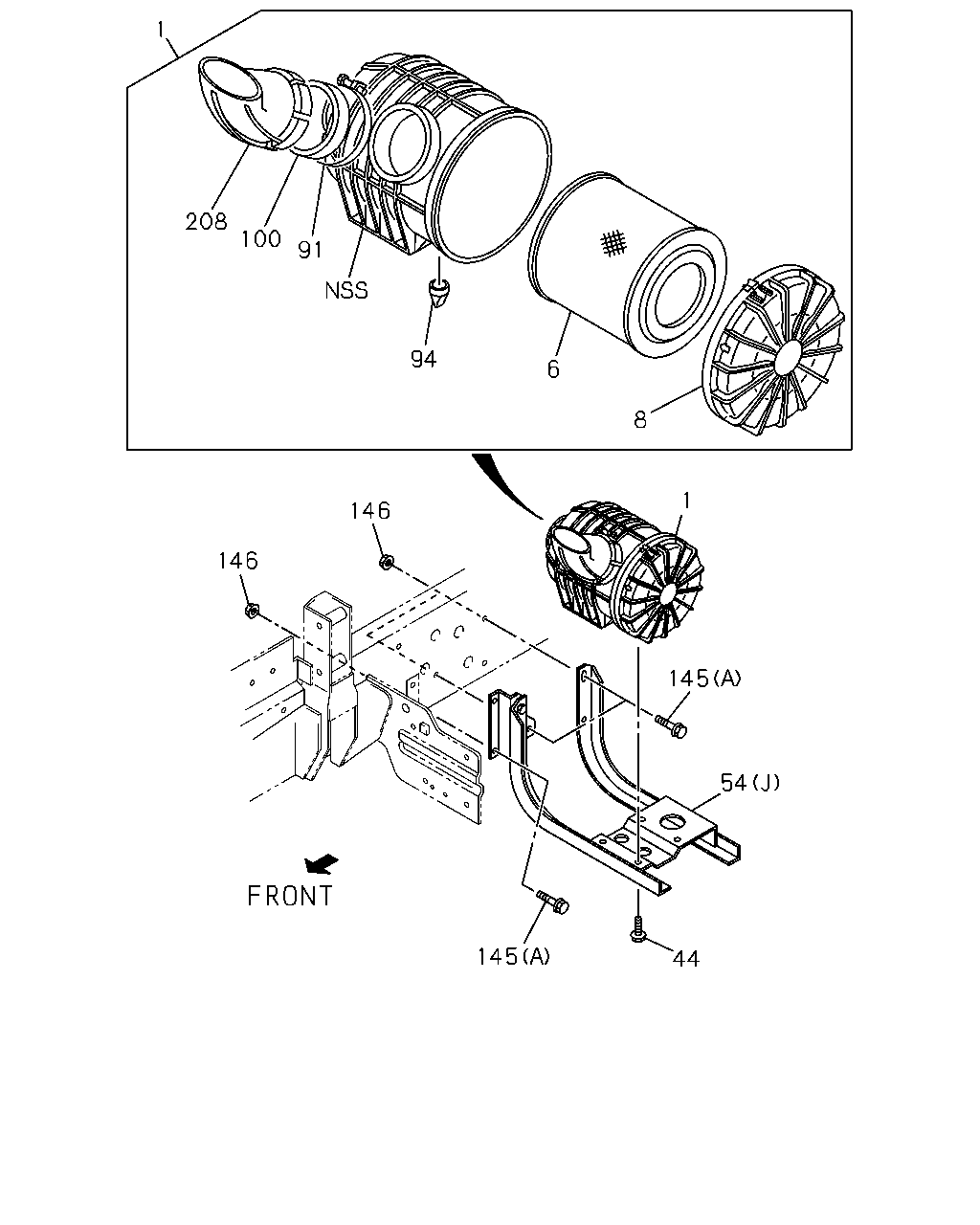

03.402 CLEANER ASM; AIR
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-1 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
|
8-97102-675-1 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-1 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-2 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-2 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-2 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-675-2 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97090-029-1 |
01 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97090-029-2 |
01 |
1 |
9507- |
|
|
● |
|
|
|
|
| |
1 |

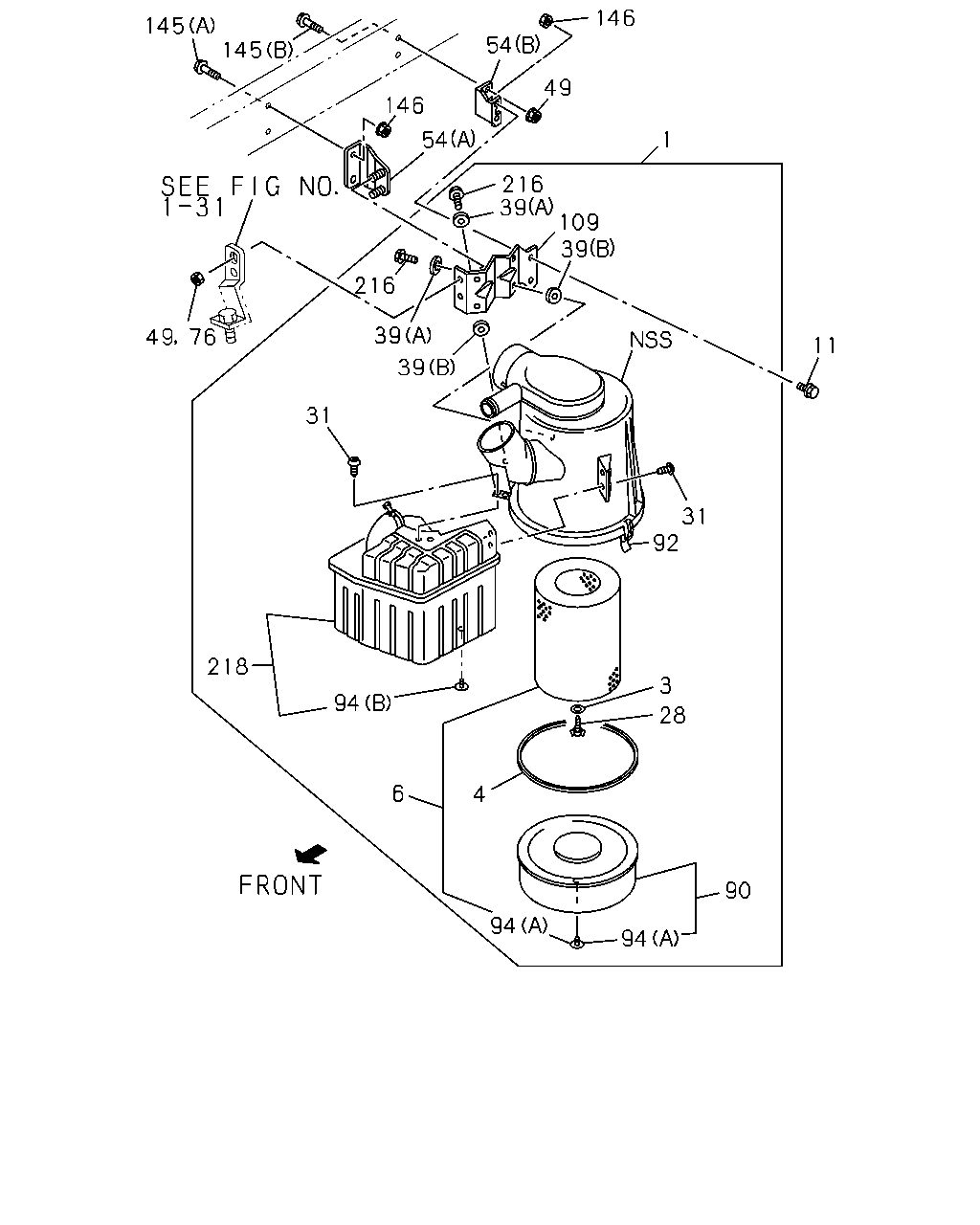

03.402 CLEANER ASM; AIR
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
8-94408-247-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
8-94408-247-0 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
1 |

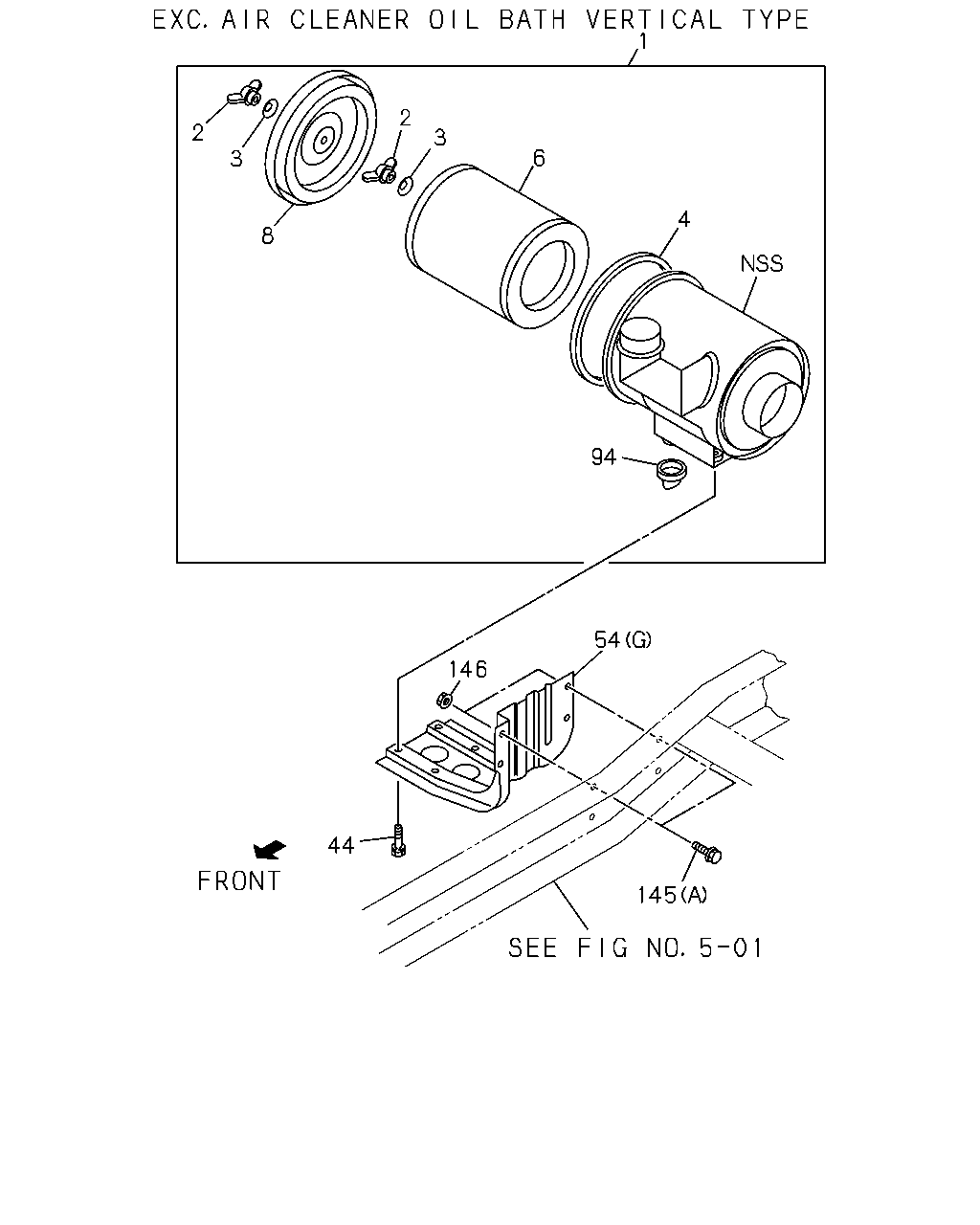

03.402 CLEANER ASM; AIR
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94131-782-5 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94131-782-5 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
1 |

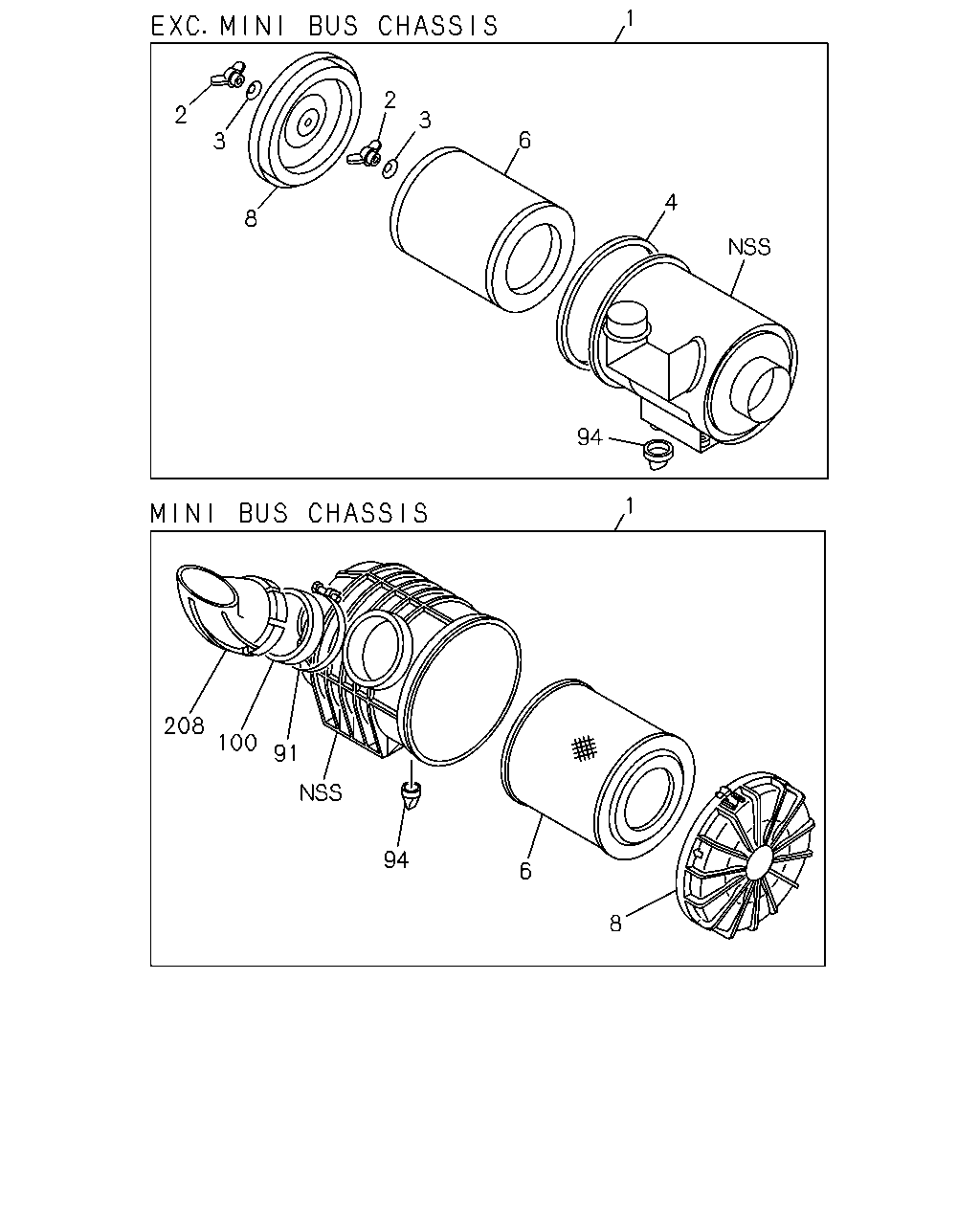

03.402 CLEANER ASM; AIR
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94326-676-2 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94326-676-2 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
1 |

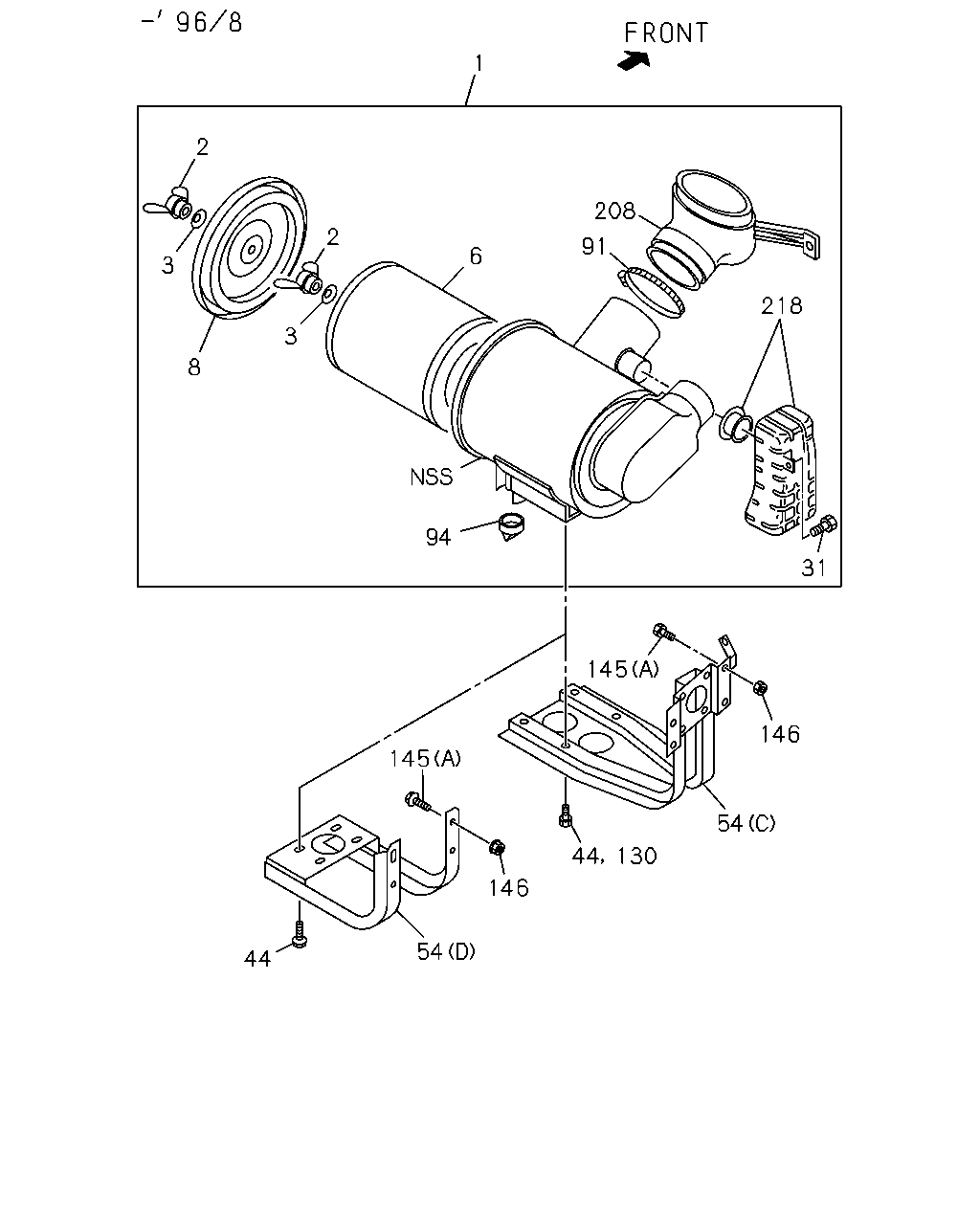

03.402 CLEANER ASM; AIR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97103-477-1 |
01 |
1 |
9312-9608 |
|
● |
● |
● |
|
|
|
| |
1 |

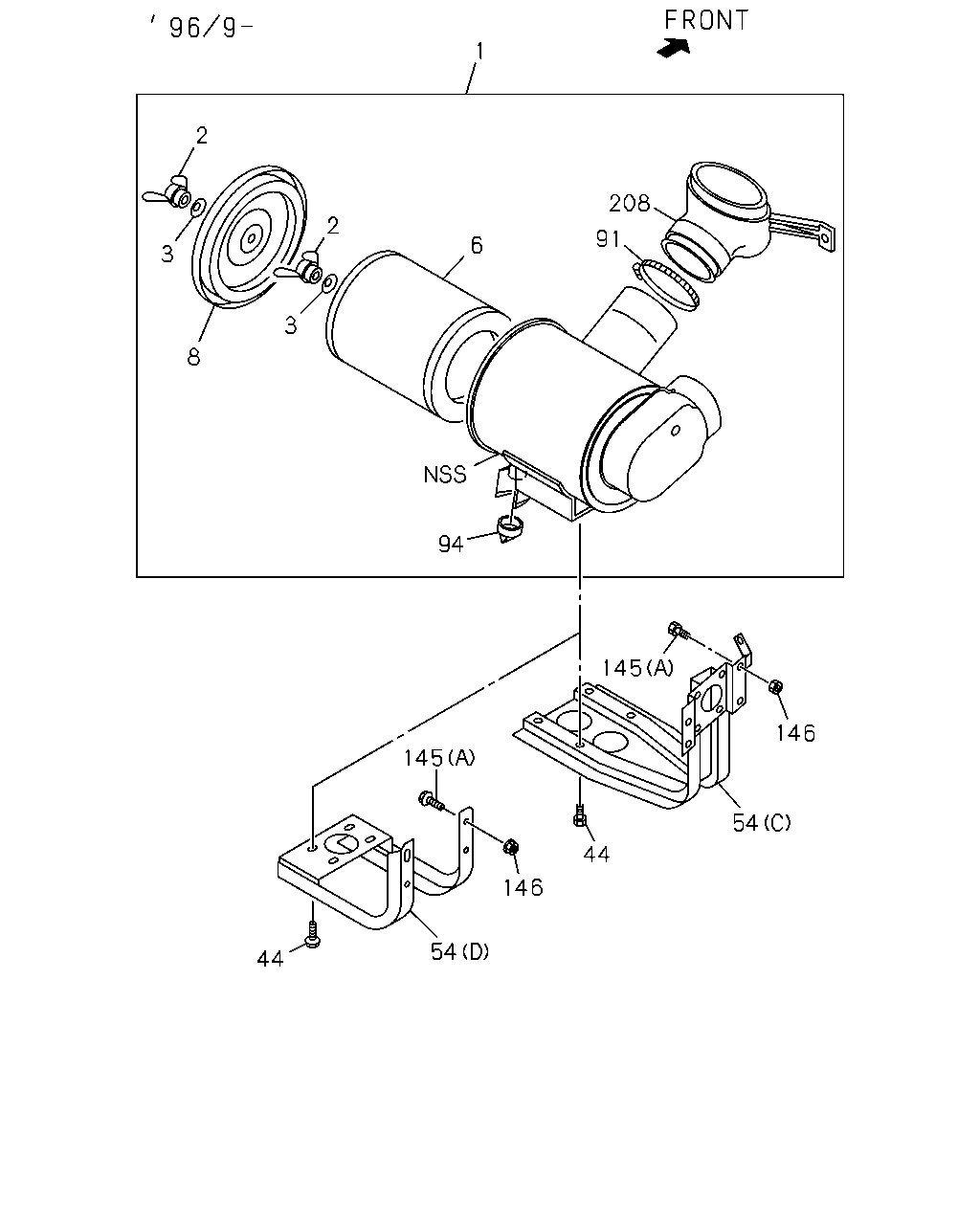

03.402 CLEANER ASM; AIR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97162-700-0 |
01 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HYDRO MASTER<7LT>
|
8-97162-700-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HYDRO MASTER<7LT>
|
8-97162-700-1 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. HONG KONG EQUIPMENT(PQ1)
|
8-97189-166-1 |
01 |
1 |
9712-9804 |
|
● |
● |
● |
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL>
EXC. HONG KONG EQUIPMENT(PQ1)
|
8-97189-166-1 |
01 |
1 |
9712-9804 |
|
|
|
|
|
|
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EURO2 SPECIFICATION<7AF>
|
8-97189-166-1 |
01 |
1 |
9805-9809 |
|
● |
● |
● |
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL>
EURO2 SPECIFICATION<7AF>
|
8-97189-166-1 |
01 |
1 |
9805-9809 |
|
|
|
|
|
|
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EURO2 SPECIFICATION<7AF>
|
8-97189-166-1 |
01 |
1 |
9810- |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL>
EURO2 SPECIFICATION<7AF>
|
8-97189-166-1 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
HONG KONG EQUIPMENT(PQ1)
CHARGE AIR COOLER<6PL>
|
8-97189-262-1 |
01 |
1 |
9712-9804 |
|
● |
● |
● |
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1)
CHARGE AIR COOLER<6PL>
|
8-97189-262-1 |
01 |
1 |
9712-9804 |
|
|
|
|
|
|
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. EURO2 SPECIFICATION<7AF>
|
8-97189-262-1 |
01 |
1 |
9805- |
|
● |
● |
● |
|
● |
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97140-110-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
|
8-97140-110-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-97062-054-1 |
01 |
1 |
9312-9506 |
|
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-97062-054-1 |
01 |
1 |
9507-9606 |
|
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-97062-054-1 |
01 |
1 |
9607-9705 |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-97062-054-1 |
01 |
1 |
9706- |
|
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4BD2 ENG(RLW)
AIR INTAKE SYSTEM REAR<7TG>
|
8-97062-054-1 |
01 |
1 |
9706- |
|
|
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
HYDRO MASTER<7LT>
|
8-97162-701-0 |
01 |
1 |
9612-9711 |
|
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
|
8-97162-701-0 |
01 |
1 |
9612-9711 |
|
|
|
|
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
HYDRO MASTER<7LT>
|
8-97162-701-1 |
01 |
1 |
9712- |
|
|
● |
● |
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
9-14219-279-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
9-14219-279-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
9-14219-005-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
9-14219-005-0 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9312-9401 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9402-9506 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9402-9506 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9511-9601 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9511-9601 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9511-9601 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9602-9606 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9602-9606 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9602-9606 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
1-14219-225-0 |
02 |
1 |
9612-9704 |
|
|
|
|
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9705-9705 |
|
● |
● |
● |
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9705-9705 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9705-9705 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>,AIR
INTAKE SYSTEM REAR<7TG>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>,AIR
INTAKE SYSTEM REAR<7TG>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
1-14219-225-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
03.406
|
1-14219-139-0 |
01 |
1 |
9312-9401 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
01 |
1 |
9312-9401 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
01 |
1 |
9402-9506 |
|
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
01 |
1 |
9402-9506 |
|
|
● |
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
|
1-14219-225-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
1-14219-225-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94447-990-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
CHARGE AIR COOLER<6PL>
|
8-94447-990-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
4 |
03.403 GASKET; COVER TO BODY
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
9-14213-012-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
|
9-14213-012-0 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.410
|
8-94156-051-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.410
|
8-94156-051-0 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94336-334-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94336-334-0 |
01 |
1 |
9511-9705 |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94336-334-0 |
01 |
1 |
9706- |
|
● |
● |
● |
|
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4BD2 ENG(RLW)
AIR INTAKE SYSTEM REAR<7TG>
|
8-94336-334-0 |
01 |
1 |
9706- |
|
|
|
|
● |
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94361-137-0 |
01 |
1 |
9604-9711 |
|
|
● |
● |
● |
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94361-137-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
4 |
03.403 GASKET; COVER TO BODY
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94361-137-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
|
8-97173-027-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
|
8-97173-027-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9712- |
|
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-210-0 |
01 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-210-0 |
01 |
1 |
9507- |
|
|
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9312-9506 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9312-9506 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9511-9601 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9511-9601 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9511-9601 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9602-9606 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9602-9606 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9602-9606 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9607-9611 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9612-9704 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
|
8-94156-052-0 |
01 |
1 |
9612-9704 |
|
|
|
|
|
● |
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9705-9705 |
|
● |
● |
● |
|
● |
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9705-9705 |
|
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9705-9705 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>,AIR
INTAKE SYSTEM REAR<7TG>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9706-9711 |
|
● |
● |
● |
|
● |
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>,AIR
INTAKE SYSTEM REAR<7TG>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94156-052-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94156-052-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94430-250-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
6 |
03.410 FILTER; ACL
CHARGE AIR COOLER<6PL>
|
8-94430-250-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97062-294-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
6 |
03.410 FILTER; ACL
4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
|
8-97062-294-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-210-0 |
01 |
1 |
9604- |
|
|
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9604-9711 |
|
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
11 |
03.403 BOLT; ACL
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
11 |
03.403 BOLT; ACL
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
09.008
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9602-9704 |
|
|
● |
● |
● |
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9705-9711 |
|
|
● |
● |
● |
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
11 |
03.403 BOLT; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
28 |
03.403 BOLT; WING,ACL
|
9-14217-090-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
28 |
03.403 BOLT; WING,ACL
|
9-14217-090-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
28 |
03.403 BOLT; WING,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14217-090-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
31 |
03.406 SCREW; ACL
03.402
|
8-97097-000-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
31 |
03.406 SCREW; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.402
|
8-97097-000-0 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
31 |
03.406 SCREW; ACL
03.402
|
8-97097-000-0 |
02 |
1 |
9507-9603 |
● |
|
|
|
|
|
|
| |
31 |
03.406 SCREW; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.402
|
8-97097-000-0 |
02 |
1 |
9507-9603 |
|
|
● |
● |
● |
|
|
| |
31 |
03.406 SCREW; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97096-999-0 |
02 |
1 |
9312-9608 |
|
● |
● |
● |
|
|
|
| |
31 |
03.406 SCREW; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.402
|
8-97100-001-0 |
04 |
1 |
9604-9801 |
|
|
● |
● |
● |
|
|
| |
31 |
03.406 SCREW; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.402
|
8-97100-001-0 |
04 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
39 |
03.403 RUBBER; MTG,BOLT
(A)
|
8-97100-002-0 |
04 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
(A)
|
8-97100-002-0 |
04 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97100-002-0 |
04 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
39 |
03.403 RUBBER; MTG,BOLT
(B)
|
8-97100-007-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
(B)
|
8-97100-007-0 |
02 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
39 |
03.403 RUBBER; MTG,BOLT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97100-007-0 |
02 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
49 |
03.403 NUT; ACL
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
49 |
03.403 NUT; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511-9601 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9602-9702 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9602-9702 |
|
|
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9703-9705 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9703-9705 |
|
|
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9703-9705 |
|
|
|
|
● |
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
|
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
AIR CLEANER OIL BATH FOR REAR VERTIC
AL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4BE1 ENG(RLH)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
49 |
03.403 NUT; ACL
4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9703-9711 |
|
|
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
49 |
03.403 NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |

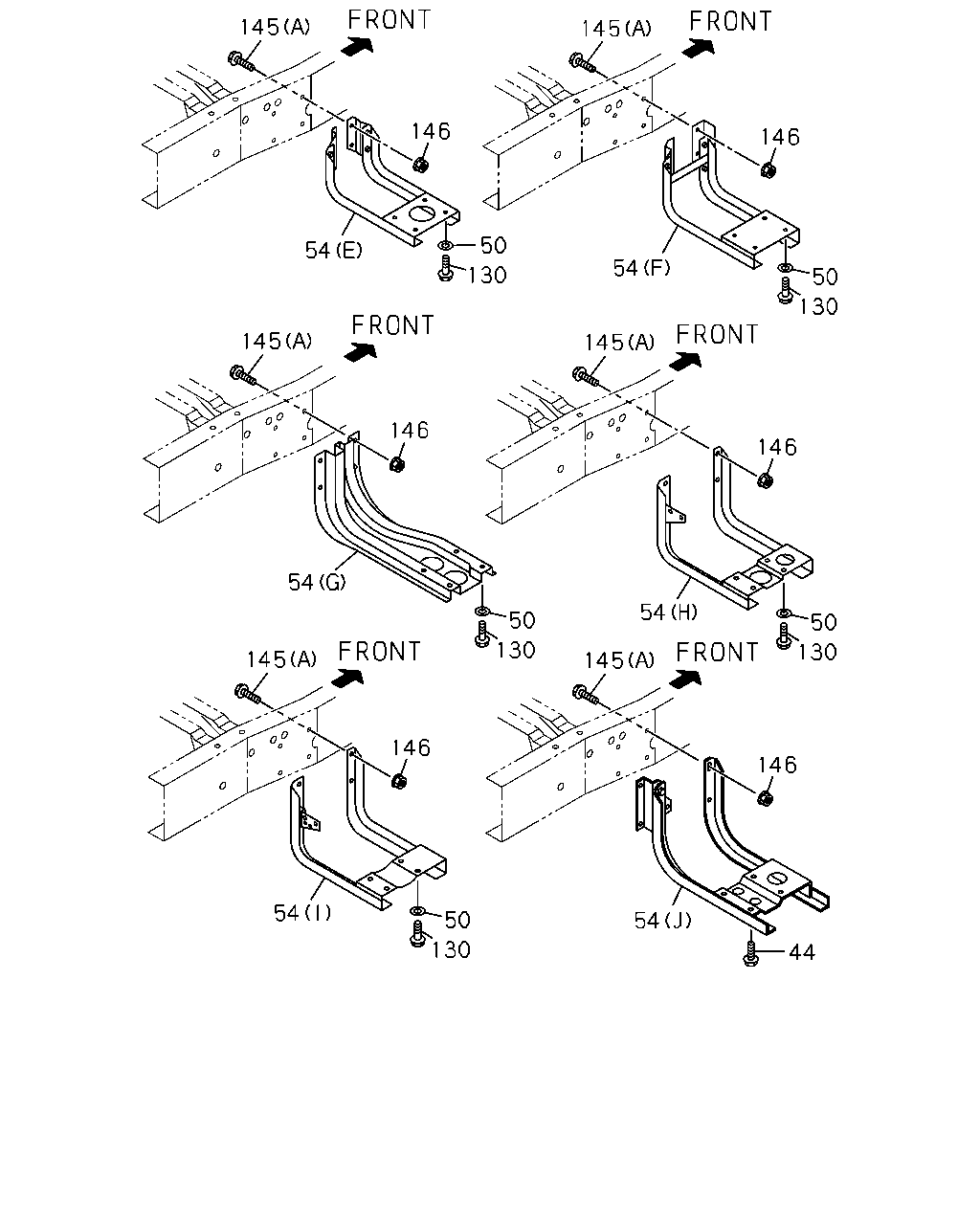

1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
54 |
03.405 BRACKET; ACL
(A)
|
8-97079-949-1 |
01 |
1 |
9312-9406 |
● |
|
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9312-9406 |
|
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(B)
|
8-97079-948-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
(B)
|
8-97079-948-0 |
01 |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
(B)
|
8-97079-948-0 |
01 |
1 |
9511-9705 |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97079-948-0 |
01 |
1 |
9706-9711 |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97079-948-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(A)
|
8-97079-949-1 |
01 |
1 |
9407-9506 |
● |
|
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9407-9506 |
|
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(A)
|
8-97079-949-1 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9511-9601 |
|
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4HF1 ENG(RLS)
(A)
|
8-97079-949-1 |
01 |
1 |
9511-9601 |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97079-949-1 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
54 |
03.405 BRACKET; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),AIR
CLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9312-9408 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94455-317-1 |
01 |
1 |
9312-9408 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),AIR
CLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9409-9506 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94455-317-1 |
01 |
1 |
9409-9506 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9409-9506 |
|
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),AIR
CLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94455-317-1 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),AIR
CLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
(G)
|
8-94455-317-1 |
01 |
1 |
9511-9603 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94455-317-1 |
01 |
1 |
9511-9603 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),AIR
CLEANER OIL BATH FOR REAR
VERTICAL(S5Z),FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-94455-317-1 |
01 |
1 |
9604-9711 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94455-317-1 |
01 |
1 |
9604-9711 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(G)
|
8-94455-317-1 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,AIR CLEANER OIL
BATH FOR REAR VERTICAL(S5Z),FRAME STRA
IGHT TYPE<7KJ>
(G)
|
8-94455-317-1 |
01 |
1 |
9802- |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD1 ENG(LJ6),4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94169-396-2 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BE1 ENG(RLH),4BD2 ENG(RLW)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(G)
|
8-94169-396-2 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TA
IL PIPE<NC4>
EXC. CHARGE AIR COOLER<6PL>
(J)
|
8-97164-474-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-929-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-929-0 |
01 |
1 |
9507-9512 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97146-204-0 |
01 |
1 |
9601-9606 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97146-204-0 |
01 |
1 |
9607-9711 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,CHARGE AIR
COOLER<6PL>
(J)
|
8-97096-710-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(J)
|
8-97096-710-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9407-9510 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9407-9510 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9511-9606 |
|
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9607-9701 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9607-9701 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9702-9711 |
|
● |
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
G.V.W. 4.0-4.5TON(RPR)
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-97106-928-0 |
01 |
1 |
9702-9711 |
|
● |
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTIC
AL TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
9802- |
|
|
● |
● |
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(G)
|
8-94317-608-0 |
01 |
1 |
9312-9408 |
|
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-97106-656-2 |
01 |
1 |
9604-9610 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-97163-389-0 |
01 |
1 |
9611-9611 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(H)
|
8-97163-389-0 |
01 |
1 |
9611-9711 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
(I)
|
8-97188-598-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(I)
|
8-97188-598-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(I)
|
8-97188-598-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97104-407-0 |
01 |
1 |
9511-9611 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97104-407-0 |
01 |
1 |
9612-9703 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
(D)
|
8-97104-407-0 |
01 |
1 |
9612-9703 |
|
|
|
|
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97104-407-0 |
01 |
1 |
9704-9711 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
(D)
|
8-97104-407-0 |
01 |
1 |
9704-9711 |
|
|
|
|
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97104-407-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97146-332-0 |
01 |
1 |
9603-9711 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97146-332-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS)
MINI BUS CHASSIS<V4B>
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97146-332-0 |
01 |
1 |
9802- |
|
|
● |
● |
|
● |
|
| |
54 |
03.405 BRACKET; ACL
AIR INTAKE SYSTEM REAR<7TG>
(E)
|
8-97178-054-0 |
01 |
1 |
9706-9707 |
|
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
AIR INTAKE SYSTEM REAR<7TG>
(F)
|
8-97185-437-0 |
01 |
1 |
9708- |
|
|
|
|
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
76 |
03.405 NUT; BRKT TO ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
90 |
03.406 CUP; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97215-621-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
90 |
03.406 CUP; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97215-621-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
92 |
03.405 CLIP; WIRE,ACL
|
8-94118-230-0 |
03 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
|
8-94118-230-0 |
03 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
92 |
03.405 CLIP; WIRE,ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94118-230-0 |
03 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
(A)
|
8-94439-205-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
(A)
|
8-94439-205-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
(B)
|
8-97030-327-0 |
01 |
1 |
9312-9603 |
● |
|
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97030-327-0 |
01 |
1 |
9312-9603 |
|
● |
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94160-187-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
HEAVY DUTY AIR CLEANER<K46>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
|
8-94160-187-0 |
01 |
1 |
9511- |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9312-9510 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
|
8-94447-157-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9511-9603 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9511-9603 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9604-9611 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH)
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
|
8-94447-157-0 |
01 |
1 |
9604-9611 |
|
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9604-9611 |
|
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9612-9705 |
|
● |
● |
● |
|
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>,AIR
INTAKE SYSTEM REAR<7TG>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9706-9711 |
|
● |
● |
● |
|
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94447-157-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z)
|
8-94447-157-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BE1 ENG(RLH),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. HEAVY DUTY AIR CLEANER<K46>,
AIRCLEANER OIL BATH FOR REAR
VERTICAL(S5Z),MINI BUS CHASSIS<V4B>
|
8-94447-157-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4BD2 ENG(RLW)
AIR INTAKE SYSTEM REAR<7TG>
|
8-94447-157-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
1-14219-075-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
94 |
03.415 VALVE; VACUATOR
CHARGE AIR COOLER<6PL>
|
1-14219-075-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
94 |
03.415 VALVE; VACUATOR
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97093-694-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
● |
● |
| |
94 |
03.415 VALVE; VACUATOR
4BD2 ENG(RLW)
MINI BUS CHASSIS<V4B>
|
8-97093-694-0 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97148-258-0 |
01 |
1 |
9604-9801 |
|
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97148-258-0 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
109 |
03.405 STAY; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97096-175-1 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
109 |
03.405 STAY; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97096-175-1 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
09.003
(B)
M10X35
|
0-28281-035-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
09.003
(B)
M10X35
|
0-28281-035-0 |
02 |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
09.003
(B)
M10X35
|
0-28281-035-0 |
02 |
1 |
9511-9704 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
9705-9705 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
9706-9711 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
00.002
(A)
M10X28
|
0-28481-028-0 |
02 |
1 |
9602-9605 |
|
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9606-9711 |
|
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
09.171
(A)
M10X30 W/LK WASHER
|
0-50041-030-0 |
03 |
1 |
9312-9408 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
09.171
(A)
M10X30 W/LK WASHER
|
0-50041-030-0 |
03 |
1 |
9312-9408 |
|
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9409-9506 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9409-9506 |
|
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9511-9512 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
03 |
1 |
9511-9512 |
|
|
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9601-9606 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9601-9606 |
|
|
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9607-9610 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9607-9610 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9611-9711 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
9611-9711 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9712-9803 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9712-9803 |
|
|
|
|
|
|
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. CHARGE AIR COOLER<6PL>
03.162
M10X35 FLANGE
|
0-28681-035-0 |
05 |
1 |
9804- |
|
● |
● |
● |
|
● |
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
09.171
(A)
M10X30 W/LK WASHER
|
0-50041-030-0 |
04 |
1 |
9312-9408 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9409-9506 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9507-9512 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9601-9611 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9612-9705 |
|
|
|
|
|
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9706-9711 |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9706-9711 |
|
|
|
|
|
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
● |
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
03.162
(A)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9804- |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9402 |
● |
|
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9402 |
|
● |
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9402 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9403-9406 |
● |
|
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9403-9406 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9403-9406 |
|
● |
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9403-9406 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9407-9502 |
● |
|
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9407-9502 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9407-9502 |
|
● |
● |
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9506 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9506 |
|
● |
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9503-9506 |
|
|
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9507-9510 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511-9606 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9607-9610 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9607-9610 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9607-9610 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9611-9705 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9611-9705 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9611-9705 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9706-9711 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9803 |
|
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
05 |
1 |
9804- |
|
● |
● |
● |
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9312-9402 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9402 |
|
● |
● |
● |
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9402 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9402 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9402 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9402 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9403-9502 |
|
● |
● |
● |
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9403-9502 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9403-9502 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9403-9502 |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9403-9502 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9506 |
● |
|
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9506 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9503-9506 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
|
|
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9507-9510 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9611 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9612-9711 |
|
● |
● |
● |
|
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9612-9711 |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4BE1 ENG(RLH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4BD2 ENG(RLW)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. AIR CLEANER OIL BATH FOR REAR V
ERTICAL(S5Z),MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9804- |
|
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9804- |
|
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE SYSTEM REAR<7TG>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9804- |
|
|
|
|
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
|
8-97030-333-0 |
04 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97030-333-0 |
04 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
|
8-97030-333-0 |
04 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97030-333-0 |
04 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97030-333-0 |
04 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97030-333-0 |
04 |
1 |
9602-9604 |
|
|
● |
● |
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97126-074-0 |
04 |
1 |
9604-9711 |
|
|
● |
● |
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97126-074-0 |
04 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
216 |
03.402 BOLT; ACL TO SILENCER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97126-074-0 |
04 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
218 |
03.417 RESONATOR; ACL
|
8-97093-071-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-0 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
● |
|
|
| |
218 |
03.417 RESONATOR; ACL
|
8-97093-071-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-0 |
01 |
1 |
9507-9510 |
|
|
● |
● |
● |
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-1 |
01 |
1 |
9511-9601 |
|
|
● |
|
● |
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-1 |
01 |
1 |
9602-9711 |
|
|
● |
● |
● |
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-1 |
01 |
1 |
9712-9801 |
|
|
● |
● |
● |
|
|
| |
218 |
03.417 RESONATOR; ACL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97093-071-1 |
01 |
1 |
9802- |
|
|
● |
● |
● |
● |
|
| |
218 |
03.417 RESONATOR; ACL
4HF1 ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97093-073-0 |
01 |
1 |
9312-9608 |
|
● |
● |
● |
|
|
|
