0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#34194) — 100 parça

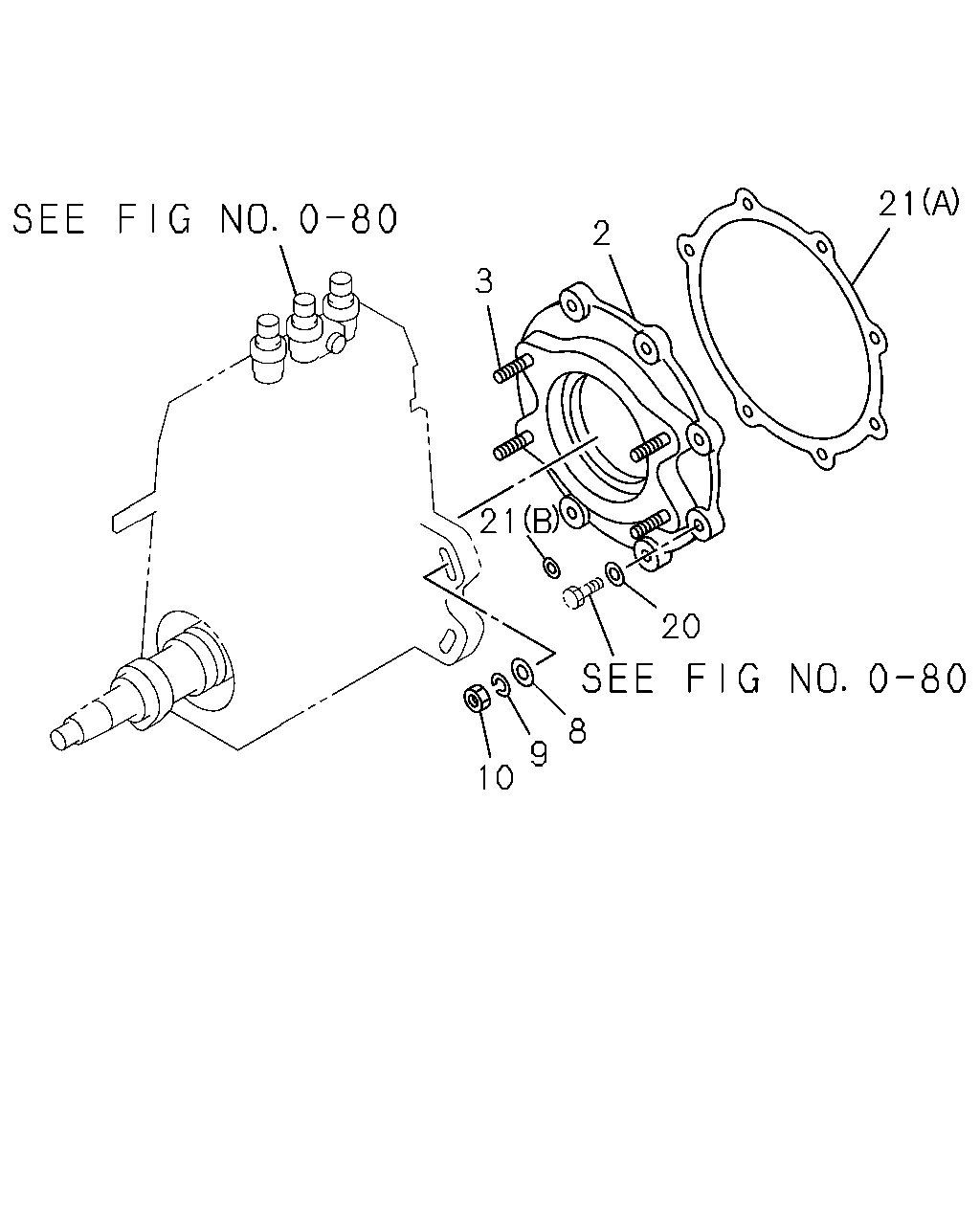

çizim 67778
21 2 3 21 20 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
931220- 		5-19750-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97037-516-0 01 1 9312- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
931220- 		5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9411-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97027-943-0 01 1 9312-9406 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97096-643-0 01 1 9312-9406 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97096-643-0 01 1 9407-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97121-616-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
CHARGE AIR COOLER<6PL> 		8-97188-880-0 01 1 9712- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NQR SGL CAB&EXTEND LONG(NPC5SN) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712-9712 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR SUPER LONG(NP***S) POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712-9712 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NQR SGL CAB&EXTEND LONG(NPC5SN) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9801- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR SUPER LONG(NP***S) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9801- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 9712- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9510 ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511-9705 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511- ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 08.981 M10X30 L=45 		9-04101-030-0 04 1 9511- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9510 ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9511- ● ● ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9312-9406 ● ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9407-9410 ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9407-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9712-9801 ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.002 ID=10.2 		9-09150-610-0 04 1 9802- ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9802- ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9510 ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9511- ● ● ● ● ●
20 03.330 GASKET; INJ PUMP
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9312-9510 ● ● ●
20 03.330 GASKET; INJ PUMP
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9312-9510 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9411-9502 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9503-9510 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9408-9502 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9511-9801 ● ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9802-9807 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9802-9807 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9808- ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9808- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9312- ● ● ●

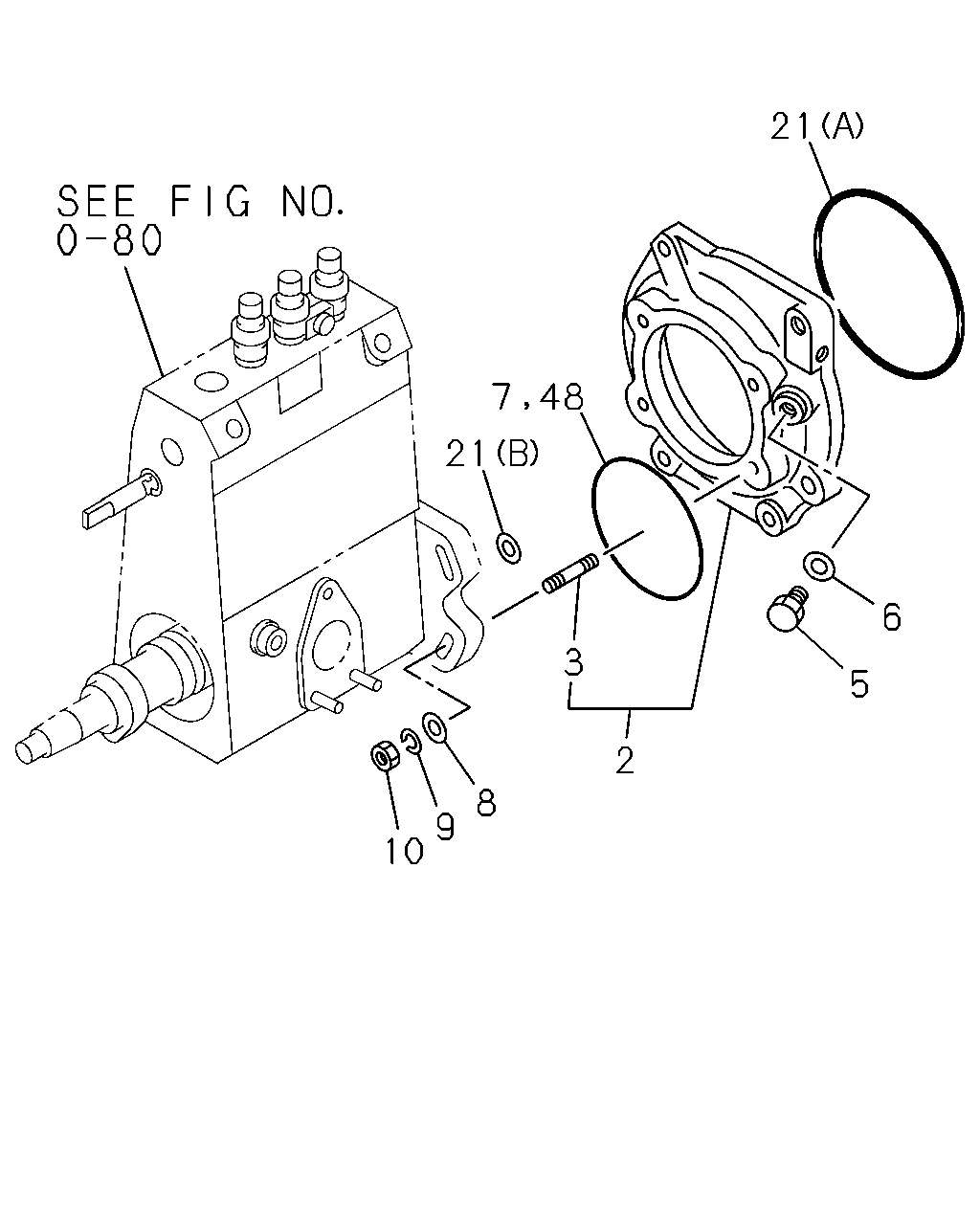

çizim 70622
21 7 48 21 6 3 5 2 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
931220- 		5-19750-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97037-516-0 01 1 9312- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
931220- 		5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9411-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97027-943-0 01 1 9312-9406 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97096-643-0 01 1 9312-9406 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97096-643-0 01 1 9407-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97121-616-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
CHARGE AIR COOLER<6PL> 		8-97188-880-0 01 1 9712- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NQR SGL CAB&EXTEND LONG(NPC5SN) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712-9712 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR SUPER LONG(NP***S) POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712-9712 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NQR SGL CAB&EXTEND LONG(NPC5SN) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9801- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR SUPER LONG(NP***S) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9801- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 9712- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9510 ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511-9705 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511- ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 08.981 M10X30 L=45 		9-04101-030-0 04 1 9511- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9312-9711 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9712-9801 ● ● ●
5 03.306 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9802- ● ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97026-919-0 01 1 9802- ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
03.308 		1-15729-787-0 01 1 9312-9711 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
03.308 		1-15729-787-0 01 1 9712-9801 ● ● ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
03.308 		1-15729-787-0 01 1 9802- ● ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.308 		1-15729-787-0 01 1 9802- ●
7 03.306 GASKET; HSG BRKT,ENG SIDE
CHARGE AIR COOLER<6PL> 		8-97188-881-0 01 1 9712- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9510 ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9511- ● ● ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9312-9406 ● ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9407-9410 ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9407-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9712-9801 ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.002 ID=10.2 		9-09150-610-0 04 1 9802- ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9802- ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9510 ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9511- ● ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9312-9510 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9411-9502 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9503-9510 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9408-9502 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9511-9801 ● ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9802-9807 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9802-9807 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9808- ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9808- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9312- ● ● ●
48 03.306 GASKET; PIPE ADAPTER,INJ PUMP 8-97026-918-0 01 1 9604- ●
