6-31 — FRONT DOOR GLASS AND REGULATOR (#3419) — 126 parça

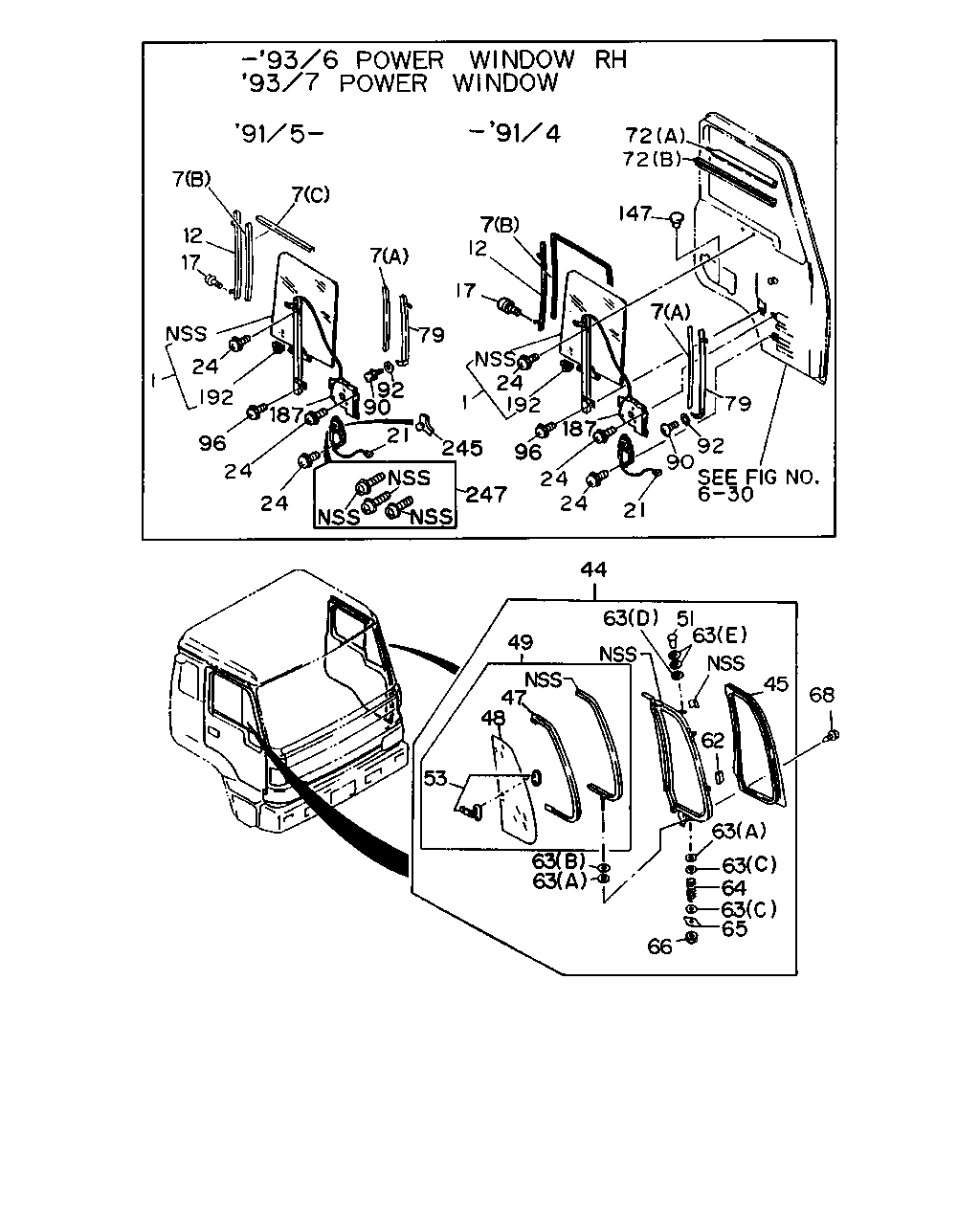

çizim 3647
7 7 12 7 17 7 12 17 79 92 90 187 192 24 1 96 24 24 21 1 247 24 24 96 187 192 24 21 90 92 79 7 147 72 72 44 49 47 48 53 63 51 63 45 68 62 63 63 63 63 64 63 65 66 245
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-134-0 01 1 9009- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-186-0 01 1 9307- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-084-3 01 1 9002- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-080-3 01 1 9002- ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=2180 		1-74317-034-0 02 1 9002-9009 ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=2161 		1-74317-040-0 02 1 9010-9103 ● ● ●
7 GLASS RUN; FRT DOOR
(C) CENTER 		1-74317-044-0 02 1 9104- ● ● ●
7 GLASS RUN; FRT DOOR
(A) FRONT L=635 		1-74317-039-0 02 1 9010-9103 ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=558 		1-74317-042-0 02 1 9104- ● ● ●
7 GLASS RUN; FRT DOOR
(A) FRONT L=620 		1-74317-035-0 02 1 9104- ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-171-6 01 1 9002-9009 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-182-0 01 1 9010-9103 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-170-6 01 1 9002-9009 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-181-0 01 1 9010-9103 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-184-0 01 1 9104- ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-177-0 01 1 9104- ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 06 1 9002- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74417-069-2 01 1 9009- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74417-073-0 01 1 9307- ● ● ●
24 SCREW; WINDOW REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 16 1 9002-9008 ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		1-09981-430-0 06 1 9009- ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		9-03920-616-0 07 1 9009-9306 ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		9-03920-616-0 14 1 9307- ● ● ●
24 SCREW; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		1-09981-430-0 12 1 9009- ● ● ●
44 VENTILATOR ASM; CROSS,FRT DOOR 1-76148-023-4 01 1 9002- ● ● ●
44 VENTILATOR ASM; CROSS,FRT DOOR 1-76148-022-4 01 1 9002- ● ● ●
45 WEATHERSTRIP; CROSS,VENTILATOR 1-76717-050-7 01 1 9002- ● ● ●
45 WEATHERSTRIP; CROSS,VENTILATOR 1-76717-049-7 01 1 9002- ● ● ●
47 PROTECTOR; DIVISION BAR 1-76147-126-0 02 1 9002- ● ● ●
48 GLASS; CROSS VENTILATOR 1-76147-089-2 01 1 9002- ● ● ●
48 GLASS; CROSS VENTILATOR 1-76147-069-2 01 1 9002- ● ● ●
49 FRAME; INNER,CROSS VENTILATOR 1-76148-034-0 01 1 9002- ● ● ●
49 FRAME; INNER,CROSS VENTILATOR 1-76148-032-0 01 1 9002- ● ● ●
51 RIVET; PIVOT,UPR 1-76347-048-0 02 1 9002- ● ● ●
53 HANDLE; CATCH,CROSS VENTILATOR 1-76148-026-0 01 1 9002- ● ● ●
53 HANDLE; CATCH,CROSS VENTILATOR 1-76148-025-0 01 1 9002- ● ● ●
62 SEAL; CROSS VENTILATOR 1-76147-127-0 01 1 9002- ● ● ●
63 WASHER; PL,VENTILATOR
(D) ID=5.0 OD=10 T=0.5 NYLON 		1-76147-113-0 06 1 9002- ● ● ●
63 WASHER; PL,VENTILATOR
(A) OD=13 T=1.0 		1-76347-046-0 04 1 9002- ● ● ●
63 WASHER; PL,VENTILATOR
(E) ID=5.0 T=0.7 		1-76347-047-0 02 1 9002- ● ● ●
63 WASHER; PL,VENTILATOR
(B) ID=6.1 OD=14 T=2.4 		8-94279-609-0 02 1 9002- ● ● ●
63 WASHER; PL,VENTILATOR
(C) ID=6.1 OD=14 T=1 		8-94279-619-0 04 1 9002- ● ● ●
64 SPRING; CROSS VENT 1-76347-045-2 02 1 9002- ● ● ●
65 WASHER; LK,VENTILATOR 8-94279-610-0 02 1 9002- ● ● ●
66 NUT; PIVOT,LWR
M6 		1-76147-112-0 02 1 9002- ● ● ●
68 SCREW; VENTILATOR
M6X12 W/LK&PL WASHER 		1-09981-430-0 06 1 9002- ● ● ●
68 SCREW; VENTILATOR
M6X10 		1-09981-511-0 02 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-094-4 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-145-1 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-093-4 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-144-1 01 1 9002- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-175-1 01 1 9002-9009 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-180-0 01 1 9010-9103 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-183-0 01 1 9104- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-174-1 01 1 9002-9009 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-179-0 01 1 9010-9103 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-176-0 01 1 9104- ● ● ●
90 SCREW; FRT CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 04 1 9002- ● ● ●
92 WASHER; RUBBER,FRT CHANNEL,FRT DOOR
ID=5.5 		1-71997-525-1 02 1 9002- ● ● ●
96 SCREW; GLASS TO REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9009- ● ● ●
147 STOPPER; FRT DOOR GLASS 1-74907-022-0 02 1 9002- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74417-068-0 01 1 9009- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74417-072-0 01 1 9307- ● ● ●
192 HOLDER; DOOR GLASS 1-74427-160-0 04 1 9002- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74417-074-0 02 1 9307- ● ● ●
247 SCREW; SET
POWER WINDOW<A30> 		1-74417-075-0 06 1 9307- ● ● ●
çizim 4366
7 7 12 192 17 1 19 79 96 24 92 36 90 39 7 17 12 7 1 192 24 96 39 36 19 90 92 79 147 7 72 72 188 137 72 72 129 130 188 130
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-134-0 01 1 9009- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-186-0 01 1 9307- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-084-3 01 1 9002- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-080-3 01 1 9002- ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=2180 		1-74317-034-0 02 1 9002-9009 ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=2161 		1-74317-040-0 02 1 9010-9103 ● ● ●
7 GLASS RUN; FRT DOOR
(C) CENTER 		1-74317-044-0 02 1 9104- ● ● ●
7 GLASS RUN; FRT DOOR
(A) FRONT L=635 		1-74317-039-0 02 1 9010-9103 ● ● ●
7 GLASS RUN; FRT DOOR
(B) REAR L=558 		1-74317-042-0 02 1 9104- ● ● ●
7 GLASS RUN; FRT DOOR
(A) FRONT L=620 		1-74317-035-0 02 1 9104- ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-171-6 01 1 9002-9009 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-182-0 01 1 9010-9103 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-170-6 01 1 9002-9009 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-181-0 01 1 9010-9103 ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-184-0 01 1 9104- ● ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-177-0 01 1 9104- ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 06 1 9002- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74417-063-0 01 1 9002-9306 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74417-062-0 01 1 9002- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74417-063-0 01 1 9307- ● ● ●
24 SCREW; WINDOW REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 16 1 9002-9008 ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		1-09981-430-0 06 1 9009- ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		9-03920-616-0 07 1 9009-9306 ● ● ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		9-03920-616-0 14 1 9307- ● ● ●
24 SCREW; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		1-09981-430-0 12 1 9009- ● ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
POWER WINDOW<A30> 		1-74458-020-0 01 1 9009-9306 ● ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		1-74458-020-0 02 1 9002- ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		5-74457-001-3 01 1 9009-9306 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> 		5-74457-001-3 02 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-094-4 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-145-1 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-093-4 01 1 9002- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-144-1 01 1 9002- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-175-1 01 1 9002-9009 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-180-0 01 1 9010-9103 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-183-0 01 1 9104- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-174-1 01 1 9002-9009 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-179-0 01 1 9010-9103 ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-176-0 01 1 9104- ● ● ●
90 SCREW; FRT CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 04 1 9002- ● ● ●
92 WASHER; RUBBER,FRT CHANNEL,FRT DOOR
ID=5.5 		1-71997-525-1 02 1 9002- ● ● ●
96 SCREW; GLASS TO REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9009- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-142-4 01 1 9002-9204 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-183-0 01 1 9205- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-141-4 01 1 9002-9204 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-182-0 01 1 9205- ● ● ●
130 SEAL; DOOR,SUB LWR
(A) 		1-76717-070-3 01 1 9002- ● ● ●
130 SEAL; DOOR,SUB LWR
(A) 		1-76717-069-3 01 1 9002- ● ● ●
130 SEAL; DOOR,SUB LWR
DECAL ISUZU FRONT PANEL<TAM> (B) 		1-76718-164-1 01 1 9307- ● ● ●
130 SEAL; DOOR,SUB LWR
DECAL ISUZU FRONT PANEL<TAM> (B) 		1-76718-163-1 01 1 9307- ● ● ●
137 SEAL; DOOR SUB,UPR 1-76717-065-1 01 1 9002-9008 ● ● ●
137 SEAL; DOOR SUB,UPR 1-76717-086-0 01 1 9009- ● ● ●
137 SEAL; DOOR SUB,UPR 1-76717-064-1 01 1 9002-9008 ● ● ●
137 SEAL; DOOR SUB,UPR 1-76717-085-0 01 1 9009- ● ● ●
147 STOPPER; FRT DOOR GLASS 1-74907-022-0 02 1 9002- ● ● ●
188 PROTECTOR; DOOR SEAL
(A) WHITE 		1-79998-579-0 01 1 9111- ● ● ●
188 PROTECTOR; DOOR SEAL
(A) WHITE 		1-79998-577-0 01 1 9111- ● ● ●
188 PROTECTOR; DOOR SEAL
(B) CLEAR 		1-79997-320-1 01 1 9112- ● ● ●
188 PROTECTOR; DOOR SEAL
(B) CLEAR 		1-79997-319-1 01 1 9112- ● ● ●
192 HOLDER; DOOR GLASS 1-74427-160-0 04 1 9002- ● ● ●
