0-85C — AUTO TIMER; INJECTION PUMP (#34189) — 45 parça

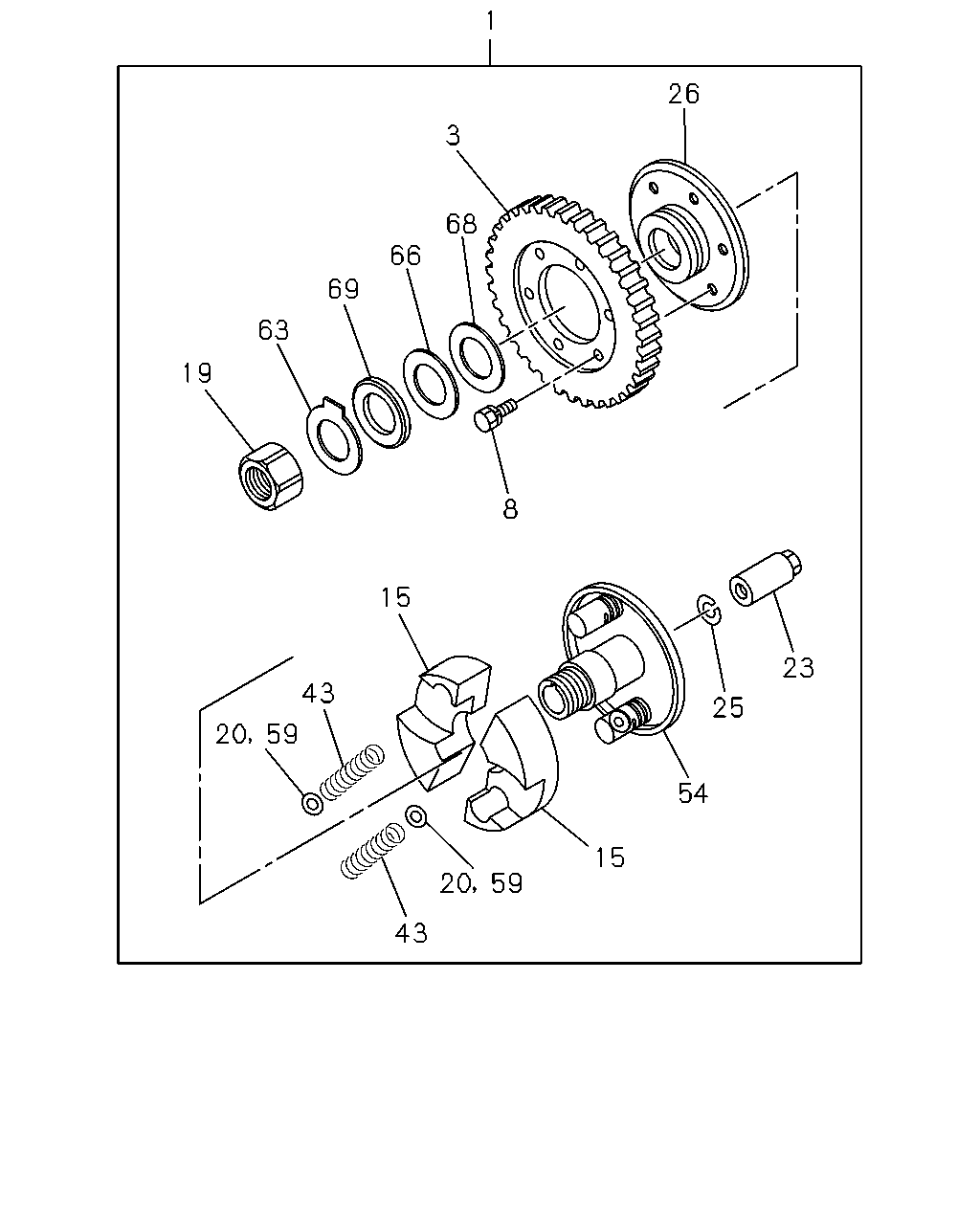

çizim 70568
1 26 3 68 66 69 63 19 8 15 23 43 25 20 59 54 15 20 59 43
BalonParca AdiParca NoAdetTipApplied Date
1 03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97112-390-1 01 1 -
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-12524-026-0 01 1 -
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: C = 8-97132-050-2, 97132050 		5-12524-026-0 01 1 -9509
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: C = 8-97132-050-2, 97132050 		8-97136-013-0 01 1 9510-
8 03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94457-517-0 06 1 -
15 03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97102-864-0 02 1 -
19 03.340 NUT
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-306-0 01 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.20 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-009-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-010-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-011-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.40 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-068-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-069-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.80 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-070-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15749-071-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.10 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		9-81345-043-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.30 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		9-81345-044-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.50 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		9-81345-045-0 AR 1 -
23 03.340 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15619-001-0 01 1 -
25 03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		5-15619-048-0 01 1 -
26 03.330 FLANGE; TIMER,INJ PUMP
03.340 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81343-303-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97102-865-0 02 1 -
54 03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		5-15749-001-0 01 1 -
59 03.330 SHIM; SPR,TIMER
T=0.20 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-009-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.60 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-010-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=1.00 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-011-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.40 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-068-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.70 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-069-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.80 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-070-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.90 ASM PART: C = 8-97132-050-2, 97132050 		5-15749-071-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.10 ASM PART: C = 8-97132-050-2, 97132050 		9-81345-043-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.30 ASM PART: C = 8-97132-050-2, 97132050 		9-81345-044-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.50 ASM PART: C = 8-97132-050-2, 97132050 		9-81345-045-0 AR 1 -
63 03.340 PLATE; NUT LOCK,TIMER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-052-0 01 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.25 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94372-518-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.40 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97102-868-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.12 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-325-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.16 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-327-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.18 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-328-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.50 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-329-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.20 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-330-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.30 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-331-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.10 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-332-0 AR 1 -
66 03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.14 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-340-0 AR 1 -
68 03.340 WASHER; FLANGE,TIMER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81345-338-0 01 1 -
69 03.340 WASHER; FLANGE FIX,TIMER,INJ PUM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		5-15749-007-0 01 1 -
