0-85B — AUTO TIMER; INJECTION PUMP (#34188) — 44 parça

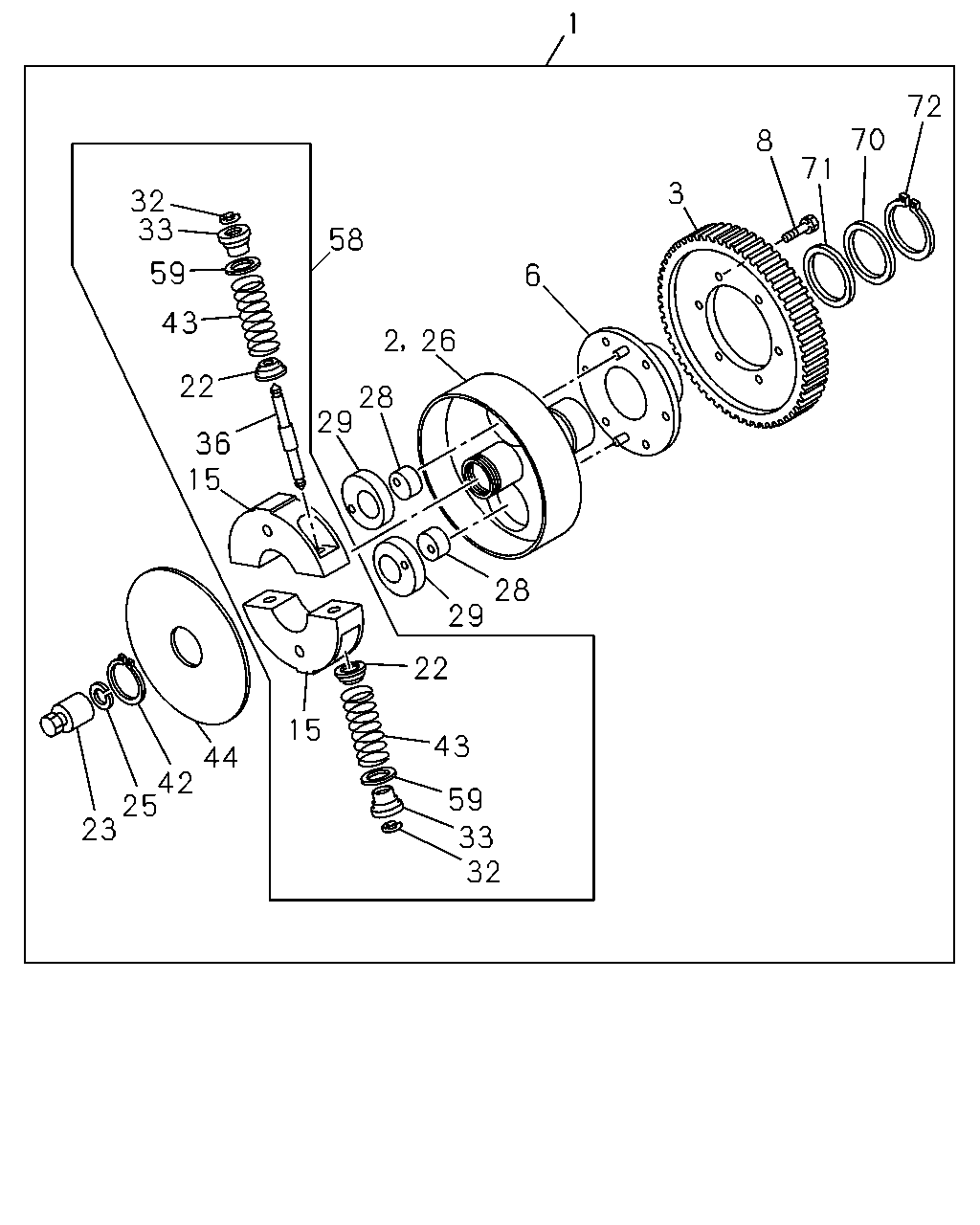

çizim 68493
1 72 70 8 71 3 2 33 58 59 6 43 2 26 22 28 29 36 15 28 29 22 15 43 44 42 25 23 59 33 32
BalonParca AdiParca NoAdetTipApplied Date
1 03.340 TIMER ASM; INJ PUMP
ASM PART: B = 8-97117-564-1, 97117564 		8-94415-406-1 01 1 9510-
1 03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497 		8-97104-665-0 01 1 -
1 03.340 TIMER ASM; INJ PUMP
ASM PART: B = 8-97117-564-1, 97117564 		8-97104-665-0 01 1 -9509
2 03.340 HOUSING; TIMER,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497 		8-94472-286-0 01 1 -
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497 		5-12524-045-0 01 1 -
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: B = 8-97117-564-1, 97117564 		5-12524-045-0 01 1 -9509
6 03.340 FLANGE; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-764-0 01 1 -
8 03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94457-517-0 06 1 -
15 03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94413-745-0 02 1 -
22 03.340 SEAT; INNER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-763-0 04 1 -
23 03.340 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94472-290-0 01 1 -
25 03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94472-289-0 01 1 -
26 03.330 FLANGE; TIMER,INJ PUMP
03.340 ASM PART: B = 8-97117-564-1, 97117564 		8-94472-286-0 01 1 -
28 03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94172-269-0 02 1 -
29 03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97093-497-0, 97093497 		8-94172-268-0 02 1 -
29 03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P
ASM PART: B = 8-97117-564-1, 97117564 		9-84172-268-0 02 1 -
32 03.330 RING; SNAP,SPRING SEAT,TIMER,INJ
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		1-15749-135-0 04 1 -
33 03.340 SEAT; OUTER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		1-15749-134-0 04 1 -
36 03.340 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		9-84132-749-0 02 1 -
42 03.340 RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-777-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94413-746-0 04 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=1.90 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-774-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=2.00 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-775-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=2.10 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-776-0 AR 1 -
58 03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94413-744-0 01 1 -
59 03.330 SHIM; SPR,TIMER
T=0.10 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-983-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.20 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-984-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.30 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-985-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.40 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-986-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.50 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-987-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.60 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-988-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.70 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-989-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.80 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-990-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=0.90 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-991-0 AR 1 -
59 03.330 SHIM; SPR,TIMER
T=1.00 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94339-992-0 AR 1 -
70 03.340 SHIM; FLANGE,TIMER
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-765-0 01 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.10 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-766-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.12 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-767-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.14 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-768-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.16 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-769-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.18 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-770-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.20 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-771-0 AR 1 -
71 03.340 SHIM; FLANGE,TIMER
T=0.30 ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-772-0 AR 1 -
72 03.340 RING; SNAP,FLANGE TIMER
ASM PART: A = 8-97093-497-0, 97093497, B = 8-97117-564-1, 97117564 		8-94132-773-0 01 1 -
