Sayfa 0-84E - Isuzu EPC

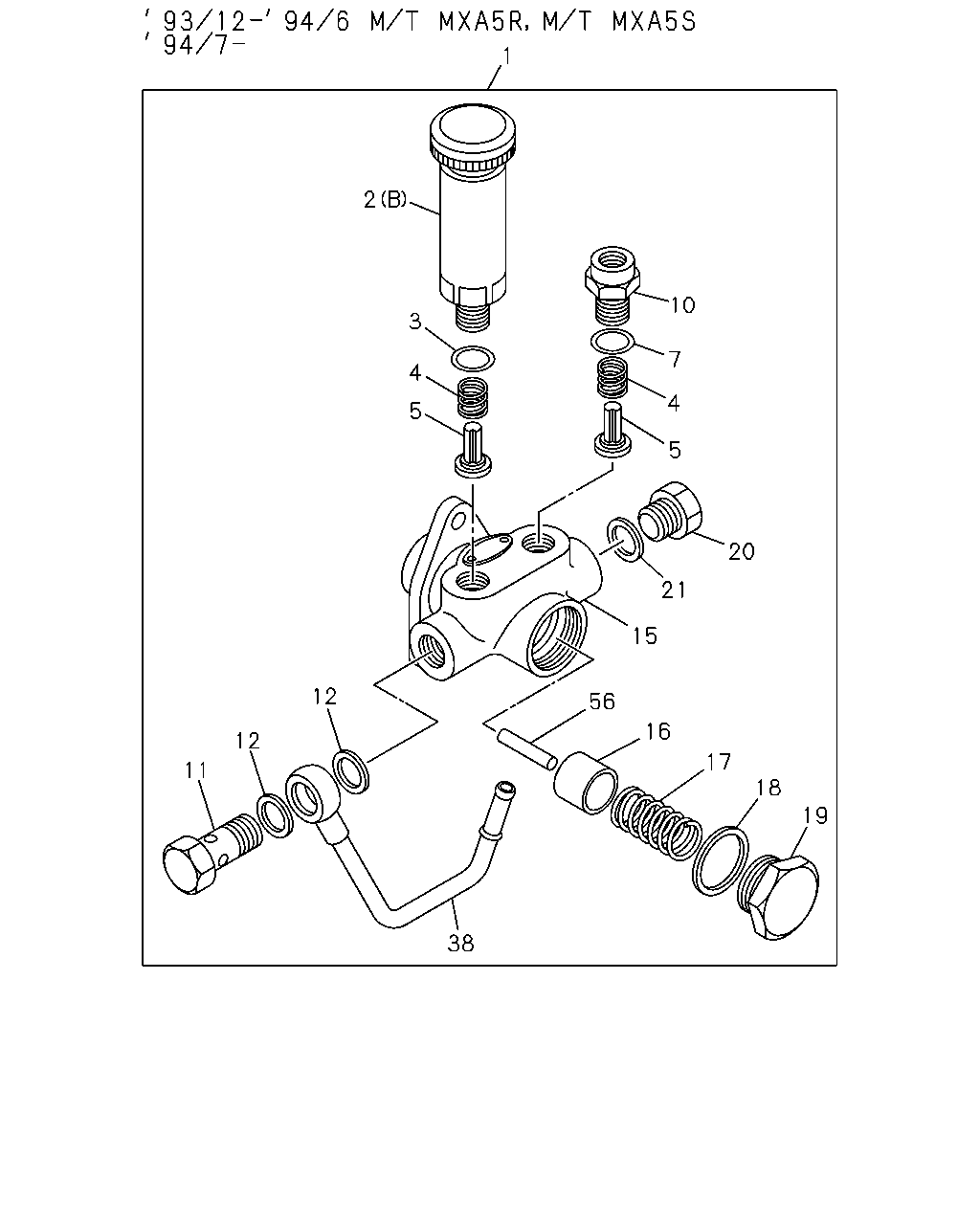

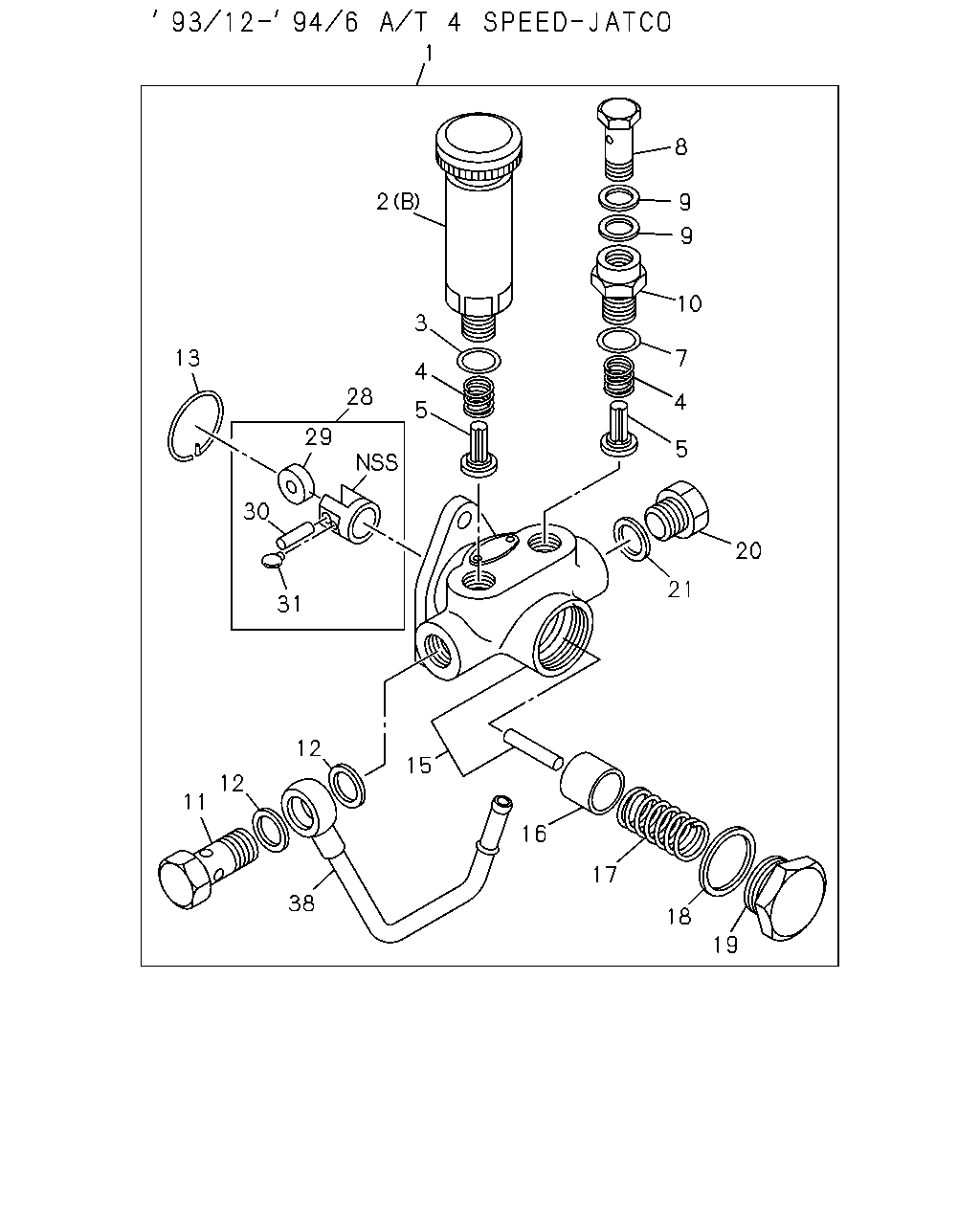

0-84E — FEED PUMP; INJECTION PUMP (#34184) — 50 parça

1 8 2 9 9 10 3 13 7 4 28 4 5 29 5 30 20 21 31 12 15 12 11 16 17 38 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97096-770-1, 97096770	8-97093-761-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97075-399-2, 97075399, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97114-351-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-19623-016-0	01	1	-
8	03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	1-15759-011-0	01	1	-
9	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 03.163, ID=14.2 OD=19.2 ASM PART: B = 8-97096-770-1, 97096770	1-09630-085-0	02	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-029-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-09630-085-0	02	1	-
13	03.901 RING; SNAP,TAPPET,FUEL FEED PUMP 03.904 ASM PART: B = 8-97096-770-1, 97096770	9-81355-025-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	8-94472-292-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97114-005-0, 97114005	1-15725-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-042-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-007-0	01	1	-
28	03.935 TAPPET ASM; FUEL FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	5-15754-001-0	01	1	-
29	03.901 ROLLER; TAPPET,FUEL FEED PUMP 03.935 ASM PART: B = 8-97096-770-1, 97096770	9-81351-403-0	01	1	-
30	03.901 PIN; TAPPET ROLLER,FUEL FEED PUM 03.935 ASM PART: B = 8-97096-770-1, 97096770	9-81351-410-0	01	1	-
31	03.901 GUIDE; TAPPET,FUEL FEED PUMP 03.935 ASM PART: B = 8-97096-770-1, 97096770	1-15759-002-0	02	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97093-411-0	01	1	-

1 2 10 3 7 4 4 5 5 20 21 15 12 56 16 12 17 11 18 19 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97096-770-1, 97096770	8-97093-761-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97075-399-2, 97075399, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97114-351-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-19623-016-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-029-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-09630-085-0	02	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	8-94472-292-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97114-005-0, 97114005	1-15725-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: B = 8-97096-770-1, 97096770	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-042-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	1-15759-007-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97075-399-2, 97075399, B = 8-97096-770-1, 97096770, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97093-411-0	01	1	-
56	03.901 PUSH ROD ASM PART: A = 8-97075-399-2, 97075399, C = 8-97114-005-0, 97114005, D = 8-97114-013-0, 97114013, E = 8-97114-014-0, 97114014, F = 8-97136-658-0, 97136658, G = 8-97136-659-0, 97136659, H = 8-97139-556-0, 97139556, I = 8-97141-748-0, 97141748, J = 8-97146-780-0, 97146780, K = 8-97146-781-0, 97146781, L = 8-97146-784-0, 97146784, M = 8-97146-787-0, 97146787	8-97115-991-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
