0-84C — FEED PUMP; INJECTION PUMP (#34182) — 54 parça

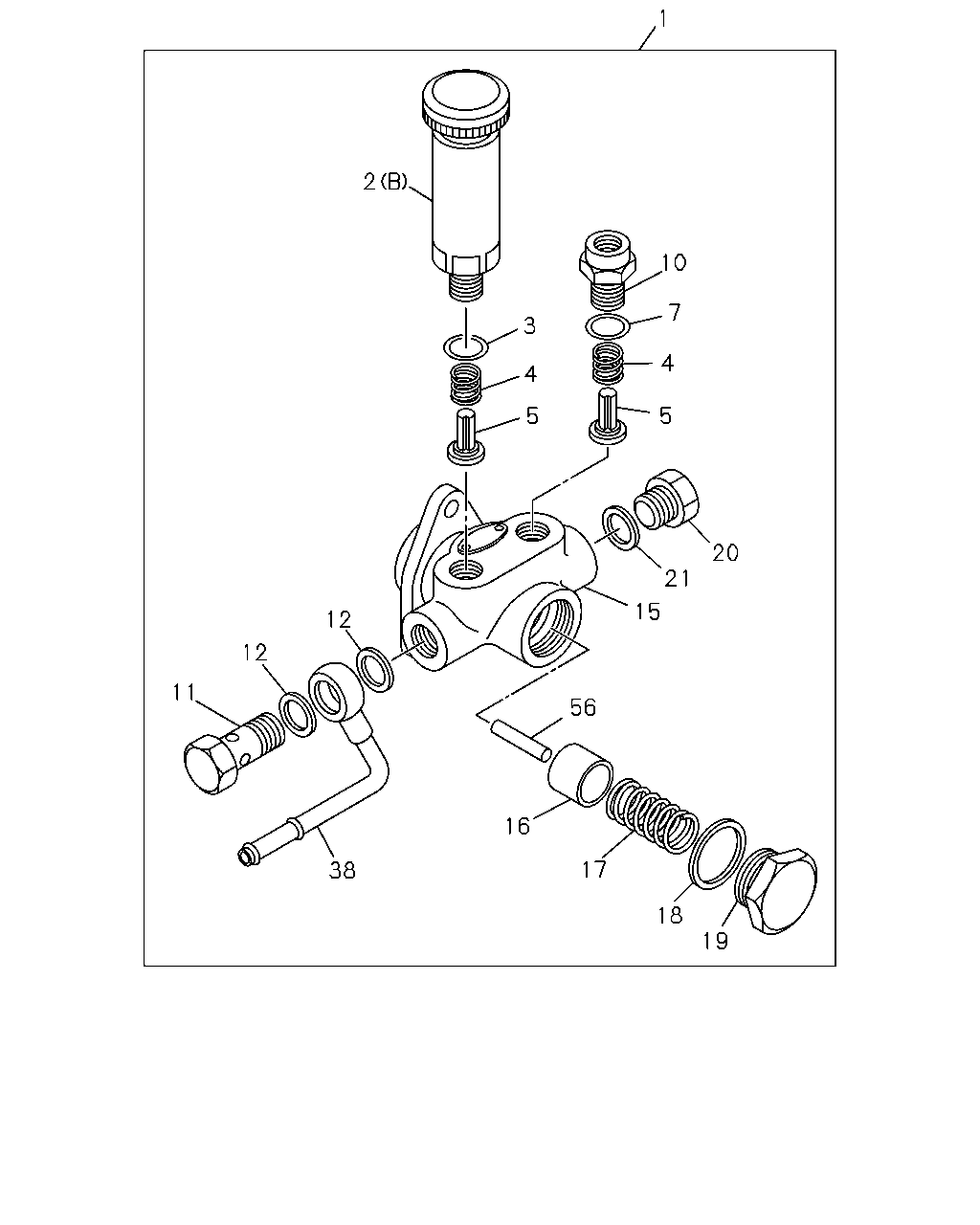

1 2 10 7 3 4 4 5 5 20 21 15 12 12 11 56 16 17 38 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97093-684-2, 97093684	8-97103-242-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97115-977-1	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15761-006-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (A) ASM PART: A = 8-97093-684-2, 97093684	8-94131-130-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15755-002-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	9-81351-602-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-19623-016-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	5-15759-027-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-001-0	02	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	8-94171-184-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97093-684-2, 97093684	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-007-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97083-357-0	01	1	-
56	03.901 PUSH ROD ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97115-991-0	01	1	-

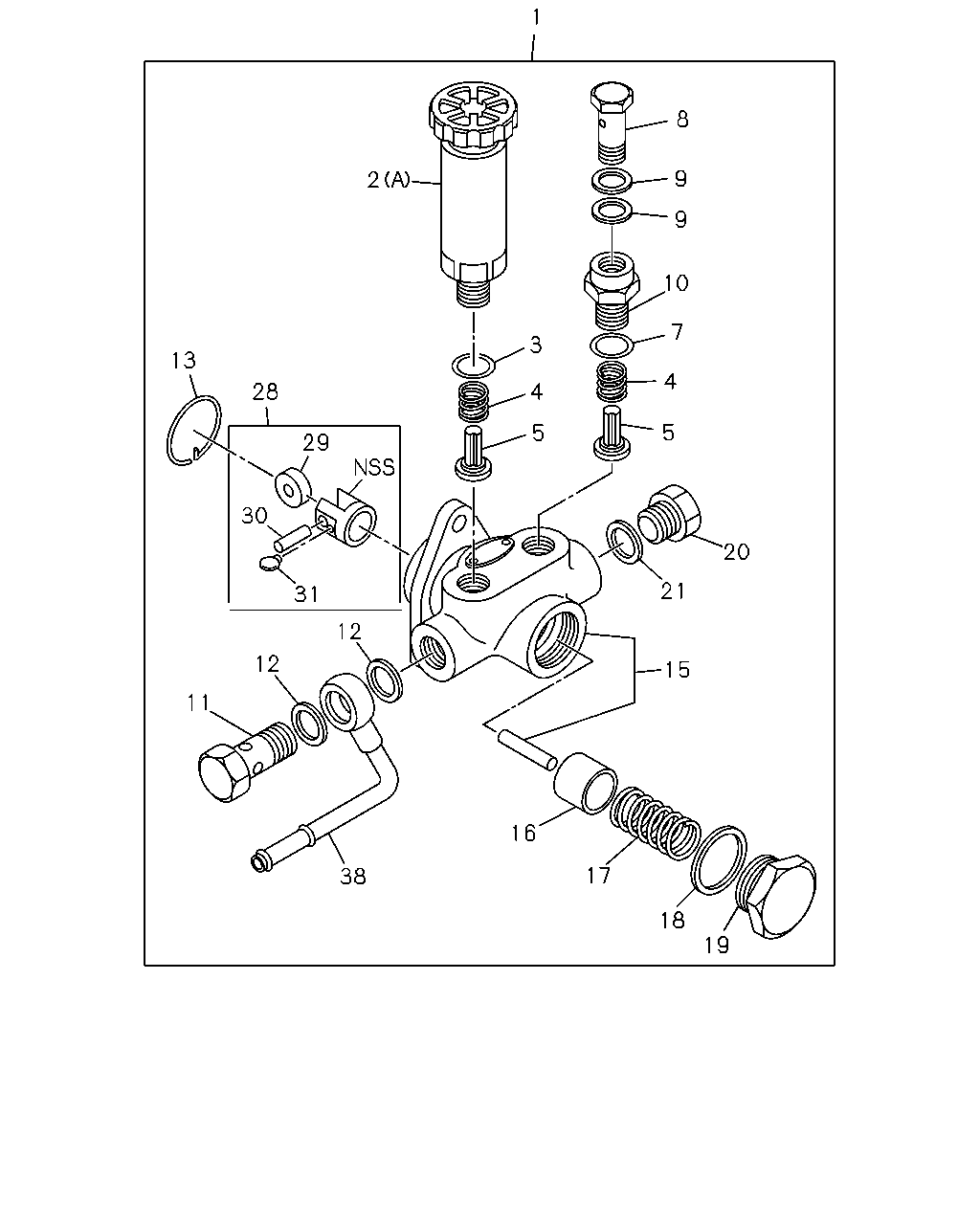

1 8 9 2 9 10 7 3 13 4 28 4 5 5 29 30 20 21 31 12 12 15 11 16 17 38 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97093-684-2, 97093684	8-97103-242-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97115-977-1	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15761-006-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (A) ASM PART: A = 8-97093-684-2, 97093684	8-94131-130-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15755-002-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	9-81351-602-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-19623-016-0	01	1	-
8	03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	1-15619-082-0	01	1	-
9	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE ASM PART: A = 8-97093-684-2, 97093684	1-15759-001-0	02	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	5-15759-027-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-001-0	02	1	-
13	03.901 RING; SNAP,TAPPET,FUEL FEED PUMP 03.904 ASM PART: A = 8-97093-684-2, 97093684	9-81355-025-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	8-94171-184-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97093-684-2, 97093684	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	1-15759-007-0	01	1	-
28	03.935 TAPPET ASM; FUEL FEED PUMP ASM PART: A = 8-97093-684-2, 97093684	5-15754-001-0	01	1	-
29	03.901 ROLLER; TAPPET,FUEL FEED PUMP 03.935 ASM PART: A = 8-97093-684-2, 97093684	9-81351-403-0	01	1	-
30	03.901 PIN; TAPPET ROLLER,FUEL FEED PUM 03.935 ASM PART: A = 8-97093-684-2, 97093684	9-81351-410-0	01	1	-
31	03.901 GUIDE; TAPPET,FUEL FEED PUMP 03.935 ASM PART: A = 8-97093-684-2, 97093684	1-15759-002-0	02	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050	8-97083-357-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
