Sayfa 0-82E - Isuzu EPC

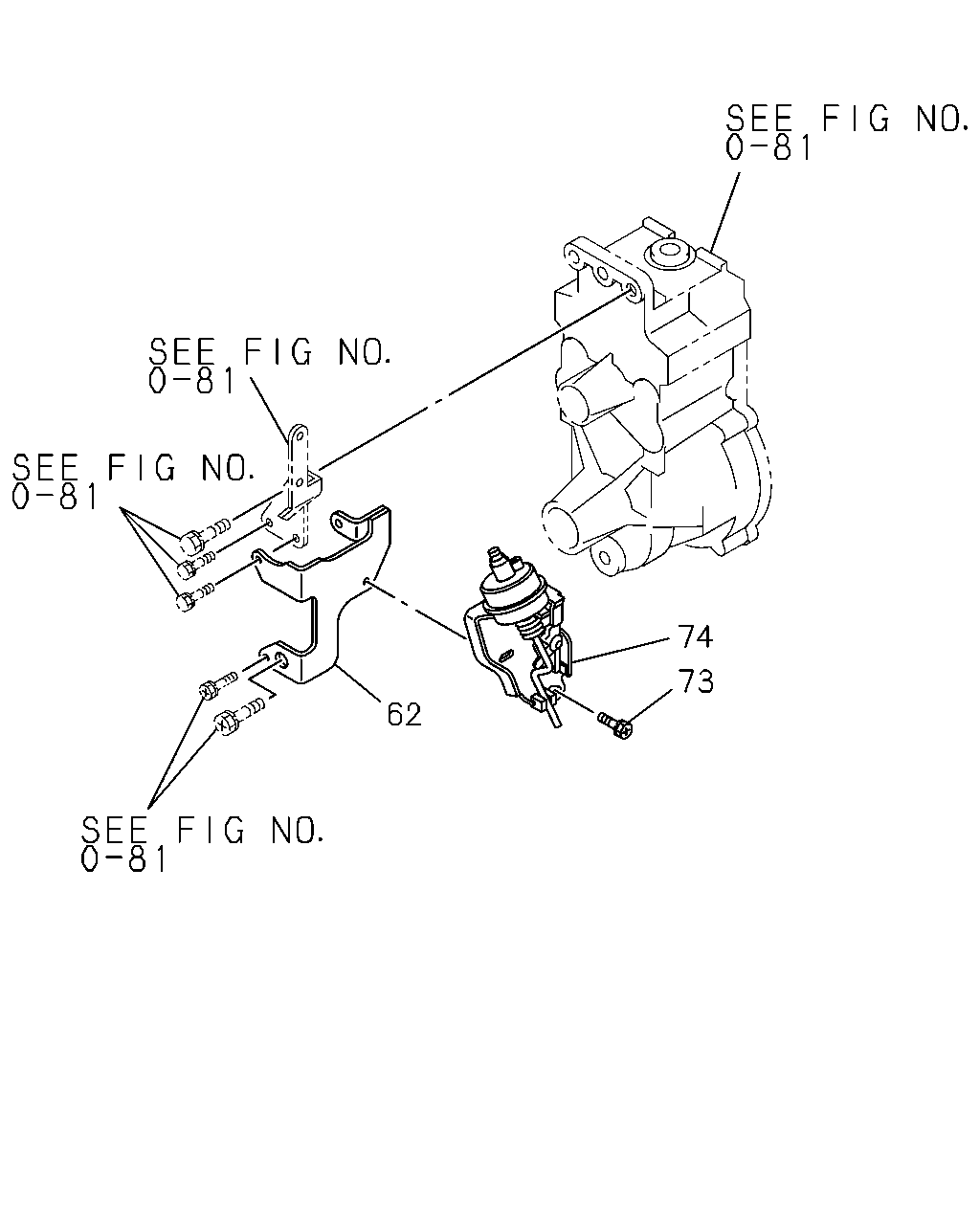

0-82E — BOOST COMPENSATOR; INJECTION GOVERNOR (#34173) — 3 parça

74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97136-659-0, 97136659, B = 8-97141-748-0, 97141748, C = 8-97146-781-0, 97146781, D = 8-97146-787-0, 97146787	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97136-659-0, 97136659, B = 8-97141-748-0, 97141748, C = 8-97146-781-0, 97146781, D = 8-97146-787-0, 97146787	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97136-659-0, 97136659, B = 8-97141-748-0, 97141748, C = 8-97146-781-0, 97146781, D = 8-97146-787-0, 97146787	8-97037-274-3	01	1	-
