0-82C — BOOST COMPENSATOR; INJECTION GOVERNOR (#34172) — 82 parça

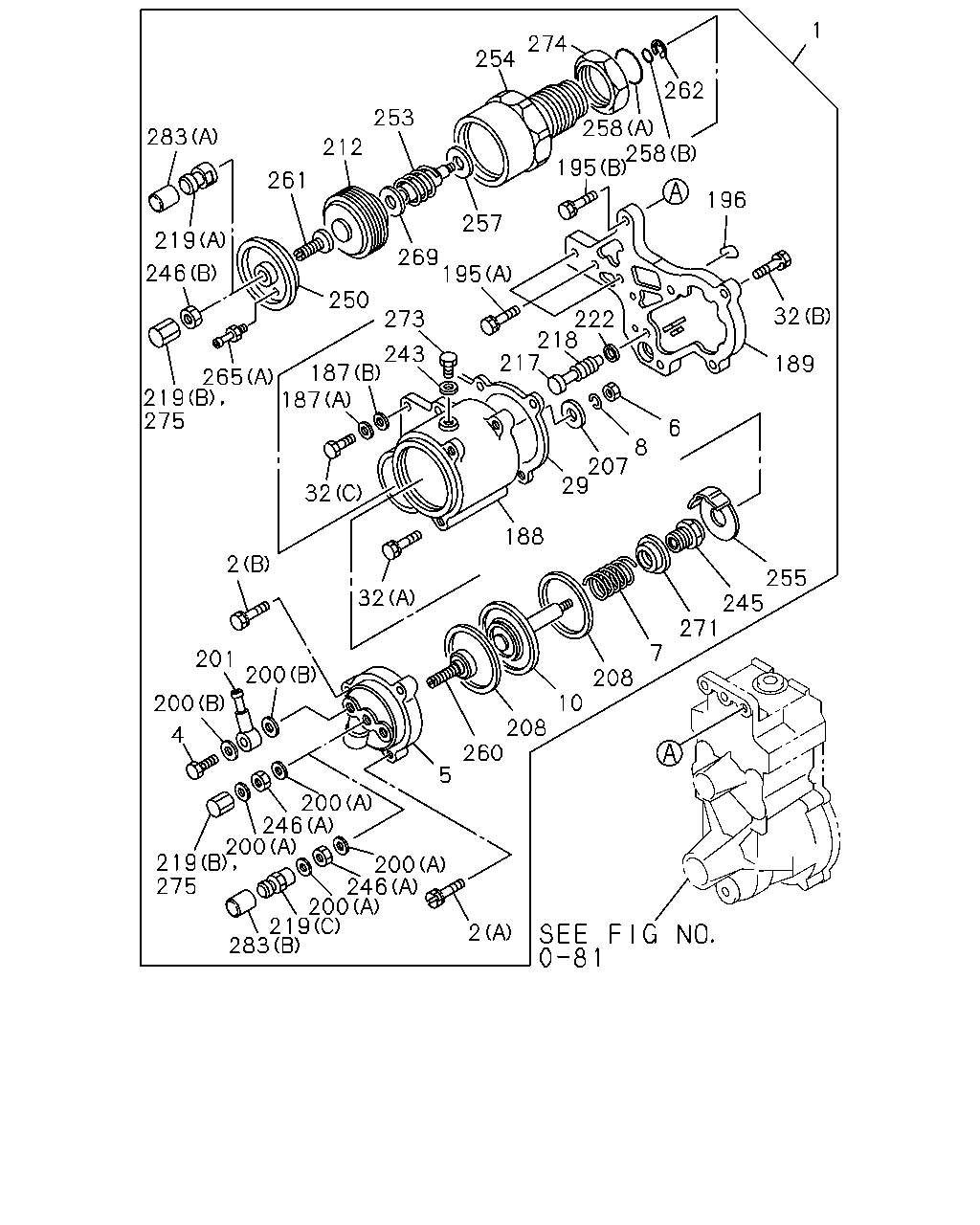

çizim 16043
1 274 254 262 253 258 258 195 283 212 261 196 257 219 269 195 246 250 32 273 222 218 217 243 187 187 189 265 219 275 6 8 207 29 32 188 2 255 245 271 32 7 201 200 208 10 200 208 260 4 5 200 246 200 219 275 200 246 200 219 283 2
BalonParca AdiParca NoAdetTipApplied Date
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		8-97104-944-0 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-97132-050-2, 97132050 		8-97137-791-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		5-15729-297-0 02 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		8-97029-204-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
(A),(B) ASM PART: C = 8-97132-050-2, 97132050 		9-81325-321-0 03 1 -
4 03.485 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-325-0 01 1 -
5 03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15619-283-0 01 1 -
6 03.320 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-249-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97104-949-0 01 1 -
8 03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
00.206, ID=6.1 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-09150-506-0 01 1 -
10 03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-286-0 01 1 -
29 03.306 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97104-950-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
08.900, (C) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-02050-616-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
(A), M6X20 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-81325-187-0 02 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.306, (B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-88410-094-0 03 1 -
187 03.485 WASHER; LK,BOOST COMPENSATOR FIX
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-295-0 01 1 -
187 03.485 WASHER; LK,BOOST COMPENSATOR FIX
02.183, (A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-09160-606-0 01 1 -
188 03.485 HOUSING; BOOST COMPENSATOR,INJ P
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-281-1 01 1 -
189 03.485 SPACER; BOOST COMPENSATOR HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-282-1 01 1 -
195 03.306 BOLT; SPACER FIX,BOOST COMPENSAT
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-283-0 01 1 -
195 03.306 BOLT; SPACER FIX,BOOST COMPENSAT
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-88410-094-0 03 1 -
196 03.306 GASKET; SPACER,BOOST COMPENSATOR
03.485 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94424-220-0 01 1 -
200 03.306 GASKET; EYE BOLT,BOOST COMPENSAT
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-849-0 02 1 -
200 03.306 GASKET; EYE BOLT,BOOST COMPENSAT
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-868-0 02 1 -
201 03.306 JOINT; HOSE
03.326 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94171-178-0 01 1 -
207 03.320 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-248-0 01 1 -
208 03.320 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15779-129-0 02 1 -
212 03.320 BELLOWS; BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-622-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=125.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-245-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
03.308, L=127.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-282-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=128.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-283-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=127.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-284-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=126.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-285-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=129.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-286-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=128.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-287-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=125.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-288-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=126.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-289-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=119.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-290-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=120.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-291-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=120.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-292-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=121.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-293-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=121.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-294-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=122.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-295-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=122.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-296-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=123.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-297-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=123.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94172-298-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=129.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-435-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=130.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-436-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=130.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-437-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=131.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-438-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=131.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-439-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=132.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-440-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=132.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-441-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=133.0 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-442-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
L=133.5 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94443-443-0 01 1 -
218 03.320 SPRING; PUSH ROD,BOOST COMPENSAT
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94171-176-0 01 1 -
219 03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
03.330, (B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		1-15729-093-0 01 1 -
219 03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
(A) ASM PART: C = 8-97132-050-2, 97132050 		8-17137-793-0 01 1 -
219 03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
(C) ASM PART: C = 8-97132-050-2, 97132050 		8-97137-792-0 01 1 -
222 03.330 WASHER; PUSH ROD,BOOST COMPENSAT
09.190 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-83539-045-0 01 1 -
243 03.306 GASKET; HSG
01.531, L=96 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-066-0 01 1 -
245 03.306 BUSHING; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97104-945-0 01 1 -
246 03.306 NUT; SET BOLT
03.308, (B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		9-81325-081-0 01 1 -
246 03.306 NUT; SET BOLT
08.845, (A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		9-88410-525-0 01 1 -
250 03.306 COVER; HSG
03.330 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15721-103-0 01 1 -
253 03.306 SPRING; PUSH ROD
03.320 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15723-258-0 01 1 -
254 03.485 HOUSING; BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-289-1 01 1 -
255 03.306 PLATE; DIAPHRAGM
03.314 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94122-719-0 01 1 -
257 03.306 SHIM; SPRING
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-292-0 01 1 -
258 03.306 GASKET; HSG
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-290-0 01 1 -
258 03.306 GASKET; HSG
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-291-0 01 1 -
260 03.320 SCREW; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-287-0 01 1 -
261 03.320 BOLT; SET,BELLOWS
03.306 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-342-0 01 1 -
262 03.306 RING; SNAP,HSG
03.330 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-94244-599-0 01 1 -
265 03.306 JOINT; HOSE
03.320, (A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		1-15729-360-0 01 1 -
269 03.306 ROD; PUSH,BELLOWS
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-293-0 01 1 -
271 03.320 NUT; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97104-978-0 01 1 -
273 03.306 PLUG; HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-288-0 01 1 -
274 03.306 NUT; HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565, C = 8-97132-050-2, 97132050 		8-97037-294-0 01 1 -
275 03.306 NUT; CAP,SET BOLT
03.330, CAP NUT ASM PART: A = 8-97093-684-2, 97093684, B = 8-97117-565-0, 97117565 		1-15729-093-0 01 1 -
283 03.320 CAP; NUT,ADJ SCREW
(A) ASM PART: C = 8-97132-050-2, 97132050 		8-97137-794-0 01 1 -
283 03.320 CAP; NUT,ADJ SCREW
(B) ASM PART: C = 8-97132-050-2, 97132050 		8-97137-795-0 01 1 -
