0-81F — GOVERNOR; INJECTION PUMP (#34169) — 170 parça

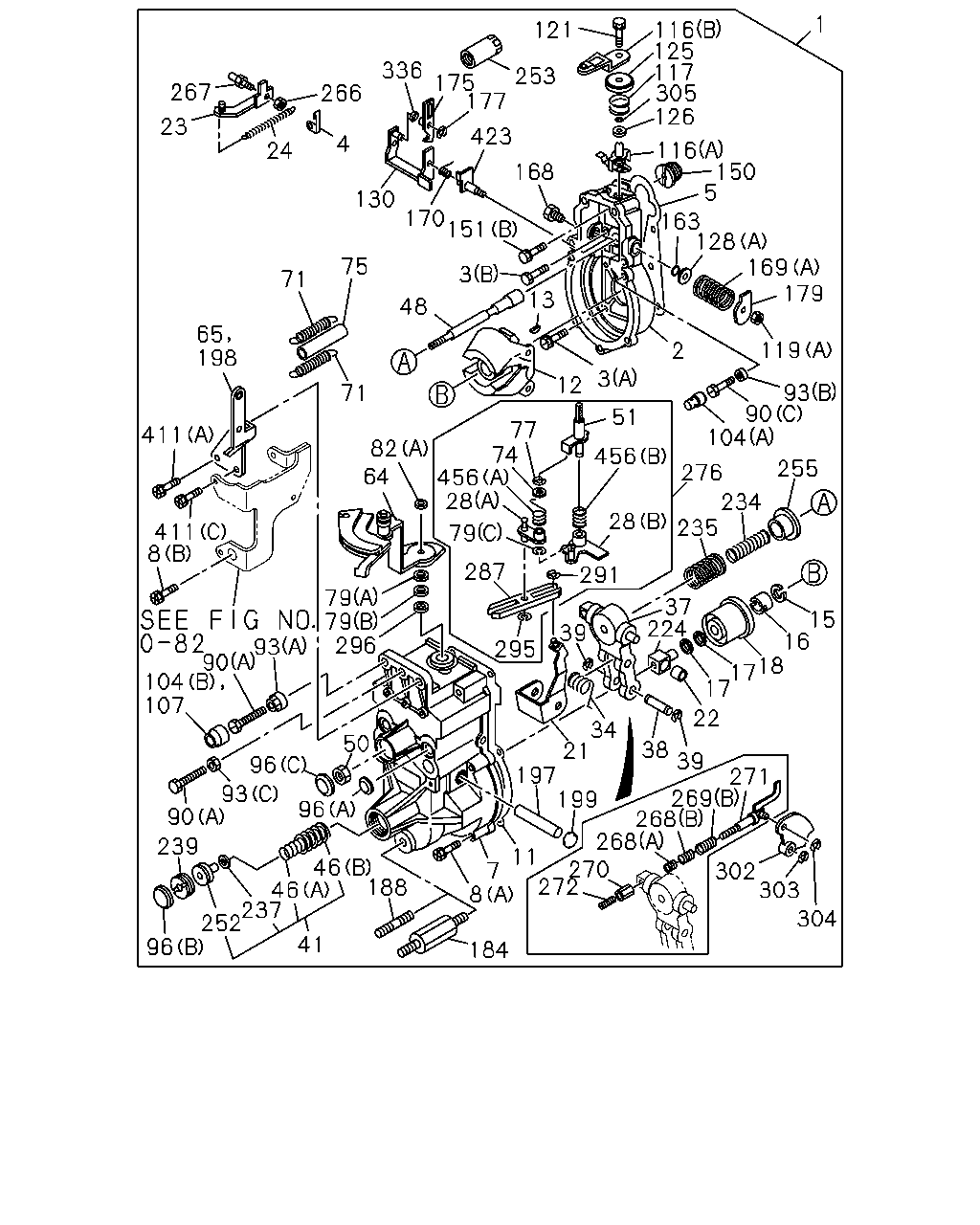

çizim 19194
1 121 116 125 117 305 126 253 175 177 336 267 266 24 23 423 4 116 150 5 168 130 163 128 169 179 170 151 75 3 71 13 48 65 198 119 2 3 12 93 90 104 71 51 77 74 456 28 411 82 64 456 255 276 234 235 28 411 8 79 287 291 79 79 296 37 224 15 16 18 17 17 39 93 295 90 104 107 22 34 21 197 199 50 38 39 96 271 269 268 268 270 272 93 96 90 239 302 303 11 46 46 188 237 252 96 7 8 304 41 184
BalonParca AdiParca NoAdetTipApplied Date
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004 		8-97103-235-2 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: C = 8-97114-052-0, 97114052 		8-97109-902-1 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: D = 8-97136-661-0, 97136661 		8-97142-989-0 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: E = 8-97146-783-0, 97146783 		8-97143-472-0 01 1 -
2 03.308 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97024-866-0 01 1 -
3 03.318 BOLT; GOV HSG,INJ PUMP
(A), M6X15 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-027-0 05 1 -
3 03.318 BOLT; GOV HSG,INJ PUMP
(B), M6X16 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-071-0 01 1 -
4 03.306 PLATE; START SPRING,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-795-0 01 1 -
5 03.308 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15779-093-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: C = 8-97114-052-0, 97114052 		1-15729-854-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004 		8-97102-852-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97142-963-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: C = 8-97114-052-0, 97114052 		1-15729-535-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: C = 8-97114-052-0, 97114052 		5-15729-033-0 06 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-033-0 07 1 -
11 03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15779-107-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15722-017-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		8-97115-981-0 01 1 -
13 03.308 KEY; FLYWEIGHT,GOV
16MM ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-19619-049-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-034-0 01 1 -
16 03.308 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-086-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-891-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-892-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-893-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-286-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-287-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-088-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-551-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-552-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-553-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-372-0 01 1 -
21 03.308 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94339-977-0 01 1 -
22 03.308 COLLAR; LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94368-298-1 01 1 -
23 03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		1-15725-483-0 01 1 -
23 03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97085-010-0 01 1 -
24 03.308 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94344-426-0 01 1 -
28 03.308 LEVER; SUPPORTING,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15725-472-0 01 1 -
28 03.308 LEVER; SUPPORTING,GOV
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15725-485-0 01 1 -
34 03.308 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-140-1 01 1 -
37 03.308 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94339-965-0 01 1 -
38 03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-370-0 01 1 -
39 03.308 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-88410-201-0 02 1 -
41 03.308 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97026-922-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97115-982-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97115-984-0 01 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-146-1 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-147-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-876-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97026-934-1 01 1 -
65 03.306 BRACKET; RETURN SPRING,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, D = 8-97136-661-0, 97136661 		8-97085-014-0 01 1 -
71 03.306 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97026-929-0 02 1 -
74 03.330 WASHER; LEVER SPR
00.206, ID=6.4 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-09160-506-0 01 1 -
75 03.308 TUBE; RETURN SPRING,STOPPER LEVE
03.306 ASM PART: E = 8-97146-783-0, 97146783 		1-15729-963-0 01 1 -
75 03.308 TUBE; RETURN SPRING,STOPPER LEVE
03.306 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661 		1-15729-963-0 02 1 -
77 03.308 RING; SNAP,CONT LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-88410-201-0 01 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.95 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-076-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.20 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-077-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.25 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-078-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.30 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-079-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.35 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-080-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.40 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-081-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.50 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-082-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(C) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-517-0 01 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.70 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-617-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.90 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-618-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.80 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-619-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.60 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-896-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97066-844-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-236-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), M8X62 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-642-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), M8X65 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-761-0 02 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X33 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-799-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X34 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-800-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X35 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-801-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X36 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-802-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X37 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-803-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X31 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-842-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M6X32 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-843-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-643-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
01.531, (B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-807-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97026-924-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-076-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-145-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-148-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97085-021-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97085-022-0 01 1 -
107 03.308 WASHER; SWIVEL LEVER,GOV
ASM PART: C = 8-97114-052-0, 97114052 		8-97085-022-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
03.308, (B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97026-920-1 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(A) ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97115-979-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		8-97115-980-0 01 1 -
117 03.308 SPRING; STOP LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94336-925-0 01 1 -
119 03.308 NUT; ENG STOP LEVER,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-236-0 01 1 -
121 03.308 BOLT; ENG STOP LEVER,GOV
16.341, M6X12 W/LK WASHER ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004 		9-01900-612-0 01 1 -
121 03.308 BOLT; ENG STOP LEVER,GOV
04.665, M6X12 W/LK WASHER ASM PART: C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-01910-612-0 01 1 -
125 03.308 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94336-926-0 01 1 -
126 03.308 GASKET; STOP LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-853-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.60 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-897-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.80 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-898-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.90 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-899-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.50 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-556-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.30 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-557-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.40 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-558-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.25 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-559-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.35 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-560-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.20 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-88410-421-0 AR 1 -
130 03.306 LEVER; CONT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15725-496-0 01 1 -
130 03.306 LEVER; CONT,GOV
ASM PART: C = 8-97114-052-0, 97114052 		1-15725-527-0 01 1 -
150 03.308 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81315-065-0 01 1 -
151 03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP
(B), M8X18 W/LK WASHER ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-01900-818-0 01 1 -
163 03.306 GASKET; CONT SHAFT,GOV
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15629-859-0 01 1 -
163 03.306 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		1-15729-852-0 01 1 -
168 03.306 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-796-0 01 1 -
169 03.306 SPRING; LEVER SET,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15723-032-0 01 1 -
170 03.306 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15723-033-0 01 1 -
175 03.306 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		1-15729-459-1 01 1 -
175 03.306 LEVER; GOV,INJ PUMP
ASM PART: D = 8-97136-661-0, 97136661 		8-97085-007-0 01 1 -
175 03.306 LEVER; GOV,INJ PUMP
ASM PART: E = 8-97146-783-0, 97146783 		8-97176-488-0 01 1 -
177 03.306 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-445-0 01 1 -
179 03.308 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-132-0 01 1 -
184 03.306 BOLT; GOV COVER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		8-94325-502-0 01 1 -
188 03.308 STUD; COVER
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-790-0 01 1 -
197 03.308 SHAFT; LEVER,GOV COVER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15725-008-0 01 1 -
198 03.306 BRACKET; COVER
ASM PART: C = 8-97114-052-0, 97114052 		8-97026-928-0 01 1 -
198 03.306 BRACKET; COVER
ASM PART: E = 8-97146-783-0, 97146783 		8-97085-014-0 01 1 -
199 03.308 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-076-0 02 1 -
224 03.308 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-142-0 01 1 -
234 03.308 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94368-299-1 01 1 -
235 03.308 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15723-094-0 01 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-966-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-967-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-968-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94472-268-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94472-269-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94472-270-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94472-271-0 AR 1 -
239 03.308 SCREW; GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-144-0 01 1 -
252 03.308 SCREW; GUIDE
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15779-003-1 01 1 -
253 03.308 LIMITTER; GOV CONT
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94167-792-0 01 1 -
255 03.308 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-173-0 01 1 -
266 03.308 NUT; PIN TO LINK,CONT RACK,GOV
17.185, M5 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-99110-405-0 01 1 -
267 03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		1-15729-797-0 01 1 -
267 03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97085-011-0 01 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15723-056-0 01 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15723-070-1 01 1 -
269 03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15723-290-0 01 1 -
270 03.308 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-051-0 01 1 -
271 03.308 ROD; TORQUE CAM,GOV
L=35 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-810-2 01 1 -
272 03.308 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94171-138-0 01 1 -
276 03.308 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15725-534-0 01 1 -
287 03.308 LEVER; GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15725-542-0 01 1 -
291 03.308 RING; SNAP,CONT SHAFT,GOV
03.306 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-445-0 01 1 -
295 03.308 RING; SNAP
03.306 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-81325-445-0 01 1 -
296 03.308 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004 		1-15729-855-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052 		8-97104-951-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: D = 8-97136-661-0, 97136661 		8-97137-788-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: E = 8-97146-783-0, 97146783 		8-97176-489-0 01 1 -
303 03.308 RING; SNAP,CAM PLATE,GOV
03.320 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-023-0 01 1 -
304 03.308 RING; SNAP,LINK TO CAM PLATE,GOV
04.040, ID=4 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		9-09185-404-0 01 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.20 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97089-308-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.30 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97089-309-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.40 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97089-310-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.60 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97089-311-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.80 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-97089-312-0 AR 1 -
336 03.308 COLLAR; LEVER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		5-15729-181-0 01 1 -
411 03.306 BOLT; BRKT
03.330, (C) ASM PART: C = 8-97114-052-0, 97114052 		1-15619-187-0 01 1 -
411 03.306 BOLT; BRKT
03.330, (A) ASM PART: C = 8-97114-052-0, 97114052 		1-15719-005-0 02 1 -
411 03.306 BOLT; BRKT
01.531, (B) ASM PART: C = 8-97114-052-0, 97114052 		5-15729-304-0 01 1 -
423 03.306 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15729-820-0 01 1 -
456 03.308 SPRING; LEVER,GOV
03.306, (A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		1-15723-295-0 01 1 -
456 03.308 SPRING; LEVER,GOV
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004, C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783 		8-94413-728-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
