◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#34153) — 356 parça
çizim 16483
3 3 3 1 2 3 2 27 27 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9511-9605 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9606-9711 ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9712- ●
53 01.531 NUT; OIL PIPE
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9606-9711 ●
53 01.531 NUT; OIL PIPE
GENERATOR DENSO(7KH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-9805 ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9806- ●

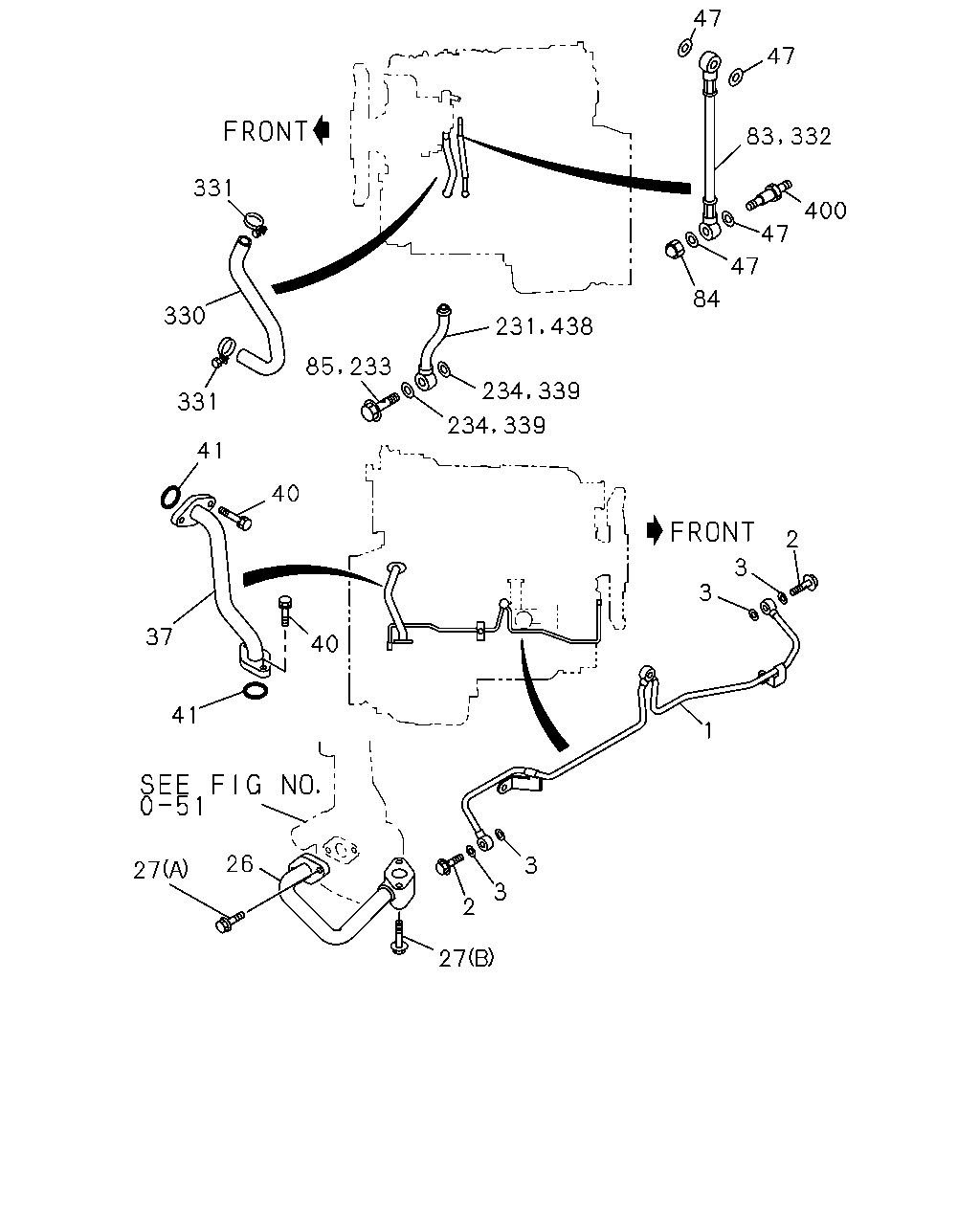

çizim 16494
47 47 83 332 331 400 47 47 84 330 231 438 85 233 234 339 331 234 339 41 40 2 3 3 37 40 41 1 26 3 27 3 2 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312-9506 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9507- ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9511-9605 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9606-9711 ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9712- ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94158-760-0 01 1 9312- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312- ●
41 01.531 GASKET; OIL COOLER
ID=25.4 		8-97026-590-0 02 1 9312- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9511- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97029-287-1 01 1 9312-9510 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97139-538-0 01 1 9511-9605 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (B) 		8-97139-538-0 01 1 9606- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9606-9711 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9712- ●
84 01.531 NUT; CAP,OIL PIPE
M10 		9-09844-022-0 01 1 9312- ●
85 01.531 BOLT; EYE,OIL PIPE FIX
REFRIGERATOR CHASSIS(V4R) 03.162 M14X29 EYE BOLT 		9-09906-325-1 01 1 9511-9711 ●
231 01.519 PIPE; OIL,RETURN
FRT INDEPENDENT SUSPENSION(6PP) 		9-13314-651-0 01 1 9312-9312 ●
231 01.519 PIPE; OIL,RETURN
REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-13314-651-0 01 1 9401-9510 ●
231 01.519 PIPE; OIL,RETURN
FRT INDEPENDENT SUSPENSION(6PP) 		9-13314-651-0 01 1 9401-9510 ●
233 01.531 BOLT; EYE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 M14X29 EYE BOLT 		9-09906-325-1 01 1 9312-9312 ●
233 01.531 BOLT; EYE
REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 M14X29 EYE BOLT 		9-09906-325-1 01 1 9401-9510 ●
233 01.531 BOLT; EYE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 M14X29 EYE BOLT 		9-09906-325-1 01 1 9401-9510 ●
234 01.531 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FRT INDEPENDENT SUSPENSION(6PP) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9312-9312 ●
234 01.531 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9401-9510 ●
234 01.531 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FRT INDEPENDENT SUSPENSION(6PP) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9401-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 03.280 		8-94310-391-0 01 1 9312-9805 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 		8-97207-067-0 01 1 9806- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-0 01 1 9312-9506 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN
FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 		8-97023-118-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) 03.280 		8-94454-709-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
INDONESIA EQUIPMENT(S4S) 		5-09360-503-1 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) 		8-97031-151-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),GENERATOR 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-151-0 01 1 9401-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) 01.540 		8-94405-463-0 01 1 9312-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 01.540 		8-94405-463-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9407-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9712- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403-9506 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9507- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
THAILAND EQUIPMENT(PM9) 		8-94310-221-1 01 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9312-9506 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-978-0 01 1 9312-9401 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) L=165 		5-13311-198-0 01 1 9402-9510 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=240 		8-94159-048-1 01 1 9312-9510 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9312-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=8.2 OD=17 		9-09572-008-0 02 1 9312-9404 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9405-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). REFRIGERATOR CHASSIS(V4R) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9511-9711 ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-94107-560-0 01 1 9511- ●
438 01.540 PIPE; OIL,RETURN
REFRIGERATOR CHASSIS(V4R) 01.519 		9-13314-651-0 01 1 9511-9711 ●

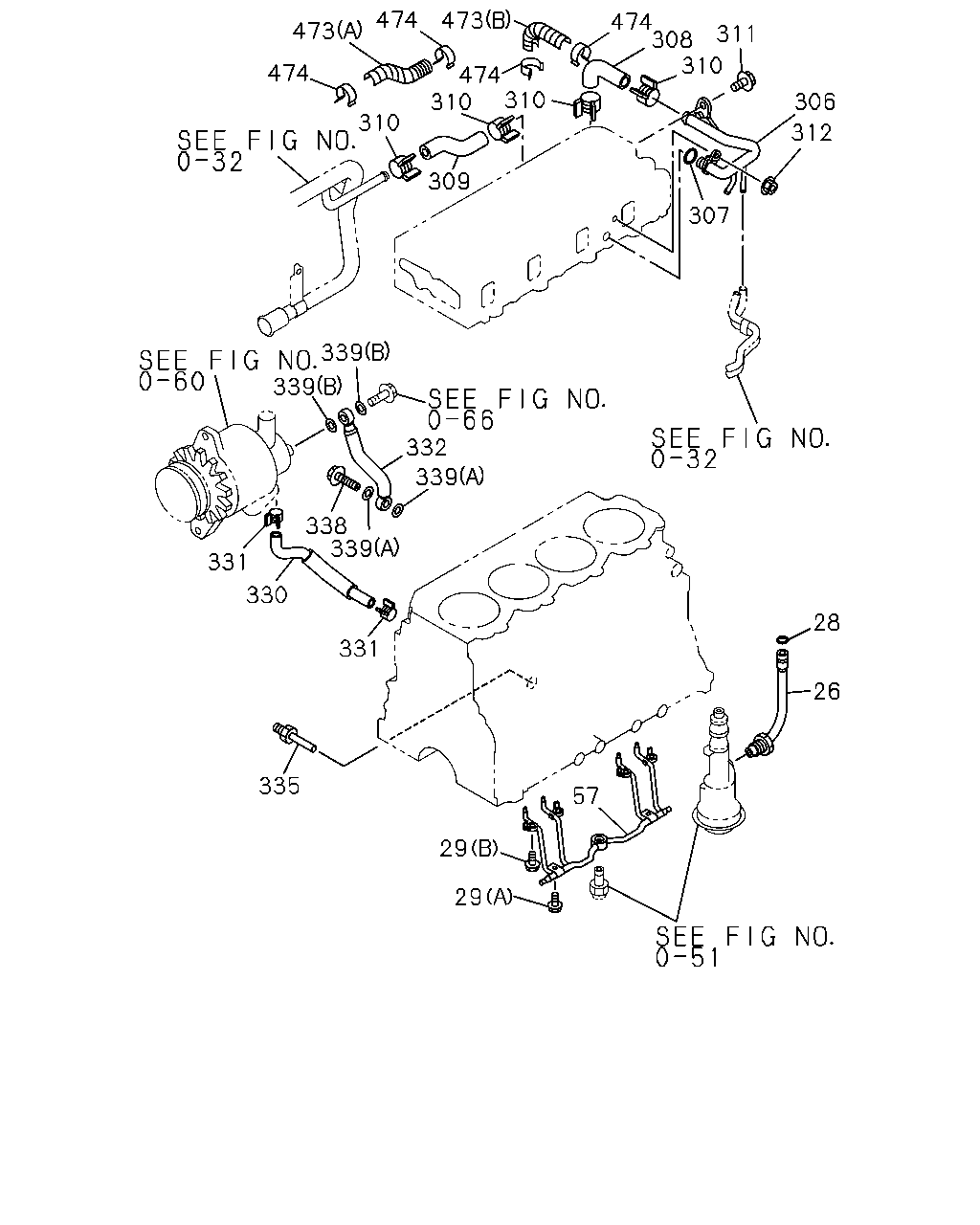

çizim 68028
474 473 474 308 310 473 311 474 474 310 310 306 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335 57 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312-9506 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9507- ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9312-9506 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9507- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9507-9711 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9712-9804 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9712-9804 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9507-9711 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9712- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9712- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-1 01 1 9712- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-0 01 1 9507- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9312-9510 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9511-9606 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9607-9609 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9611-9711 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97169-754-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97063-031-1 01 1 9507-9701 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9702- ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 04.107 		9-09561-218-0 01 1 9312-9412 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9501-9506 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9507- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9507- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9312- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9507- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9312-9711 ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97080-197-1 01 1 9507-9701 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9702- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9312-9506 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9312-9506 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9312-9506 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 03.280 		8-94310-391-0 01 1 9312-9805 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 		8-97207-067-0 01 1 9806- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-0 01 1 9312-9506 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN
FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 		8-97023-118-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) 03.280 		8-94454-709-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
INDONESIA EQUIPMENT(S4S) 		5-09360-503-1 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) 		8-97031-151-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),GENERATOR 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-151-0 01 1 9401-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) 01.540 		8-94405-463-0 01 1 9312-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 01.540 		8-94405-463-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9407-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9712- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403-9506 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9507- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
THAILAND EQUIPMENT(PM9) 		8-94310-221-1 01 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9312-9506 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-978-0 01 1 9312-9401 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) L=165 		5-13311-198-0 01 1 9402-9510 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=240 		8-94159-048-1 01 1 9312-9510 ●
335 01.531 STOPPER; OIL PIPE
THAILAND EQUIPMENT(PM9) 		8-94310-702-0 01 1 9312-9804 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9805- ● ●
335 01.531 STOPPER; OIL PIPE
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-643-0 01 1 9312-9506 ●
335 01.531 STOPPER; OIL PIPE
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-643-0 01 1 9507-9804 ●
335 01.531 STOPPER; OIL PIPE 8-94443-643-0 01 1 9507-9804 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X24 		5-09675-024-0 01 1 9312-9404 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE BOLT 		5-09675-018-1 01 1 9405-9506 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE BOLT 		5-09675-018-1 01 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9312-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=8.2 OD=17 		9-09572-008-0 02 1 9312-9404 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9405-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). REFRIGERATOR CHASSIS(V4R) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9511-9711 ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> 		8-97101-331-0 02 1 9712- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9507- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9507- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9507-9711 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9712- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9712- ●

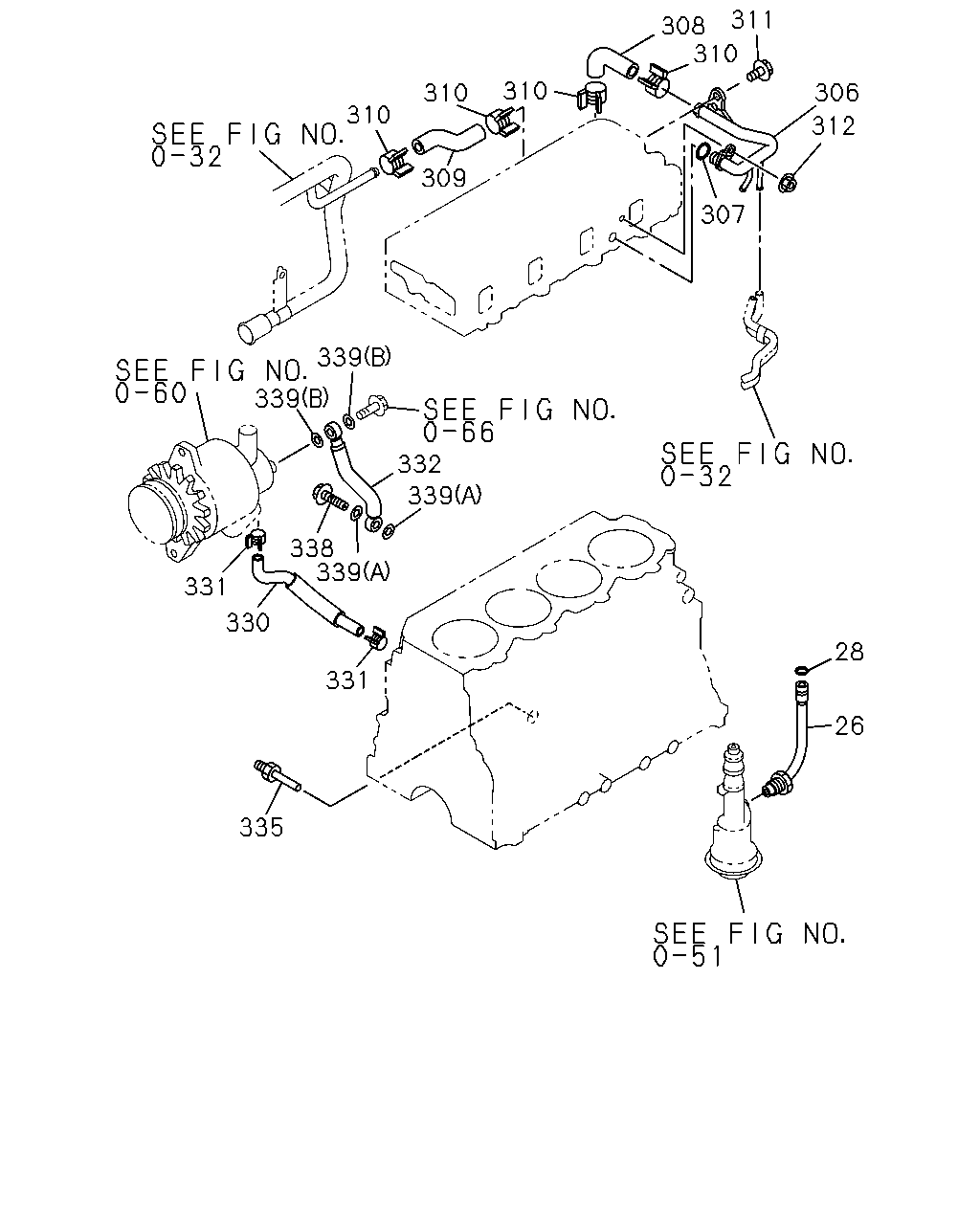

çizim 68207
311 308 310 310 306 310 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312-9506 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9507- ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9312-9506 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9507- ● ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9312-9510 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9511-9606 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9607-9609 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9611-9711 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97169-754-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97063-031-1 01 1 9507-9701 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9702- ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 04.107 		9-09561-218-0 01 1 9312-9412 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9501-9506 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9507- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9507- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9312- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9507- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9312-9711 ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97080-197-1 01 1 9507-9701 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9702- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9312-9506 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9312-9506 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9312-9506 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 03.280 		8-94310-391-0 01 1 9312-9805 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 		8-97207-067-0 01 1 9806- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-0 01 1 9312-9506 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9507- ●
330 03.278 HOSE; VAC PUMP,RETURN
FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 		8-97023-118-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) 03.280 		8-94454-709-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
INDONESIA EQUIPMENT(S4S) 		5-09360-503-1 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) 		8-97031-151-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
REFRIGERATOR CHASSIS(V4R) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),GENERATOR 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-151-0 01 1 9401-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) 01.540 		8-94405-463-0 01 1 9312-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 01.540 		8-94405-463-0 01 1 9712- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9312-9406 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP) 01.540 		8-94159-047-0 01 1 9407-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9511-9711 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9712- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403-9506 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9507- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
THAILAND EQUIPMENT(PM9) 		8-94310-221-1 01 1 9312- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9312-9506 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9507- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-978-0 01 1 9312-9401 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
FRT INDEPENDENT SUSPENSION(6PP) L=165 		5-13311-198-0 01 1 9402-9510 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=240 		8-94159-048-1 01 1 9312-9510 ●
335 01.531 STOPPER; OIL PIPE
THAILAND EQUIPMENT(PM9) 		8-94310-702-0 01 1 9312-9804 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9805- ● ●
335 01.531 STOPPER; OIL PIPE
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-643-0 01 1 9312-9506 ●
335 01.531 STOPPER; OIL PIPE
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-643-0 01 1 9507-9804 ●
335 01.531 STOPPER; OIL PIPE 8-94443-643-0 01 1 9507-9804 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X24 		5-09675-024-0 01 1 9312-9404 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE BOLT 		5-09675-018-1 01 1 9405-9506 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE BOLT 		5-09675-018-1 01 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9312-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=8.2 OD=17 		9-09572-008-0 02 1 9312-9404 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9405-9506 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9507- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). REFRIGERATOR CHASSIS(V4R) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9511-9711 ●

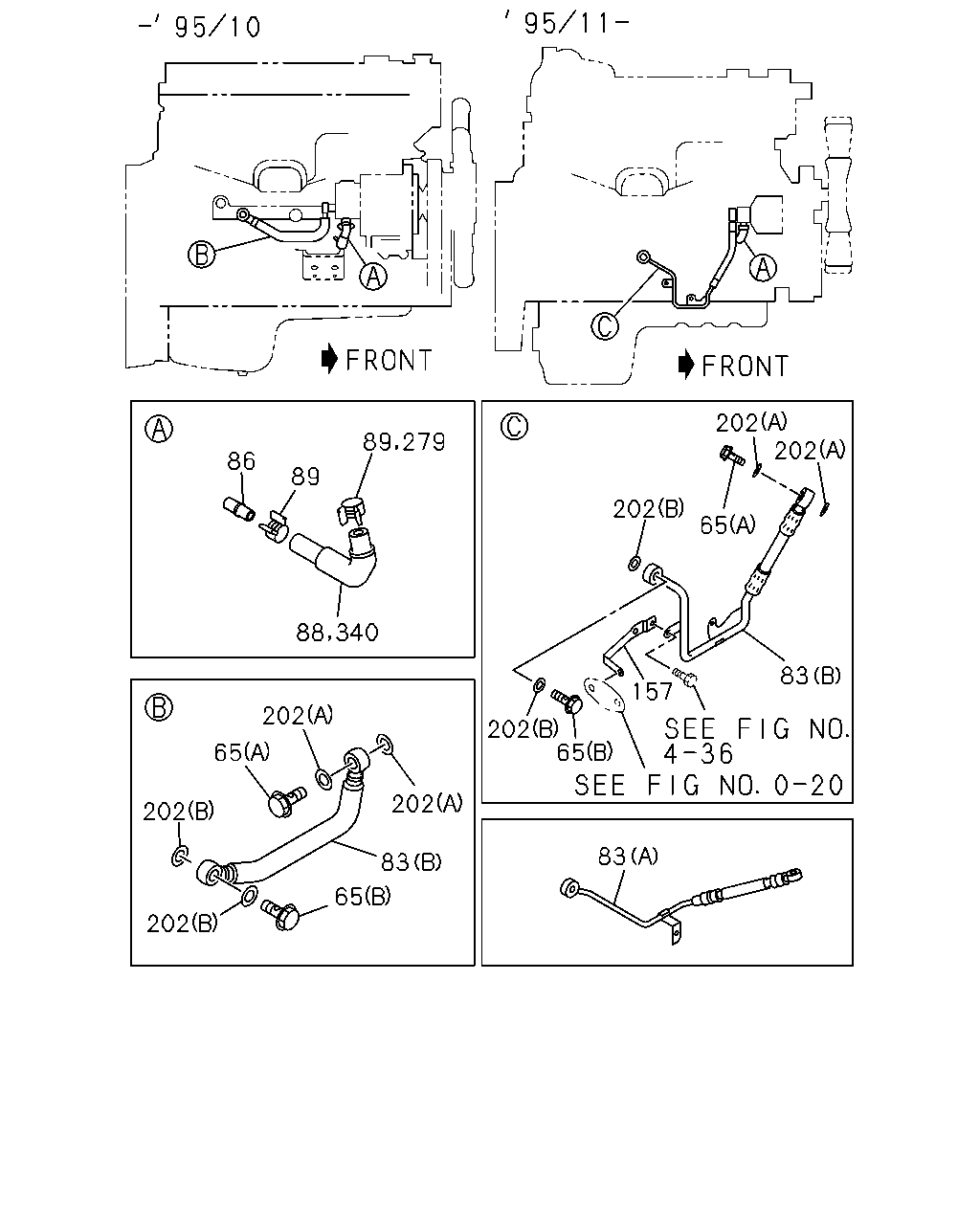

çizim 68769
202 89 279 202 86 89 202 65 88 340 83 157 202 202 65 65 202 202 83 83 65 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9312- ●
65 01.531 BOLT; JOINT,OIL PIPE
(B) M14X33 FLANGE 		1-09675-088-0 01 1 9312-9805 ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9806- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9511- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97029-287-1 01 1 9312-9510 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97139-538-0 01 1 9511-9605 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (B) 		8-97139-538-0 01 1 9606- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9606-9711 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9712- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9312- ●
88 04.681 HOSE; VAC,VAC PUMP RETURN 8-94339-073-3 01 1 9312-9502 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9312-9510 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9511- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9511- ●
157 01.519 BRACKET; OIL PIPE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. POWER STEERING<N40> 06.672 		8-97139-294-0 01 1 9511- ●
157 01.519 BRACKET; OIL PIPE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. POWER STEERING<N40>,GENERATOR DENSO(7KH) 06.672 		8-97139-294-0 01 1 9511-9705 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,GENERATOR DENSO(7KH) 06.672 		8-97139-294-0 01 1 9706-9805 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,GENERATOR DENSO(7KH) 		8-97209-355-0 01 1 9806- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9312- ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9312- ●
279 01.750 CLIP; RUBBER HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9407-9510 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9503-9605 ●
340 03.280 HOSE; VAC PUMP,RETURN
EXC. GENERATOR DENSO(7KH) 04.681 		8-94339-073-3 01 1 9606- ●
340 03.280 HOSE; VAC PUMP,RETURN
DUAL RR TIRE&SGL CAB(NKC*S*) GENERATOR DENSO(7KH) 04.681 		8-97117-121-0 01 1 9606-9711 ●
340 03.280 HOSE; VAC PUMP,RETURN
GENERATOR DENSO(7KH) 04.681 		8-97117-121-0 01 1 9712- ●

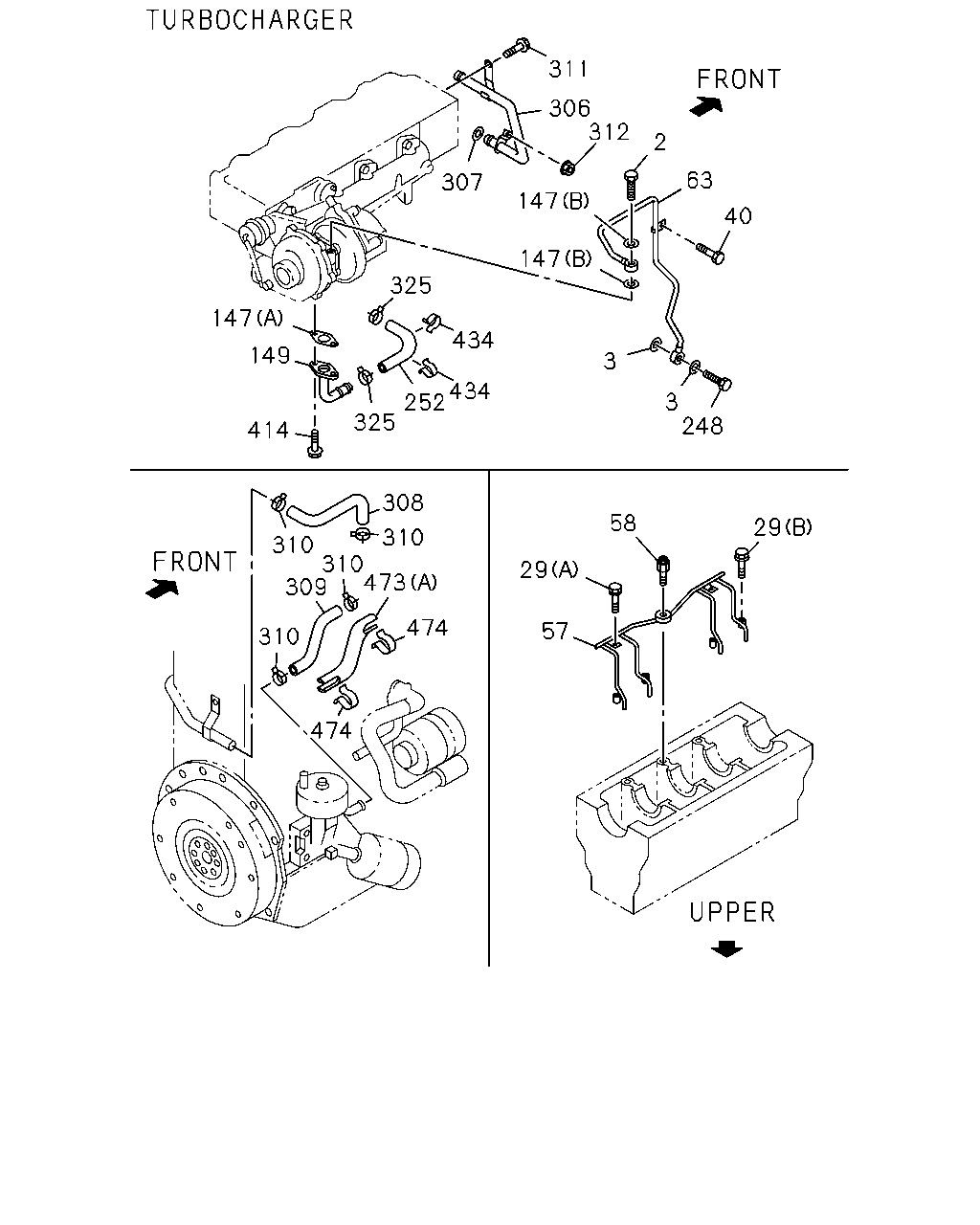

çizim 70901
311 306 312 2 63 307 147 40 147 325 147 434 149 3 434 252 325 3 248 414 308 58 29 310 310 310 309 473 29 474 57 310 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9507-9711 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9712-9804 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9712-9804 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9507-9711 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9712- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9712- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-1 01 1 9712- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-0 01 1 9507- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 9712- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97166-165-0 01 1 9712-9808 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97214-267-0 01 1 9809- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> (A) ID=14 		8-97041-638-0 01 1 9712- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9712- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97166-389-0 01 1 9712- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9712- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9312-9510 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9511-9606 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9607-9609 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94450-627-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9611-9711 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97169-754-0 01 1 9610-9610 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-0 01 1 9712- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97063-031-1 01 1 9507-9701 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9702- ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 04.107 		9-09561-218-0 01 1 9312-9412 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9501-9506 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9507- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9507- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9312- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9507- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9312-9711 ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9712- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97080-197-1 01 1 9507-9701 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9702- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9312-9506 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 04 1 9507- ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9312-9506 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9312-9506 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9507- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 06.672 ID=21 		8-94242-034-0 02 1 9712- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9712- ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> 		8-97101-331-0 02 1 9712- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9507- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9507- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9507-9711 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9712- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
