Sayfa 0-51 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶

0-51 — OIL PUMP AND OIL STRAINER (#34152) — 193 parça

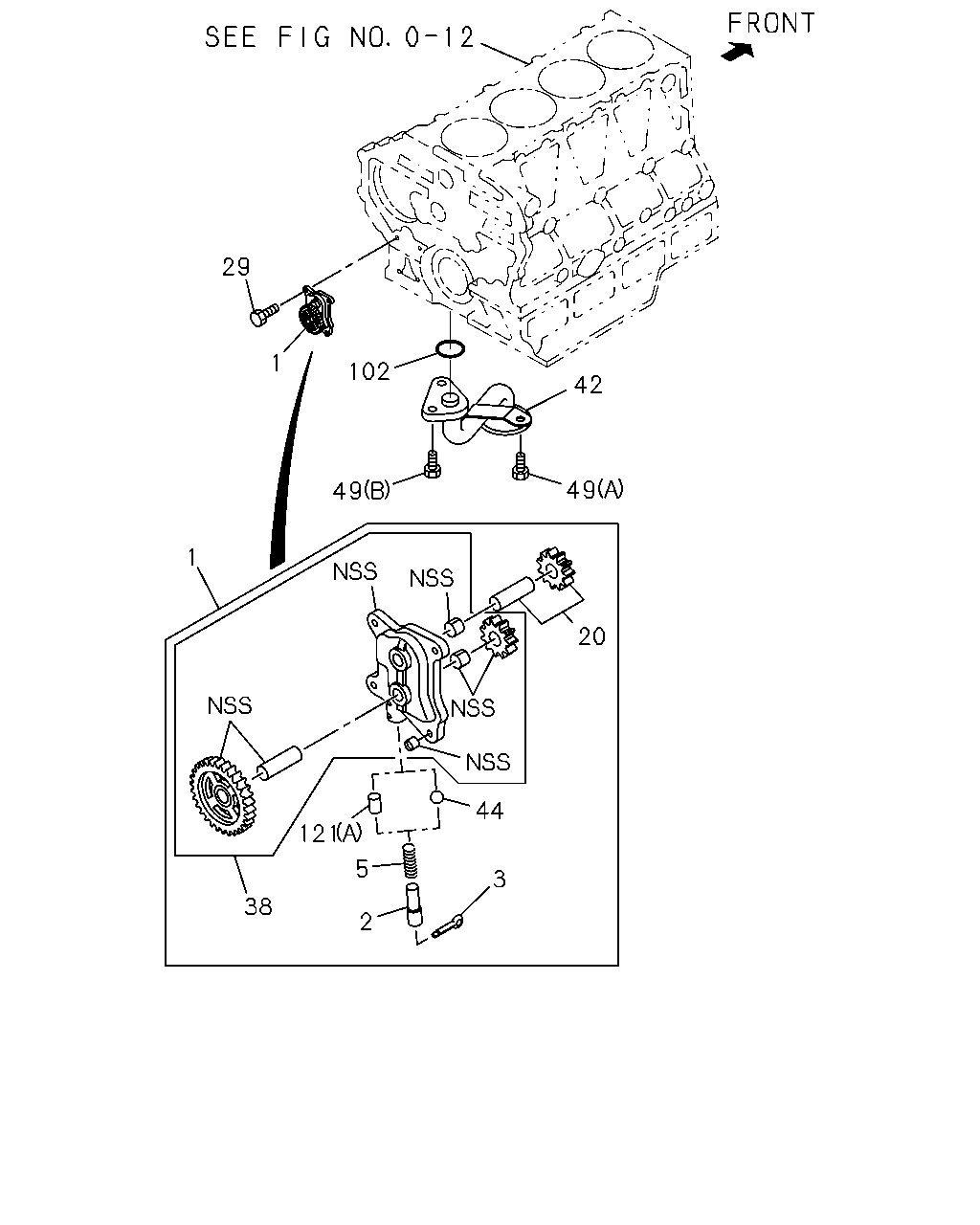

29 1 102 42 49 49 1 20 44 121 5 3 38 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-175-2	01	1	9312-9506	●
1	01.652 PUMP ASM; OIL	8-97033-175-3	01	1	9507-	●	●
1	01.652 PUMP ASM; OIL	8-94114-491-1	01	1	9312-			●
1	01.652 PUMP ASM; OIL	8-97074-281-2	01	1	9312-9409				●
1	01.652 PUMP ASM; OIL	8-97115-950-0	01	1	9410-9605				●
1	01.652 PUMP ASM; OIL	8-97147-338-1	01	1	9606-				●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9312-9406	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9503-9506	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9507-	●	●		●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502				●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	9410-9605				●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9606-				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9312-9502	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9503-9506	●			●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9507-9605	●	●		●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9606-	●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	9312-9409				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9410-9502				●
5	01.609 SPRING; COIL	8-97147-503-0	01	1	9606-				●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94130-416-0	01	1	9312-			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-97100-372-0	01	1	9312-9605				●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	9606-				●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9312-9506	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9507-9612	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●	●
29	01.652 BOLT; OIL PUMP M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-			●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	04	1	9312-9704				●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	9705-				●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	9705-				●
38	01.657 CASE; OIL STRAINER	8-94130-423-0	01	1	9312-			●
38	01.657 CASE; OIL STRAINER	8-97115-915-0	01	1	9410-9605				●
38	01.657 CASE; OIL STRAINER	8-97147-504-0	01	1	9606-9702				●
38	01.657 CASE; OIL STRAINER	8-97147-505-0	01	1	9703-				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97036-410-0	01	1	9312-9405				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97108-510-0	01	1	9406-9705				●
42	01.656 STRAINER; OIL,OIL PUMP EXC. INDONESIA EQUIPMENT(S4S)	8-97108-510-0	01	1	9706-9711				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97108-510-0	01	1	9712-9801				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97182-909-0	01	1	9802-				●
42	01.656 STRAINER; OIL,OIL PUMP INDONESIA EQUIPMENT(S4S)	8-97182-909-0	01	1	9706-9711				●
44	01.609 BALL; RELIEF VLV	9-00097-531-0	01	1	9312-			●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	9312-9406				●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	9312-				●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X14	8-97073-782-0	02	1	9312-9604				●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X14	8-97073-782-0	01	1	9605-				●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.456 ID=24.4	1-09623-183-0	01	1	9312-9701				●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2	8-97137-501-0	01	1	9702-				●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9312-9409	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9410-9506	●			●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9507-	●	●		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-94177-189-3	01	1	9507-9603		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-97145-612-0	01	1	9604-		●

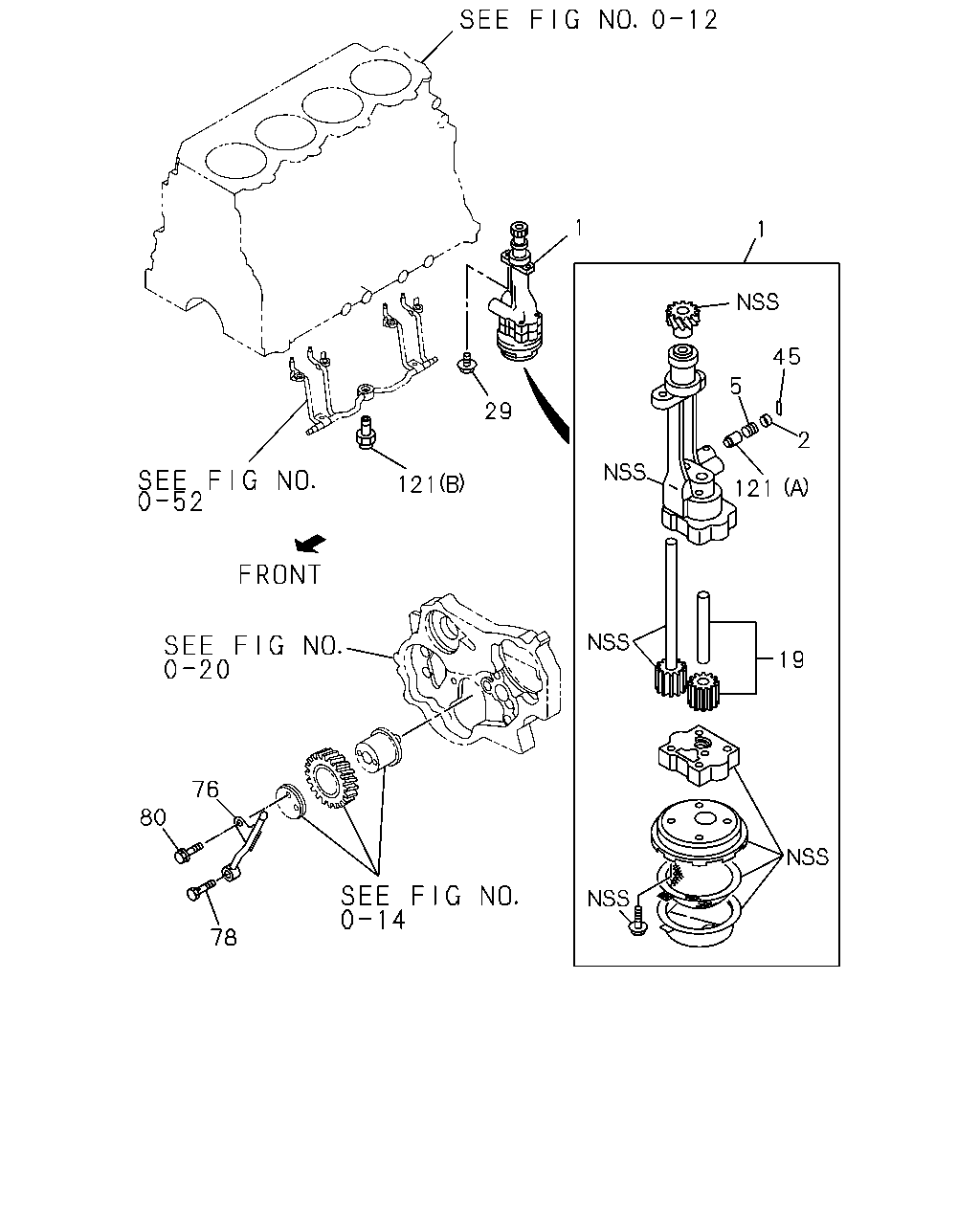

1 1 45 5 29 2 121 121 19 76 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-175-2	01	1	9312-9506	●
1	01.652 PUMP ASM; OIL	8-97033-175-3	01	1	9507-	●	●
1	01.652 PUMP ASM; OIL	8-94114-491-1	01	1	9312-			●
1	01.652 PUMP ASM; OIL	8-97074-281-2	01	1	9312-9409				●
1	01.652 PUMP ASM; OIL	8-97115-950-0	01	1	9410-9605				●
1	01.652 PUMP ASM; OIL	8-97147-338-1	01	1	9606-				●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9312-9406	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9503-9506	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9507-	●	●		●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9312-9502	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9503-9506	●			●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9507-9605	●	●		●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9606-	●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	9312-9409				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9410-9502				●
5	01.609 SPRING; COIL	8-97147-503-0	01	1	9606-				●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9312-9506	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9507-	●	●
19	01.639 GEAR SET; OIL PUMP	5-87810-274-1	01	1	9312-			●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9312-9506	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9507-9612	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●	●
29	01.652 BOLT; OIL PUMP M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-			●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	04	1	9312-9704				●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	9705-				●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	9705-				●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9312-9506	●		●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9507-	●	●	●
76	01.519 PIPE ASM; OIL	8-94139-747-1	01	1	9312-9409	●
76	01.519 PIPE ASM; OIL EXC. EURO1 SPECIFICATION<6YW>	8-94139-747-1	01	1	9410-9504	●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9505-9510	●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9511-9605	●
76	01.519 PIPE ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94453-548-1	01	1	9511-9605		●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9606-9711	●
76	01.519 PIPE ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-97160-706-0	01	1	9606-9711		●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9712-	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X25	8-94146-582-0	01	1	9312-9409	●
78	01.531 BOLT; EYE JOINT,OIL PIPE EXC. EURO1 SPECIFICATION<6YW> M8X25	8-94146-582-0	01	1	9410-9504	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9505-9609	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9610-9711	●
78	01.531 BOLT; EYE JOINT,OIL PIPE AUSTRALIA EQUIPMENT(RR3) M8X23 FLANGE	8-94454-199-0	01	1	9610-9711		●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9712-	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-9609	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9610-9711	●
80	01.531 BOLT; OIL PIPE FIX AUSTRALIA EQUIPMENT(RR3) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9610-9711		●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9712-	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9312-9409	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9410-9506	●			●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9507-	●	●		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-94177-189-3	01	1	9507-9603		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-97145-612-0	01	1	9604-		●

1 32 20 19 1 68 27 31 45 38 29 44 43 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-175-2	01	1	9312-9506	●
1	01.652 PUMP ASM; OIL	8-97033-175-3	01	1	9507-	●	●
1	01.652 PUMP ASM; OIL	8-94114-491-1	01	1	9312-			●
1	01.652 PUMP ASM; OIL	8-97074-281-2	01	1	9312-9409				●
1	01.652 PUMP ASM; OIL	8-97115-950-0	01	1	9410-9605				●
1	01.652 PUMP ASM; OIL	8-97147-338-1	01	1	9606-				●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9312-9506	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9507-	●	●
19	01.639 GEAR SET; OIL PUMP	5-87810-274-1	01	1	9312-			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94130-416-0	01	1	9312-			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-97100-372-0	01	1	9312-9605				●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	9606-				●
27	01.609 VALVE ASM; OIL RELIEF	8-94130-421-0	01	1	9312-			●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9312-9506	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9507-9612	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●	●
29	01.652 BOLT; OIL PUMP M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-			●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	04	1	9312-9704				●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	9705-				●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	9705-				●
31	01.657 COVER; OIL PUMP	8-94130-415-1	01	1	9312-			●
32	01.639 PINION; OIL PUMP DRIVING	8-94130-420-0	01	1	9312-			●
38	01.657 CASE; OIL STRAINER	8-94130-423-0	01	1	9312-			●
38	01.657 CASE; OIL STRAINER	8-97115-915-0	01	1	9410-9605				●
38	01.657 CASE; OIL STRAINER	8-97147-504-0	01	1	9606-9702				●
38	01.657 CASE; OIL STRAINER	8-97147-505-0	01	1	9703-				●
43	01.656 BOLT; CASE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9312-			●
44	01.609 BALL; RELIEF VLV	9-00097-531-0	01	1	9312-			●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	9312-9406				●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9312-9506	●		●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9507-	●	●	●
46	01.656 GAUZE; OIL STRAINER	9-13143-010-0	01	1	9312-			●
68	01.609 WASHER; RELIEF VLV OD=34	1-09530-004-0	01	1	9312-			●

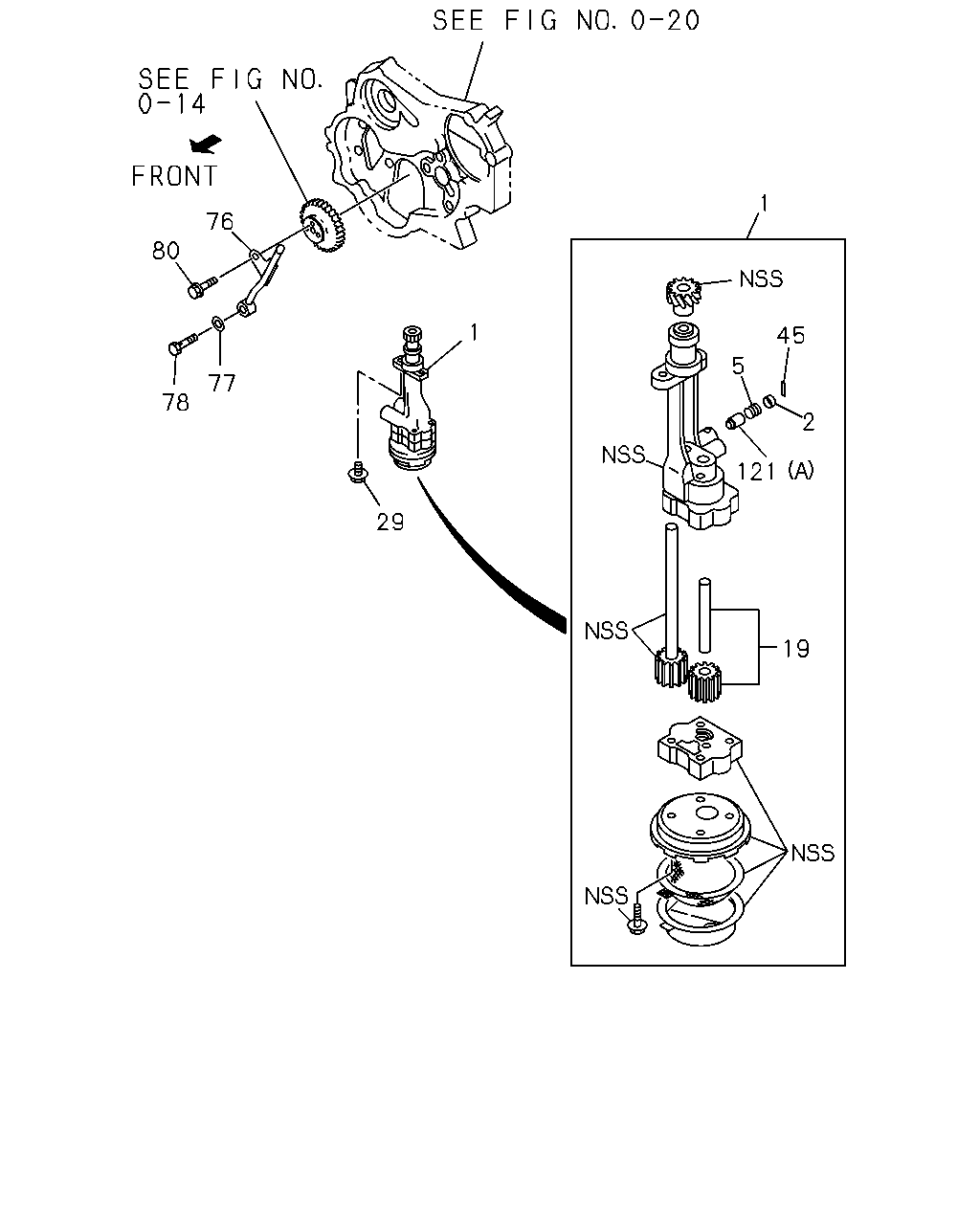

1 76 80 1 45 5 77 78 2 121 29 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-175-2	01	1	9312-9506	●
1	01.652 PUMP ASM; OIL	8-97033-175-3	01	1	9507-	●	●
1	01.652 PUMP ASM; OIL	8-94114-491-1	01	1	9312-			●
1	01.652 PUMP ASM; OIL	8-97074-281-2	01	1	9312-9409				●
1	01.652 PUMP ASM; OIL	8-97115-950-0	01	1	9410-9605				●
1	01.652 PUMP ASM; OIL	8-97147-338-1	01	1	9606-				●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9312-9406	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9503-9506	●			●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9507-	●	●		●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9407-9502				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9312-9502	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9503-9506	●			●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9507-9605	●	●		●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9606-	●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	9312-9409				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9410-9502				●
5	01.609 SPRING; COIL	8-97147-503-0	01	1	9606-				●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9312-9506	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9507-	●	●
19	01.639 GEAR SET; OIL PUMP	5-87810-274-1	01	1	9312-			●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9312-9506	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9507-9612	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●	●
29	01.652 BOLT; OIL PUMP M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-			●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	04	1	9312-9704				●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	9705-				●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	9705-				●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9312-9506	●		●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9507-	●	●	●
76	01.519 PIPE ASM; OIL	8-94139-747-1	01	1	9312-9409	●
76	01.519 PIPE ASM; OIL EXC. EURO1 SPECIFICATION<6YW>	8-94139-747-1	01	1	9410-9504	●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9505-9510	●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9511-9605	●
76	01.519 PIPE ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94453-548-1	01	1	9511-9605		●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9606-9711	●
76	01.519 PIPE ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-97160-706-0	01	1	9606-9711		●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9712-	●
77	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9312-9409	●
77	01.531 GASKET; JOINT BOLT EXC. EURO1 SPECIFICATION<6YW> 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9410-9504	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X25	8-94146-582-0	01	1	9312-9409	●
78	01.531 BOLT; EYE JOINT,OIL PIPE EXC. EURO1 SPECIFICATION<6YW> M8X25	8-94146-582-0	01	1	9410-9504	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9505-9609	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9610-9711	●
78	01.531 BOLT; EYE JOINT,OIL PIPE AUSTRALIA EQUIPMENT(RR3) M8X23 FLANGE	8-94454-199-0	01	1	9610-9711		●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9712-	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-9609	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9610-9711	●
80	01.531 BOLT; OIL PIPE FIX AUSTRALIA EQUIPMENT(RR3) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9610-9711		●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9712-	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9312-9409	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9410-9506	●			●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	9507-	●	●		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-94177-189-3	01	1	9507-9603		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.531 (B)	8-97145-612-0	01	1	9604-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
