Sayfa 6-05 - Isuzu EPC

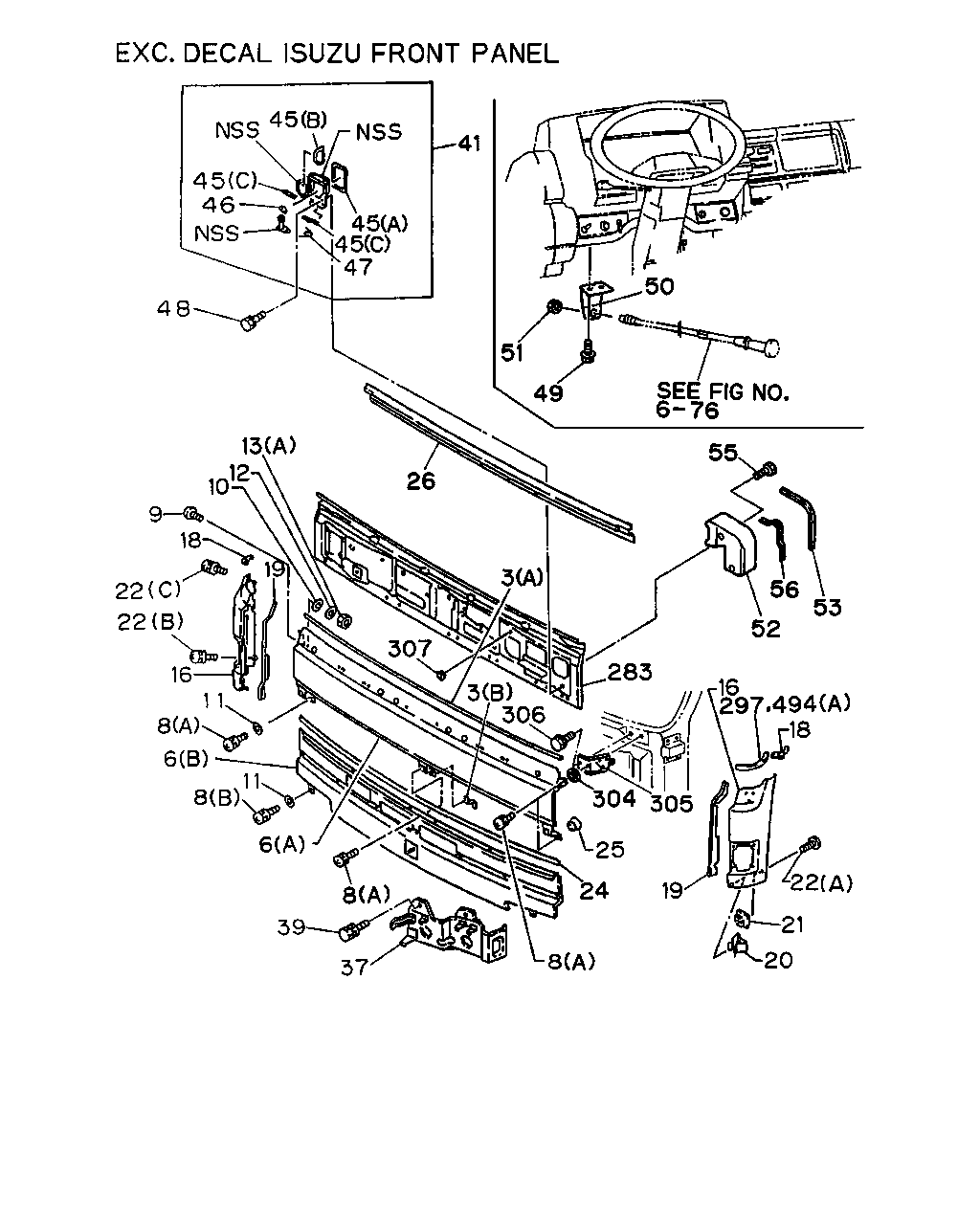

6-05 — FRONT PANEL (#3415) — 240 parça

45 45 45 45 46 47 41 48 13 12 10 9 26 18 22 22 16 11 11 8 6 8 6 39 37 8 8 24 25 19 305 304 306 307 3 3 283 20 21 22 18 494 297 16 52 53 55 56 49 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	FINISHER; FRT PANEL UPR (A)	1-71997-513-1	01	1	9002-9008	●	●	●
3	FINISHER; FRT PANEL UPR (A)	1-71907-013-0	01	1	9009-9012	●	●	●
3	FINISHER; FRT PANEL UPR (A) L=2100	1-71907-093-0	01	1	9101-	●	●	●
3	FINISHER; FRT PANEL UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. DECAL ISUZU FRONT PANEL<TAM> (B) L=50	8-94270-377-1	01	1	9312-	●	●	●
6	PANEL; FRONT (A)	1-65470-695-9	01	1	9002-9202	●
6	PANEL; FRONT EXC. CHINA EQUIPMENT(YT2) (A)	1-65470-695-9	01	1	9002-9202		●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) (A)	1-65471-727-0	01	1	9203-	●	●	●
6	PANEL; FRONT (B)	1-65471-383-0	01	1	9002-9306	●	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-	●	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-707-0	01	1	9307-	●	●	●
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-709-0	01	1	9307-	●	●	●
6	PANEL; FRONT CHINA EQUIPMENT(YT2) (A)	1-65470-961-2	01	1	9002-		●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-383-0	01	1	9307-		●	●
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-	●	●	●
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-	●	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-	●	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-	●	●	●
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-	●	●	●
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-	●	●	●
11	WASHER; NYLON,FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9002-	●	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-	●	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	02	1	9307-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●
16	PANEL; FRONT,SIDE	1-65470-940-3	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-643-4	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-9312	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9401-	●	●	●
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65471-473-0	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65470-939-3	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-937-2	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-	●	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-	●	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-	●	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-	●	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-	●	●	●
20	CLIP; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-71997-793-1	04	1	9002-	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-9308	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-	●	●	●
22	SCREW; FRT PANEL SIDE (C) D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (A) M6X12 W/PL WASHER	1-09981-380-0	02	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-	●	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-	●	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-	●	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-	●	●	●
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-159-0	01	1	9002-	●	●	●
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-	●	●	●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-570-1	01	1	9002-	●	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-	●	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-	●	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-004-4	01	1	9002-	●	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-003-4	01	1	9002-	●	●	●
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9002-	●	●	●
41	VENTILATOR ASM; DASH	1-76337-285-2	01	1	9002-	●	●	●
45	SEAL; VENT (A)	1-76337-290-0	01	1	9002-	●	●	●
45	SEAL; VENT (B)	1-76337-291-0	01	1	9002-	●	●	●
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-	●	●	●
46	CLIP; VENT	1-76337-243-0	02	1	9002-	●	●	●
47	SPRING; VENT	1-76337-244-0	01	1	9002-	●	●	●
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-	●	●	●
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-	●	●	●
50	BRACKET; CABLE,DASH VENT	1-76337-234-3	01	1	9002-	●	●	●
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-	●	●	●
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-451-0	01	1	9307-	●	●	●
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-286-3	01	1	9002-	●	●	●
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-2	01	1	9002-	●	●	●
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> (A) L=270	1-76337-454-1	01	1	9307-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> (B) L=70	1-76337-455-1	01	1	9307-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-	●	●	●
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-683-2	01	1	9307-	●	●	●
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-607-7	01	1	9002-	●	●	●
297	FINISHER; SIDE PANEL,CAB L=2040	1-71907-013-0	02	1	9009-9012	●	●	●
297	FINISHER; SIDE PANEL,CAB L=190	1-71998-300-0	02	1	9101-9205	●	●	●
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9206-	●	●	●
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-	●	●	●
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-	●	●	●
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-165-0	01	1	9002-	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-	●	●	●
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	9002-9210	●	●	●
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-	●	●	●
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-	●	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●	●

45 45 41 46 45 45 48 47 510 307 9 511 511 13 18 260 10 22 22 12 16 19 24 8 6 59 8 3 8 39 37 298 21 22 22 16 19 6 24 465 494 293 25 293 22 18 305 304 306 53 56 52 56 55 26 3 511 13 510 283 49 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	FINISHER; FRT PANEL UPR (A)	1-71997-513-1	01	1	9002-9008	●	●	●
3	FINISHER; FRT PANEL UPR (A)	1-71907-013-0	01	1	9009-9012	●	●	●
3	FINISHER; FRT PANEL UPR (A) L=2100	1-71907-093-0	01	1	9101-	●	●	●
3	FINISHER; FRT PANEL UPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. DECAL ISUZU FRONT PANEL<TAM> (B) L=50	8-94270-377-1	01	1	9312-	●	●	●
6	PANEL; FRONT (A)	1-65470-695-9	01	1	9002-9202	●
6	PANEL; FRONT EXC. CHINA EQUIPMENT(YT2) (A)	1-65470-695-9	01	1	9002-9202		●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) (A)	1-65471-727-0	01	1	9203-	●	●	●
6	PANEL; FRONT (B)	1-65471-383-0	01	1	9002-9306	●	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-	●	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-707-0	01	1	9307-	●	●	●
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-709-0	01	1	9307-	●	●	●
6	PANEL; FRONT CHINA EQUIPMENT(YT2) (A)	1-65470-961-2	01	1	9002-		●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-383-0	01	1	9307-		●	●
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-	●	●	●
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-	●	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-	●	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-	●	●	●
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-	●	●	●
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-	●	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-	●	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	02	1	9307-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-	●	●	●
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●
16	PANEL; FRONT,SIDE	1-65470-940-3	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-643-4	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-9312	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9401-	●	●	●
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65471-473-0	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-	●	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65470-939-3	01	1	9002-9306	●	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-937-2	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-	●	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-	●	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-	●	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-	●	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-9308	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403	●	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-	●	●	●
22	SCREW; FRT PANEL SIDE (C) D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (A) M6X12 W/PL WASHER	1-09981-380-0	02	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-	●	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-	●	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-	●	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-	●	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-	●	●	●
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-159-0	01	1	9002-	●	●	●
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-	●	●	●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-570-1	01	1	9002-	●	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-	●	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-	●	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-004-4	01	1	9002-	●	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-003-4	01	1	9002-	●	●	●
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9002-	●	●	●
41	VENTILATOR ASM; DASH	1-76337-285-2	01	1	9002-	●	●	●
45	SEAL; VENT (A)	1-76337-290-0	01	1	9002-	●	●	●
45	SEAL; VENT (B)	1-76337-291-0	01	1	9002-	●	●	●
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-	●	●	●
46	CLIP; VENT	1-76337-243-0	02	1	9002-	●	●	●
47	SPRING; VENT	1-76337-244-0	01	1	9002-	●	●	●
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-	●	●	●
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-	●	●	●
50	BRACKET; CABLE,DASH VENT	1-76337-234-3	01	1	9002-	●	●	●
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-	●	●	●
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-451-0	01	1	9307-	●	●	●
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-286-3	01	1	9002-	●	●	●
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-2	01	1	9002-	●	●	●
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> (A) L=270	1-76337-454-1	01	1	9307-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> (B) L=70	1-76337-455-1	01	1	9307-	●	●	●
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-	●	●	●
59	GROMMET; SCREW DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9307-	●	●	●
260	BOLT; STAY DECAL ISUZU FRONT PANEL<TAM>	1-65471-728-0	01	1	9307-	●	●	●
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-683-2	01	1	9307-	●	●	●
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-607-7	01	1	9002-	●	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-689-2	01	1	9307-	●	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-043-3	01	1	9307-	●	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-688-2	01	1	9307-	●	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-042-3	01	1	9307-	●	●	●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	08	1	9307-9312	●	●	●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	04	1	9401-	●	●	●
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-	●	●	●
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-	●	●	●
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-165-0	01	1	9002-	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-	●	●	●
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	9002-9210	●	●	●
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-	●	●	●
465	CLIP; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM>	1-65471-500-0	07	1	9307-	●	●	●
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-	●	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●	●
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-729-1	01	1	9307-	●	●	●
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-730-0	01	1	9307-	●	●	●
511	BOLT; SET,BRKT DECAL ISUZU FRONT PANEL<TAM> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9307-	●	●	●

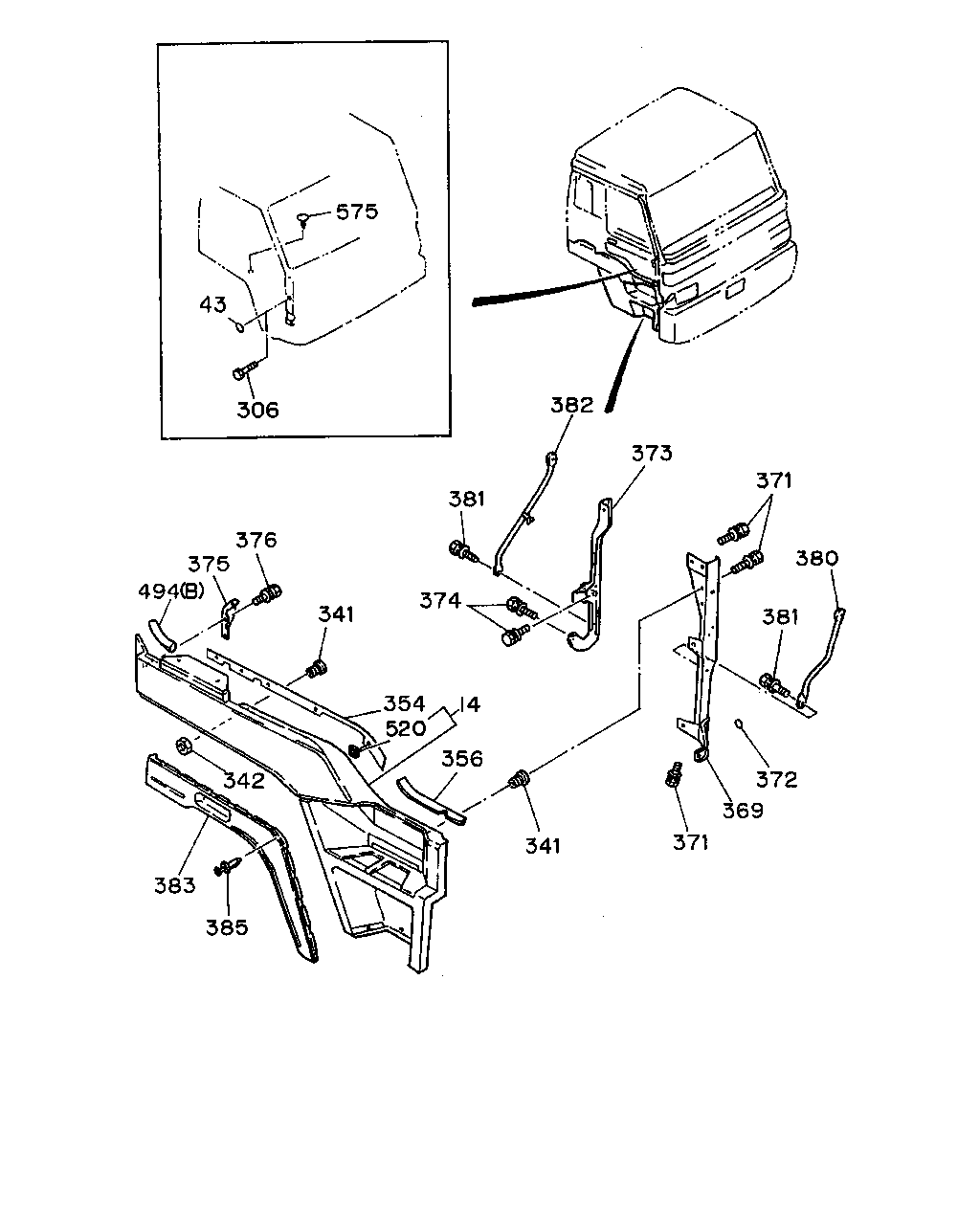

575 43 306 376 375 494 341 354 520 356 342 383 385 341 371 369 372 381 380 371 373 382 381 374 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-171-0	01	1	9002-	●	●	●
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-170-0	01	1	9002-	●	●	●
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-169-0	01	1	9002-	●	●	●
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-168-0	01	1	9002-	●	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76778-007-0	02	1	9002-9306	●	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76798-018-0	02	1	9307-	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209	●	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-	●	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	15	1	9002-	●	●	●
342	NUT; FENDER TO COWL M6 FLANGE	1-09984-141-0	02	1	9201-	●	●	●
354	SEAL; FENDER SIDE	1-76777-080-1	01	1	9002-	●	●	●
354	SEAL; FENDER SIDE	1-76777-079-1	01	1	9002-	●	●	●
356	FINISHER; STEP CLOSING,FENDER	1-76777-074-0	01	1	9002-	●	●	●
356	FINISHER; STEP CLOSING,FENDER	1-76777-071-2	01	1	9002-	●	●	●
369	SUPPORT; FENDER STEP FRT	1-65670-834-0	01	1	9002-	●	●	●
369	SUPPORT; FENDER STEP FRT	1-65670-833-0	01	1	9002-	●	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X25	1-09980-491-0	05	1	9002-9201	●	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210	●	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-	●	●	●
372	SEAL; SUPPORT OD=20	1-76797-006-0	04	1	9002-9508	●	●	●
373	SUPPORT; FENDER STEP REAR	1-65670-842-2	01	1	9002-	●	●	●
373	SUPPORT; FENDER STEP REAR	1-65670-841-2	01	1	9002-	●	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X25	1-09980-491-0	04	1	9002-9201	●	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210	●	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-9301	●	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9302-	●	●	●
375	SUPPORT; FENDER REAR	1-65670-627-2	02	1	9002-	●	●	●
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-	●	●	●
380	STAY ASM; FENDER STEP FRT	1-65670-716-2	01	1	9002-	●	●	●
380	STAY ASM; FENDER STEP FRT	1-65670-715-2	01	1	9002-	●	●	●
381	BOLT; STAY,FENDER STEP M8X25	1-09980-491-0	08	1	9002-9301	●	●	●
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-512-0	08	1	9302-	●	●	●
382	STAY ASM; FENDER STEP RR	1-65670-641-6	01	1	9002-	●	●	●
382	STAY ASM; FENDER STEP RR	1-65670-640-6	01	1	9002-	●	●	●
383	GUARD; MUD,FENDER LWR TAIWAN EQUIPMENT(WW5)	1-71997-638-1	01	1	9002-	●	●	●
383	GUARD; MUD,FENDER LWR TAIWAN EQUIPMENT(WW5)	1-71997-637-1	01	1	9002-	●	●	●
385	SCREW; FENDER LWR TAIWAN EQUIPMENT(WW5) D6X16 PUSH RIVET	1-09983-105-0	24	1	9002-	●	●	●
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-	●	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●	●
520	NUT; FENDER M6	9-09114-046-0	08	1	9307-	●	●	●
575	PLUG; STAY OD=15 L=14.5	1-76378-157-0	04	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
