Sayfa 0-41 - Isuzu EPC

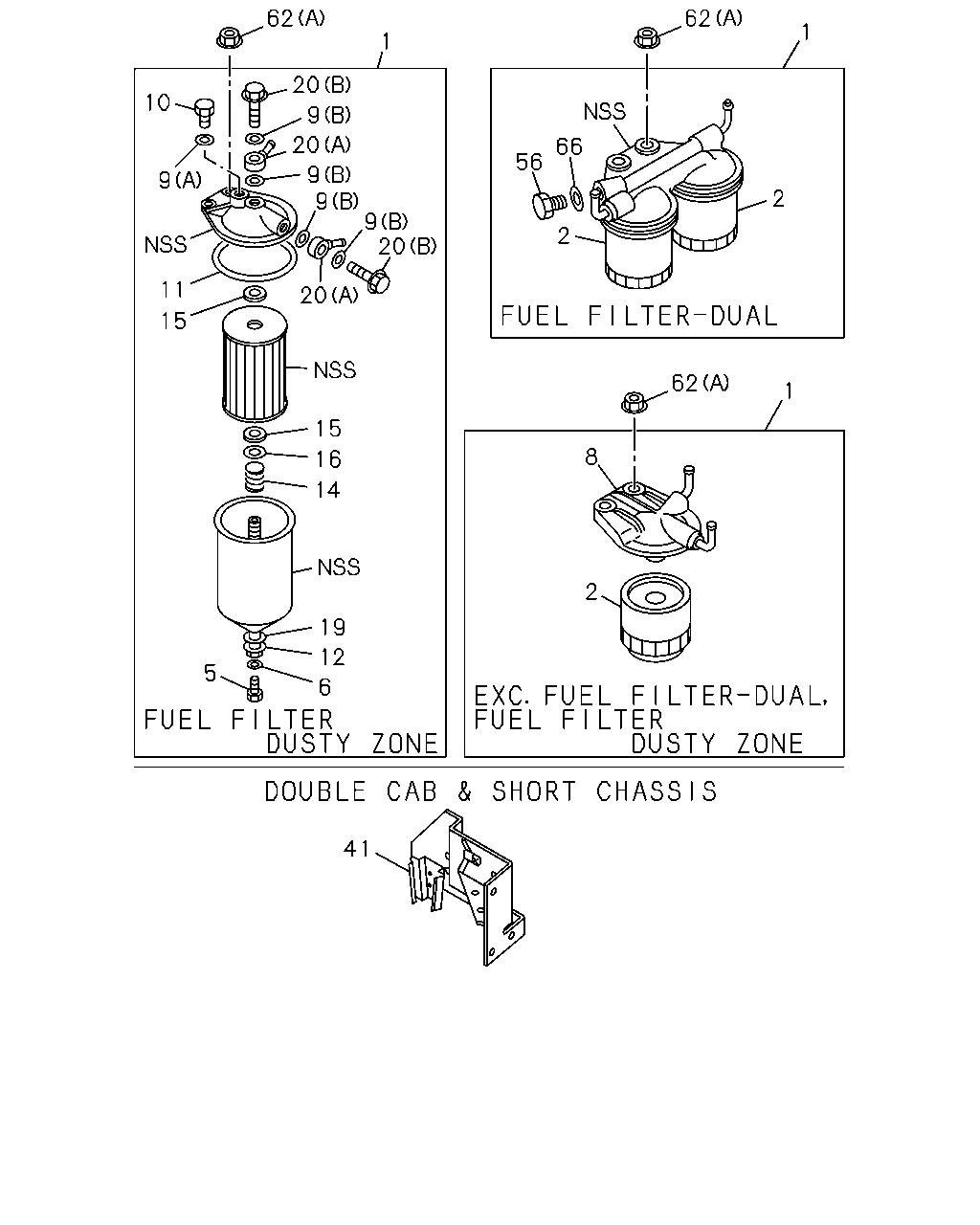

0-41 — FUEL FILTER AND BRACKET (#34149) — 196 parça

62 62 1 1 20 10 9 20 66 56 9 9 9 20 9 2 2 11 20 15 62 1 15 8 16 14 2 19 12 5 6 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9312-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-			●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510				●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702				●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-			●	●
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 08.971	9-09202-308-0	01	1	9312-	●
6	03.890 GASKET; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09562-106-0	01	1	9312-	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9312-9506	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9507-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707			●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502				●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-				●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-	●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-	●
9	03.890 GASKET; EYE JOINT 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9707			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510				●
10	03.890 VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	9312-	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9503-9510			●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9511-9707			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER	1-13260-047-0	01	1	9708-			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502				●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-13213-040-1	01	1	9312-	●
12	03.890 BOLT; CENTER,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-13231-012-0	01	1	9312-	●
14	03.890 SPRING; ELEMENT SUPPORT,FUEL FIL FUEL FILTER DUSTY ZONE(6KP)	1-09580-149-0	01	1	9312-	●
15	03.890 GASKET; HOLDER TO ELEMENT,FUEL F FUEL FILTER DUSTY ZONE(6KP)	1-09630-007-0	02	1	9312-	●
16	03.890 HOLDER; ELEMENT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09859-040-0	01	1	9312-	●
19	03.890 GASKET; BOLT TO CASE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09920-586-0	01	1	9312-	●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) (A)	8-97019-867-0	02	1	9312-	●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 03.162 (B) M14X29 EYE BOLT	9-09906-325-1	02	1	9312-	●
41	03.890 BRACKET; FUEL FILTER	8-97103-345-1	01	1	9312-	●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	9511-9711	●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506			●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-				●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9511-9711	●	●

42 9 10 1 9 8 2 46 35 62 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9312-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-			●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510				●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702				●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-			●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9312-9506	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9507-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707			●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502				●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-				●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-	●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-	●
9	03.890 GASKET; EYE JOINT 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9707			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510				●
10	03.890 VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	9312-	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9503-9510			●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9511-9707			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER	1-13260-047-0	01	1	9708-			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502				●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-			●	●
42	03.890 BOLT; FUEL FILTER 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-			●
46	03.890 BRACKET	8-94313-323-1	01	1	9312-				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506			●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-				●

62 9 10 1 9 8 2 46 43 62 35 1 92 93 36 36 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9312-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-			●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510				●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702				●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-			●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9312-9506	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9507-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707			●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502				●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-				●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-	●
9	03.890 GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-	●
9	03.890 GASKET; EYE JOINT 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9707			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-			●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510				●
10	03.890 VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	9312-	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9503-9510			●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9511-9707			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER	1-13260-047-0	01	1	9708-			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9502				●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-			●	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9712-				●
46	03.890 BRACKET	8-94313-323-1	01	1	9312-				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506			●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-				●
92	03.417 CAP; FUEL FILTER	8-97117-109-0	02	1	9511-9702				●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9703-				●
93	03.890 CONNECTOR; FUEL FILTER	8-97143-658-0	01	1	9511-9702				●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9703-				●

62 1 66 56 2 2 62 1 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9312-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9312-9506	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	9507-	●	●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-			●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510				●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702				●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9312-9506	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	9507-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-			●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9312-9506	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94254-730-0	01	1	9507-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510			●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707			●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-			●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502				●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-				●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	9511-9711	●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9506			●	●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9507-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-				●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9511-9711	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
