Isuzu WW
▶
TRUCKS
▶
NKR
▶
50694 - NKR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

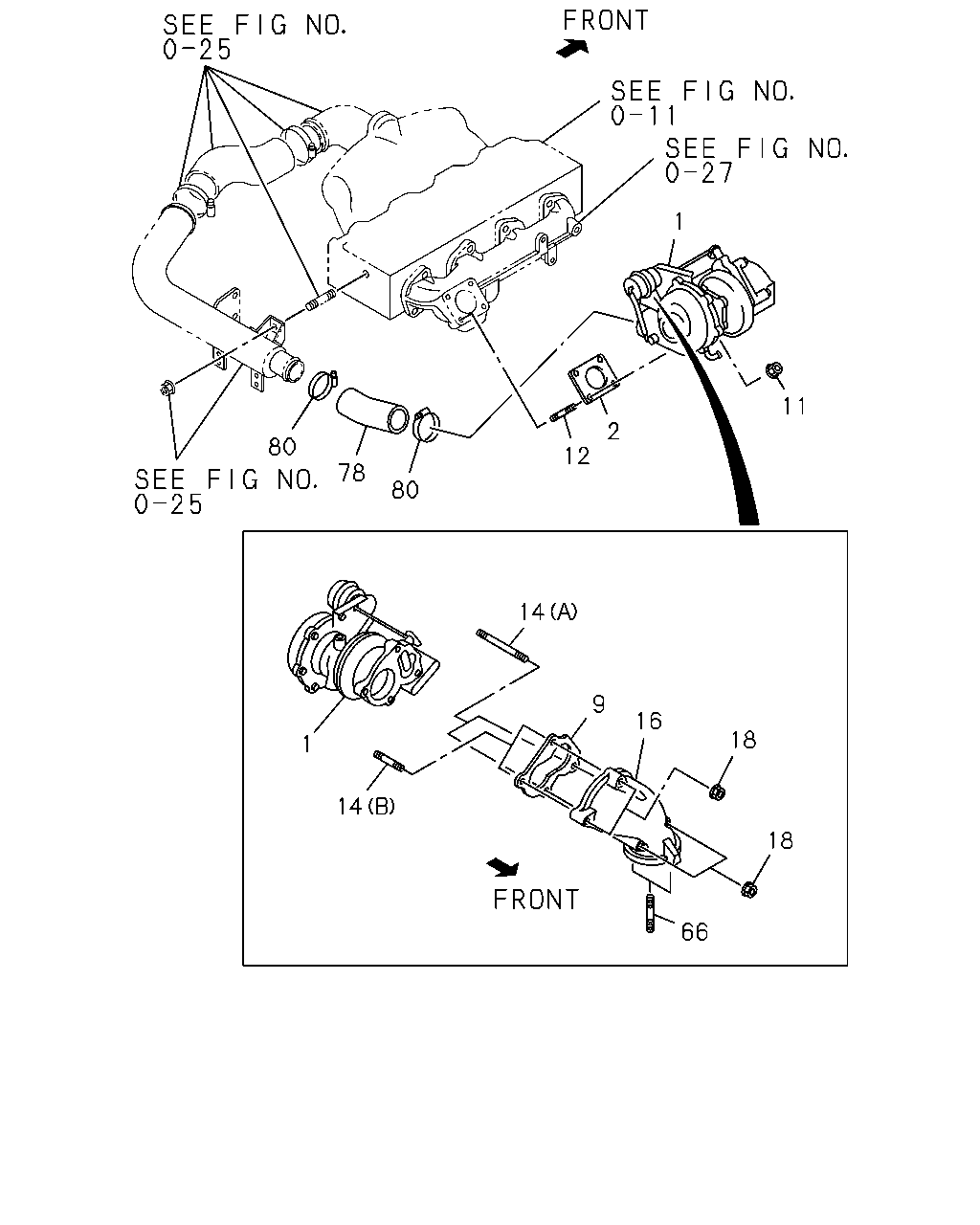

0-36 — TURBOCHARGER SYSTEM
(#34146) — 12 parça
1
11
2
80
12
78
80
14
9
16
18
1
14
18
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>
8-97176-080-1
01
1
9712-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>
8-94433-605-0
01
1
9712-
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>
8-94433-604-0
01
1
9712-
11
03.342 NUT; TURBOCHARGER
TURBOCHARGER<K51> 03.613 M8 FLANGE
8-97161-607-0
04
1
9712-
12
03.342 STUD; TURBOCHARGER
TURBOCHARGER<K51> M8X20 L=31
8-97104-508-1
04
1
9712-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (A) M8X105 L=116
8-94362-047-0
02
1
9712-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (B) M8X41 L=52
8-97188-452-0
02
1
9712-
16
03.609 ADAPTER; EXH PIPE
TURBOCHARGER<K51>
8-97176-079-0
01
1
9712-
18
03.613 NUT; EXH PIPE
TURBOCHARGER<K51> M8 FLANGE
8-97161-607-0
04
1
9712-
66
03.342 STUD; EXH PIPE
TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING
5-09302-008-1
02
1
9712-
78
03.342 HOSE; INL PIPE,TURBOCHARGER
TURBOCHARGER<K51>
8-97176-146-0
01
1
9712-
80
03.407 CLIP; CONN HOSE,TURBOCHARGER
TURBOCHARGER<K51> ID=45.5-56.5
8-97131-943-0
02
1
9712-
