Sayfa 0-35 - Isuzu EPC

0-35 — ENGINE CONTROL VALVE AND LEVER (#34145) — 190 parça

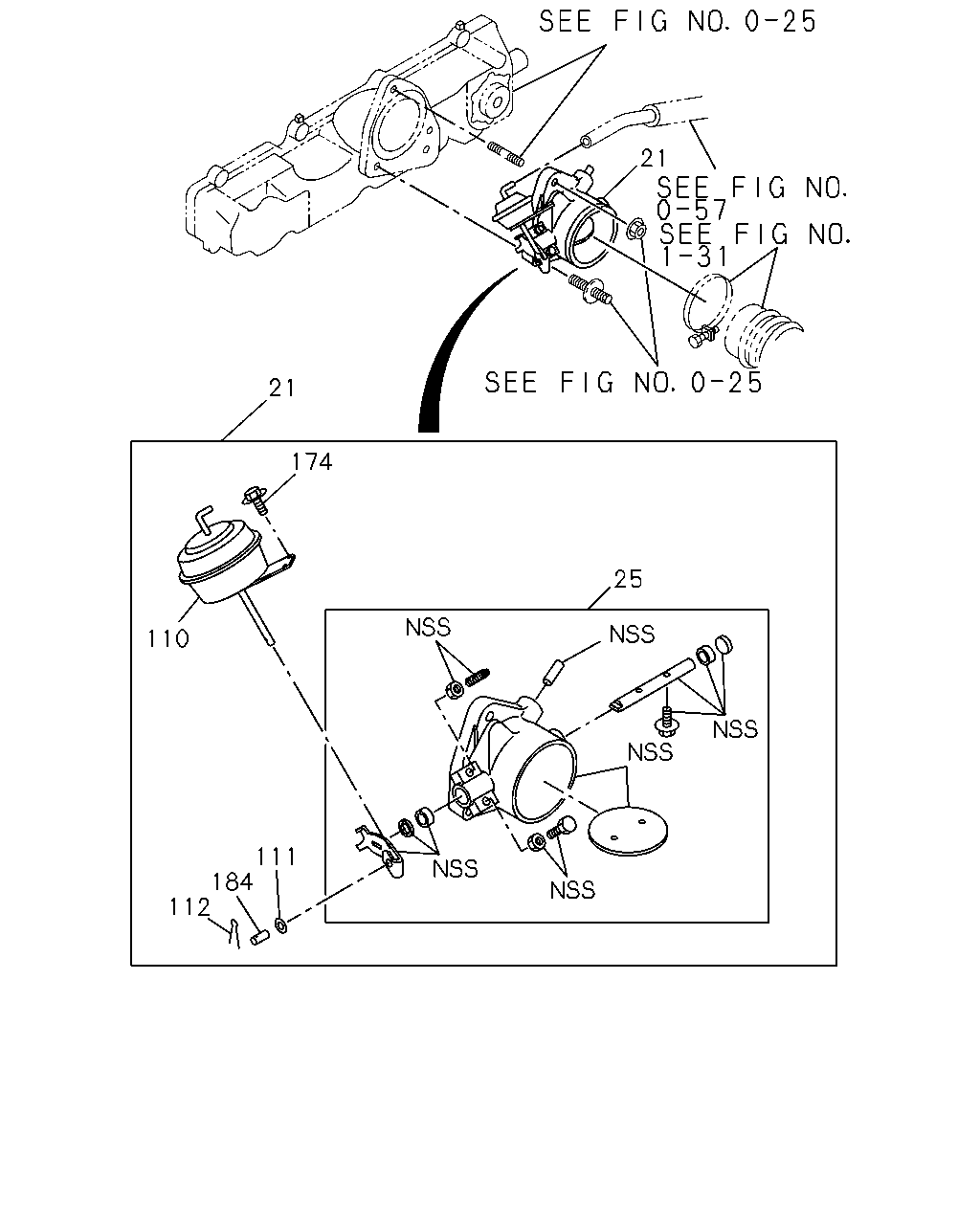

21 21 174 25 110 111 184 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9507-9711	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-0	01	1	9712-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9507-	●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-0	01	1	9712-	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97075-902-1	01	1	9312-9510			●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9312-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9312-9506	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9507-	●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9712-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97087-753-0	01	1	9312-9510			●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97103-169-0	01	1	9312-9406	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9407-9506	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9507-9711	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9712-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9312-9506	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9507-	●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9712-	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97022-149-1	01	1	9312-9510			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9312-9406	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9503-9506	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9507-9510	●	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9511-9711	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9712-	●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9712-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9312-9506	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9507-9711	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9712-	●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9712-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	8-97079-213-0	01	1	9312-9510			●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9312-9506	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9507-9711	●	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9407-9502	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9711	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●
184	03.440 PIN; LEVER EXHAUST BRAKE<NF8>	8-97022-150-1	01	1	9312-9510			●

242 252 252 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
242	03.431 LINK ASM	8-94152-024-0	01	1	9312-	●
245	03.425 NUT; LINK 03.463 M5 LH THREAD	9-09840-277-0	01	1	9312-	●
245	03.425 NUT; LINK 02.664 RH THREAD	9-99111-405-0	01	1	9312-	●
252	03.425 JOINT ASM; BALL RH THREAD	1-09760-002-0	01	1	9312-	●
252	03.425 JOINT ASM; BALL LH THREAD	1-09760-003-0	01	1	9312-	●

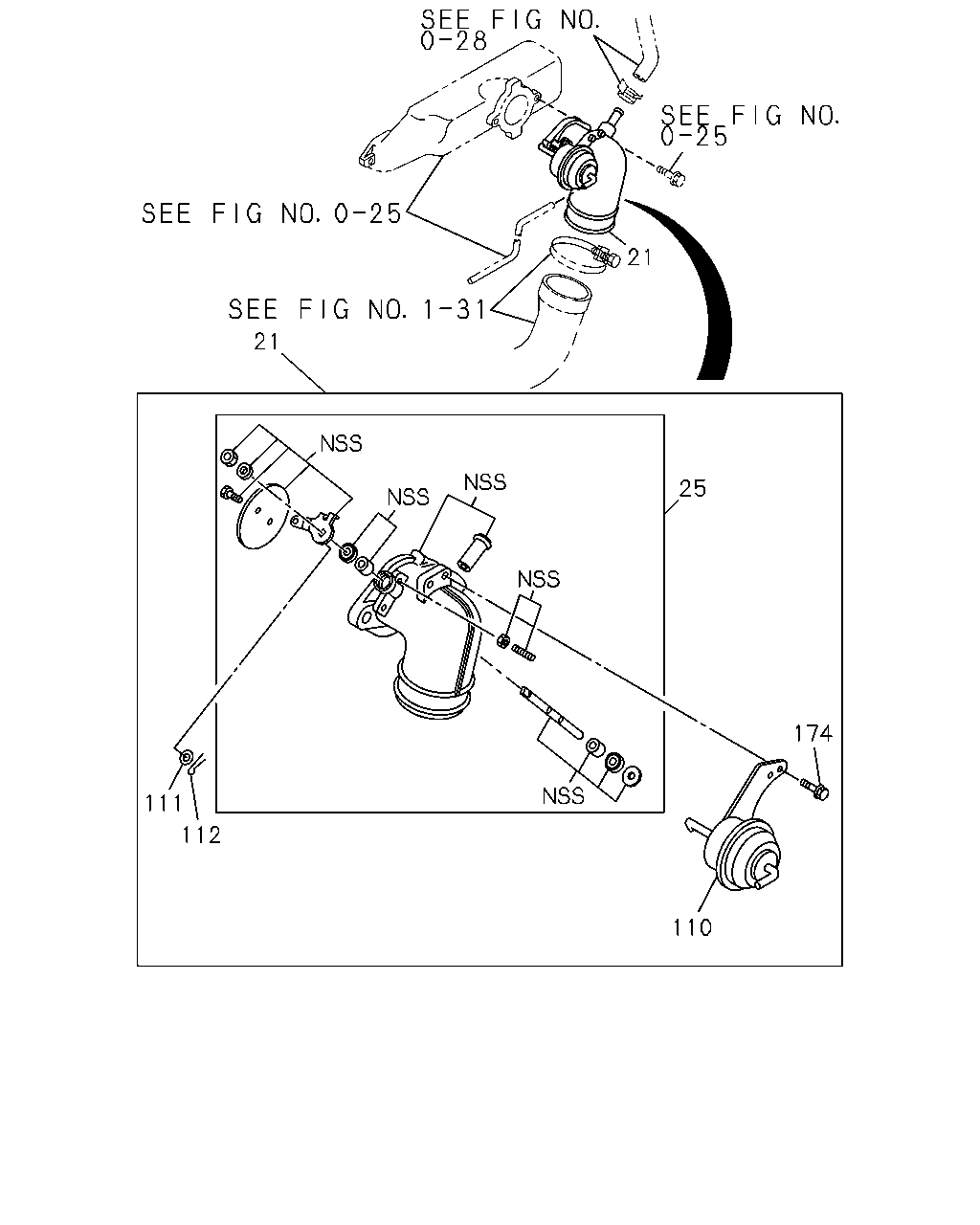

21 21 25 174 111 112 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9507-9711	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-0	01	1	9712-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9507-	●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-0	01	1	9712-	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97075-902-1	01	1	9312-9510			●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9312-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9312-9506	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9507-	●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9712-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97087-753-0	01	1	9312-9510			●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97103-169-0	01	1	9312-9406	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9407-9506	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9507-9711	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9712-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9312-9506	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9507-	●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9712-	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97022-149-1	01	1	9312-9510			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9312-9406	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9503-9506	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9507-9510	●	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9511-9711	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9712-	●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9712-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9312-9506	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9507-9711	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9712-	●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9712-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	8-97079-213-0	01	1	9312-9510			●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9312-9506	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9507-9711	●	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9407-9502	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9711	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●

21 21 25 174 110 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9507-9711	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-0	01	1	9712-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9507-	●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-0	01	1	9712-	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97075-902-1	01	1	9312-9510			●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9312-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9312-9506	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9507-	●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9712-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97087-753-0	01	1	9312-9510			●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97103-169-0	01	1	9312-9406	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9407-9506	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9507-9711	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9712-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9312-9506	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9507-	●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9712-	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97022-149-1	01	1	9312-9510			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9312-9406	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9503-9506	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9507-9510	●	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9511-9711	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9712-	●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9712-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9312-9506	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9507-9711	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9712-	●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9712-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	8-97079-213-0	01	1	9312-9510			●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9312-9506	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9507-9711	●	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9407-9502	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9711	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●

21 21 25 174 111 112 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9507-9711	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-0	01	1	9712-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9312-9506	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9507-	●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-0	01	1	9712-	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97075-902-1	01	1	9312-9510			●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9312-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9312-9506	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9507-	●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9712-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8>	8-97087-753-0	01	1	9312-9510			●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97103-169-0	01	1	9312-9406	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9407-9506	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9507-9711	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9712-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9312-9506	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9507-	●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9712-	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97022-149-1	01	1	9312-9510			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9312-9406	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9503-9506	●		●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9507-9510	●	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9511-9711	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9712-	●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9712-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9407-9502			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9312-9506	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9507-9711	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9712-	●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9712-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	8-97079-213-0	01	1	9312-9510			●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9312-9506	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9507-9711	●	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-9406			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9407-9502	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9503-9506			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9507-9510			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9711	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
