Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#34136) — 133 parça

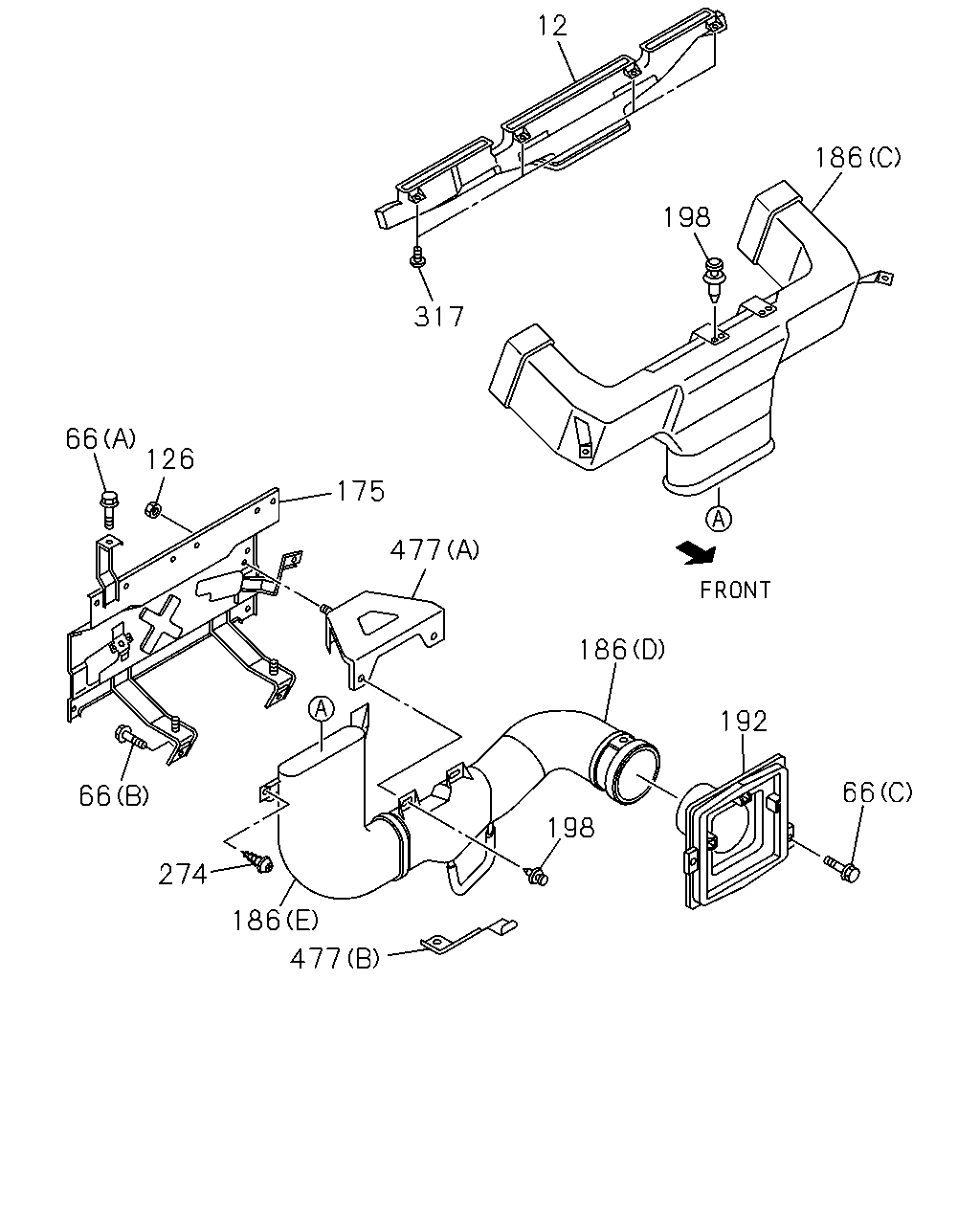

186 198 12 317 186 192 66 198 477 186 274 66 175 477 126 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0804-1004	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	1005-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE SOU	0-28650-616-0	02	1	0804-1004	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE SOU	0-28650-616-0	02	1	1005-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) WASHER OD=22 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1004	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) WASHER OD=22 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1005-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) WASHER OD=26 M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0804-1004	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) WASHER OD=26 M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1005-	●	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	0804-1001	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	1002-1004	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE SOU	0-91180-106-0	01	1	1002-1004	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	1005-	●	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE SOU	0-91180-106-0	01	1	1005-	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98091-544-5	01	1	0810-1004	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98091-544-5	01	1	1005-1206	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98221-688-0	01	1	1207-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1005-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1005-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1005-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	0804-1004	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1005-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	0804-1004	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1005-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-	●	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-386-4	01	1	0810-1004	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-386-4	01	1	1005-	●	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	05	1	0804-1004	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	05	1	1005-	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1004	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1005-1101	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1004	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1005-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1004	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1005-1101	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	0804-1004	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1005-	●	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98091-306-0	01	1	0804-0808	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98132-529-1	01	1	0809-1001	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-529-1	01	1	1002-1004	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-529-1	01	1	1005-1005	●	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1006-	●	●

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-0	02	1	0804-1004	●
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-0	02	1	0804-1004	●
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-0	02	1	1005-	●	●
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-0	02	1	1005-	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-146-0	01	1	0804-1004	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-146-0	01	1	1005-	●	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	0804-1004	●
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	1005-	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	0804-1004	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	1005-	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	0804-1004	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-1	01	1	1005-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	0804-1004	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1005-	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0804-1004	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1005-	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1004	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1005-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE SOU	0-28650-616-0	04	1	0804-1004	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE SOU	0-28650-616-0	04	1	1005-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0804-1004	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1005-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0804-1004	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1005-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1004	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1005-1101	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-504-3	01	1	0804-1004	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-504-3	01	1	1005-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-145-0	01	1	0804-1004	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-145-0	01	1	1005-1411	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98246-555-0	01	1	1412-	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-1003	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1004	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1005-1101	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-363-0	01	1	1005-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-371-0	01	1	1005-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	0810-1004	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-379-2	01	1	1005-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	0804-1004	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-486-6	01	1	1005-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-585-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	0804-1004	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-7	01	1	1005-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-582-0	01	1	1411-	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	02	1	0804-1004	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	02	1	1005-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1004	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1005-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1004	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1005-1101	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	0804-1004	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	1005-	●	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97387-092-2	01	1	0804-1004	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97387-092-2	01	1	1005-	●	●

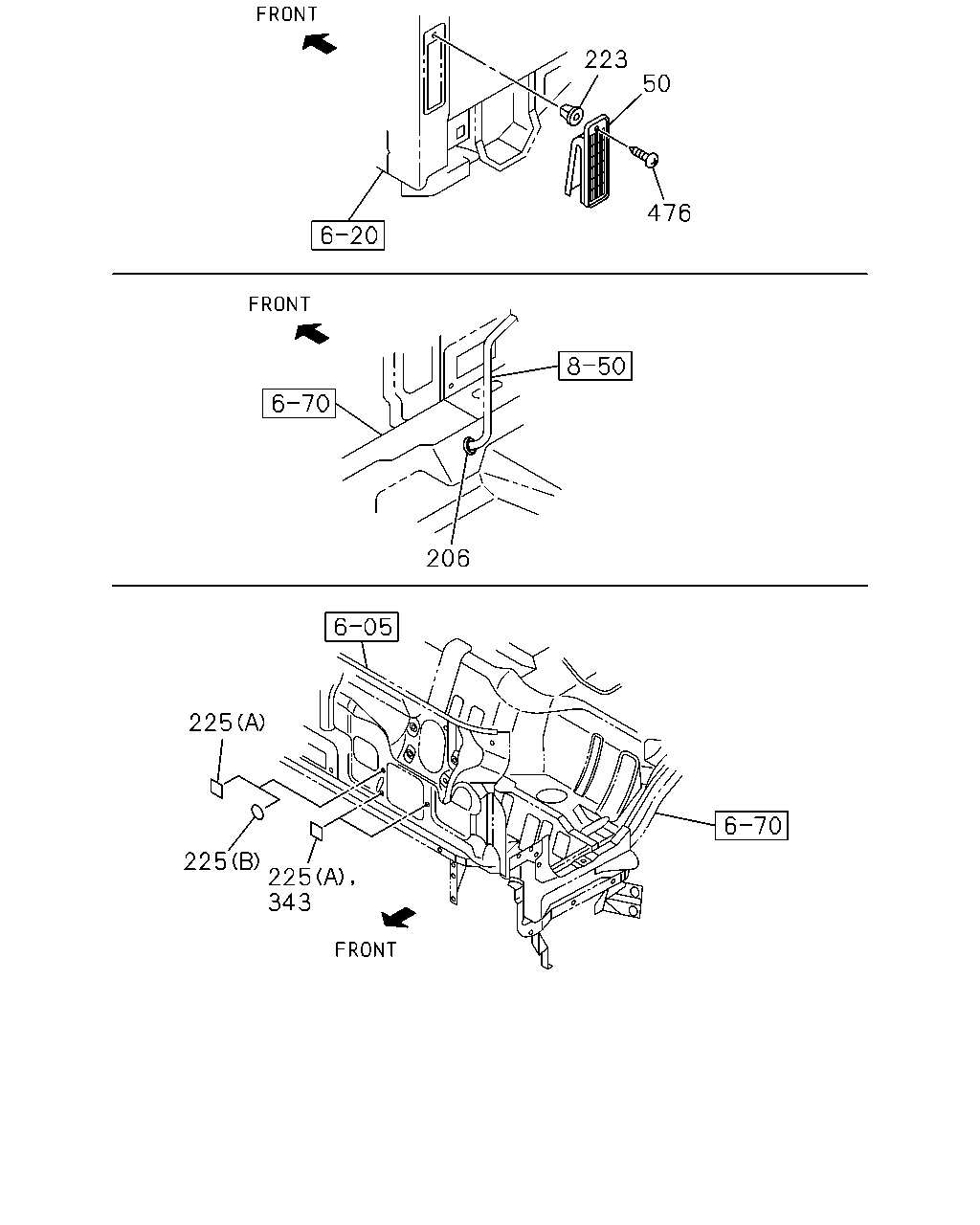

223 50 476 206 225 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-999-2	01	1	1005-		●
50	VALVE ASM; HTR	8-98080-998-1	01	1	0804-	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0804-1004	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1005-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0804-1004	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1005-	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) SOU	8-97856-616-0	02	1	1303-	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) SOU	8-97856-616-0	03	1	0804-1004	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) SOU	8-97856-616-0	03	1	1005-1302	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) SOU	8-97856-616-0	01	1	1303-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0804-1004	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1005-	●	●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SOU	8-97856-616-0	02	1	0804-1004	●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SOU	8-97856-616-0	02	1	1005-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0804-1004	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1005-	●	●
