8-28 — CHASSIS ELECTRICAL (#34135) — 48 parça
çizim 121996
616 616 531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0804-1004 ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1005-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
616 RELAY; TRANSFER
24V 10A PANASONIC 		8-97173-035-1 02 1 0804-1004 ●
616 RELAY; TRANSFER
24V 10A PANASONIC 		8-97173-035-1 02 1 1005- ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1004 ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 1005-1005 ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●

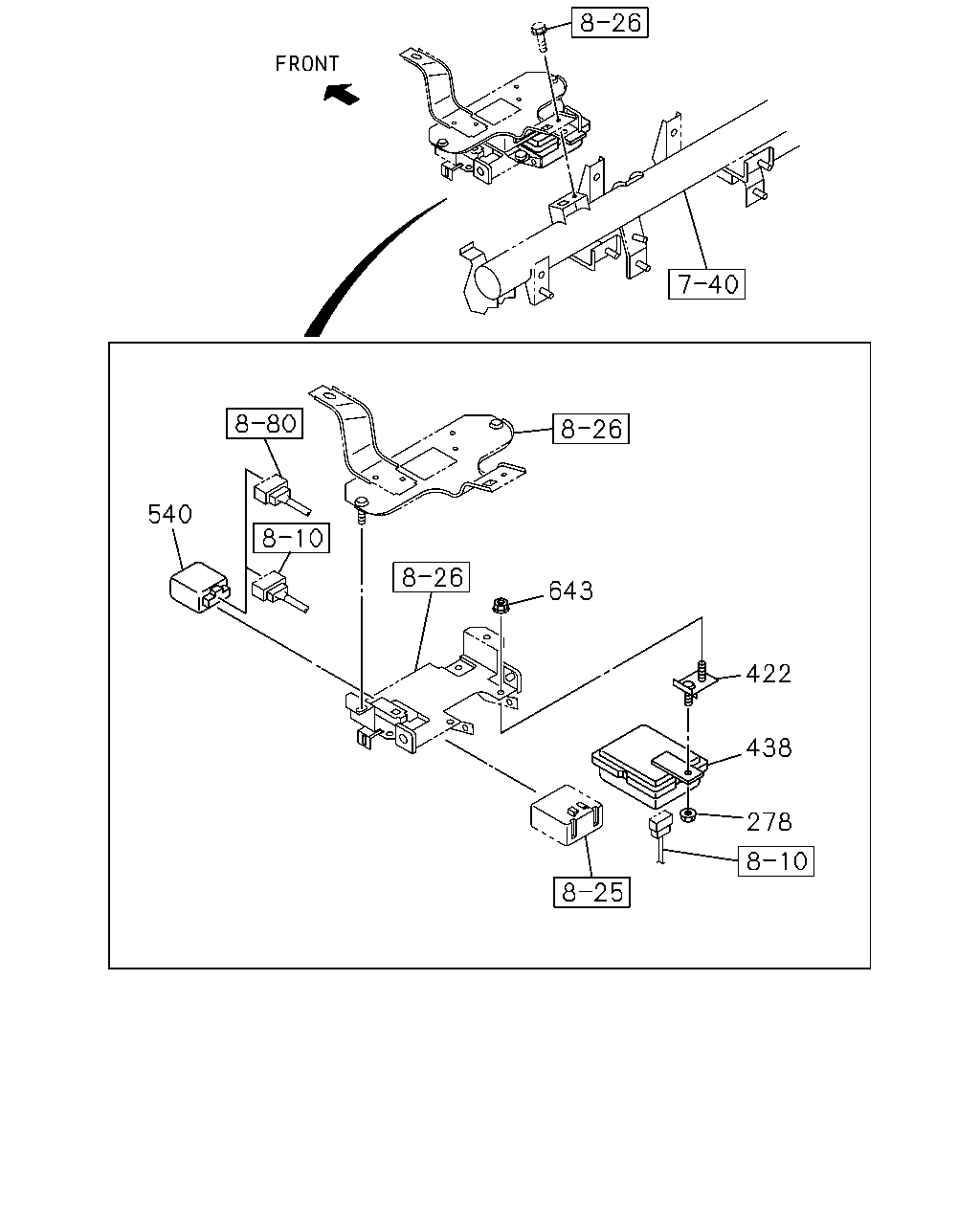

çizim 122007
540 643 422 438 278
BalonParca AdiParca NoAdetTipApplied Date A B
278 NUT; CONT UNIT
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
278 NUT; CONT UNIT
M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●
422 BRACKET; CONT UNIT 8-98082-304-0 01 1 0804-1004 ●
422 BRACKET; CONT UNIT 8-98082-304-0 01 1 1005- ● ●
438 UNIT; SPD CONTROL 1-82550-271-0 01 1 0804-1004 ●
438 UNIT; SPD CONTROL 1-82550-271-0 01 1 1005- ● ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0804-1004 ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1005-1308 ● ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●
643 NUT; BRKT,CONT UNIT
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
643 NUT; BRKT,CONT UNIT
M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●

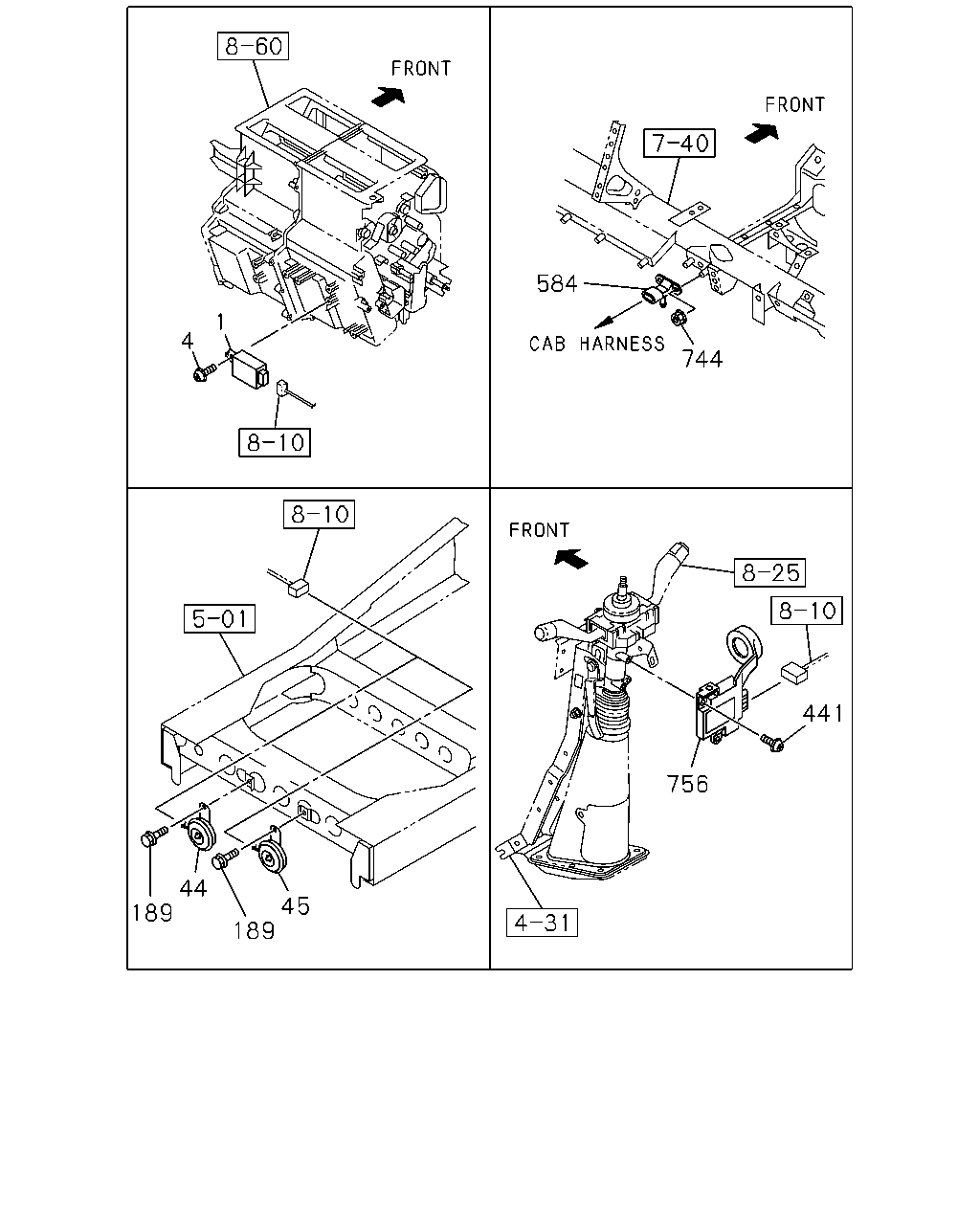

çizim 122008
584 1 4 744 441 756 44 189 45 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0804-1004 ●
1 UNIT; FLASHER 8-98025-533-1 01 1 1005- ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1004 ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-1101 ● ●
4 SCREW; FLASHER UNIT
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 HORN; HIGH NOTE 8-98070-080-0 01 1 0804-1004 ●
44 HORN; HIGH NOTE 8-98070-080-0 01 1 1005- ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 0804-1004 ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 1005- ● ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0804-1004 ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0804-1004 ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 1005-1005 ● ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 1005-1005 ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0804-1004 ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1005- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0804-1004 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1005- ● ●
744 NUT; SENSOR
M6 FLANGE SOU 		0-91180-106-0 02 1 0804-1004 ●
744 NUT; SENSOR
M6 FLANGE SOU 		0-91180-106-0 02 1 1005- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0804-1004 ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 1005-1005 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ●

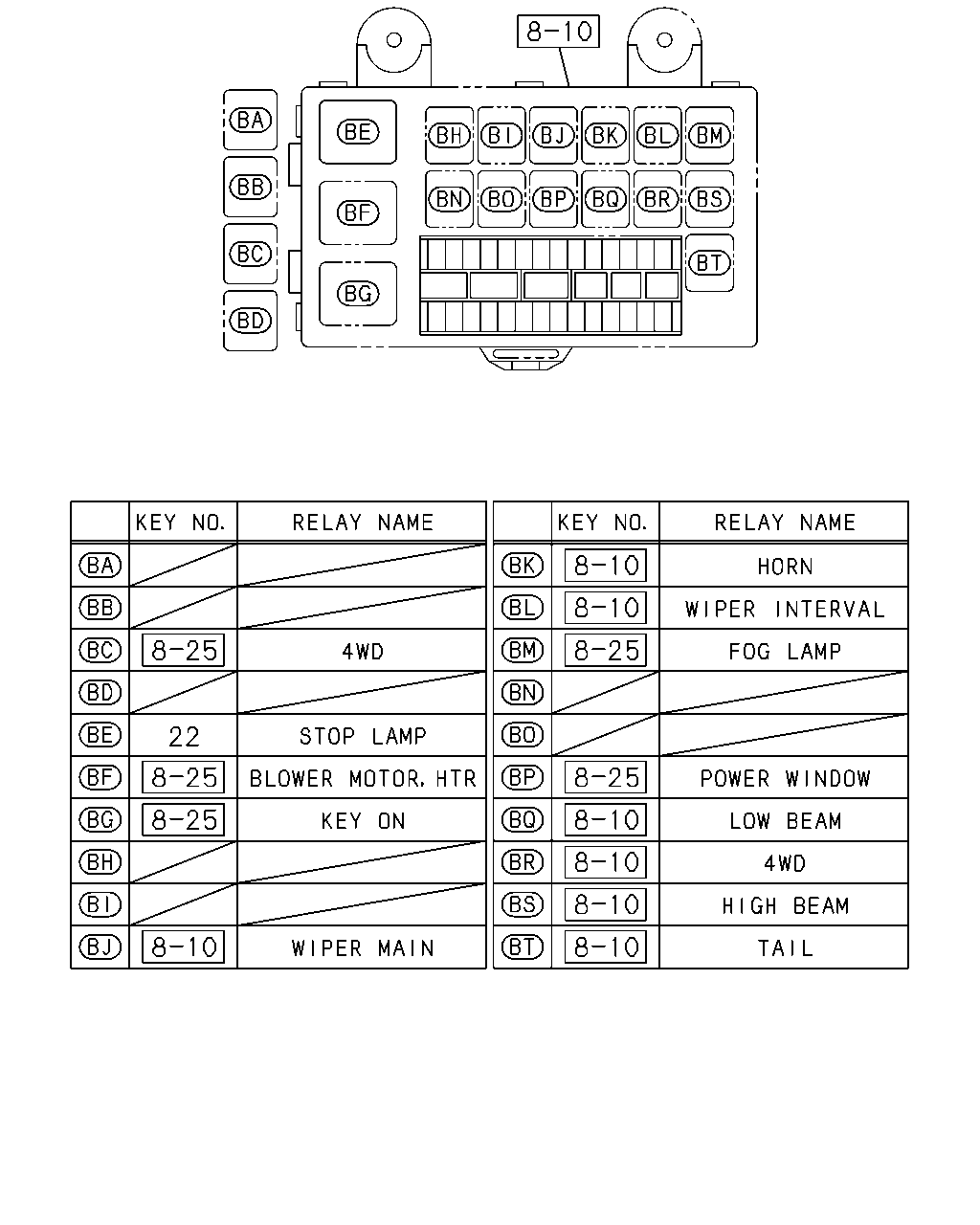

çizim 122021
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 0804-1004 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1005- ● ●

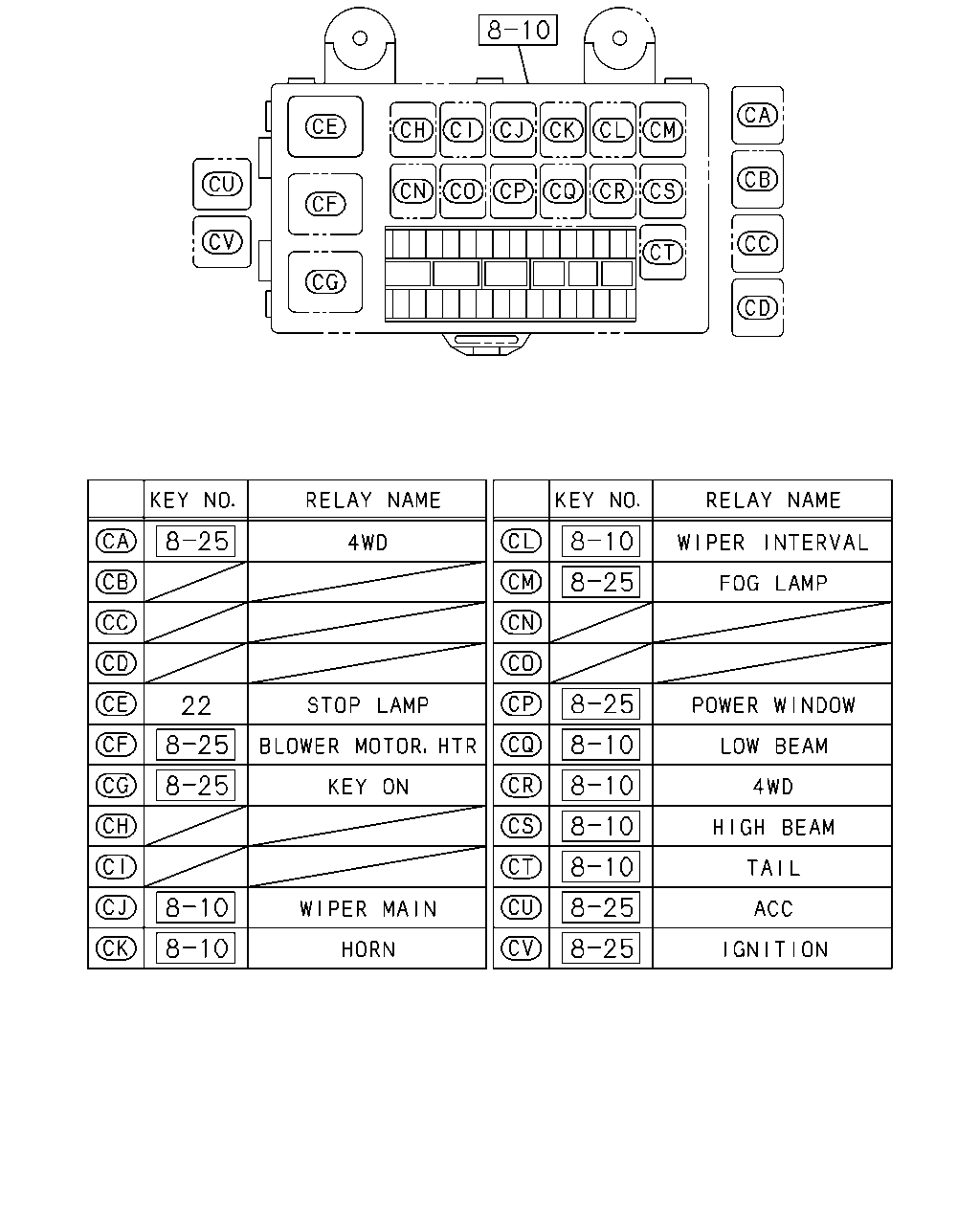

çizim 283491
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 0804-1004 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1005- ● ●
