Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

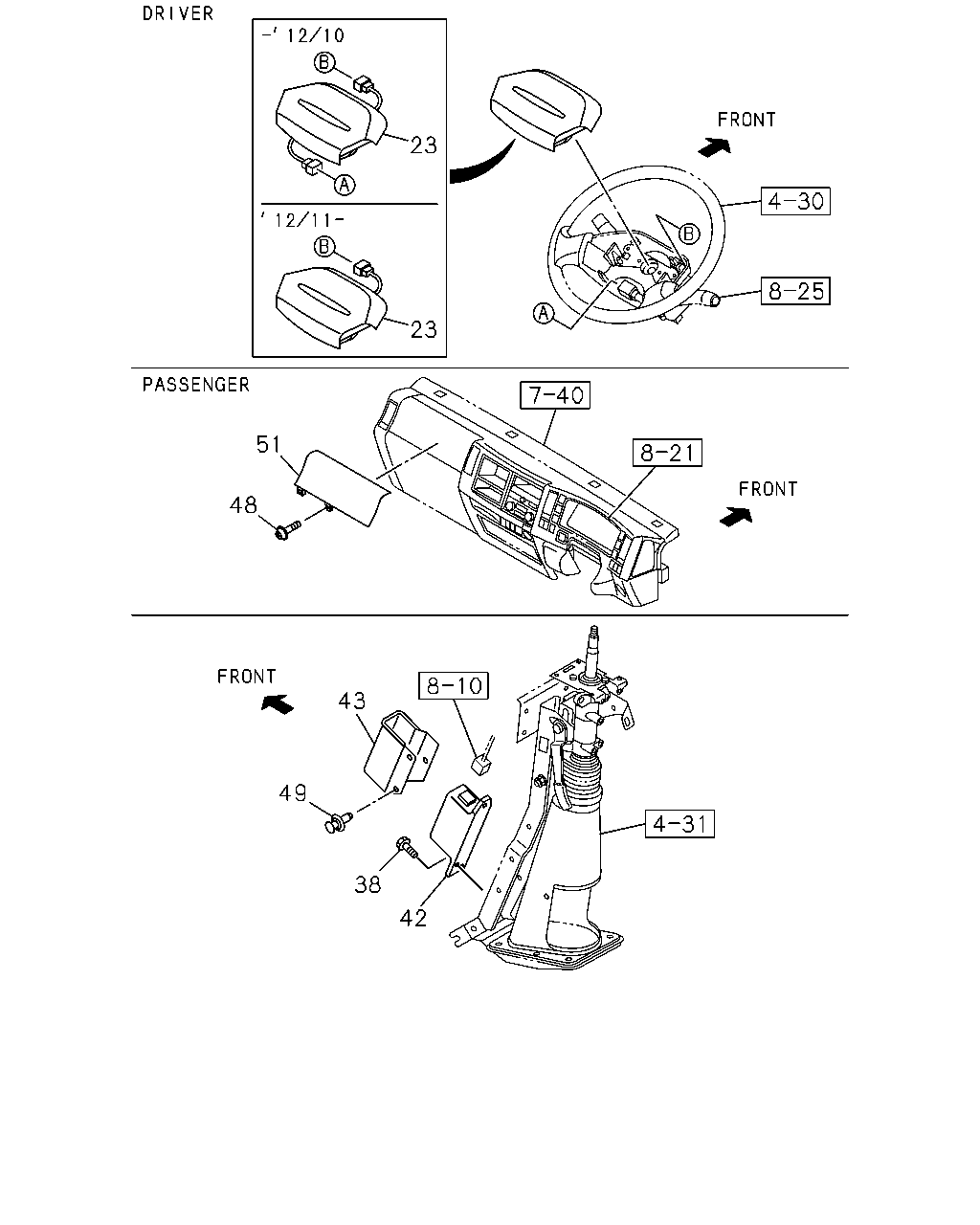

8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#34134) — 20 parça
Tümü
A - NPS5SN
B - NPS5WN
42
38
49
43
48
51
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97407-721-1
01
1
0804-1004
●
23
AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97407-721-1
01
1
1005-1005
●
●
23
AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97418-100-0
01
1
1005-1210
●
●
23
AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97423-999-1
01
1
1211-
●
●
38
BOLT; CONT UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER
8-97105-796-1
03
1
0804-1004
●
38
BOLT; CONT UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER
8-97105-796-1
03
1
1005-
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5>
8-98094-556-0
01
1
0804-0903
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5>
8-98120-058-2
01
1
0904-1004
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5>
8-98120-058-2
01
1
1005-
●
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3>
8-98094-555-0
01
1
0804-0903
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3>
8-98120-057-2
01
1
0904-1004
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3>
8-98120-057-2
01
1
1005-
●
●
43
PROTECTOR; CONTROL UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98083-536-0
01
1
0804-1004
●
43
PROTECTOR; CONTROL UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98083-536-0
01
1
1005-
●
●
48
BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
0804-1004
●
48
BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
1005-
●
●
49
CLIP; PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> OD=8.3 SOU
8-97997-832-0
03
1
0804-1004
●
49
CLIP; PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> OD=8.3 SOU
8-97997-832-0
03
1
1005-
●
●
51
AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-266-4
01
1
0804-1004
●
51
AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-266-4
01
1
1005-
●
●
