Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#34132) — 123 parça
Tümü
A - NPS5SN
B - NPS5WN
◀
[825A] RELAY;DOOR (1 parça)
[825A] RELAY;FRAME HARNESS (6 parça)
[825A] SWITCH(NO.2) (36 parça)
[825A] SWITCH;DOOR (33 parça)
[825A] SWITCH(NO.1) (24 parça)
[825A] -'12/4 RELAY;CAB HARNESS (11 parça)
[825A] '12/5- RELAY;CAB HARNESS (12 parça)
▶
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
0804-
●
151
154
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
0804-1004
●
151
RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1005-
●
●
154
RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
154
RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●
315
RELAY; EXH BRAKE CONT
24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
315
RELAY; EXH BRAKE CONT
24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●

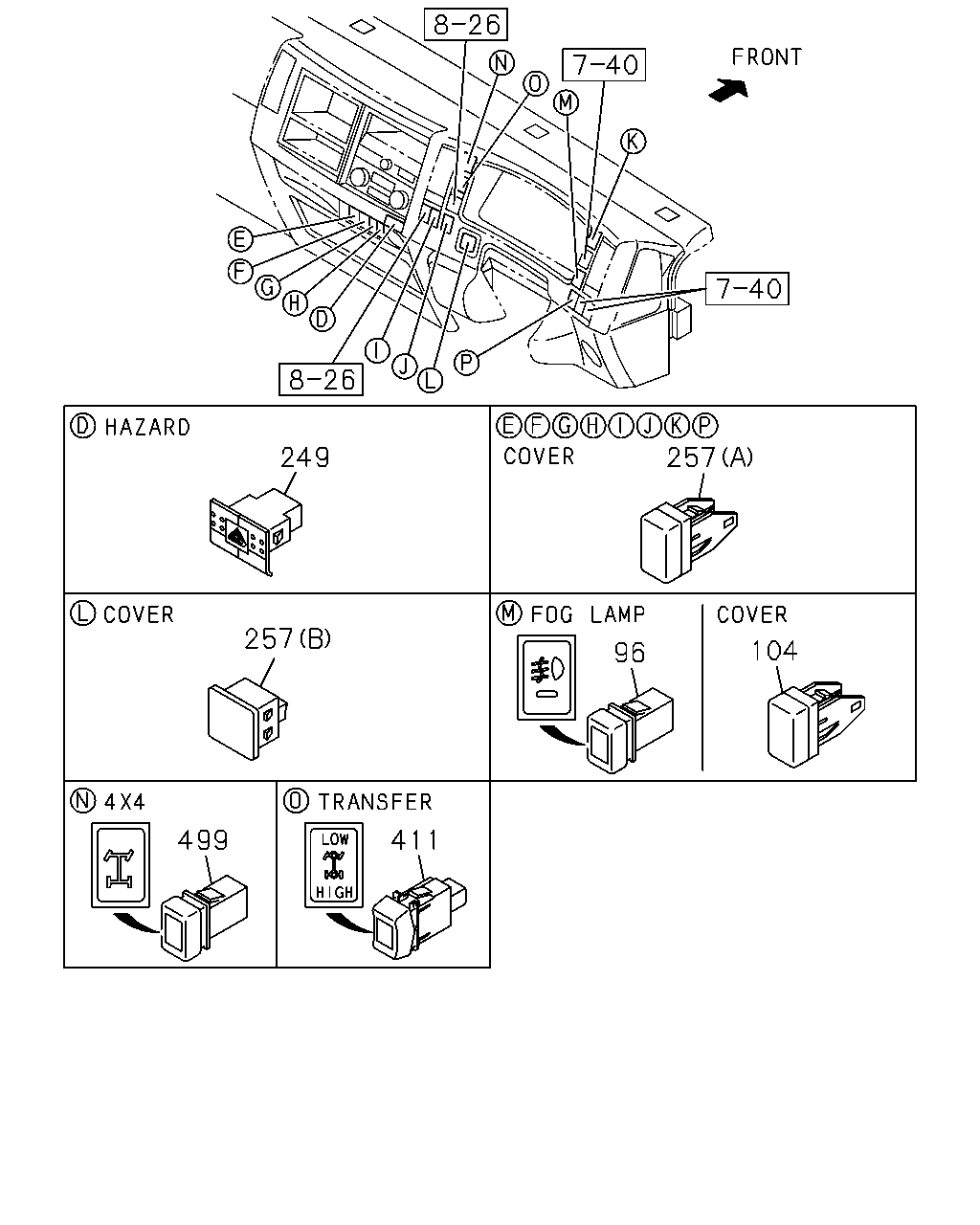

257
249
257
104
96
499
411
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
0804-1004
●
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1005-
●
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0804-1004
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
1005-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0804-1004
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0804-1004
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0804-
●
411
SWITCH; TRANSFER
8-97613-967-1
01
1
0804-1004
●
411
SWITCH; TRANSFER
8-97613-967-1
01
1
1005-
●
●
499
SWITCH; 4X4
8-97386-914-3
01
1
0804-1004
●
499
SWITCH; 4X4
8-97386-914-3
01
1
1005-
●
●

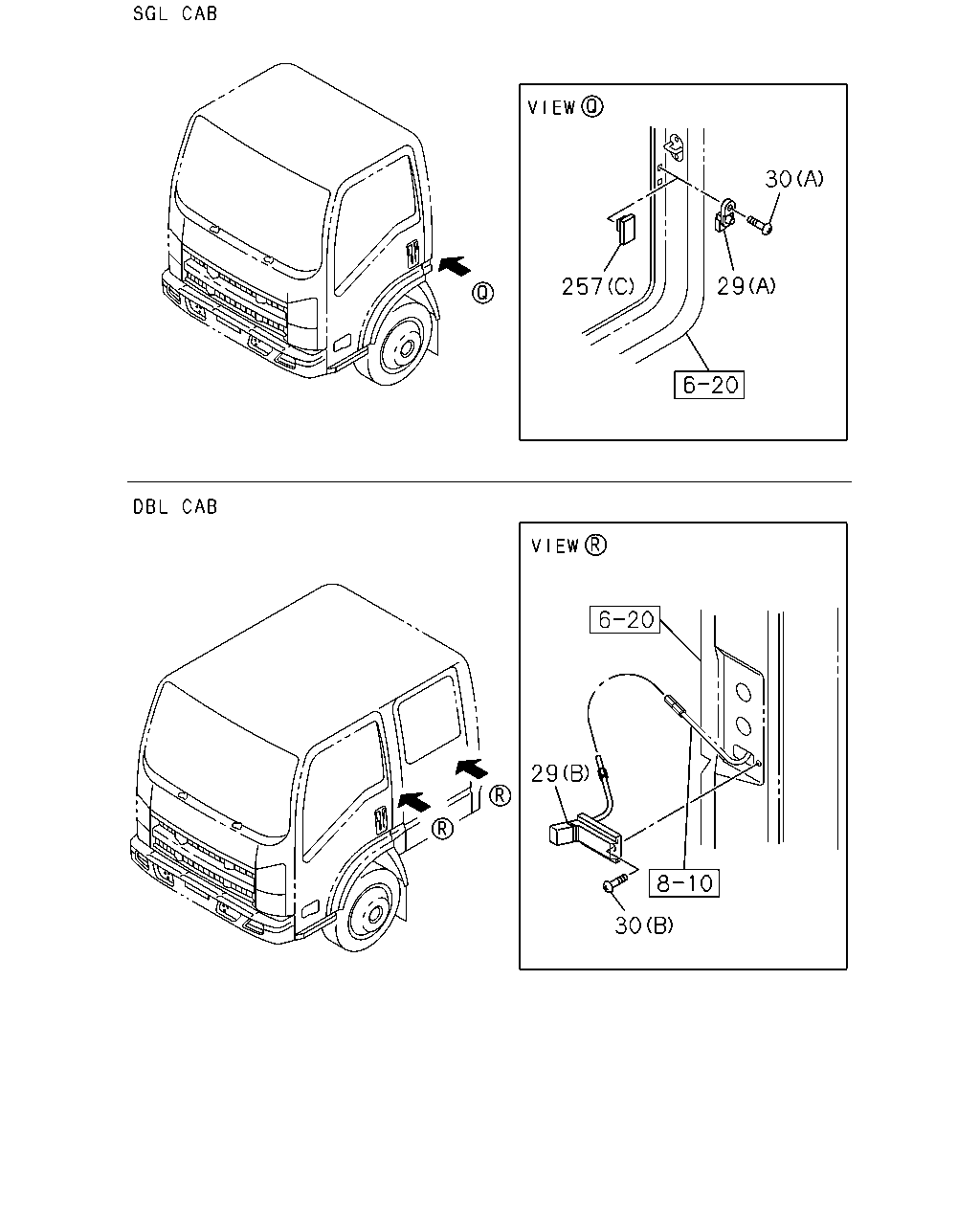

30
29
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
(B) FRONT SOU
8-97855-032-3
01
1
1005-
●
29
SWITCH; DOOR
(B) FRONT SOU
8-97855-032-3
01
1
1005-
●
29
SWITCH; DOOR
(B) REAR
8-98054-195-0
01
1
1005-
●
29
SWITCH; DOOR
(B) REAR
8-98054-195-0
01
1
1005-
●
29
SWITCH; DOOR
(A) BLACK
8-98022-211-0
01
1
0804-
●
30
SCREW; DOOR SW
(B) M5X16 SOU
8-94279-341-0
04
1
1005-
●
30
SCREW; DOOR SW
(A) M5X18
8-98047-201-0
01
1
0804-
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-1004
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0804-1004
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1005-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0804-
●

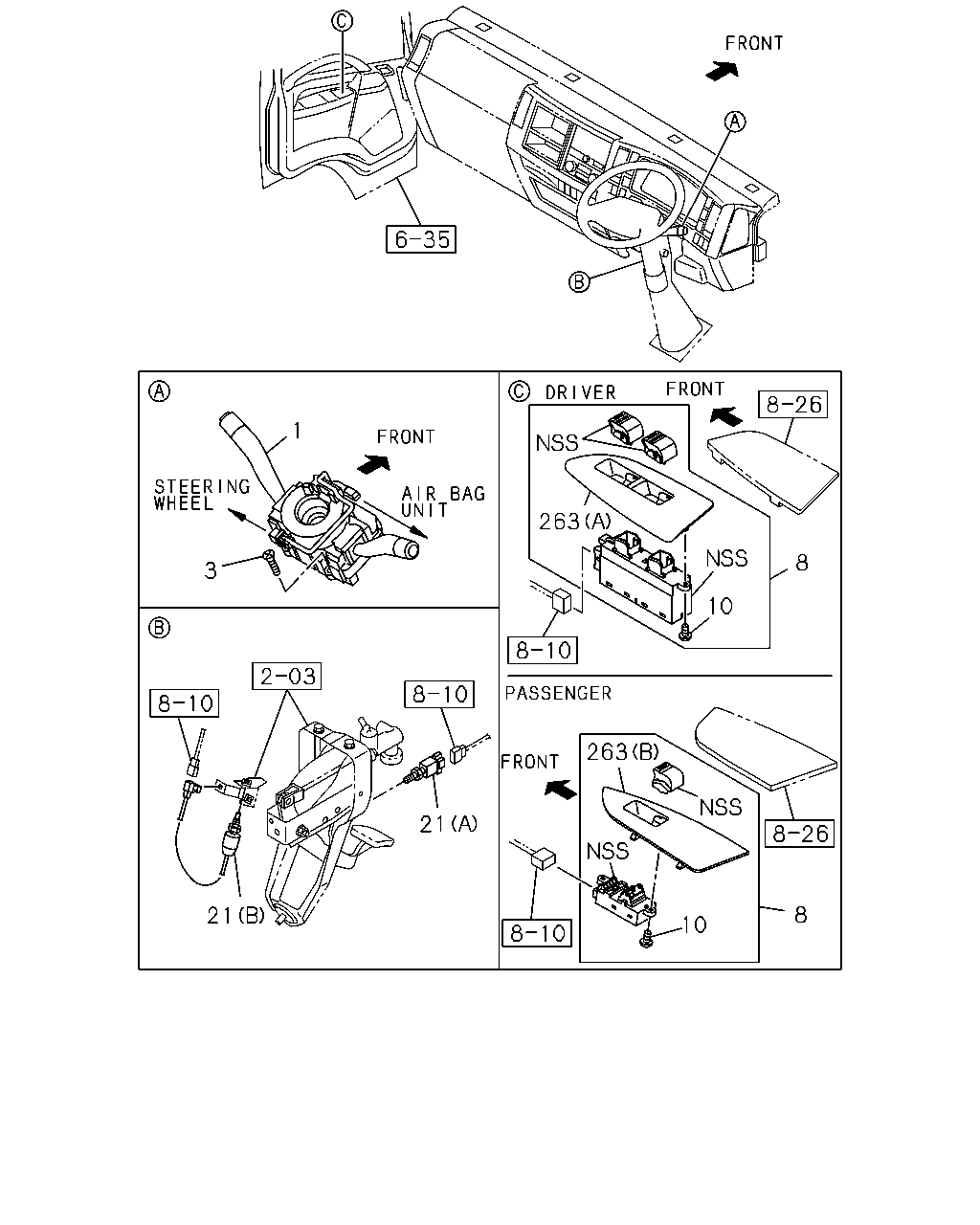

1
263
8
3
10
263
21
21
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98070-001-1
01
1
0804-0905
●
1
SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98146-635-0
01
1
0906-1004
●
1
SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98146-635-0
01
1
1005-1210
●
●
1
SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98217-808-0
01
1
1211-1310
●
●
1
SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98243-725-0
01
1
1311-
●
●
1
SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>
8-98069-993-2
01
1
0804-1004
●
1
SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>
8-98069-993-2
01
1
1005-1310
●
●
1
SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>
8-98243-728-0
01
1
1311-
●
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98069-995-1
01
1
0804-1004
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98069-995-1
01
1
1005-1310
●
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98243-729-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0804-1004
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1005-
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97387-034-2
01
1
0804-
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98003-785-1
01
1
0804-0809
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98129-844-0
01
1
0810-1001
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98159-543-0
01
1
1002-
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
03
1
0804-
●
21
SWITCH; CLU
(A)
8-97358-248-0
01
1
0804-1004
●
21
SWITCH; CLU
(A)
8-97358-248-0
01
1
1005-
●
●
21
SWITCH; CLU
(B)
8-97620-841-0
01
1
0804-1004
●
21
SWITCH; CLU
(B)
8-97620-841-0
01
1
1005-
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32> (A)
8-98153-836-0
01
1
0804-
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32> (B)
8-98153-841-0
01
1
0804-
●

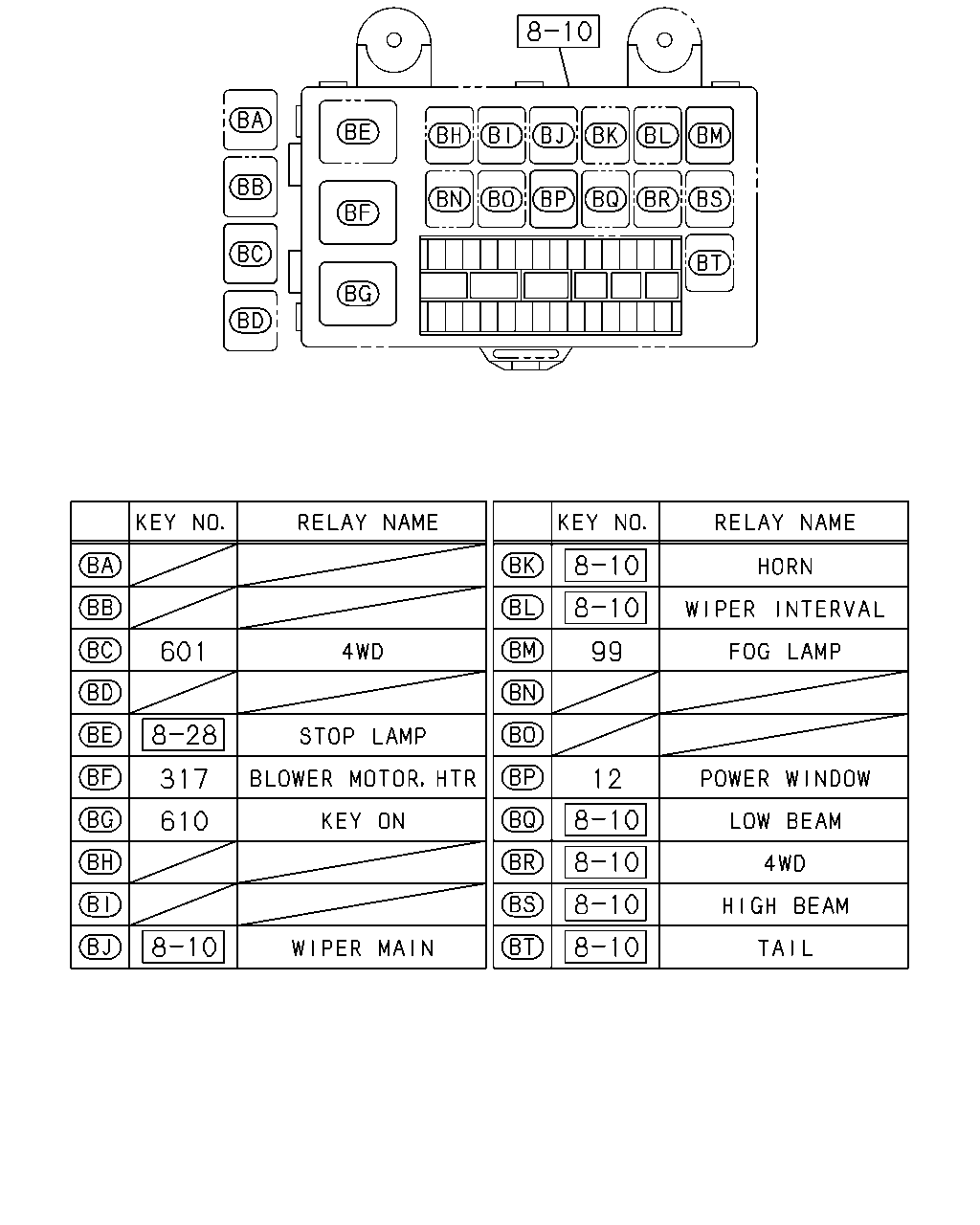

601
99
317
12
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0804-
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
0804-1004
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1005-
●
●
601
RELAY; 4WD
24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
601
RELAY; 4WD
24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
0804-1004
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1005-1204
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1205-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1205-
●
●

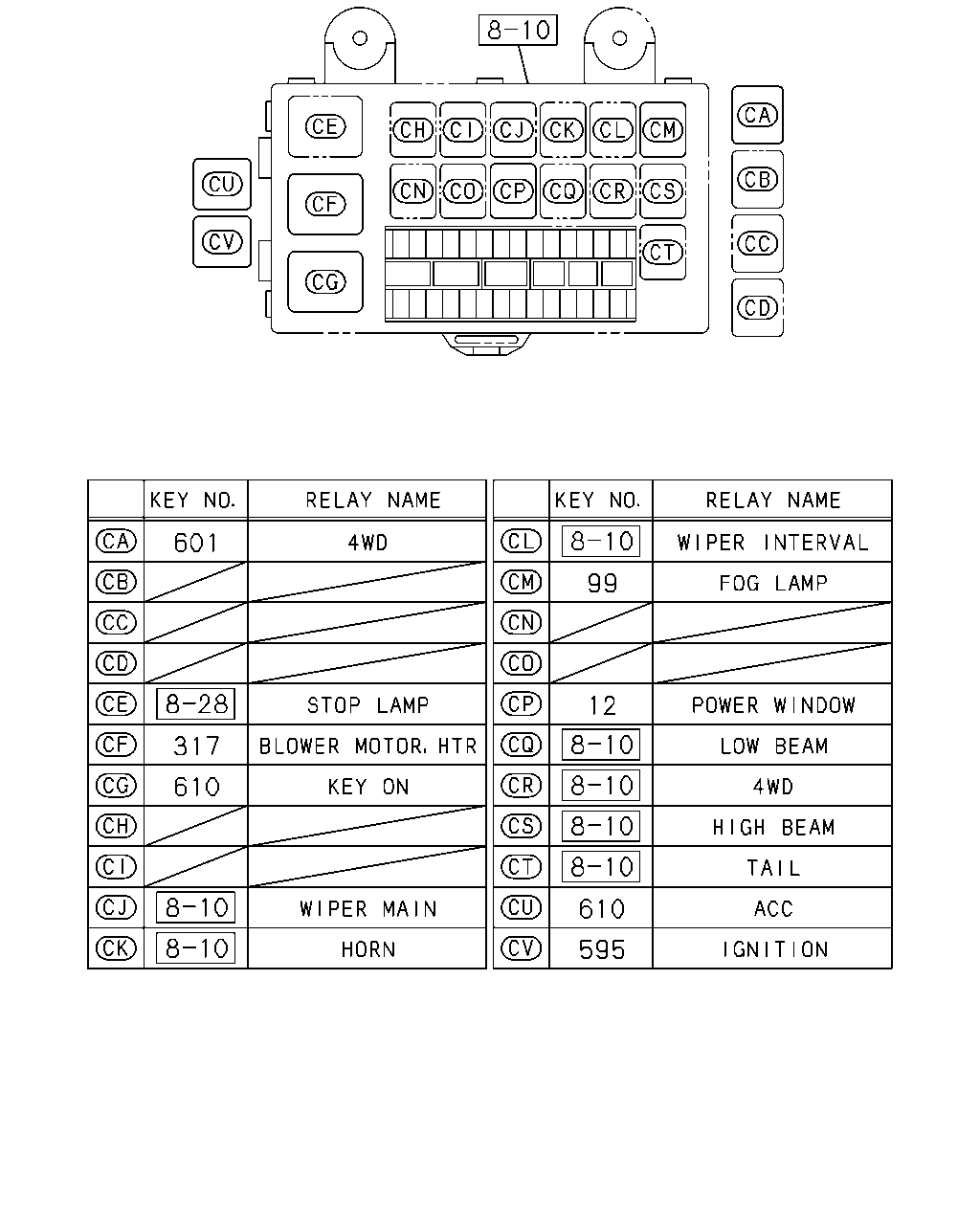

601
99
12
317
610
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0804-
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
0804-1004
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1005-
●
●
595
RELAY; IGNITION
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1205-
●
●
601
RELAY; 4WD
24V 10A PANASONIC
8-97173-035-1
01
1
0804-1004
●
601
RELAY; 4WD
24V 10A PANASONIC
8-97173-035-1
01
1
1005-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
0804-1004
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1005-1204
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1205-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1205-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
