◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#34131) — 25 parça

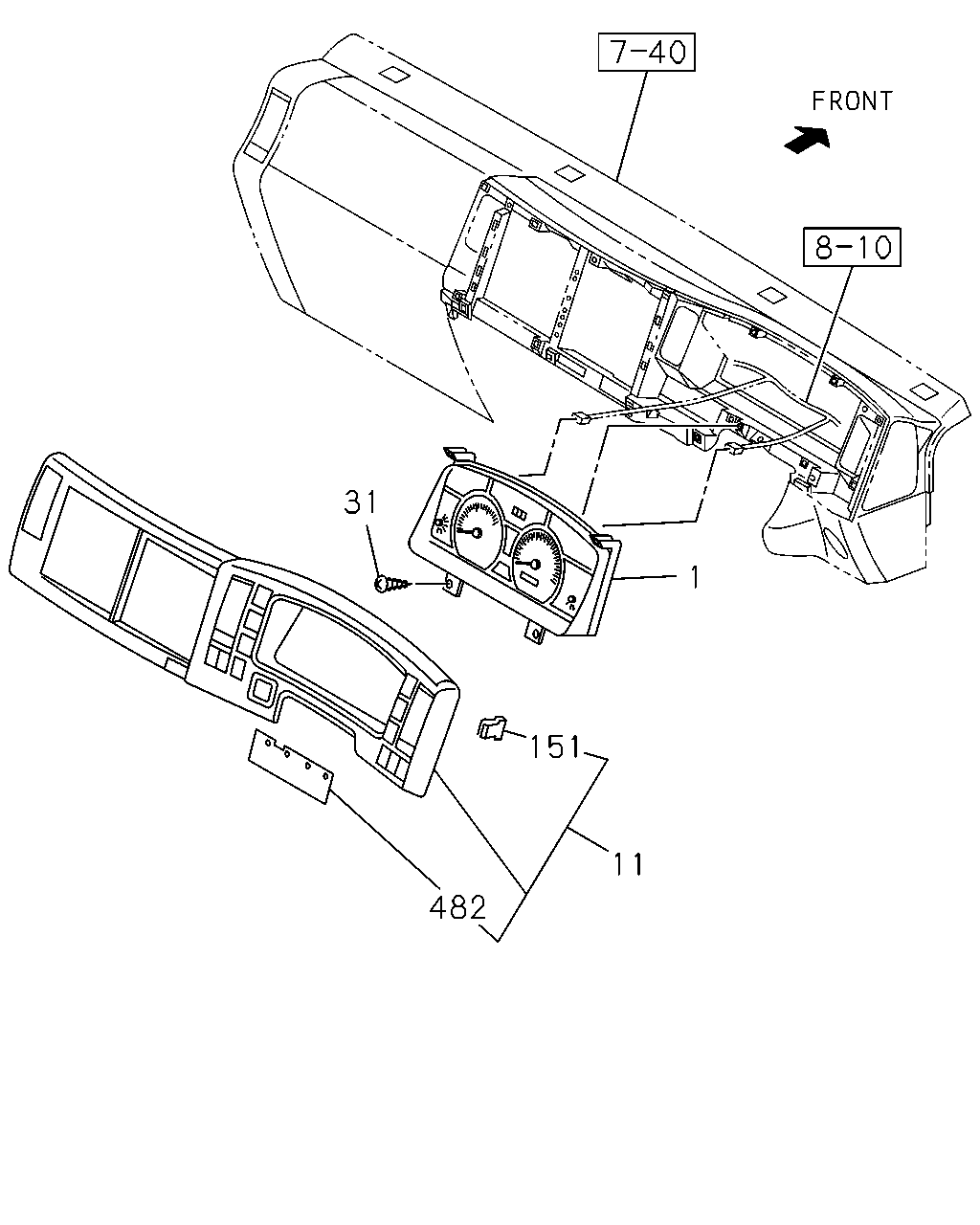

çizim 121997
31 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98021-249-3 01 1 0804-1004 ●
1 METER COMPL; CLUSTER 8-98021-249-3 01 1 1005-1005 ● ●
1 METER COMPL; CLUSTER 8-98096-900-4 01 1 1005- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0804-1004 ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1005- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1004 ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1005-1101 ● ●
31 SCREW; METER,INST PANEL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 0804-1004 ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1005- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 0806-1004 ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1005- ● ●

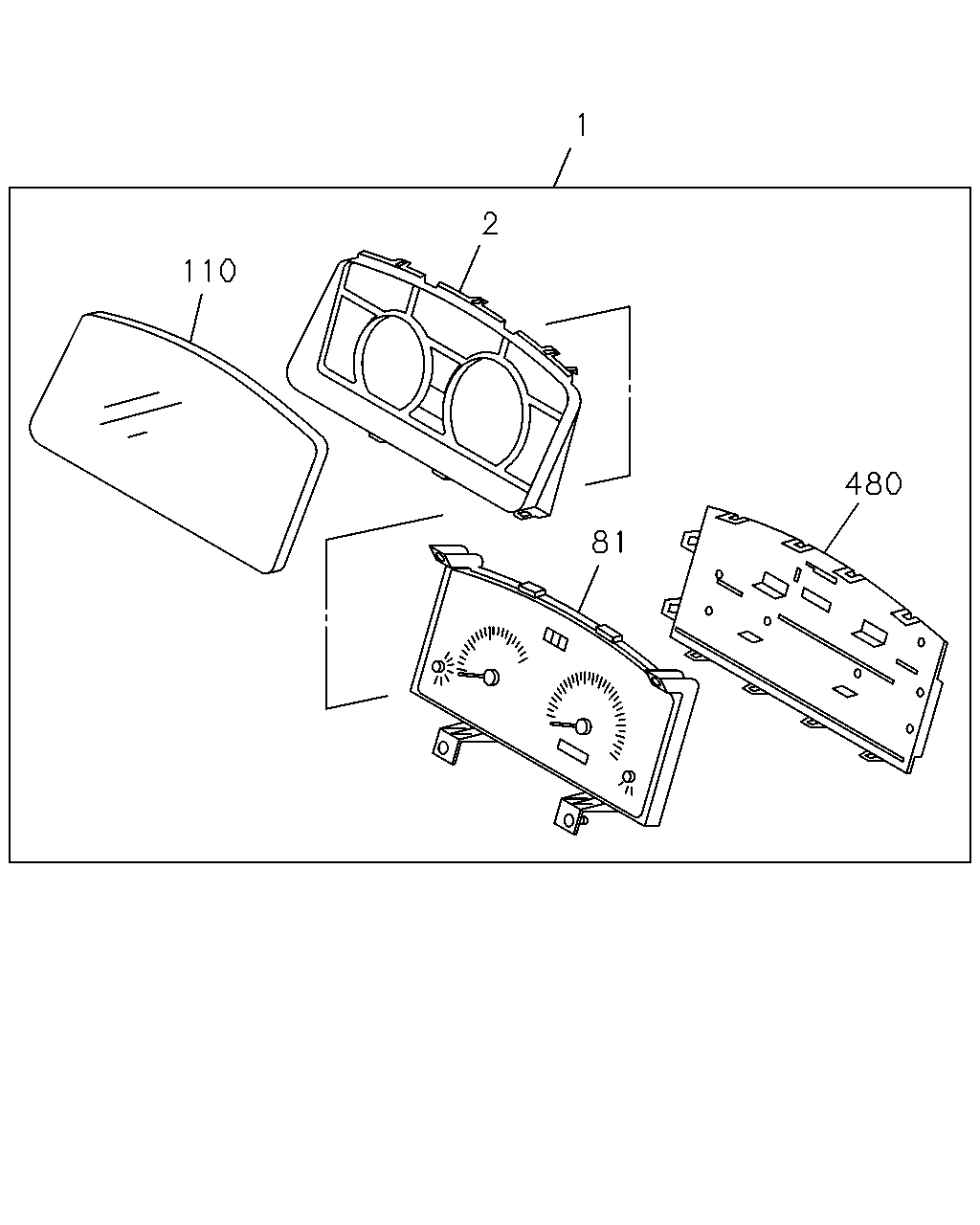

çizim 122003
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98021-249-3 01 1 0804-1004 ●
1 METER COMPL; CLUSTER 8-98021-249-3 01 1 1005-1005 ● ●
1 METER COMPL; CLUSTER 8-98096-900-4 01 1 1005- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0804-1004 ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1005- ● ●
81 METER SUB ASM 8-98073-677-0 01 1 0804-1004 ●
81 METER SUB ASM 8-98073-677-0 01 1 1005-1005 ● ●
81 METER SUB ASM 8-98096-965-0 01 1 1005- ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0804-1004 ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1005- ● ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0804-1004 ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1005- ● ●
