◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#34130) — 239 parça
çizim 121983
16 16 16 16 16 483 507 513 530
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(F) L=135 SOU 		1-09987-143-1 01 1 0804-1004 ●
16 CLIP; HARNESS
(F) L=135 SOU 		1-09987-143-1 01 1 1005-1106 ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 0804-1004 ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1005- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1005- ● ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 0804-1004 ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 1005- ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 0804-1004 ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1005- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1005- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1005- ● ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 0907-1004 ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-1004 ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 0804-1004 ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0804-1004 ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 0804-1004 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 1005- ● ●
507 FINISHER
(B) L=73 L=120 		1-73948-004-0 01 1 1309-1309 ● ●
507 FINISHER
(A) L=40 		8-94212-660-0 01 1 1005-1301 ●
507 FINISHER
(A) L=40 		8-94212-660-0 01 1 0804-0902 ●
513 TAPE; SOFT,HARNESS
100X40 SOU 		1-72498-022-1 01 1 1007- ●
513 TAPE; SOFT,HARNESS
70X45 SOU 		8-97304-372-0 01 1 0907-1004 ●
513 TAPE; SOFT,HARNESS
70X45 SOU 		8-97304-372-0 01 1 1005-1005 ● ●
513 TAPE; SOFT,HARNESS
70X45 SOU 		8-97304-372-0 01 1 1006-1006 ● ●
513 TAPE; SOFT,HARNESS
70X45 SOU 		8-97304-372-0 01 1 1006-1006 ●
513 TAPE; SOFT,HARNESS
70X45 SOU 		8-97304-372-0 01 1 1007-1309 ● ●
513 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU 		8-97304-373-0 01 1 0808-1004 ●
513 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU 		8-97304-373-0 01 1 1005- ● ●
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 0804-1004 ●
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 1005- ● ●

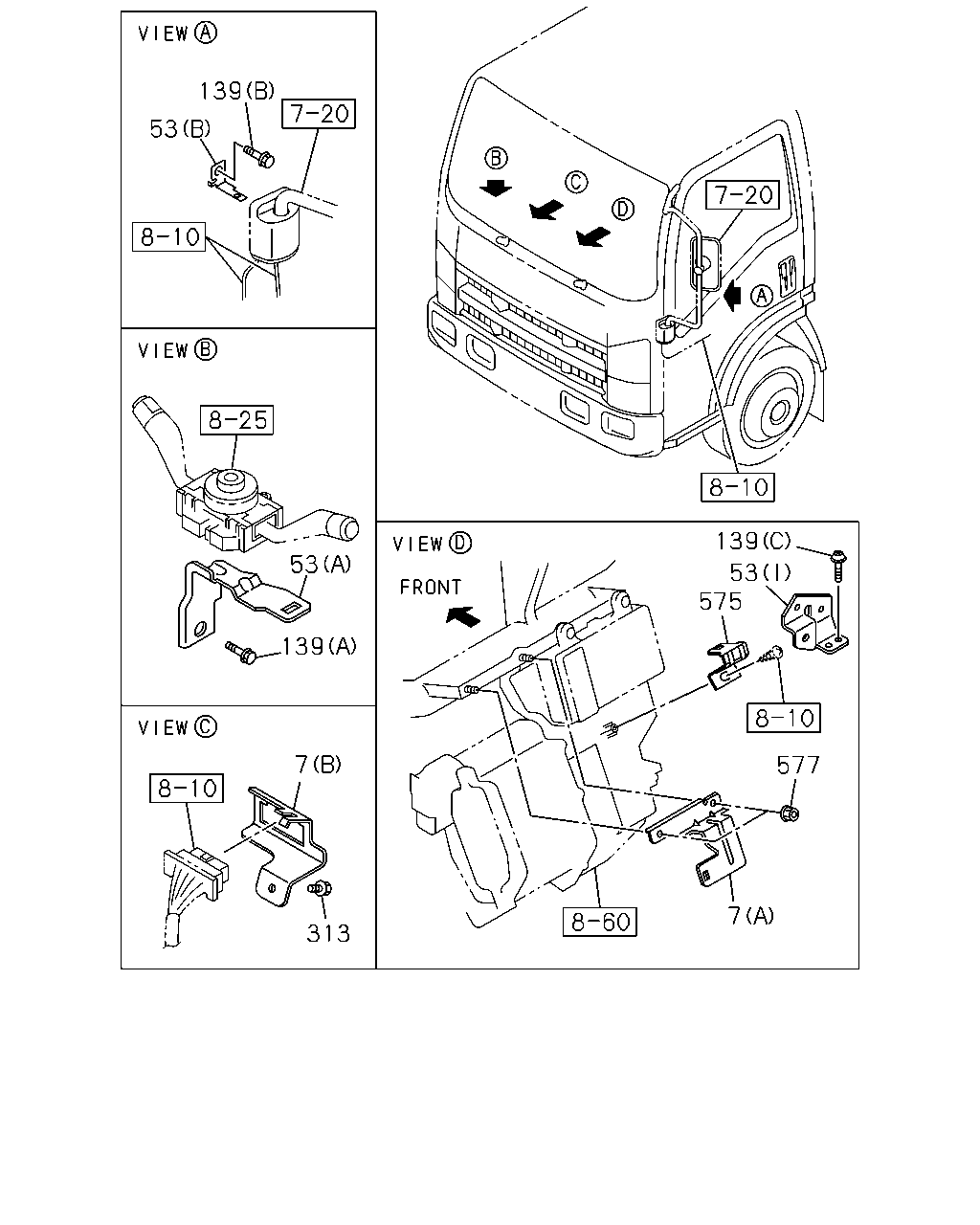

çizim 121991
139 53 139 53 53 575 139 7 577 7 313
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
(A) 		8-98029-762-4 01 1 0804-1004 ●
7 BRACKET; CONNECTOR
(A) 		8-98029-762-4 01 1 1005- ● ●
7 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 0804-1004 ●
7 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 1005- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 0812-1004 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0804-1004 ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1005- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0804-1004 ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1005- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 1005-1303 ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1304- ● ●
53 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98039-277-1 02 1 0804-0805 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1004 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-1101 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0804-1004 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1005- ● ●
139 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 0804-0805 ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 0804-1004 ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1005- ● ●
575 BRACKET; FUSE BOX 8-98042-656-2 01 1 0804-1004 ●
575 BRACKET; FUSE BOX 8-98042-656-2 01 1 1005- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 0804-1004 ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1005- ● ●
çizim 121998
313 139 139 150 480 529 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 552 24 515 552
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
24 NUT; HARNESS
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1005-1409 ● ●
24 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ●
24 NUT; HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
24 NUT; HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1004 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-1101 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0804-1004 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1005- ● ●
139 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 0804-0805 ●
150 BOLT; CLIP
M6X10 FLANGE SOU 		0-28050-610-0 01 1 0907-1004 ●
150 BOLT; CLIP
M6X10 FLANGE SOU 		0-28050-610-0 01 1 1005- ● ●
150 BOLT; CLIP
M8X16 FLANGE SOU 		0-28050-816-0 03 1 0804-0906 ●
150 BOLT; CLIP
M8X16 FLANGE SOU 		0-28050-816-0 04 1 0907-1004 ●
150 BOLT; CLIP
M8X16 FLANGE SOU 		0-28050-816-0 04 1 1005- ● ●
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
294 NUT
M8 W/LK WASHER 		8-94413-537-0 01 1 0804-0904 ●
294 NUT
M8 FLANGE SOU 		0-91180-108-0 01 1 0905-1004 ●
294 NUT
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 0804-1004 ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1005- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0804-1004 ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1005-1005 ● ●
377 BOLT; CAB EARTH
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1005- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0804-1004 ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 1005-1005 ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1005- ● ●
377 BOLT; CAB EARTH
(C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0804-1004 ●
377 BOLT; CAB EARTH
(C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0804-1004 ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1004 ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(D) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
480 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1004 ●
480 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1005- ● ●
480 BOLT; BRKT
(A) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
480 BOLT; BRKT
(A) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0804-1004 ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1005- ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0804-1004 ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1005- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 0804-1004 ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1005- ● ●
çizim 121999
22 483 483 48 48 48 483 483 16 22 102 102 488 14 16 22 48
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=150 		8-97355-273-0 01 1 0804-0810 ●
14 CLIP; BAND,HARNESS
L=150 		8-97355-273-0 02 1 0811-0906 ●
14 CLIP; BAND,HARNESS
L=150 		8-97355-273-0 01 1 0907-1004 ●
14 CLIP; BAND,HARNESS
L=150 		8-97355-273-0 01 1 1005- ● ●
16 CLIP; HARNESS
(F) L=135 SOU 		1-09987-143-1 01 1 0804-1004 ●
16 CLIP; HARNESS
(F) L=135 SOU 		1-09987-143-1 01 1 1005-1106 ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 0804-1004 ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1005- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1005- ● ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 0804-1004 ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 1005- ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 0804-1004 ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1005- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1005- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0804-1004 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1005- ● ●
22 CLIP; ENG HARNESS
(C) L=140 SOU 		5-09707-031-1 02 1 0804-0809 ●
22 CLIP; ENG HARNESS
(B) L=350 		8-94152-256-1 02 1 0804-0902 ●
22 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0804-1004 ●
22 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0804-1004 ●
22 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1005- ● ●
22 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1005- ● ●
48 CLIP; FRAME HARNESS
(B) L=450 		1-09707-142-1 01 1 0804- ●
48 CLIP; FRAME HARNESS
(D) ID=14 L=47 SOU 		5-09700-319-0 06 1 0804-0805 ●
48 CLIP; FRAME HARNESS
(D) ID=14 L=47 SOU 		5-09700-319-0 05 1 0806-1004 ●
48 CLIP; FRAME HARNESS
(D) ID=14 L=47 SOU 		5-09700-319-0 05 1 1005- ● ●
48 CLIP; FRAME HARNESS
(D) ID=14 L=47 SOU 		5-09700-319-0 01 1 0804- ●
48 CLIP; FRAME HARNESS
(A) ID=10 & 16.5 		8-94424-440-0 01 1 0804- ●
48 CLIP; FRAME HARNESS
(C) T=6.0 SOU 		5-09709-024-0 01 1 0804-0804 ●
48 CLIP; FRAME HARNESS
(C) T=4.5 & 9 		8-97371-947-0 01 1 0805-1004 ●
48 CLIP; FRAME HARNESS
(C) T=4.5 & 9 		8-97371-947-0 01 1 1005- ● ●
102 CLIP; BAND
(A) L=250 SOU 		5-09707-030-1 01 1 0804-1004 ●
102 CLIP; BAND
(A) L=250 SOU 		5-09707-030-1 01 1 1005- ● ●
102 CLIP; BAND
(B) L=140 SOU 		5-09707-031-1 04 1 0804-1004 ●
102 CLIP; BAND
(B) L=140 SOU 		5-09707-031-1 04 1 1005-1202 ● ●
102 CLIP; BAND
(B) L=140 SOU 		5-09707-031-1 02 1 1203- ● ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 0907-1004 ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-1004 ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 0804-1004 ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0804-1004 ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1005- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 0804-1004 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 1005- ● ●
488 CLIP; CABLE,TRAILER
L=250 SOU 		5-09707-030-1 01 1 0804-1004 ●
488 CLIP; CABLE,TRAILER
L=250 SOU 		5-09707-030-1 01 1 1005- ● ●

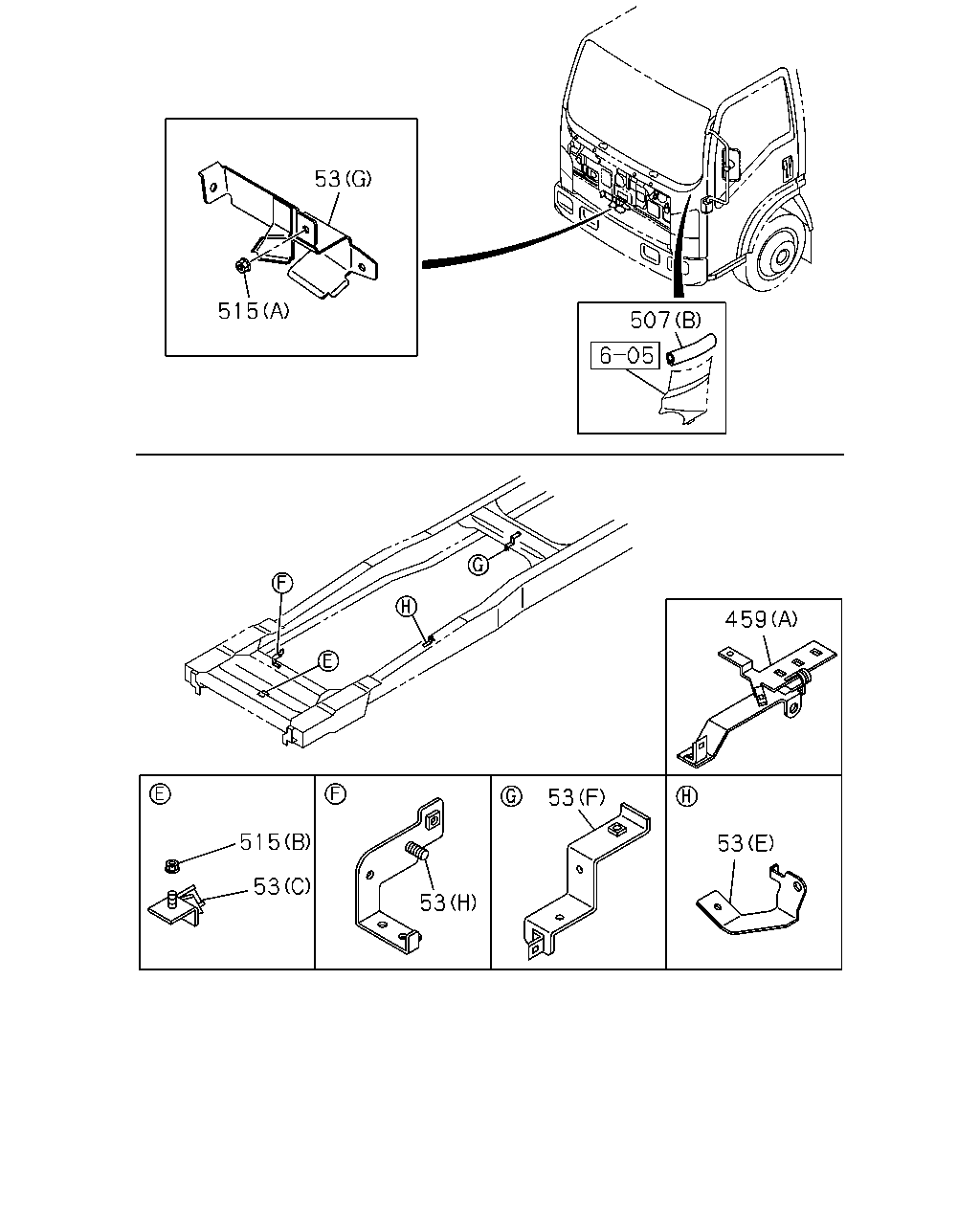

çizim 122004
53 515 507 515 53 53 53 53 459
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 0812-1004 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0804-1004 ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1005- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0804-1004 ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1005- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 1005-1303 ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1304- ● ●
53 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98039-277-1 02 1 0804-0805 ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 0804-1004 ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 1005- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 0804-1004 ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1005- ● ●
507 FINISHER
(B) L=73 L=120 		1-73948-004-0 01 1 1309-1309 ● ●
507 FINISHER
(A) L=40 		8-94212-660-0 01 1 1005-1301 ●
507 FINISHER
(A) L=40 		8-94212-660-0 01 1 0804-0902 ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0804-1004 ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1005- ● ●

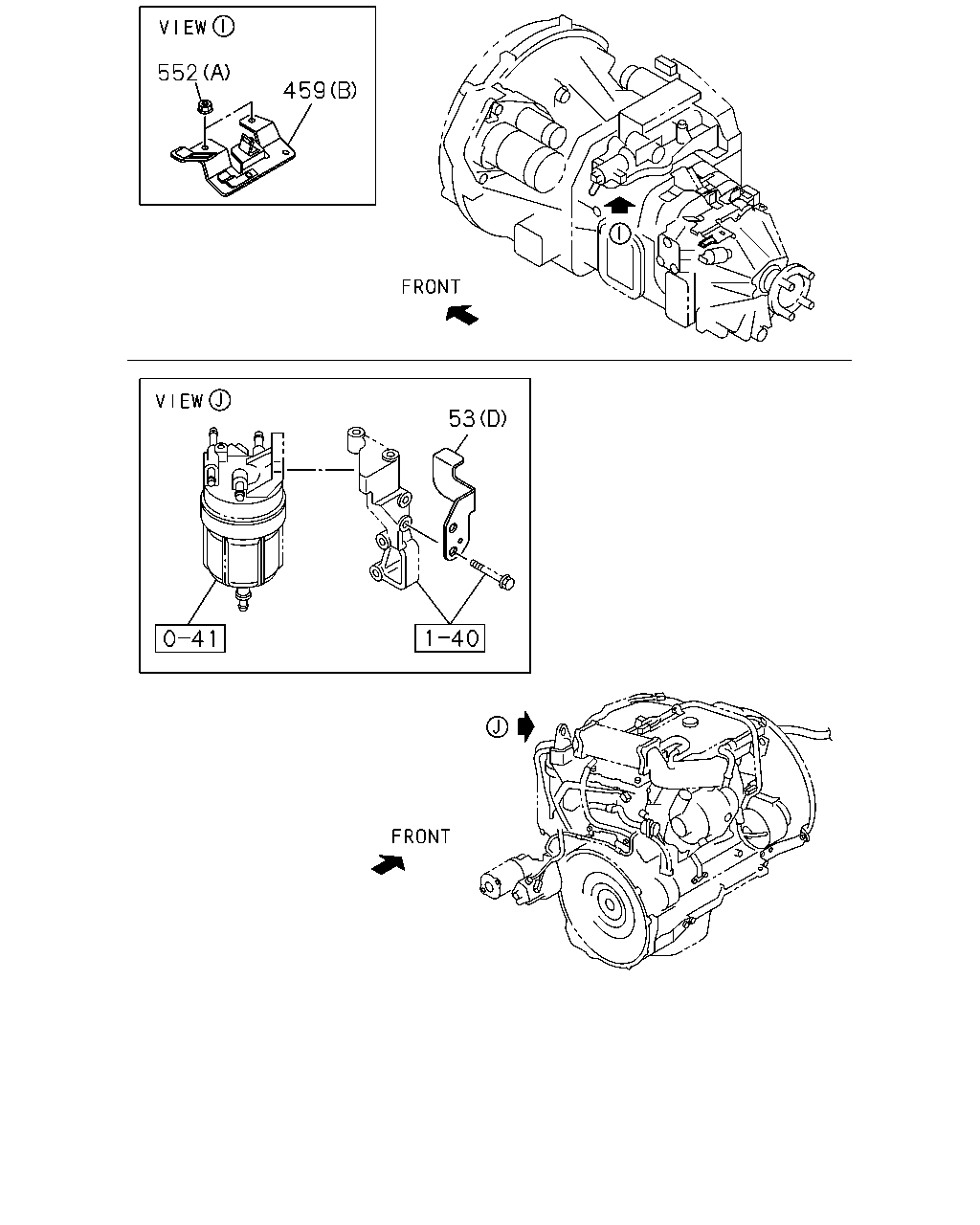

çizim 122006
552 459 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 0812-1004 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I) 		8-98084-590-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0804-1004 ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1005- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0804-1004 ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1005- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1005- ● ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 0804-1004 ●
53 BRACKET; HARNESS
(E) 		8-98094-629-0 01 1 1005-1303 ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1304- ● ●
53 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98039-277-1 02 1 0804-0805 ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 0804-1004 ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 1005- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 0804-1004 ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1005- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
