Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#34129) — 216 parça

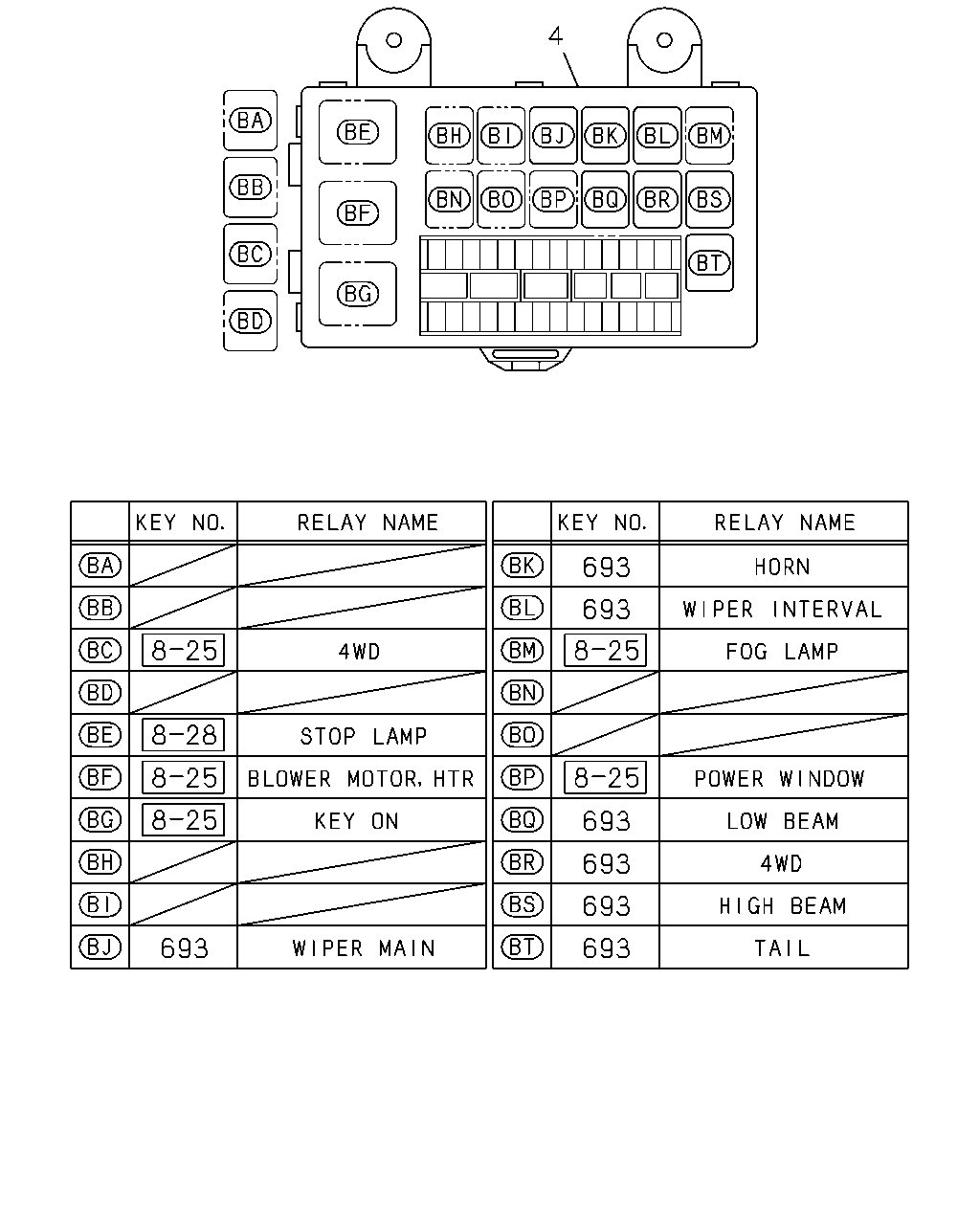

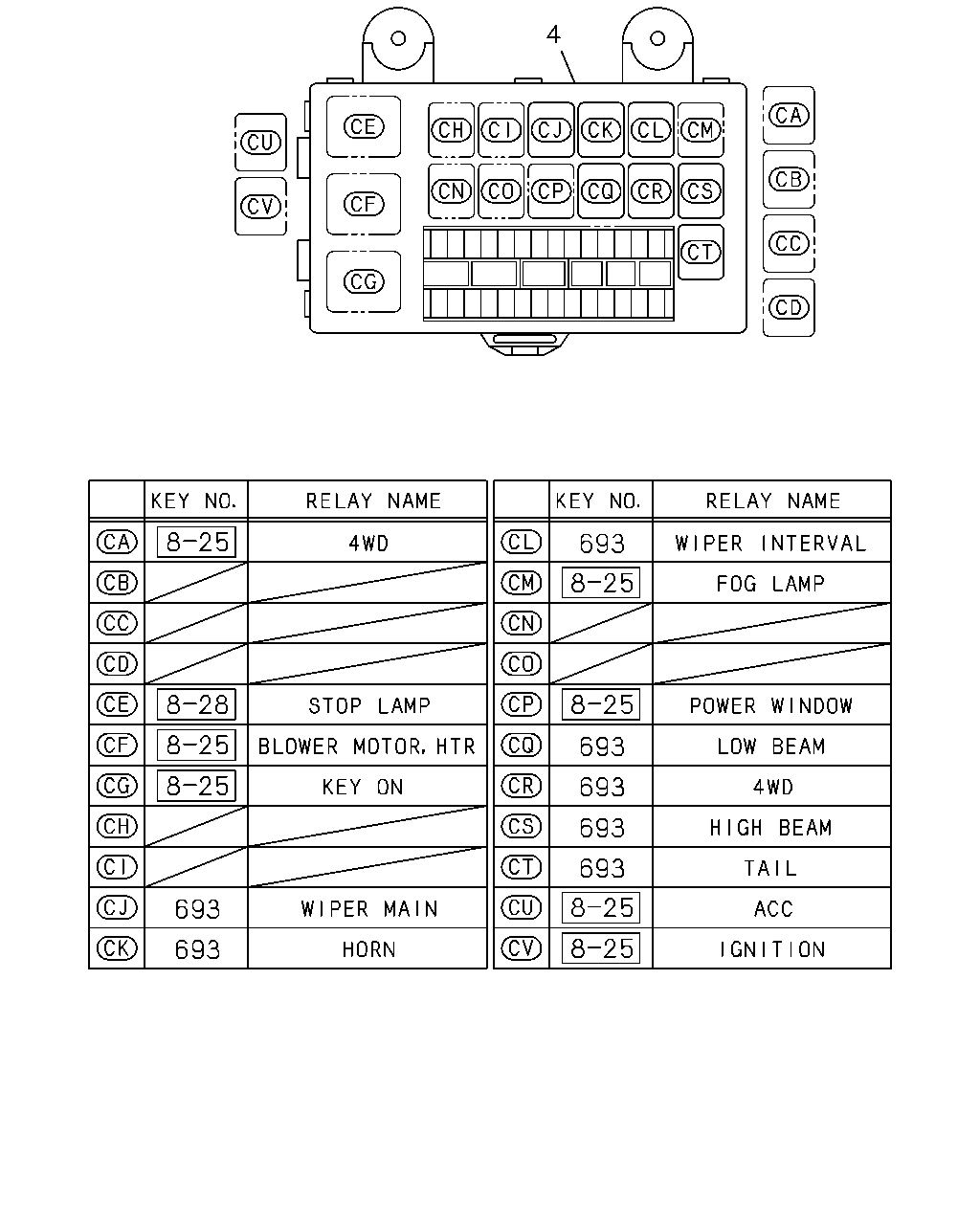

4 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0804-1004	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1005-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-1004	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1005-	●	●

4 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0804-1004	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1005-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-1004	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1005-	●	●

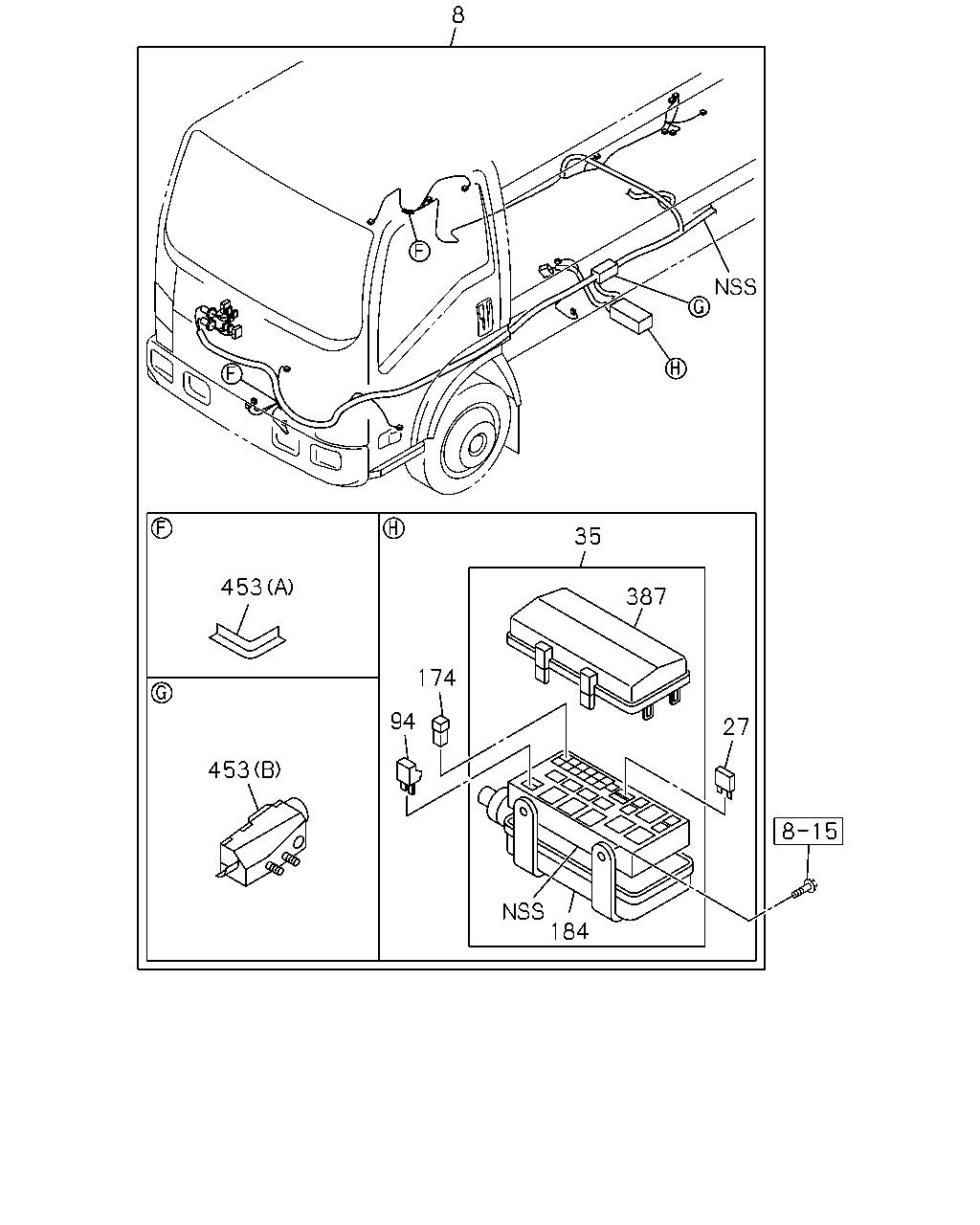

8 35 453 387 174 94 27 453 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT	8-98163-438-1	01	1	1005-1409		●
8	HARNESS; FRAME,FRT	8-98294-290-0	01	1	1410-		●
8	HARNESS; FRAME,FRT	8-98070-261-9	01	1	0804-1409	●
8	HARNESS; FRAME,FRT	8-98294-230-0	01	1	1410-	●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	AR	1	0804-1004	●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	AR	1	1005-	●	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	0804-1004	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	1005-	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A SOU	8-94422-639-1	01	1	0804-1004	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1005-	●	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	AR	1	0804-1004	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	AR	1	1005-	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	AR	1	0804-1004	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	AR	1	1005-	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	AR	1	0804-1004	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	AR	1	1005-	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	AR	1	0804-1004	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	AR	1	1005-	●	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0804-1004	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1005-	●	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	0804-1004	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	1005-	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0804-1004	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1005-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0804-1004	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1005-	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0804-1004	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1005-	●	●

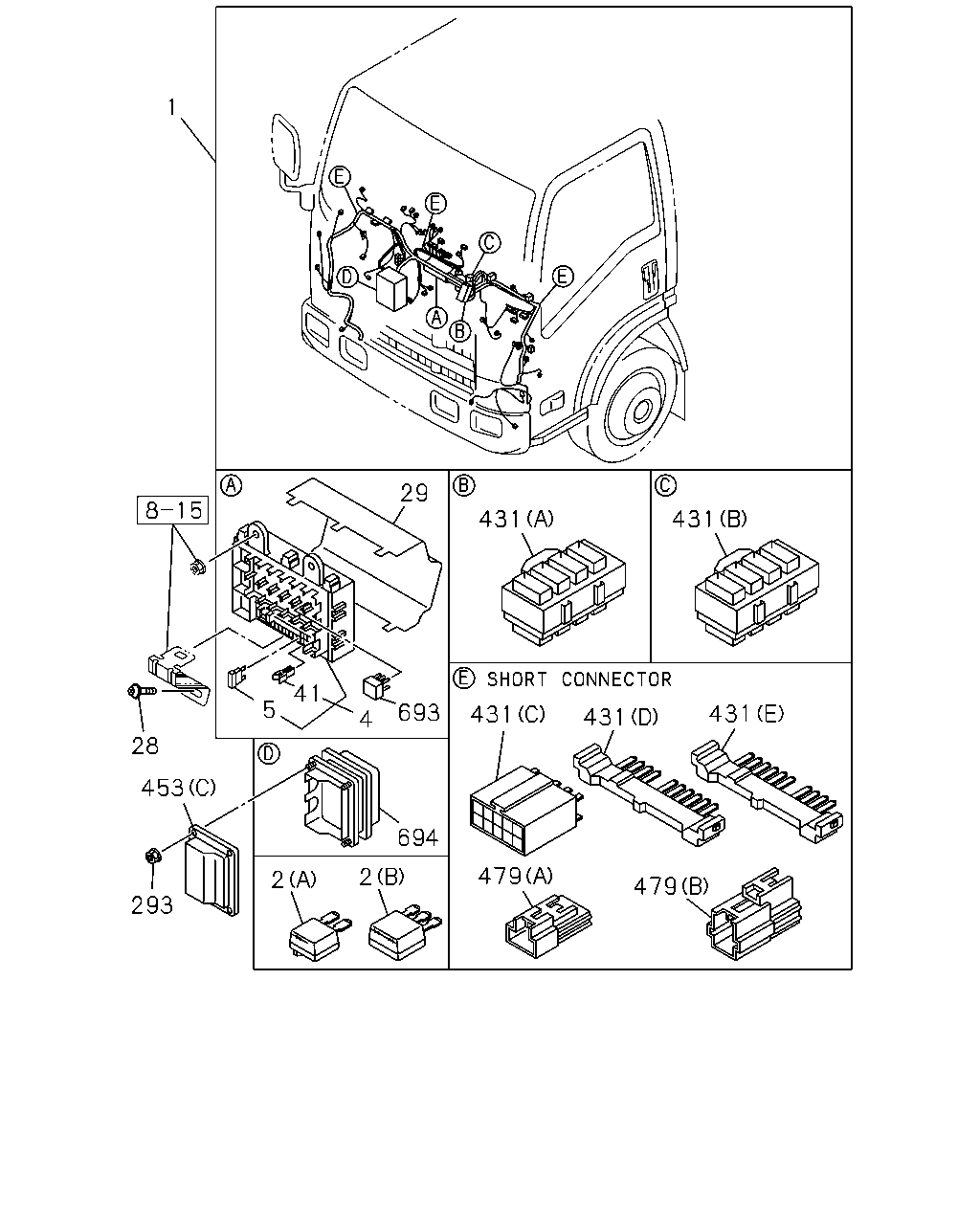

1 29 431 431 41 5 693 431 431 431 4 28 453 694 479 2 2 479 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-888-6	01	1	1005-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-561-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-873-6	01	1	0804-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-661-0	01	1	1205-	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-868-6	01	1	0804-1004	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-868-6	01	1	1005-1204	●	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-660-0	01	1	1205-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0804-1004	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	1005-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0804-1004	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	1005-	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0804-1004	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1005-	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	0804-1004	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1005-	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	0804-1004	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1005-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	0804-1004	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1005-	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1004	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1005-1101	●	●
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0804-1004	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1005-	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	0804-1004	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1005-	●	●
293	NUT M6 FLANGE SOU	0-91180-106-0	04	1	0804-1004	●
293	NUT M6 FLANGE SOU	0-91180-106-0	04	1	1005-	●	●
431	CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0804-1004	●
431	CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	1005-1005	●	●
431	CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-1204	●	●
431	CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0804-1004	●
431	CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	1005-1204	●	●
431	CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0804-1004	●
431	CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1005-1204	●	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0804-1004	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1005-	●	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0804-1004	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1005-	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0804-1004	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1005-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0804-1004	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1005-	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0804-1004	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1005-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0804-1004	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1005-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0804-1004	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1005-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-1004	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1005-	●	●
694	BOX ASM; CONNECTOR	8-98057-772-0	01	1	0804-1004	●
694	BOX ASM; CONNECTOR	8-98057-772-0	01	1	1005-	●	●

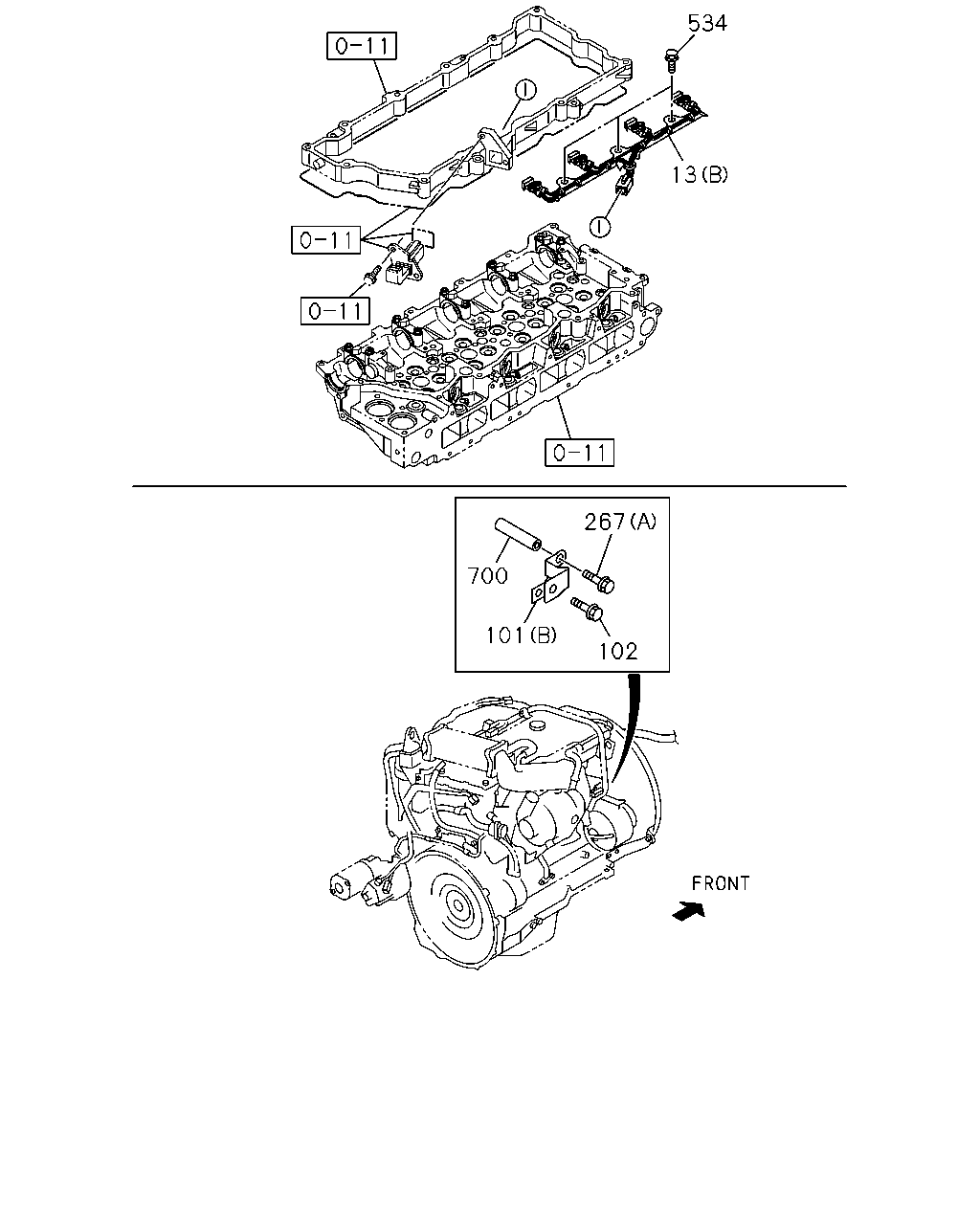

534 13 267 700 101 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0804-1004	●
13	HARNESS; ENG (B)	8-97332-133-3	01	1	1005-1007	●	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98076-299-7	01	1	0804-0906	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	0907-1004	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1005-1202	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1203-	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98076-298-7	01	1	0804-0906	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	0907-1004	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1005-1202	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1203-	●	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	0804-1004	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	1005-	●	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98094-483-1	01	1	0804-1004	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98094-483-1	01	1	1005-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	02	1	0804-1004	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	02	1	1005-	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1004	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	1005-	●	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-1004	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1005-	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	0804-1004	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1005-	●	●
534	BOLT M10X55 FLANGE SOU	8-94399-863-1	03	1	0804-0805	●
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	0806-1004	●
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	1005-	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	0804-1004	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1005-	●	●

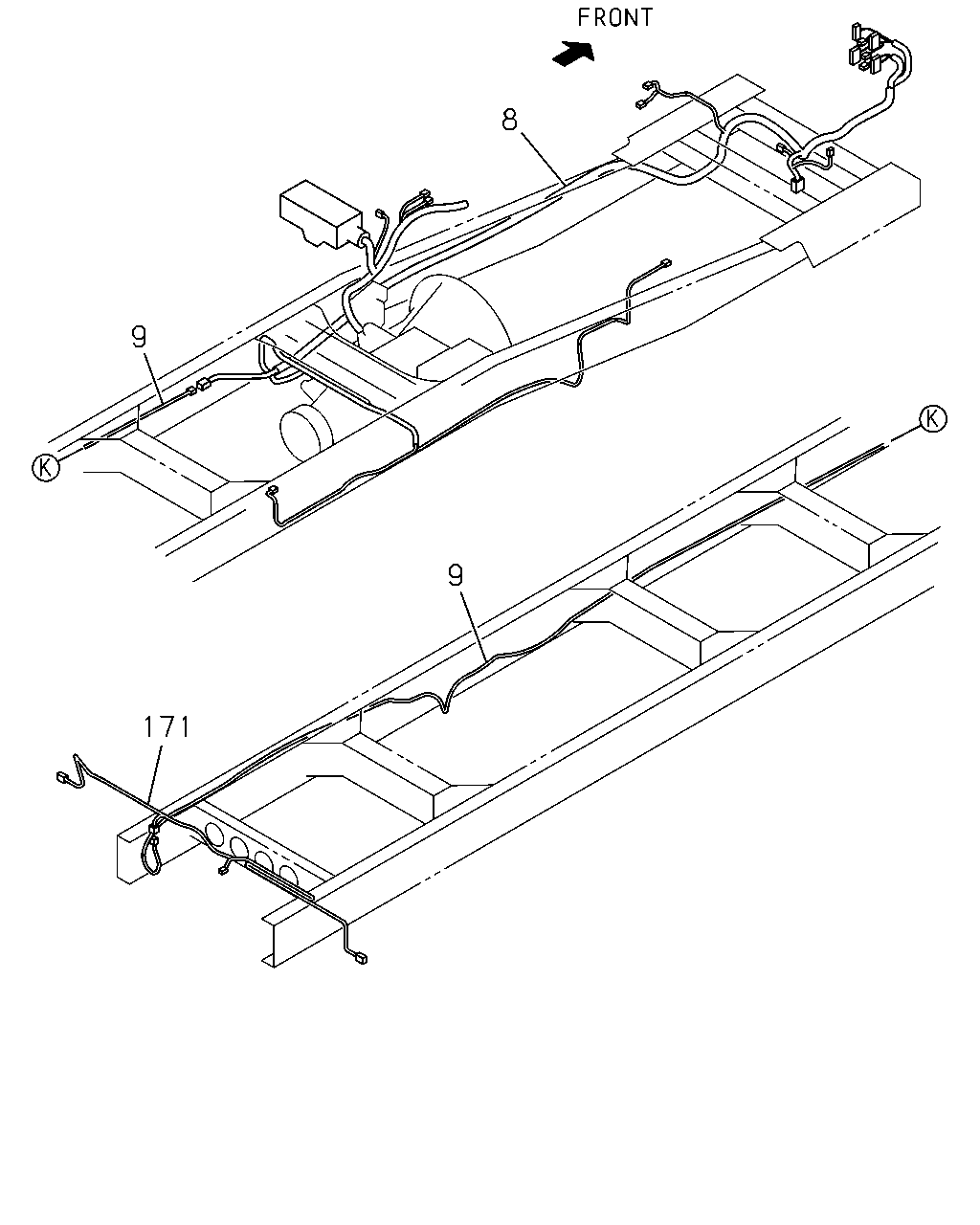

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT	8-98163-438-1	01	1	1005-1409		●
8	HARNESS; FRAME,FRT	8-98294-290-0	01	1	1410-		●
8	HARNESS; FRAME,FRT	8-98070-261-9	01	1	0804-1409	●
8	HARNESS; FRAME,FRT	8-98294-230-0	01	1	1410-	●
9	HARNESS; FRAME,RR	8-98067-970-2	01	1	0804-0805	●
9	HARNESS; FRAME,RR	8-98117-248-0	01	1	0806-1004	●
9	HARNESS; FRAME,RR	8-98117-248-0	01	1	1005-	●	●
171	HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0804-1004	●
171	HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	1005-1006	●	●
171	HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1007-	●	●

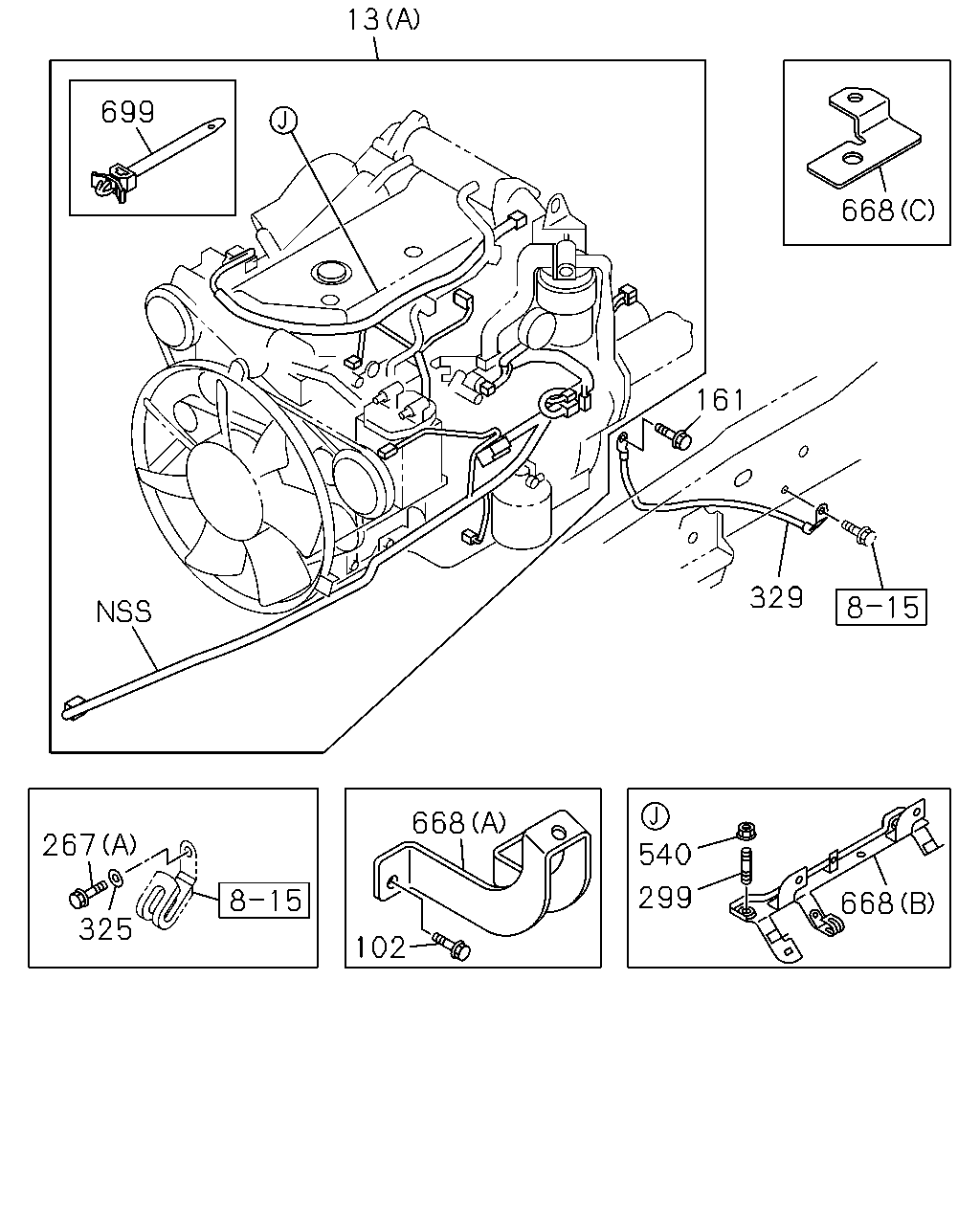

329 161 668 13 699 668 299 540 668 102 325 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0804-1004	●
13	HARNESS; ENG (B)	8-97332-133-3	01	1	1005-1007	●	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98076-299-7	01	1	0804-0906	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	0907-1004	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1005-1202	●	●
13	HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1203-	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98076-298-7	01	1	0804-0906	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	0907-1004	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1005-1202	●	●
13	HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1203-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	02	1	0804-1004	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	02	1	1005-	●	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE SOU	0-28050-816-0	01	1	0804-1004	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE SOU	0-28050-816-0	01	1	1005-	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1004	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	1005-	●	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-1004	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1005-	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	0804-1004	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1005-	●	●
299	STUD; BRKT M6X18 L=27	0-41010-618-0	02	1	0907-1004	●
299	STUD; BRKT M6X18 L=27	0-41010-618-0	02	1	1005-1202	●	●
325	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18	0-91610-608-0	01	1	0804-1004	●
325	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18	0-91610-608-0	01	1	1005-	●	●
329	CABLE; ENG TO FRAME	8-98039-304-2	01	1	0804-0804	●
329	CABLE; ENG TO FRAME	8-98102-465-0	01	1	0805-1004	●
329	CABLE; ENG TO FRAME	8-98102-465-0	01	1	1005-	●	●
540	NUT; BRKT FIX M6 FLANGE SOU	0-91180-106-0	02	1	0907-1004	●
540	NUT; BRKT FIX M6 FLANGE SOU	0-91180-106-0	02	1	1005-1202	●	●
668	BRACKET; HARNESS (B)	8-98061-805-1	02	1	0907-1004	●
668	BRACKET; HARNESS (B)	8-98061-805-1	02	1	1005-1005	●	●
668	BRACKET; HARNESS (B)	8-98061-805-2	01	1	1005-1202	●	●
668	BRACKET; HARNESS (C)	8-98205-089-0	01	1	1203-	●	●
668	BRACKET; HARNESS (A)	8-98011-484-0	01	1	0804-1004	●
668	BRACKET; HARNESS (A)	8-98011-484-0	01	1	1005-	●	●
699	CLIP; ENG HARNESS L=213.5	8-98000-506-1	01	1	0907-1004	●
699	CLIP; ENG HARNESS L=213.5	8-98000-506-1	01	1	1005-	●	●
699	CLIP; ENG HARNESS L=146.2	8-98052-677-0	01	1	0907-1004	●
699	CLIP; ENG HARNESS L=146.2	8-98052-677-0	01	1	1005-	●	●

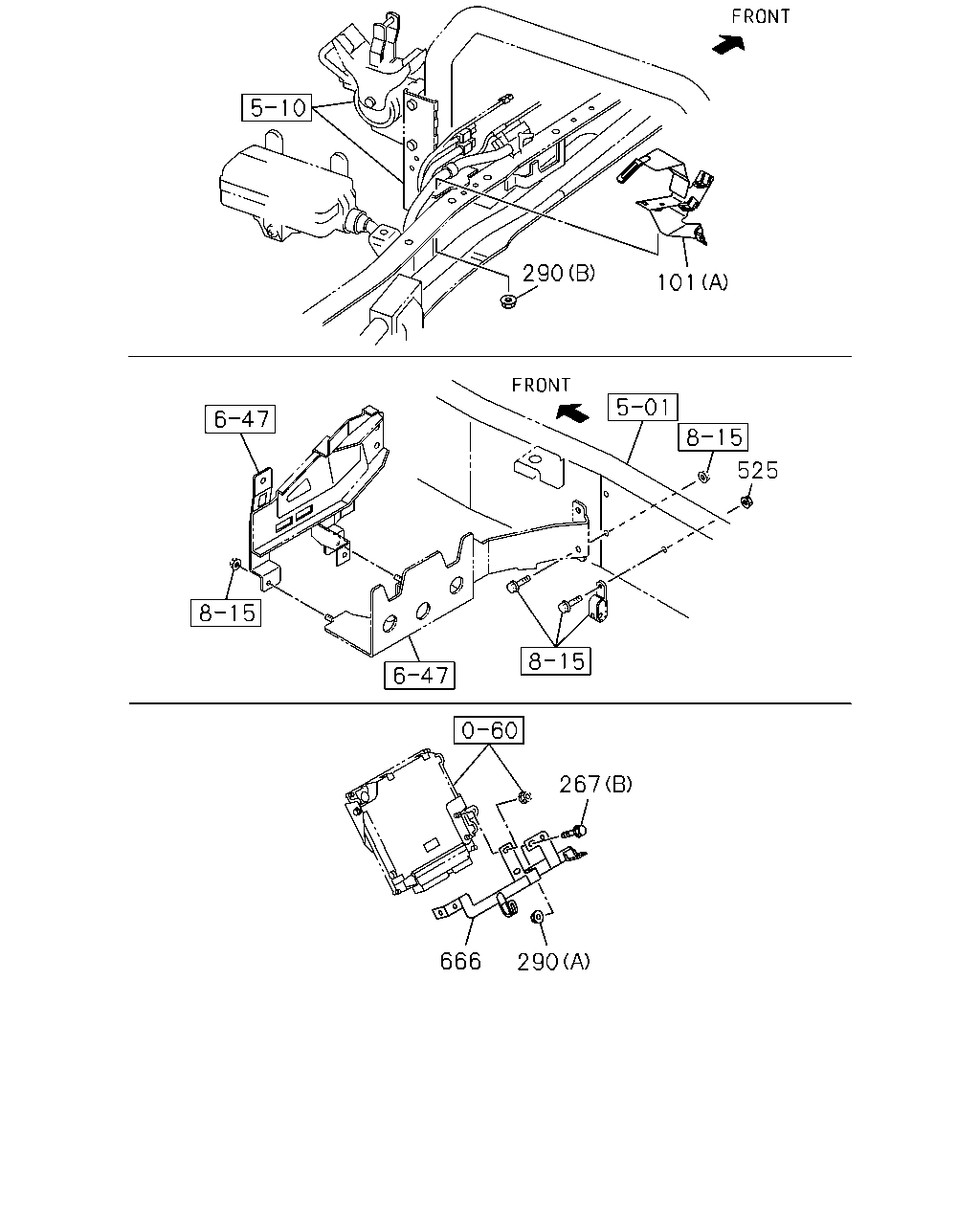

290 101 525 267 666 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	0804-1004	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98052-805-0	01	1	1005-	●	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98094-483-1	01	1	0804-1004	●
101	BRACKET; HARNESS CONNECTOR (A)	8-98094-483-1	01	1	1005-	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1004	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28050-812-0	01	1	1005-	●	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-1004	●
267	BOLT; BRKT (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1005-	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	0804-1004	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1005-	●	●
290	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	0804-1004	●
290	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1005-	●	●
290	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	01	1	0804-1004	●
290	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	01	1	1005-	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0804-1004	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1005-	●	●
666	BRACKET; CLIP	8-98110-213-0	01	1	0804-1004	●
666	BRACKET; CLIP	8-98110-213-0	01	1	1005-	●	●

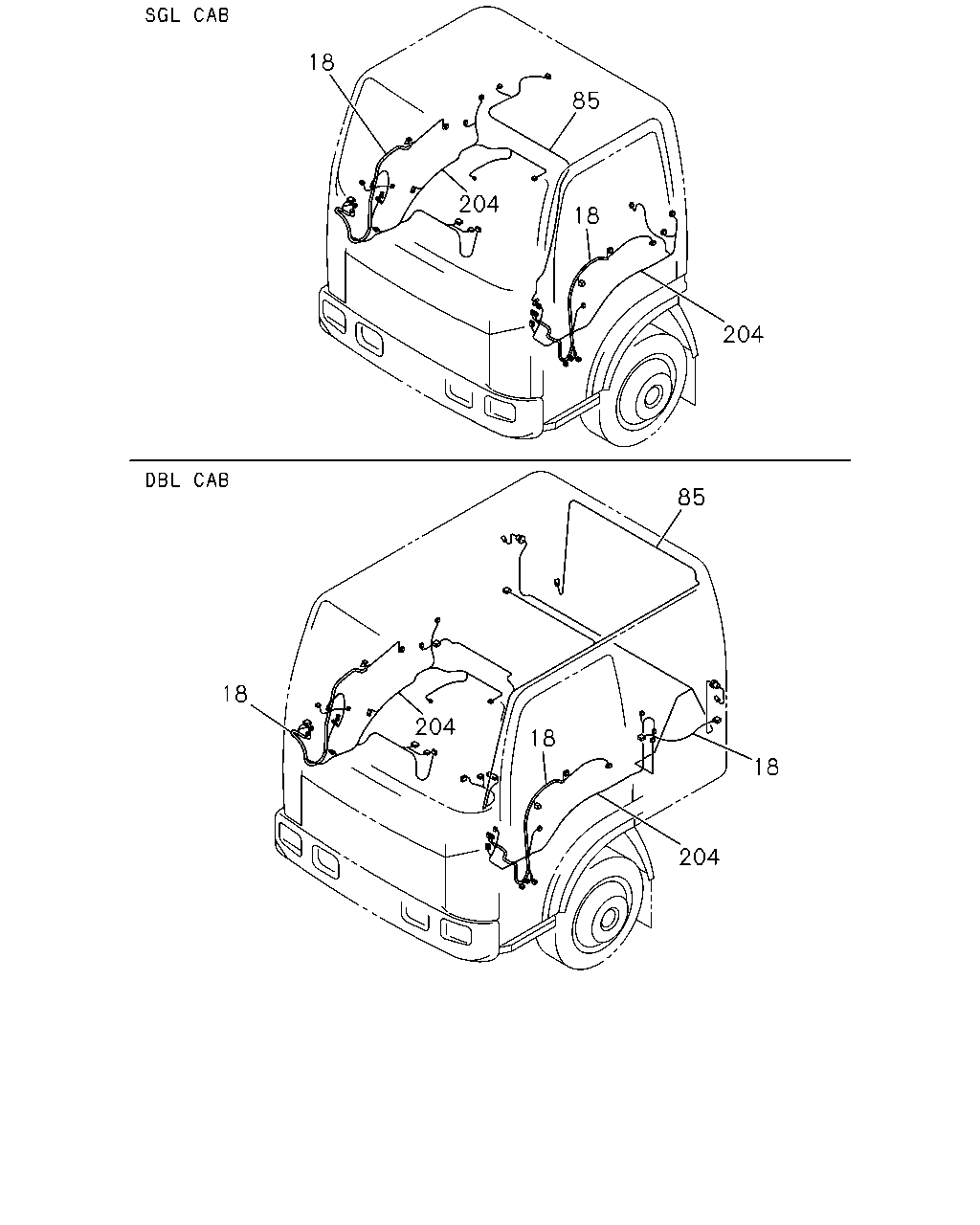

18 85 204 18 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-084-3	01	1	0804-	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-076-2	01	1	0804-	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-083-2	01	1	0804-1004	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-083-2	01	1	1005-	●
18	HARNESS; DOOR	8-98071-083-2	01	1	1005-		●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-075-2	01	1	0804-1004	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-075-2	01	1	1005-	●
18	HARNESS; DOOR	8-98071-075-2	01	1	1005-		●
85	HARNESS; ROOM LAMP	8-98029-741-4	01	1	1005-		●
85	HARNESS; ROOM LAMP	8-98071-092-1	01	1	0804-0901	●
85	HARNESS; ROOM LAMP	8-98047-149-3	01	1	0902-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-793-3	01	1	1005-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-593-3	01	1	1005-		●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-791-3	01	1	1005-		●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-809-3	01	1	1005-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98075-612-3	01	1	0804-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	0804-	●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	0804-	●

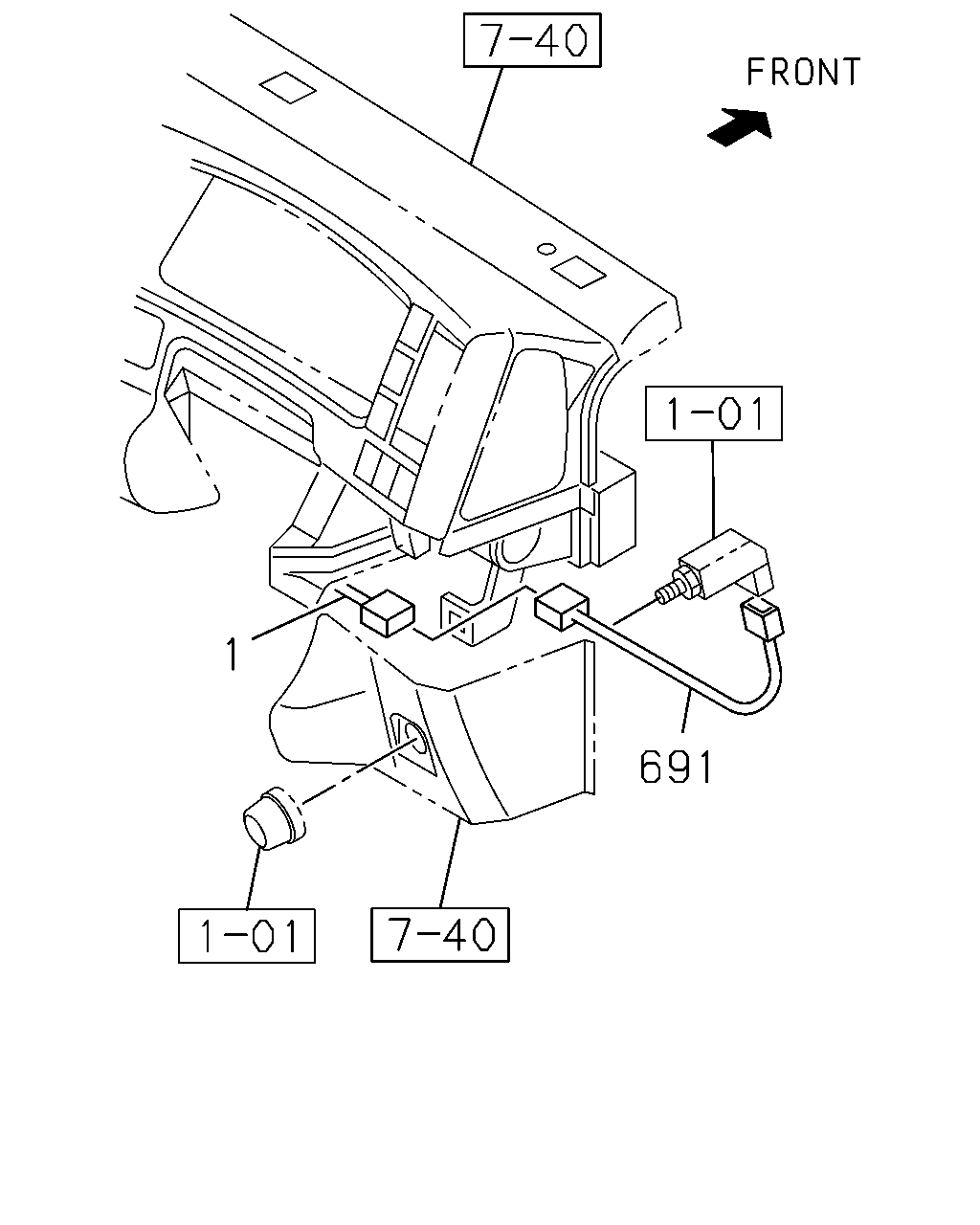

1 691

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-888-6	01	1	1005-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-561-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-873-6	01	1	0804-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-661-0	01	1	1205-	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-868-6	01	1	0804-1004	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-868-6	01	1	1005-1204	●	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-660-0	01	1	1205-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0804-1004	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1005-	●	●

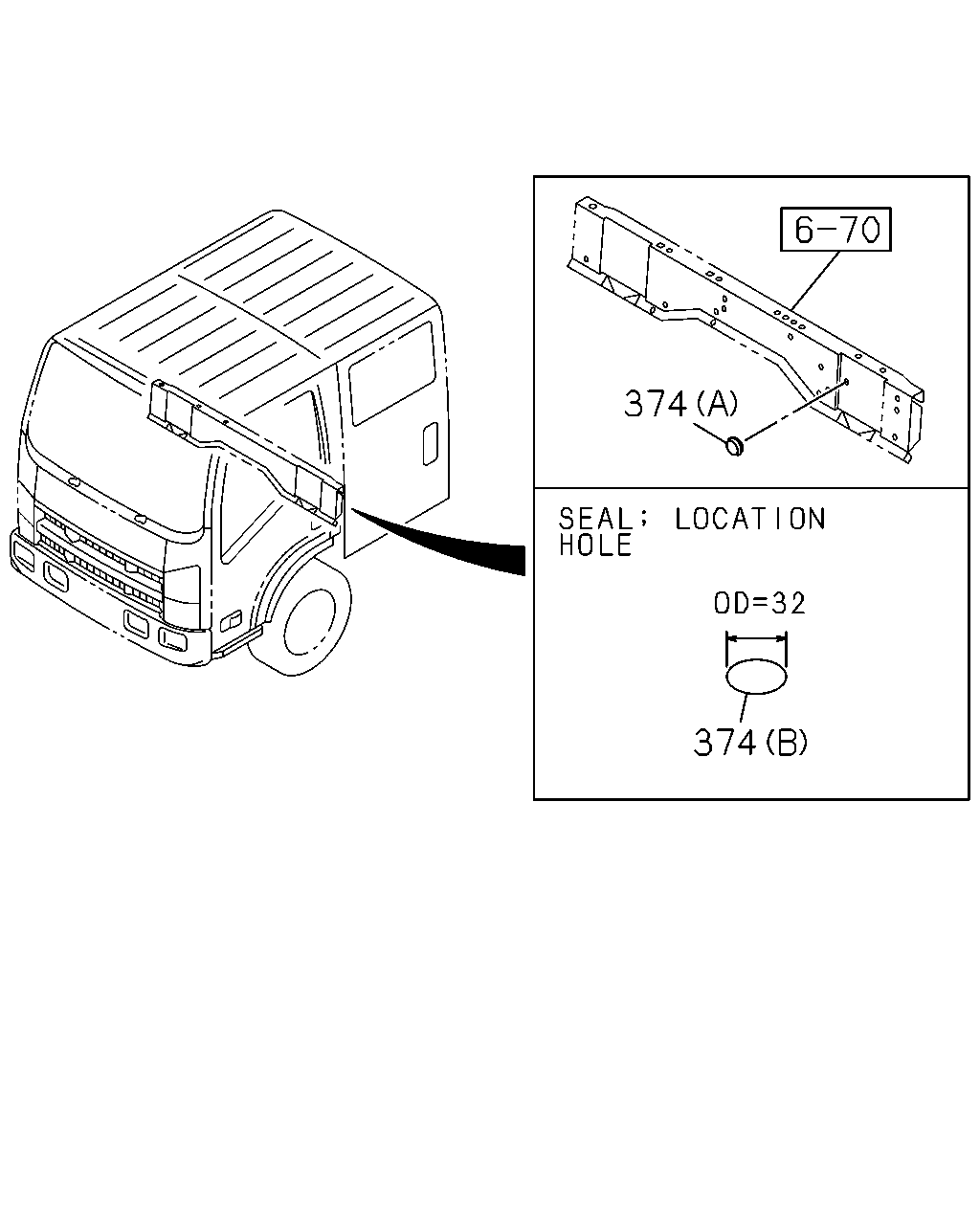

374 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
374	PLUG; HARNESS CONNECTOR (A) OD=24.5 T=7.5	8-97224-683-0	01	1	1005-		●
374	PLUG; HARNESS CONNECTOR (B) OD=32 BLACK	8-98031-126-0	01	1	0804-0811	●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) OD=32 BLACK	8-98031-126-0	01	1	0812-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
