◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#34125) — 51 parça
çizim 121972
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1005- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1005- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97405-184-2 02 1 1005- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-511-3 01 1 1005- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-512-3 01 1 1005- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-187-2 01 1 1005- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-188-2 01 1 1005- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1005- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0804-1004 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1005- ● ●

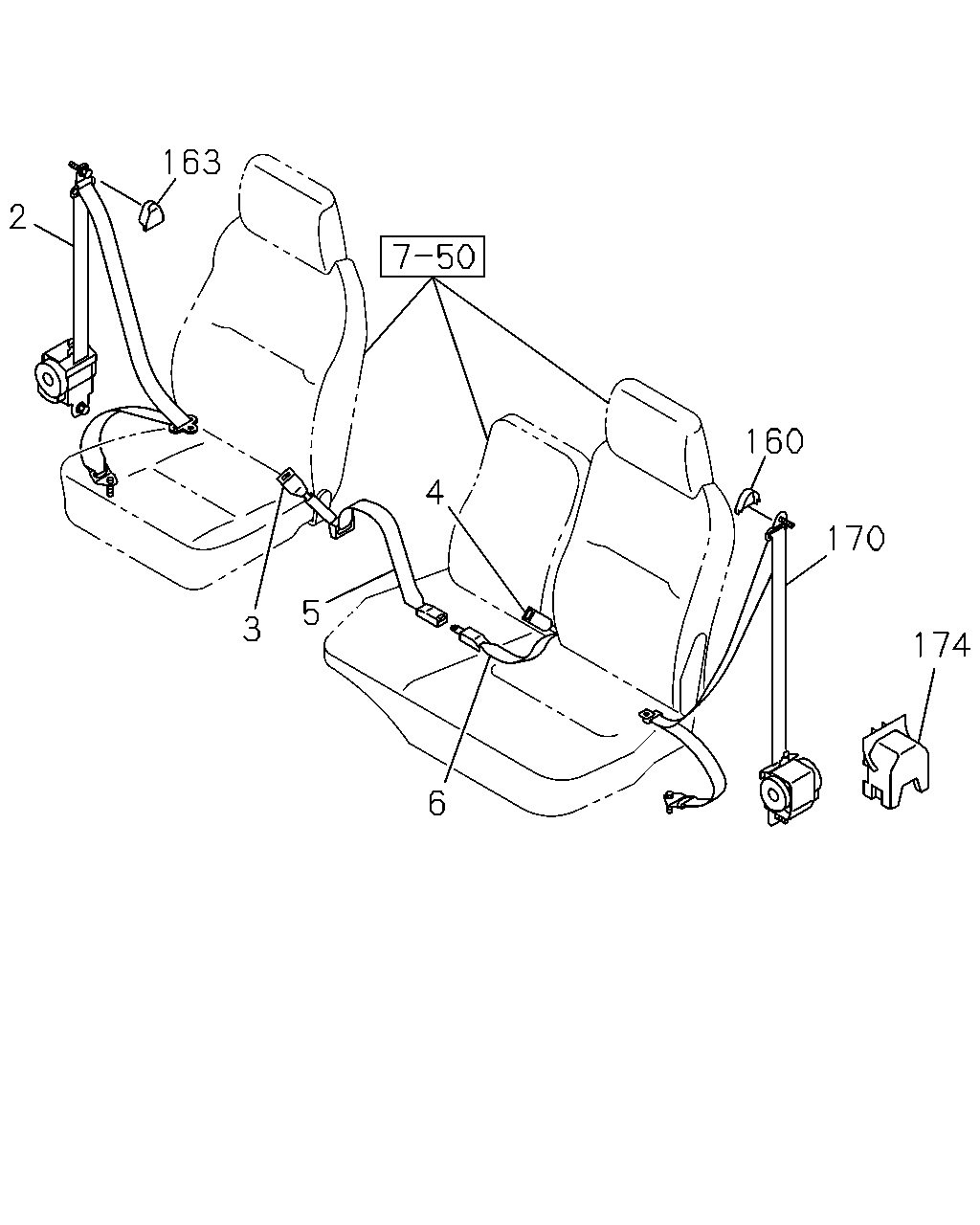

çizim 121973
163 2 160 4 170 5 3 174 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 0804-1004 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 1005-1406 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-456-0 01 1 1407- ● ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 0804-1004 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1005-1406 ● ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1407- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 0804-1004 ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1005- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0804-1004 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1005- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0804-1004 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1005- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 0804-1004 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1005- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1005- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0804-1004 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1005- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0804-1004 ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1005- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 0804-1004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 1005-1406 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-456-0 01 1 1407- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 0804-1004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1005-1406 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1407- ● ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0804- ●

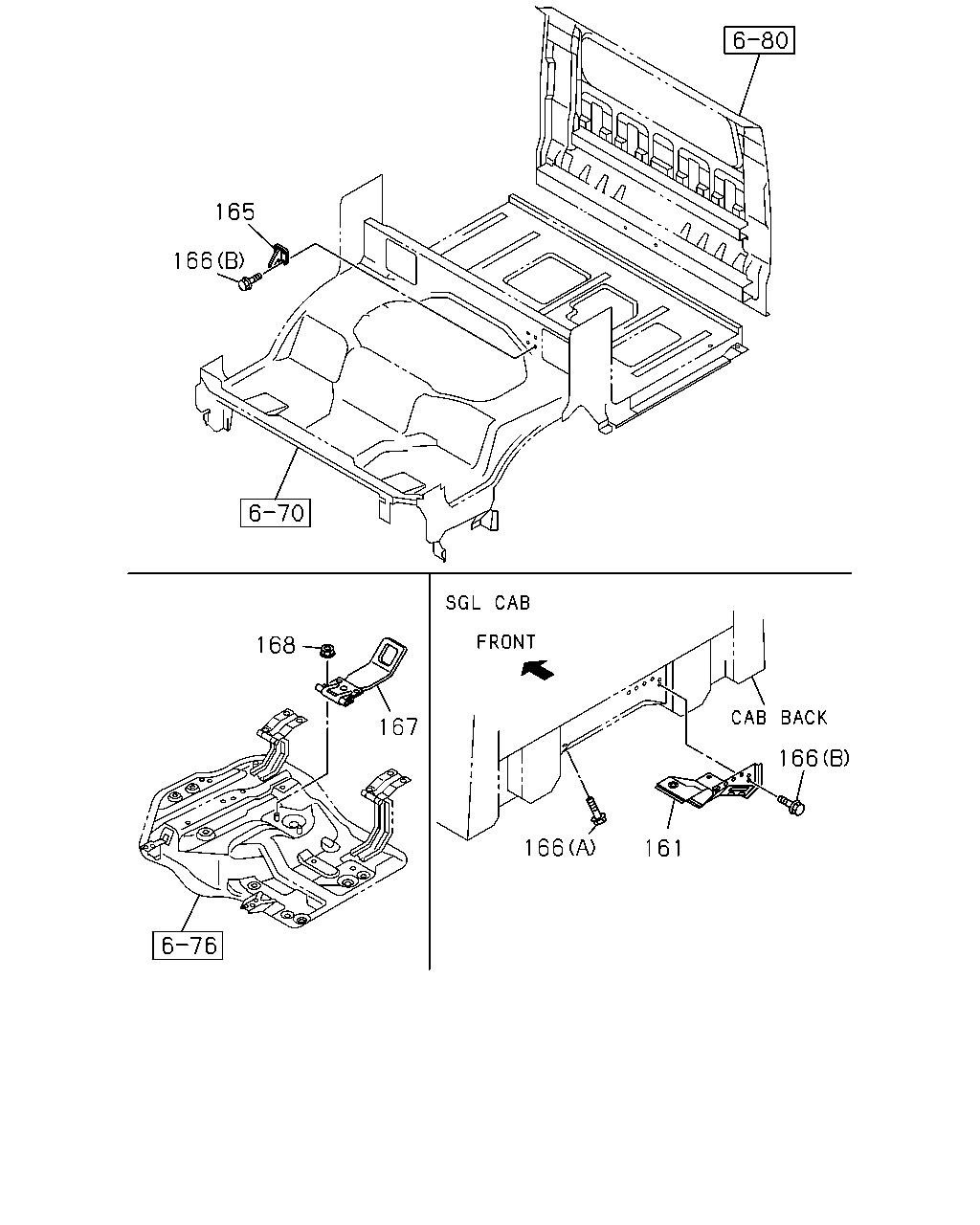

çizim 122058
165 166 168 167 166 166 161
BalonParca AdiParca NoAdetTipApplied Date A B
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98015-216-2 01 1 0804- ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0804-1004 ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1005- ●
165 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 1005- ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804-1004 ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1005- ●
166 BOLT; SEAT BELT ANCHOR
(B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1005- ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE SOU 		0-28650-825-0 05 1 0804- ●
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE 		0-28050-820-0 02 1 0804- ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0804-1004 ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1005- ●
167 PLATE; ANCHOR 8-97589-140-0 01 1 1005- ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ●
168 NUT; ANCHOR PLATE
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ●
