7-43 — SUN VISOR AND ASSIST GRIP (#34121) — 130 parça

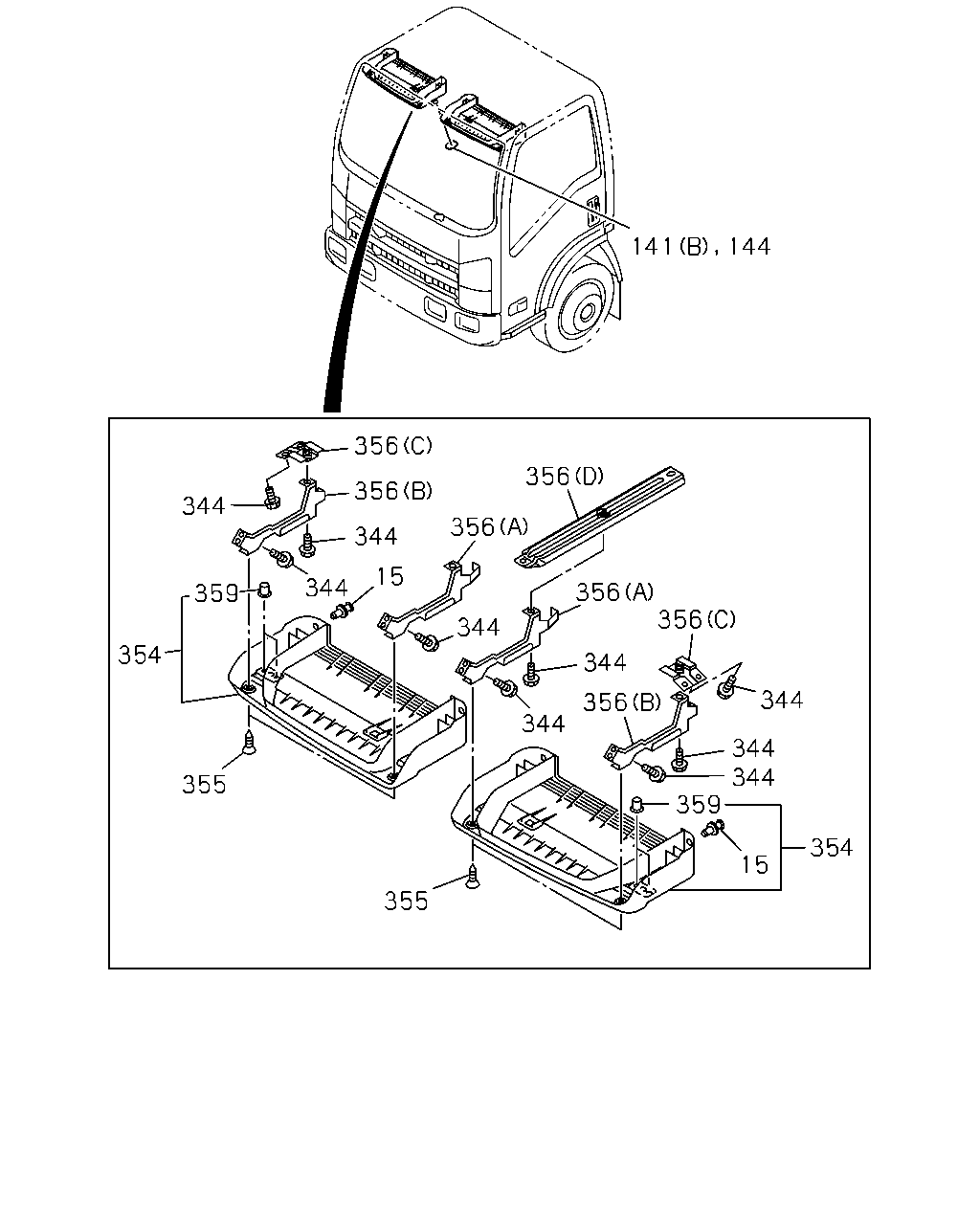

çizim 121963
141 144 356 356 356 344 356 344 15 356 344 356 359 344 354 344 344 356 344 344 344 355 359 354 15 355
BalonParca AdiParca NoAdetTipApplied Date A B
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0804-1004 ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0804-1004 ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1005- ● ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1005-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1005-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1005-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0804-1004 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1005-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		0-28450-612-0 08 1 0804-0809 ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		0-28450-612-0 08 1 0804-0809 ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 0810-1004 ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 0810-1004 ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1005- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1005- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 0804-1004 ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 1005- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 0804-1004 ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 1005- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804-1004 ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804-1004 ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1005- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0804-1004 ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1005- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1005- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0804-1004 ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0804-1004 ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1005- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1005- ● ●

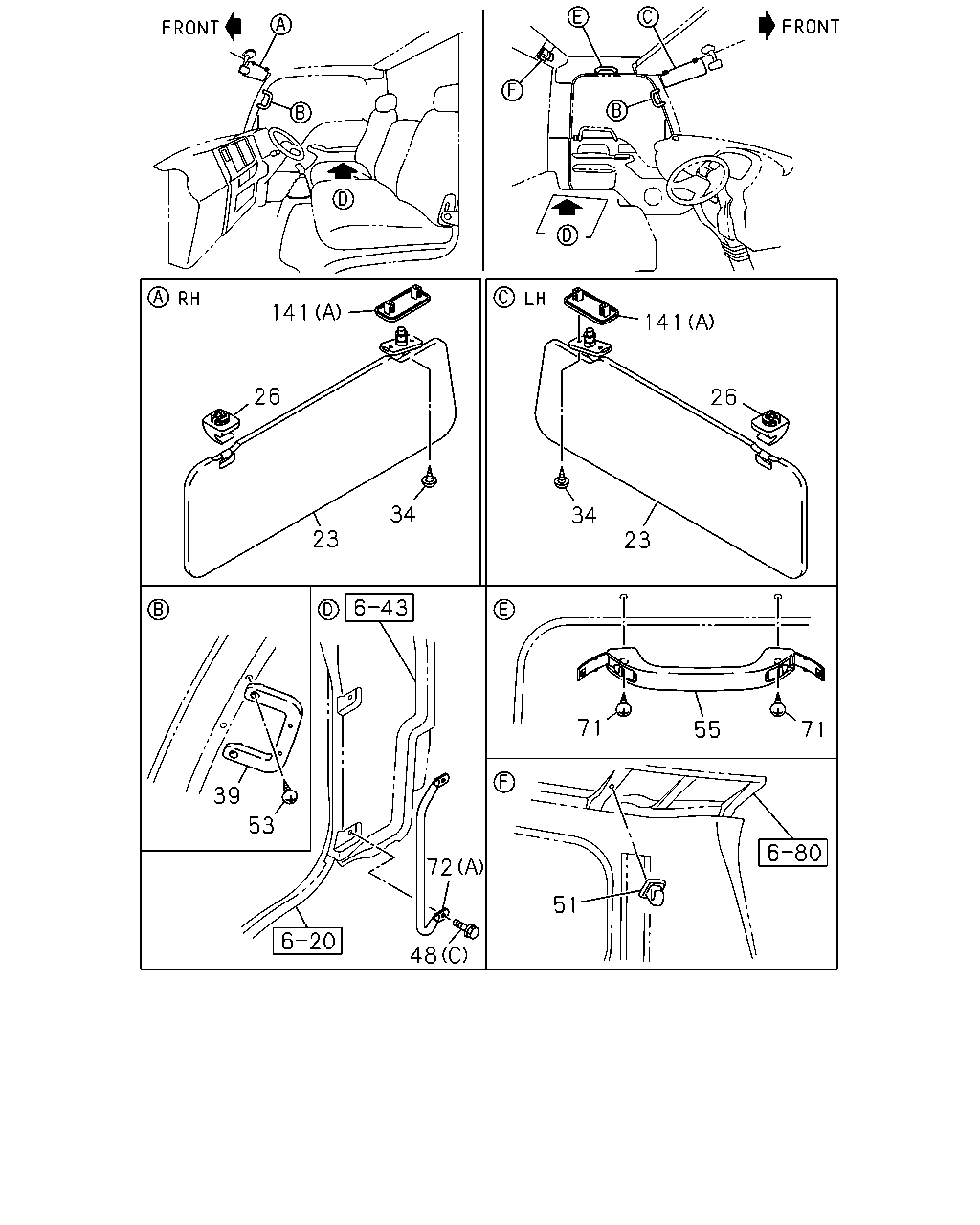

çizim 122028
141 141 26 26 34 34 23 23 71 71 55 39 53 72 51 48
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-059-1 01 1 0804-1004 ●
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-059-1 01 1 1005- ● ●
23 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97407-895-0 01 1 0804-1004 ●
23 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97407-895-0 01 1 1005- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 0804-1004 ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 1005- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 0804-1004 ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1005- ● ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0804-1004 ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1005- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0804-1004 ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1005- ● ●
26 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0804-1004 ●
26 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1005- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0804-1004 ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1005- ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0804-1004 ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0804-1004 ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 0804-1004 ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1005- ● ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1005- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1005- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0804-1004 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1005- ● ●
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE SOU 		0-28050-610-0 04 1 1005- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1005- ●
48 BOLT; ASSIST GRIP
(C) M8X16 FLANGE 		0-28060-816-0 04 1 0804-1004 ●
48 BOLT; ASSIST GRIP
(C) M8X16 FLANGE 		0-28060-816-0 04 1 1005- ● ●
51 HOOK; COAT HANGER
COAT HOOK<S9M> DARK GRAY 		8-97406-200-0 01 1 0804- ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0804-1004 ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1005- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0804-1004 ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1005- ● ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0804-1004 ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1005- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) DARK GRAY 		8-97405-249-2 02 1 1005- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 0804-1004 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0804-1004 ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1005- ● ●

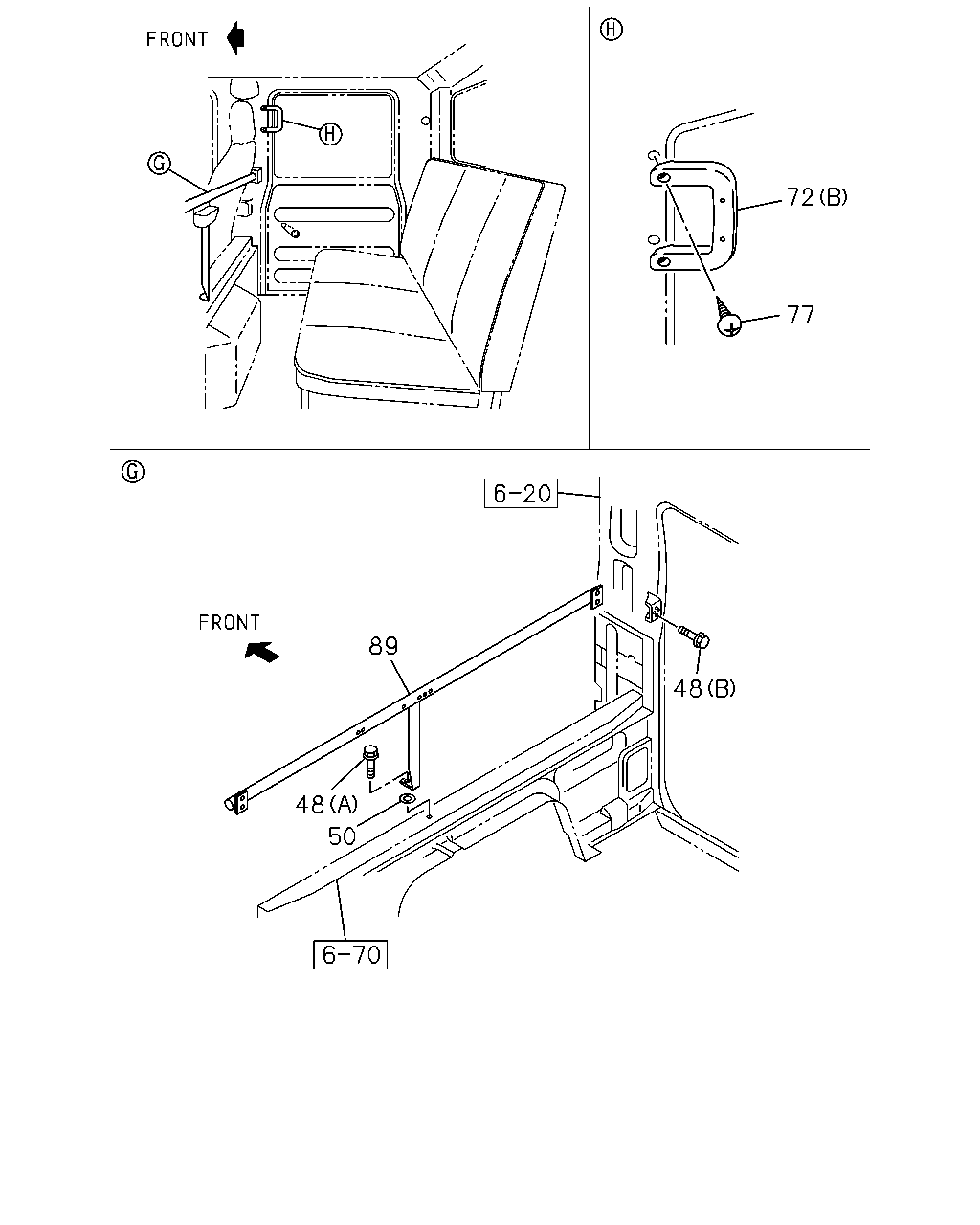

çizim 122051
72 77 89 48 48 50
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE SOU 		0-28050-610-0 04 1 1005- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1005- ●
48 BOLT; ASSIST GRIP
(C) M8X16 FLANGE 		0-28060-816-0 04 1 0804-1004 ●
48 BOLT; ASSIST GRIP
(C) M8X16 FLANGE 		0-28060-816-0 04 1 1005- ● ●
50 WASHER; PL,ASSIST GRIP
ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1005- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) DARK GRAY 		8-97405-249-2 02 1 1005- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 0804-1004 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1005- ● ●
77 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 1005- ●
89 HANDLE; ASSIST 8-97583-743-3 01 1 1005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
