Sayfa 7-10 - Isuzu EPC

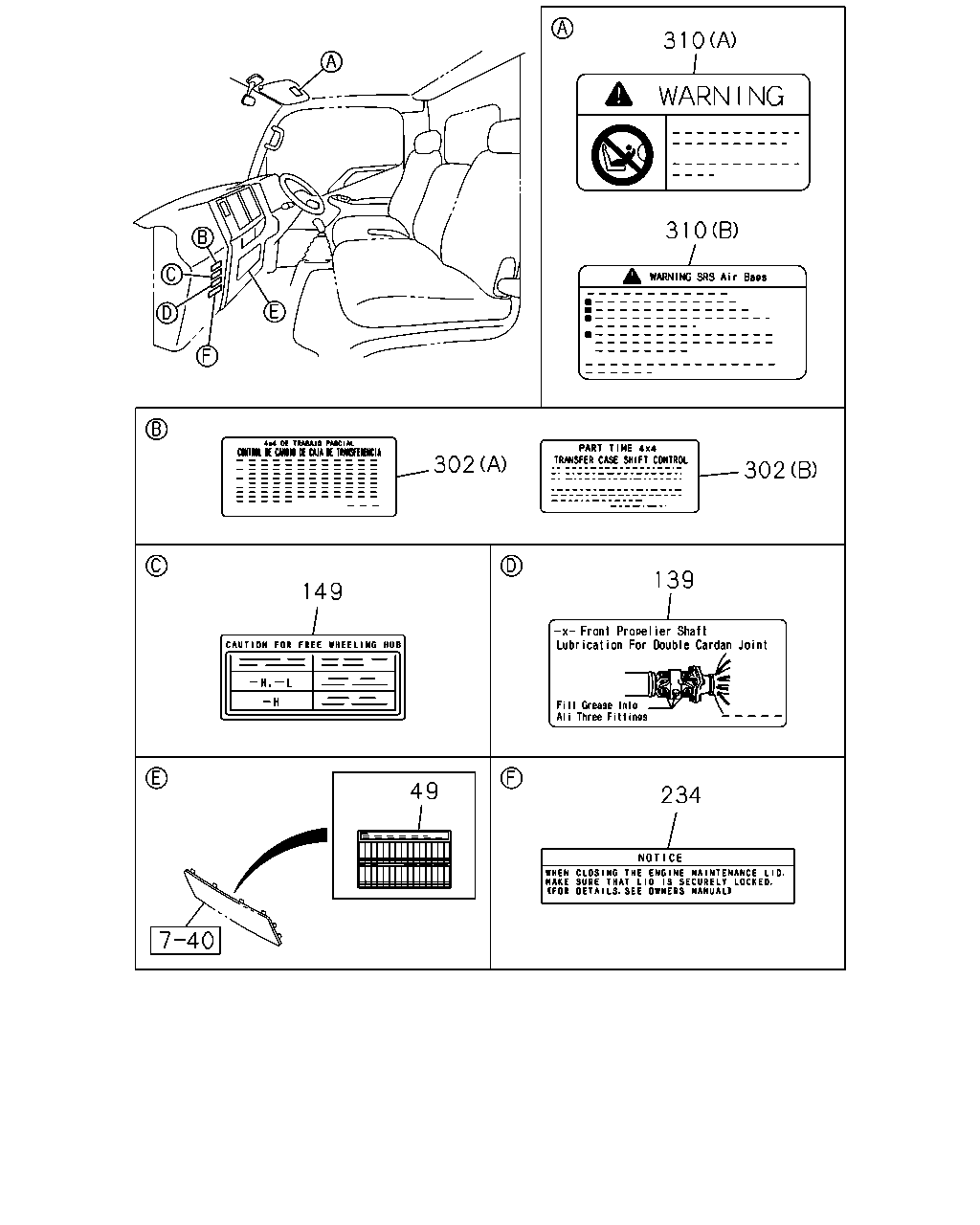

7-10 — CAUTION PLATE AND LABEL (#34116) — 40 parça

302 310 310 139 234 49 149 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX	8-98090-175-0	01	1	0804-1004	●
49	PLATE; CAUTION,FUSE BOX	8-98090-175-0	01	1	1005-	●	●
139	PLATE; CAUTION,PROP SHAFT CAUTION SPANISH<YN1>	8-98009-407-0	01	1	0804-1004	●
139	PLATE; CAUTION,PROP SHAFT CAUTION SPANISH<YN1>	8-98009-407-0	01	1	1005-	●	●
139	PLATE; CAUTION,PROP SHAFT EXC. CAUTION SPANISH<YN1>	8-97118-440-0	01	1	0804-1004	●
139	PLATE; CAUTION,PROP SHAFT EXC. CAUTION SPANISH<YN1>	8-97118-440-0	01	1	1005-	●	●
149	PLATE; CAUTION,LOCKING HUB CAUTION SPANISH<YN1>	8-97108-674-2	01	1	0804-1004	●
149	PLATE; CAUTION,LOCKING HUB CAUTION SPANISH<YN1>	8-97108-674-2	01	1	1005-	●	●
149	PLATE; CAUTION,LOCKING HUB EXC. CAUTION SPANISH<YN1> SOU	8-97108-673-1	01	1	0804-1004	●
149	PLATE; CAUTION,LOCKING HUB EXC. CAUTION SPANISH<YN1> SOU	8-97108-673-1	01	1	1005-	●	●
234	PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>	8-98071-067-0	01	1	0804-1004	●
234	PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>	8-98071-067-0	01	1	1005-	●
234	PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1>	8-98071-067-0	01	1	1005-		●
234	PLATE; CAUTION,ENG COVER INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	0804-1004	●
234	PLATE; CAUTION,ENG COVER INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	1005-	●
234	PLATE; CAUTION,ENG COVER EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	1005-		●
302	PLATE; CAUTION,TRANSFER CAUTION SPANISH<YN1> (A)	8-97108-716-1	01	1	0804-1004	●
302	PLATE; CAUTION,TRANSFER CAUTION SPANISH<YN1> (A)	8-97108-716-1	01	1	1005-	●	●
302	PLATE; CAUTION,TRANSFER EXC. CAUTION SPANISH<YN1> (B) SOU	8-97108-715-0	01	1	0804-1004	●
302	PLATE; CAUTION,TRANSFER EXC. CAUTION SPANISH<YN1> (B) SOU	8-97108-715-0	01	1	1005-	●	●
310	LABEL; WARNING,SRS AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER	8-98080-839-0	01	1	0804-1004	●
310	LABEL; WARNING,SRS AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER	8-98080-839-0	01	1	1005-	●	●
310	LABEL; WARNING,SRS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAUTION SPANISH<YN1> (B) DRIVER	8-98224-287-0	01	1	1211-	●	●
310	LABEL; WARNING,SRS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAUTION SPANISH<YN1> (B) DRIVER	8-98139-964-0	01	1	1211-	●	●

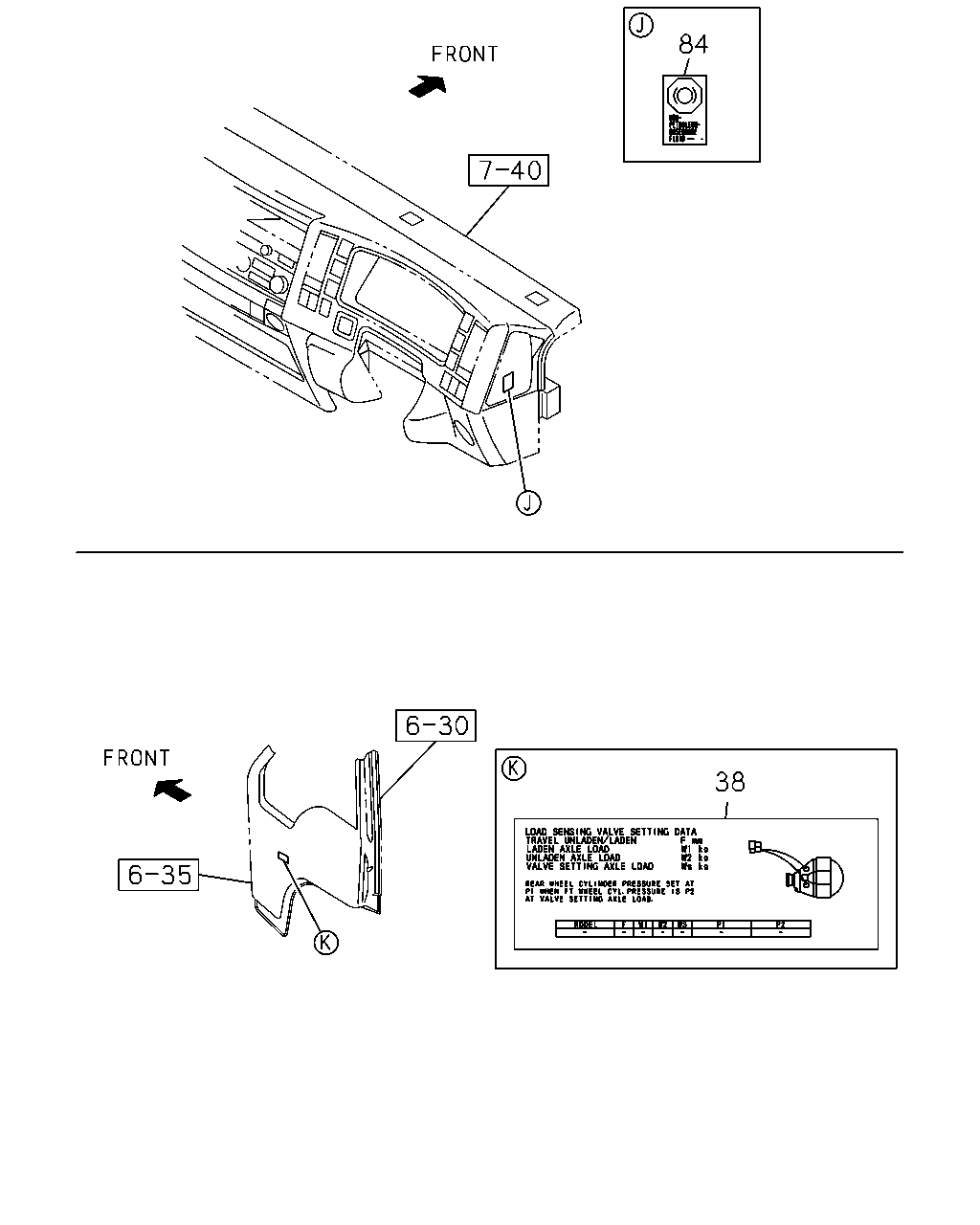

84 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	PLATE; CAUTION,LSV	8-98163-862-0	01	1	1005-		●
38	PLATE; CAUTION,LSV	8-98100-941-0	01	1	0806-	●
84	PLATE; CAUTION,BRAKE FLUID	8-98022-836-1	01	1	0804-1004	●
84	PLATE; CAUTION,BRAKE FLUID	8-98022-836-1	01	1	1005-	●	●

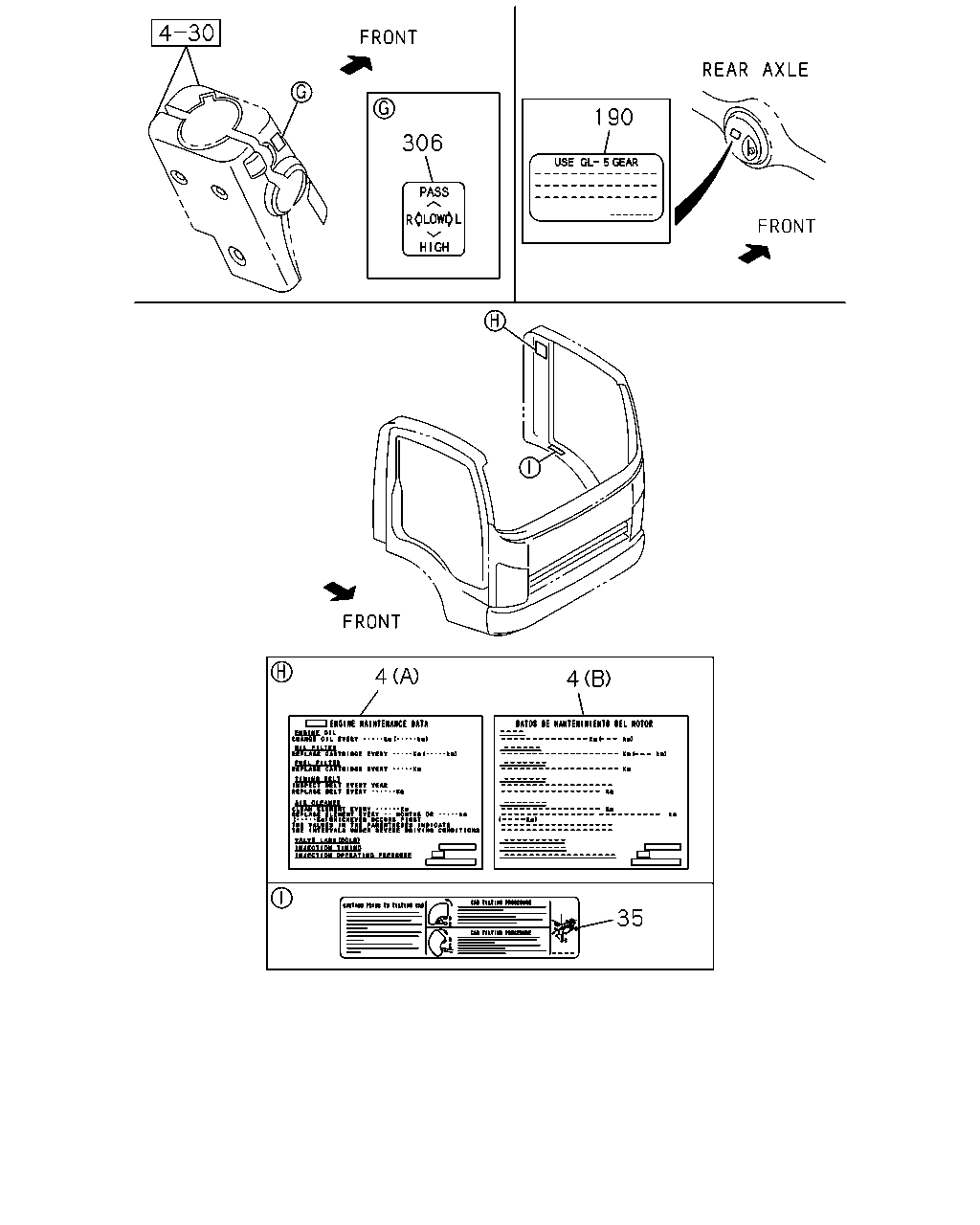

190 306 4 4 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE CAUTION SPANISH<YN1> (B)	8-98013-424-0	01	1	0804-1004	●
4	LABEL; ENG MAINTENANCE CAUTION SPANISH<YN1> (B)	8-98013-424-0	01	1	1005-	●	●
4	LABEL; ENG MAINTENANCE EXC. CAUTION SPANISH<YN1> (A)	8-98013-423-0	01	1	0804-1004	●
4	LABEL; ENG MAINTENANCE EXC. CAUTION SPANISH<YN1> (A)	8-98013-423-0	01	1	1005-	●	●
35	PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1>	8-98070-512-0	01	1	0804-	●
35	PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>	8-98067-809-0	01	1	0804-	●
190	PLATE; CAUTION,OIL CHANGE LIMITED SLIP DIFF<6LV> EXC. DEALER INSTALLED OPTION<6JJ>	8-97200-740-0	01	1	0805-1004	●
190	PLATE; CAUTION,OIL CHANGE LIMITED SLIP DIFF<6LV> EXC. DEALER INSTALLED OPTION<6JJ>	8-97200-740-0	01	1	1005-1005	●	●
190	PLATE; CAUTION,OIL CHANGE LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	1006-1007	●	●
190	PLATE; CAUTION,OIL CHANGE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	1008-	●	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	0804-1004	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
