6-80 — BACK PANEL (#34111) — 64 parça

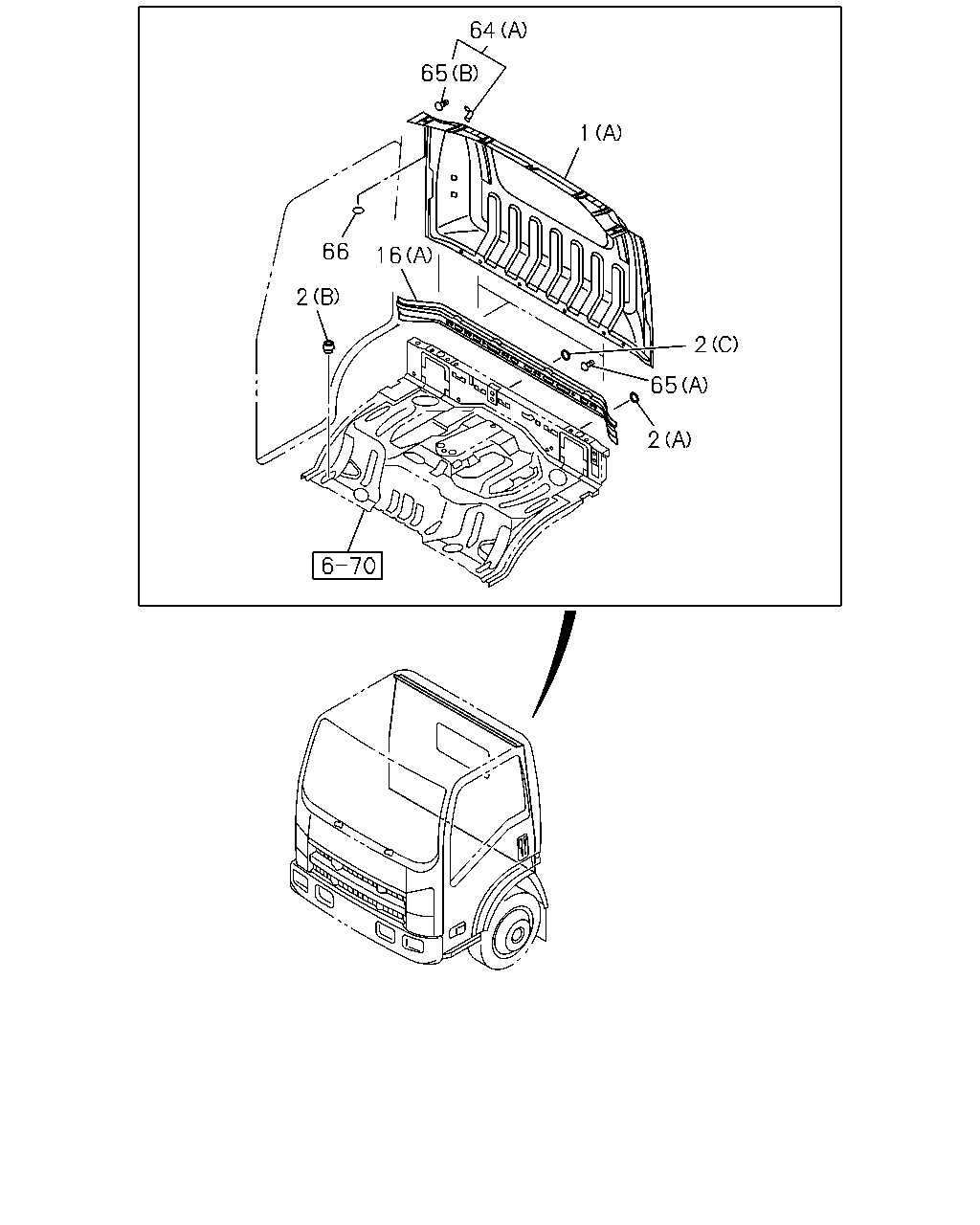

çizim 121974
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1005- ●
1 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0804- ●
1 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0804- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35 		8-94122-971-0 04 1 1005- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=15.0 SOU 		8-94279-040-0 02 1 1005- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1 		8-97898-423-0 04 1 0804-1004 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1 		8-97898-423-0 04 1 1005- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 10 1 0804- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK SOU 		1-76798-019-0 02 1 0804-1109 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU 		1-76798-019-0 02 1 1110- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 02 1 0804-1109 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 06 1 0804- ●
16 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1005- ●
16 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1005- ●
16 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0804- ●
64 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1005- ●
64 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1005- ●
64 BRACKET; AIR INTAKE DUCT
(A) 		8-97584-611-1 01 1 0804- ●
65 STUD; BACK PANEL
(A) M6X12 SOU 		8-98013-112-0 04 1 1005- ●
65 STUD; BACK PANEL
(B) SOU 		8-94389-701-0 02 1 1005- ●
65 STUD; BACK PANEL
(B) SOU 		8-94389-701-0 01 1 0804- ●
65 STUD; BACK PANEL
(A) M6X12 SOU 		8-98013-112-0 04 1 0804-1001 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0804-1004 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0804- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0804-1004 ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0804- ●

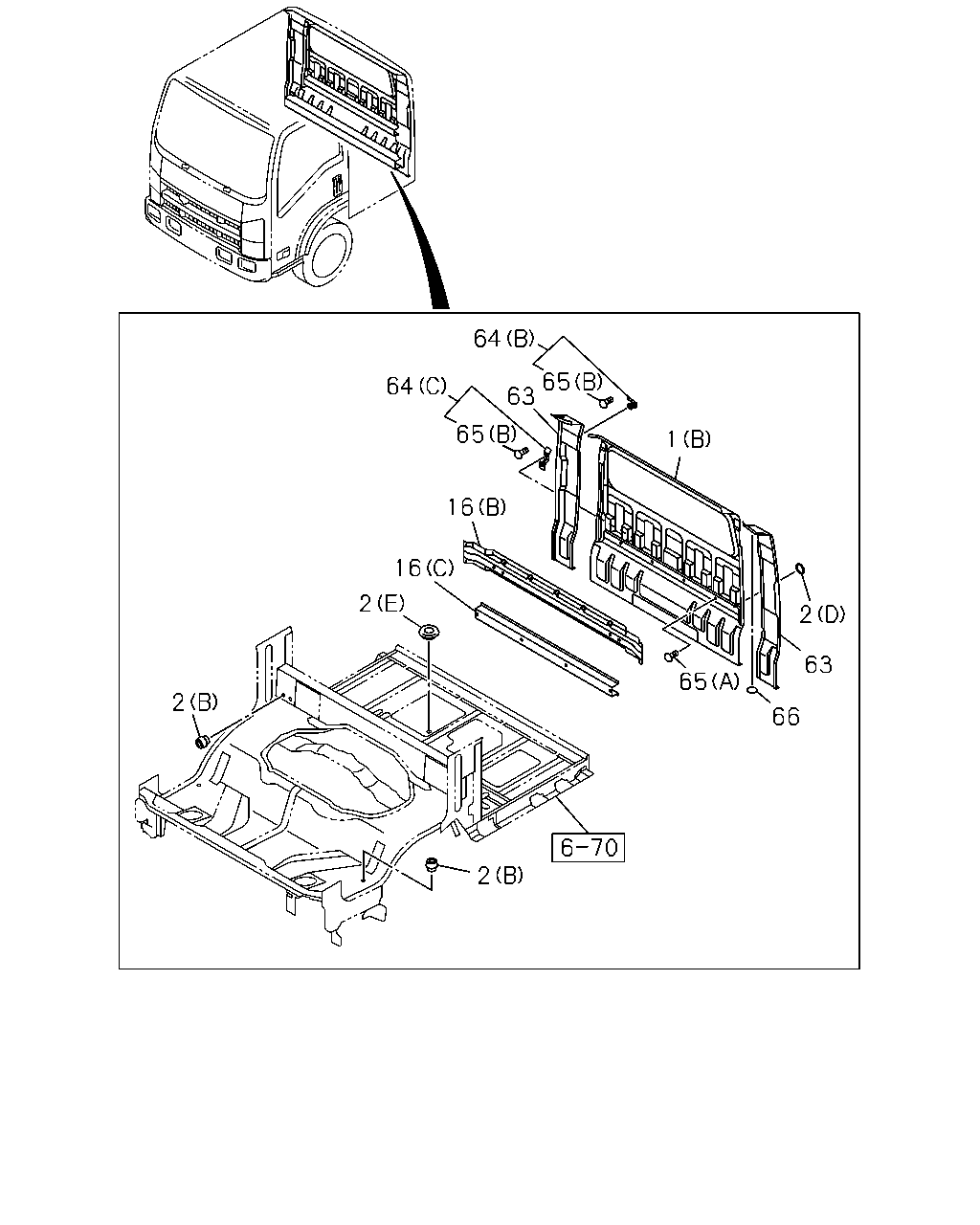

çizim 122061
64 65 63 64 65 1 16 16 2 2 63 65 2 66 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1005- ●
1 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0804- ●
1 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0804- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35 		8-94122-971-0 04 1 1005- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=15.0 SOU 		8-94279-040-0 02 1 1005- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1 		8-97898-423-0 04 1 0804-1004 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1 		8-97898-423-0 04 1 1005- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 10 1 0804- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK SOU 		1-76798-019-0 02 1 0804-1109 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU 		1-76798-019-0 02 1 1110- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 02 1 0804-1109 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK 		8-98031-126-0 06 1 0804- ●
16 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1005- ●
16 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1005- ●
16 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0804- ●
63 PANEL; BACK,SIDE 8-97583-750-6 01 1 1005- ●
63 PANEL; BACK,SIDE 8-97583-751-5 01 1 1005- ●
64 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1005- ●
64 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1005- ●
64 BRACKET; AIR INTAKE DUCT
(A) 		8-97584-611-1 01 1 0804- ●
65 STUD; BACK PANEL
(A) M6X12 SOU 		8-98013-112-0 04 1 1005- ●
65 STUD; BACK PANEL
(B) SOU 		8-94389-701-0 02 1 1005- ●
65 STUD; BACK PANEL
(B) SOU 		8-94389-701-0 01 1 0804- ●
65 STUD; BACK PANEL
(A) M6X12 SOU 		8-98013-112-0 04 1 0804-1001 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0804-1004 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0804- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0804-1004 ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1005- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0804- ●
