Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
5 - Frame, Cab Mounting
▶

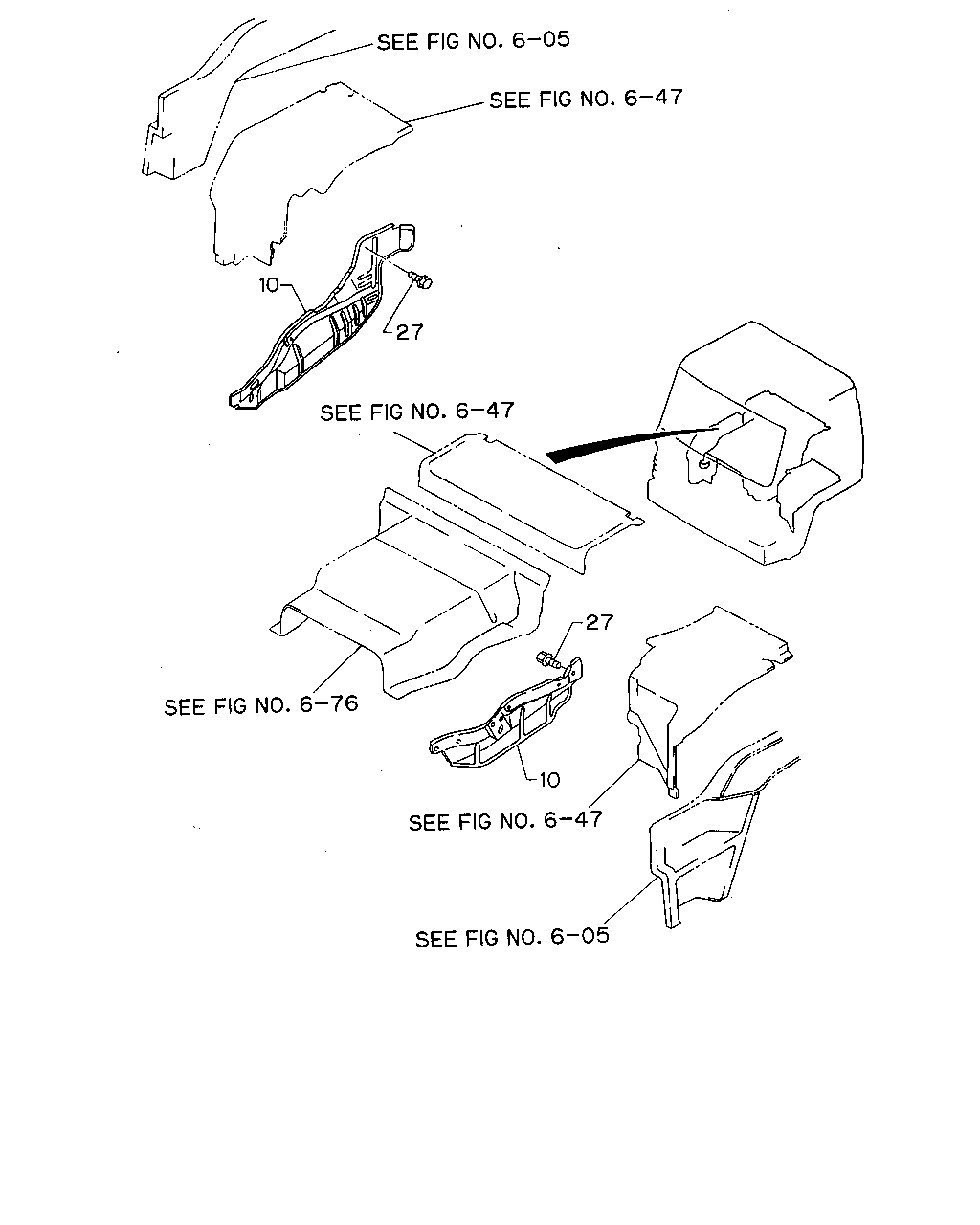

5-40 - ENGINE ROOM INSULATOR
▶
5-40 — ENGINE ROOM INSULATOR
(#3411) — 8 parça
Tümü
A - CXM6MF
B - CXZ6MC
C - CXZ6MF
10
27
27
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
PANEL ASM; NOISE SHUTTER
1-79937-844-0
01
1
9002-9105
●
●
●
10
PANEL ASM; NOISE SHUTTER
1-79937-848-0
01
1
9106-
●
●
●
10
PANEL ASM; NOISE SHUTTER
1-79937-767-9
01
1
9002-
●
●
●
27
BOLT; NOISE SHUTTER PANEL FIX
M6X20 W/LK&PL WASHER
1-09980-495-0
11
1
9002-9306
●
●
●
27
BOLT; NOISE SHUTTER PANEL FIX
TAIWAN EQUIPMENT(WW5) M6X20 W/LK&PL WASHER
1-09980-495-0
14
1
9307-9501
●
●
●
27
BOLT; NOISE SHUTTER PANEL FIX
ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER
1-09980-495-0
14
1
9502-
●
●
●
27
BOLT; NOISE SHUTTER PANEL FIX
EXC. TAIWAN EQUIPMENT(WW5) M6X20 W/LK&PL WASHER
1-09980-495-0
11
1
9307-9501
●
●
●
27
BOLT; NOISE SHUTTER PANEL FIX
EXC. ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER
1-09980-495-0
11
1
9502-
●
●
●
