6-75 — MAT AND CARPET (#34108) — 35 parça

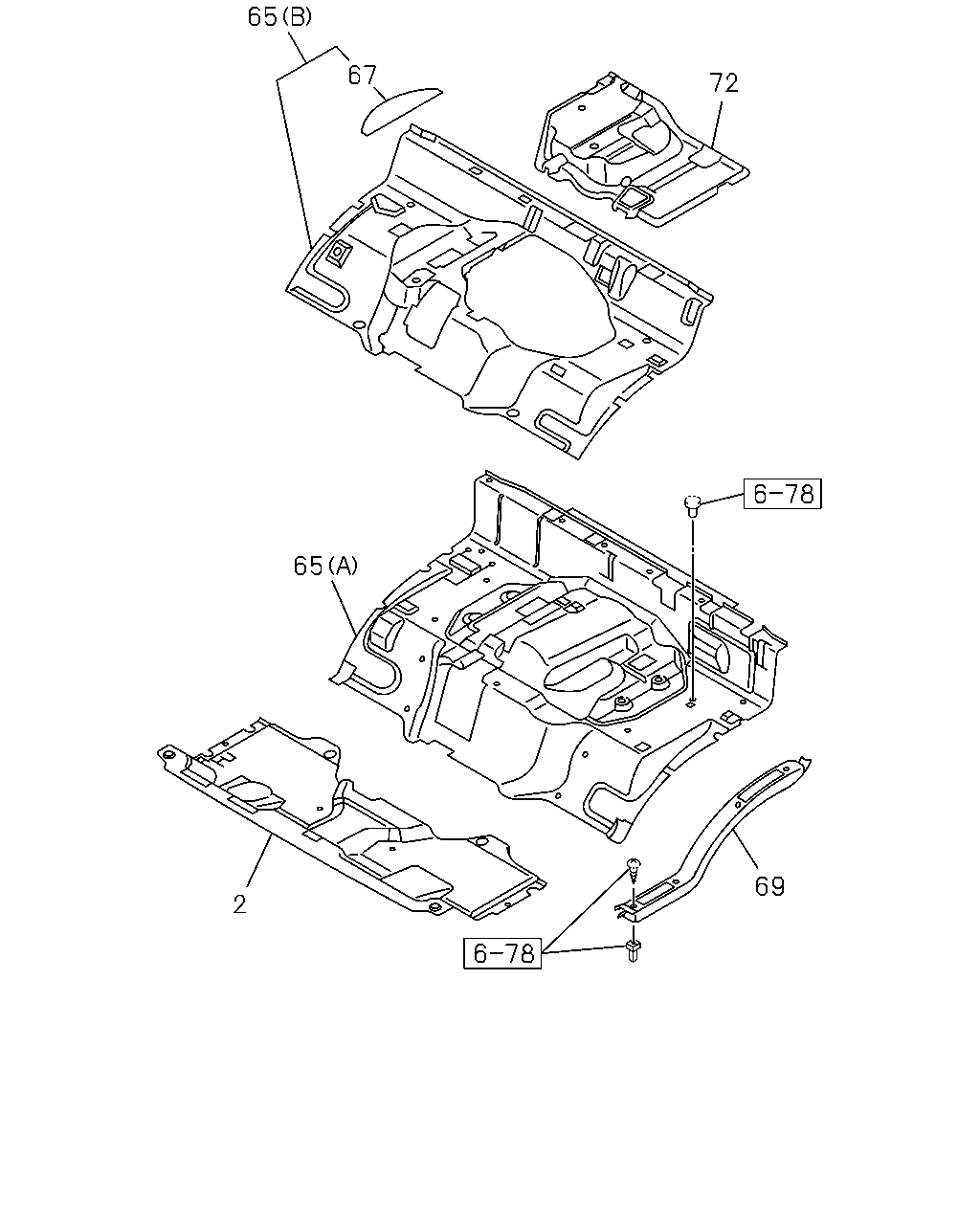

65 67 72 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97405-147-6	01	1	0804-1004	●
2	MAT; FLOOR GRAY	8-97405-147-6	01	1	1005-	●	●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	1005-1303		●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-		●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0804-1303	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0804-1303	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
67	LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0804-0904	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-1004	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1005-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-1004	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1005-	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0804-1004	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1005-	●
72	MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1005-		●

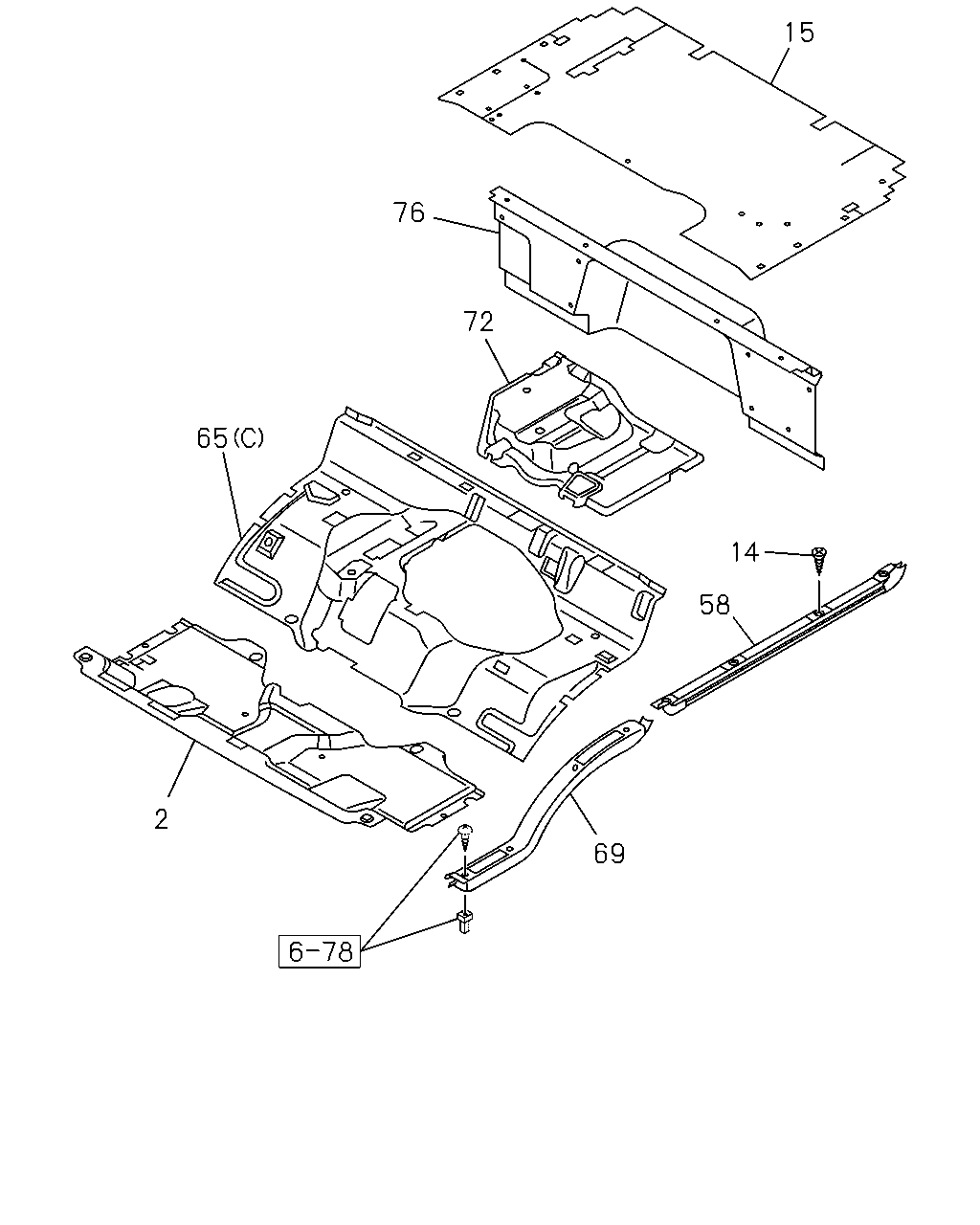

15 76 72 65 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97405-147-6	01	1	0804-1004	●
2	MAT; FLOOR GRAY	8-97405-147-6	01	1	1005-	●	●
14	SCREW; PLATE T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1005-		●
15	MAT; FLOOR REAR GRAY	8-97412-602-1	01	1	1005-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1005-		●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	1005-1303		●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-		●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0804-1303	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0804-1303	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-1004	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1005-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-1004	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1005-	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0804-1004	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1005-	●
72	MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1005-		●
76	MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-600-1	01	1	1005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
