Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#34105) — 42 parça
Tümü
A - NPS5WN
B - NPS5SN
◀

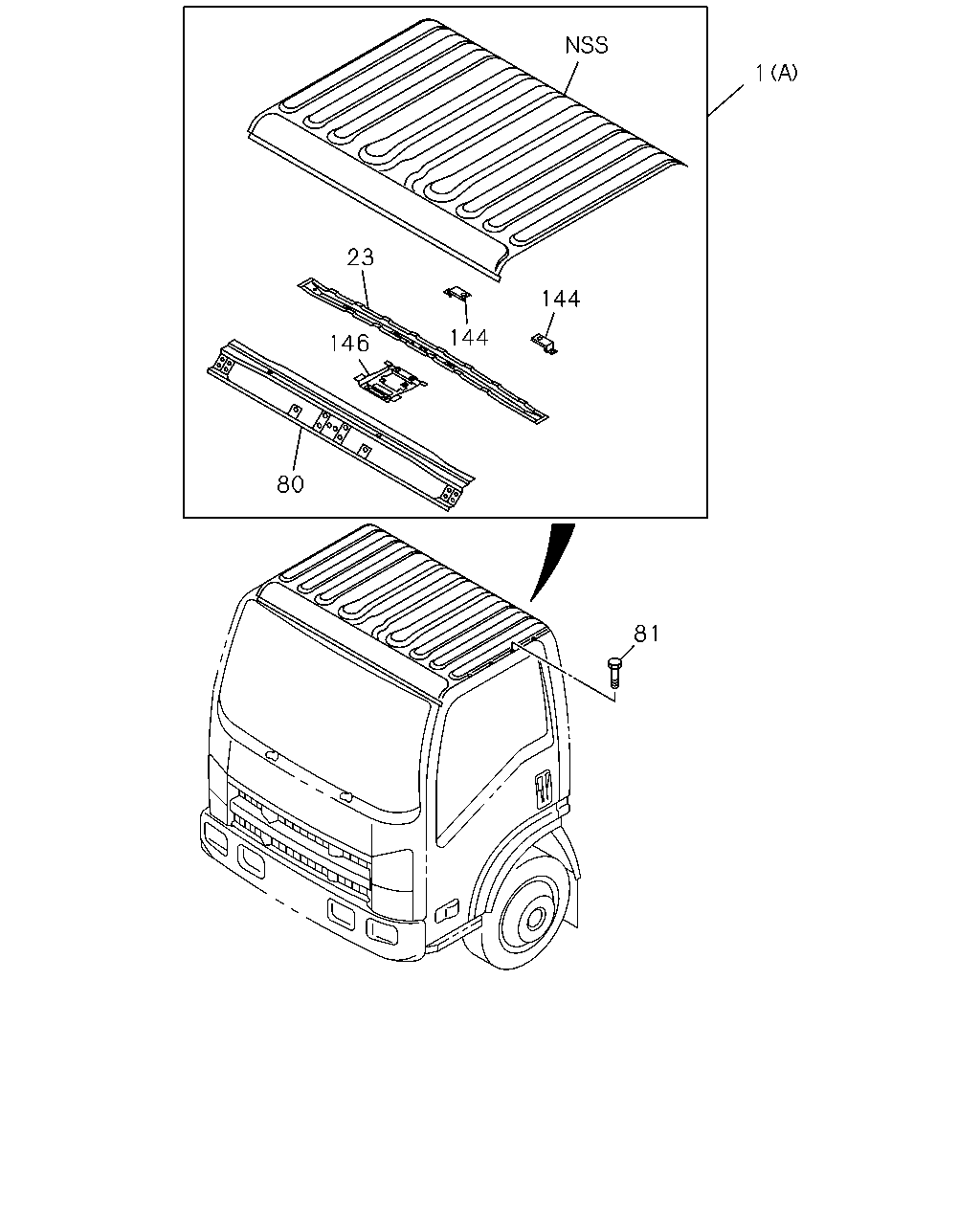

[660A] SGL CAB (17 parça)

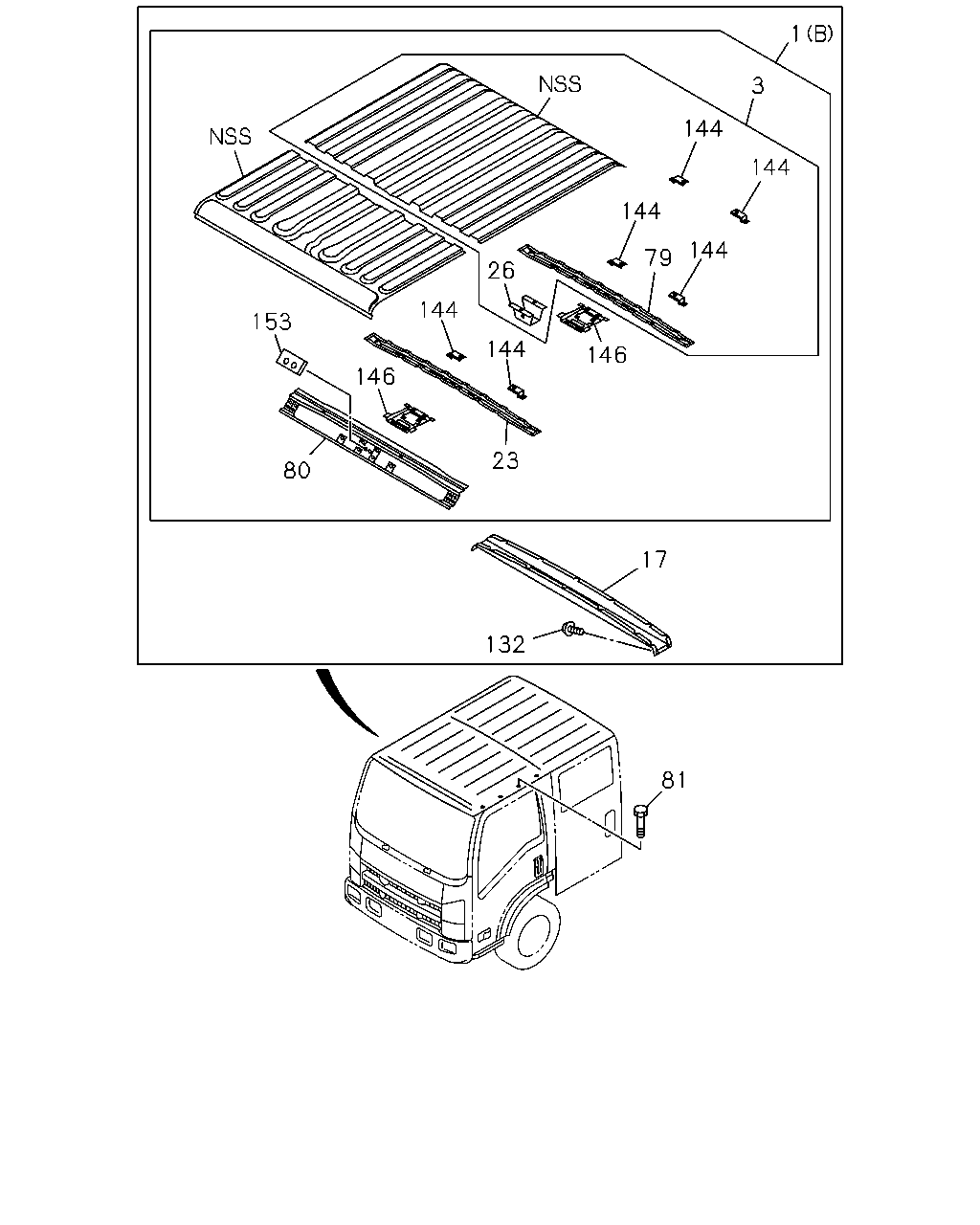

[660A] DBL CAB (25 parça)
▶
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
(B)
8-97583-756-9
01
1
1005-1503
●
1
PANEL; ROOF
(B)
8-98286-545-0
01
1
1504-
●
1
PANEL; ROOF
(A) SOU
8-98024-941-6
01
1
0804-1503
●
1
PANEL; ROOF
(A) SOU
8-98287-347-0
01
1
1504-
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
0804-1004
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
1005-1503
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1504-
●
●
80
PANEL; HEADER,ROOF
SOU
8-97584-190-4
01
1
0804-1004
●
80
PANEL; HEADER,ROOF
SOU
8-97584-190-4
01
1
1005-1503
●
●
80
PANEL; HEADER,ROOF
8-98287-354-0
01
1
1504-
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0804-0910
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-1004
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1005-
●
●
144
BRACKET; ROOF
8-98013-931-1
06
1
1005-
●
144
BRACKET; ROOF
8-98013-931-1
02
1
0804-
●
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
1005-
●
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0804-
●
1
3
144
144
144
144
79
26
144
153
144
146
146
23
80
17
132
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
(B)
8-97583-756-9
01
1
1005-1503
●
1
PANEL; ROOF
(B)
8-98286-545-0
01
1
1504-
●
1
PANEL; ROOF
(A) SOU
8-98024-941-6
01
1
0804-1503
●
1
PANEL; ROOF
(A) SOU
8-98287-347-0
01
1
1504-
●
3
PANEL; ROOF,RR
8-98109-819-0
01
1
1005-
●
17
REINFORCEMENT; ROOF PNL CENTER
8-97583-763-1
01
1
1005-
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
0804-1004
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
1005-1503
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1504-
●
●
26
BRACKET; ROOF REINF
8-98006-519-0
01
1
1005-
●
79
REINFORCEMENT; ROOF PANEL,RR
8-97583-761-2
01
1
1005-
●
80
PANEL; HEADER,ROOF
SOU
8-97584-190-4
01
1
0804-1004
●
80
PANEL; HEADER,ROOF
SOU
8-97584-190-4
01
1
1005-1503
●
●
80
PANEL; HEADER,ROOF
8-98287-354-0
01
1
1504-
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0804-0910
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-1004
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1005-
●
●
132
FASTENER; HEADER SHELF
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
05
1
1005-1101
●
132
FASTENER; HEADER SHELF
T25 M6X12 HEXALOBULAR SOCKET
8-98177-720-0
05
1
1102-1212
●
132
FASTENER; HEADER SHELF
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
05
1
1301-
●
144
BRACKET; ROOF
8-98013-931-1
06
1
1005-
●
144
BRACKET; ROOF
8-98013-931-1
02
1
0804-
●
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
1005-
●
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0804-
●
153
STIFFENER; HEADER,ROOF
8-98094-096-0
01
1
1005-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
