6-47 — MUD GUARD AND INSULATOR (#34100) — 125 parça

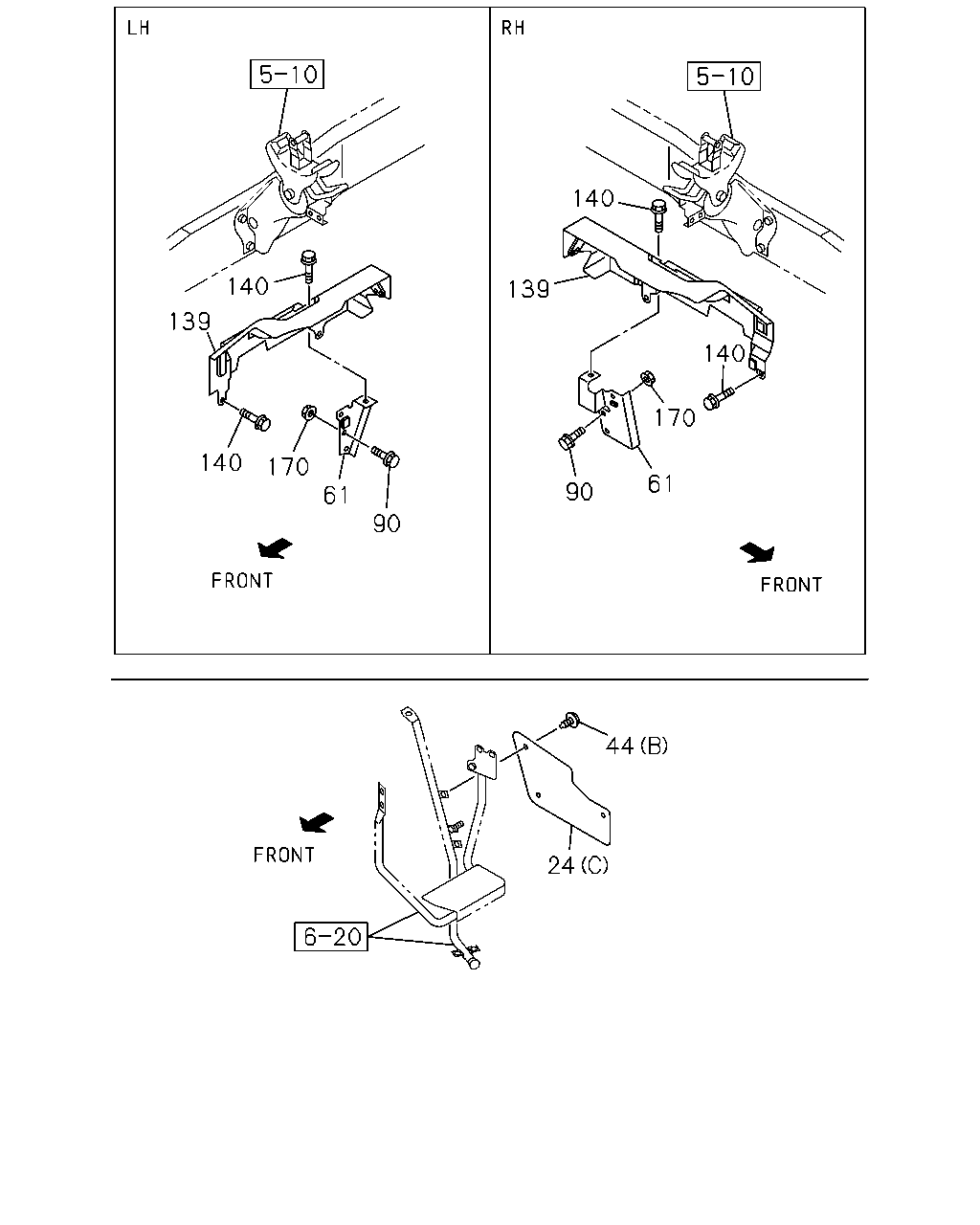

çizim 121946
140 140 139 139 140 170 140 170 61 90 61 90 44 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 PLATE; MUD COVER
(B) 		8-98037-561-0 02 1 0804-0910 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 0911-1004 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 1005- ● ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 0804-1004 ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 1005- ● ●
44 CLIP; ANCHOR
(A) OD=16 L=11 SOU 		1-76378-155-0 06 1 0804-1004 ●
44 CLIP; ANCHOR
(A) OD=16 L=11 SOU 		1-76378-155-0 06 1 1005- ● ●
44 CLIP; ANCHOR
(B) OD=8.3 SOU 		8-97997-832-0 06 1 0804-1004 ●
44 CLIP; ANCHOR
(B) OD=8.3 SOU 		8-97997-832-0 06 1 1005- ● ●
61 BRACKET; COVER 8-98049-206-1 01 1 0804-1004 ●
61 BRACKET; COVER 8-98049-206-1 01 1 1005- ● ●
61 BRACKET; COVER 8-98049-205-1 01 1 0804-1004 ●
61 BRACKET; COVER 8-98049-205-1 01 1 1005- ● ●
90 BOLT; COVER
M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804-1004 ●
90 BOLT; COVER
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1005- ● ●
139 PANEL; SIDE 8-98092-595-0 01 1 0804-0806 ●
139 PANEL; SIDE 8-98115-458-0 01 1 0807-1004 ●
139 PANEL; SIDE 8-98115-458-0 01 1 1005- ● ●
139 PANEL; SIDE 8-98049-203-0 01 1 0804-1004 ●
139 PANEL; SIDE 8-98049-203-0 01 1 1005- ● ●
140 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER 		1-09030-094-0 06 1 0804-1004 ●
140 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER 		1-09030-094-0 06 1 1005- ● ●
170 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
170 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●

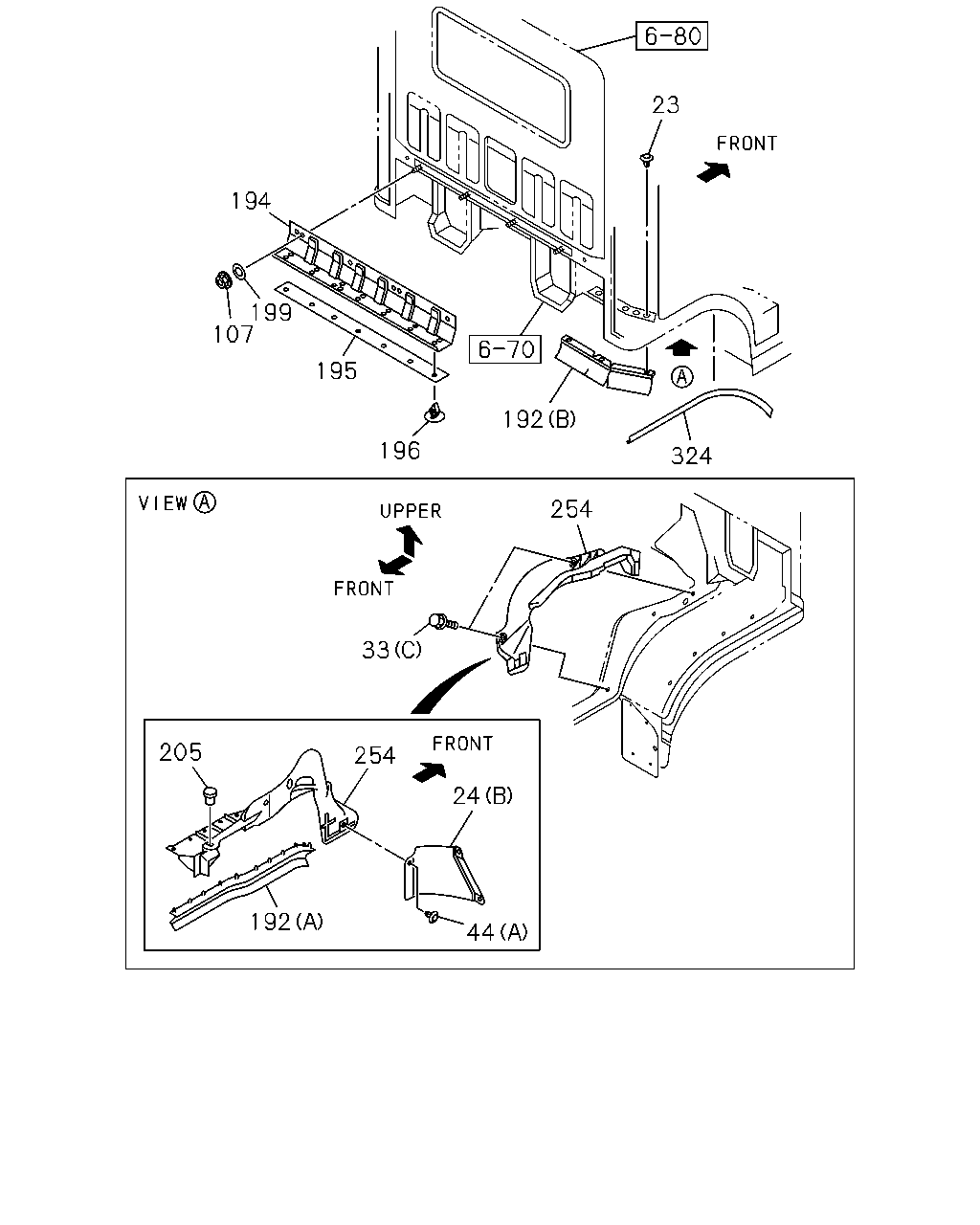

çizim 121950
23 194 199 107 195 192 196 324 254 33 205 254 24 192 44
BalonParca AdiParca NoAdetTipApplied Date A B
23 FASTENER; MUD COVER
OD=8.3 SOU 		8-97997-832-0 06 1 0804-1004 ●
23 FASTENER; MUD COVER
OD=8.3 SOU 		8-97997-832-0 06 1 1005- ● ●
24 PLATE; MUD COVER
(B) 		8-98037-561-0 02 1 0804-0910 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 0911-1004 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 1005- ● ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 0804-1004 ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 1005- ● ●
33 BOLT; MUD COVER
(A) M6X20 FLANGE 		0-28050-620-0 12 1 0804-1004 ●
33 BOLT; MUD COVER
(A) M6X20 FLANGE 		0-28050-620-0 12 1 1005-1209 ● ●
33 BOLT; MUD COVER
(A) M6X16 FLANGE 		8-98227-381-0 12 1 1210- ● ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0804-1004 ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1005- ● ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98016-982-0 04 1 0804-0804 ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98061-108-0 04 1 0805-1004 ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98061-108-0 04 1 1005- ● ●
44 CLIP; ANCHOR
(A) OD=16 L=11 SOU 		1-76378-155-0 06 1 0804-1004 ●
44 CLIP; ANCHOR
(A) OD=16 L=11 SOU 		1-76378-155-0 06 1 1005- ● ●
44 CLIP; ANCHOR
(B) OD=8.3 SOU 		8-97997-832-0 06 1 0804-1004 ●
44 CLIP; ANCHOR
(B) OD=8.3 SOU 		8-97997-832-0 06 1 1005- ● ●
107 NUT; HEAT PROTECTOR
M6 FLANGE 		8-94279-514-0 04 1 1005- ●
192 SEAL; MUD COVER
(B) 		8-98022-782-3 02 1 0804-1004 ●
192 SEAL; MUD COVER
(B) 		8-98022-782-3 02 1 1005- ● ●
192 SEAL; MUD COVER
(A) 		8-98022-756-1 01 1 0804-1004 ●
192 SEAL; MUD COVER
(A) 		8-98022-756-1 01 1 1005- ● ●
192 SEAL; MUD COVER
(A) 		8-98022-755-1 01 1 0804-1004 ●
192 SEAL; MUD COVER
(A) 		8-98022-755-1 01 1 1005- ● ●
194 BRACKET; HEAT PROTECTOR 8-98065-107-0 01 1 1005- ●
195 PROTECTOR; HEAT 8-94272-528-1 01 1 1005- ●
196 CLIP; HEAT PROTECTOR
SOU 		8-94244-922-0 07 1 1005- ●
199 WASHER; PL,HEAT PROTECTOR 8-94292-135-0 04 1 1005- ●
205 FASTENER; MUD COVER
D=5.8 SCREW & GROMMET NYLON SOU 		8-94242-150-0 02 1 0804-1004 ●
205 FASTENER; MUD COVER
D=5.8 SCREW & GROMMET NYLON SOU 		8-94242-150-0 02 1 1005- ● ●
254 COVER; MUD,VALANCE 8-98022-751-3 01 1 0804-1004 ●
254 COVER; MUD,VALANCE 8-98022-751-3 01 1 1005- ● ●
254 COVER; MUD,VALANCE 8-98022-750-3 01 1 0804-1004 ●
254 COVER; MUD,VALANCE 8-98022-750-3 01 1 1005- ● ●
324 PROTECTOR; FRT FENDER 8-98022-786-2 02 1 0804-1004 ●
324 PROTECTOR; FRT FENDER 8-98022-786-2 02 1 1005- ● ●

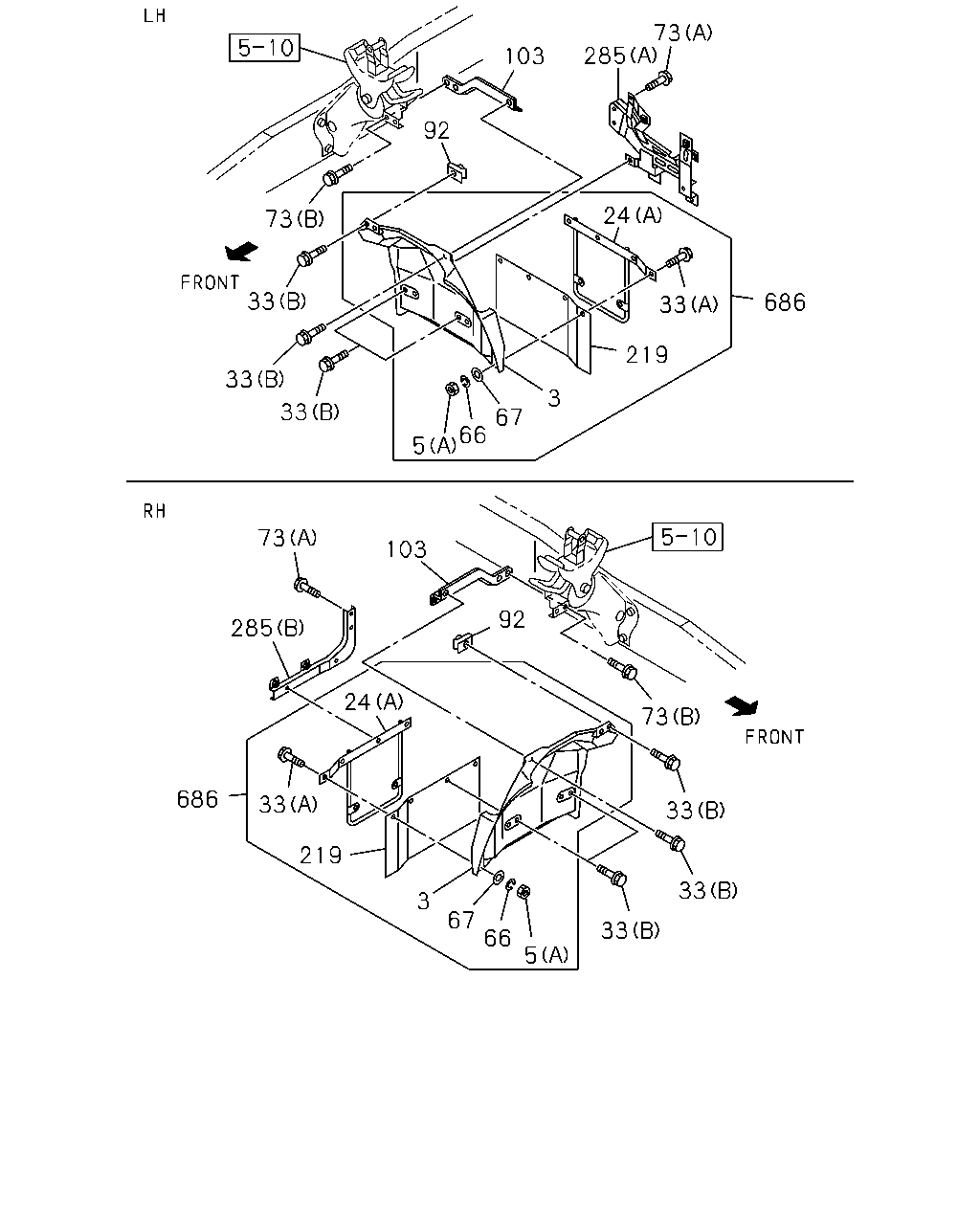

çizim 121964
73 285 103 92 24 73 33 686 3 219 33 3 33 67 66 5 73 103 92 285 24 73 686 33 33 219 33 3 67 33 66 5
BalonParca AdiParca NoAdetTipApplied Date A B
3 GUARD; MUD,RR 8-98004-030-4 01 1 0804-1004 ●
3 GUARD; MUD,RR 8-98004-030-4 01 1 1005- ● ●
3 GUARD; MUD,RR 8-98004-029-5 01 1 0804-1004 ●
3 GUARD; MUD,RR 8-98004-029-5 01 1 1005- ● ●
5 NUT; FLAP RUBBER
(B) M6 FLANGE SOU 		0-91180-106-0 02 1 1005- ●
5 NUT; FLAP RUBBER
(A) M6 SOU 		0-91110-506-0 12 1 0804-1004 ●
5 NUT; FLAP RUBBER
(A) M6 SOU 		0-91110-506-0 12 1 1005-1209 ● ●
5 NUT; FLAP RUBBER
(A) M6 		8-98227-380-0 12 1 1210- ● ●
24 PLATE; MUD COVER
(B) 		8-98037-561-0 02 1 0804-0910 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 0911-1004 ●
24 PLATE; MUD COVER
(B) 		8-98154-258-0 02 1 1005- ● ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 0804-1004 ●
24 PLATE; MUD COVER
(C) 		8-98094-591-1 02 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98072-929-1 01 1 1005- ● ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 0804-1004 ●
24 PLATE; MUD COVER
(A) 		8-98073-062-1 01 1 1005- ● ●
33 BOLT; MUD COVER
(A) M6X20 FLANGE 		0-28050-620-0 12 1 0804-1004 ●
33 BOLT; MUD COVER
(A) M6X20 FLANGE 		0-28050-620-0 12 1 1005-1209 ● ●
33 BOLT; MUD COVER
(A) M6X16 FLANGE 		8-98227-381-0 12 1 1210- ● ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0804-1004 ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1005- ● ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98016-982-0 04 1 0804-0804 ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98061-108-0 04 1 0805-1004 ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE 		8-98061-108-0 04 1 1005- ● ●
66 WASHER; LK
ID=6.1 		0-91510-606-0 12 1 0804-1004 ●
66 WASHER; LK
ID=6.1 		0-91510-606-0 12 1 1005-1209 ● ●
67 WASHER; PL
ID=6.4 		0-91610-606-0 12 1 0804-1004 ●
67 WASHER; PL
ID=6.4 		0-91610-606-0 12 1 1005-1209 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804-1004 ●
73 BOLT; MUD COVER BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1005- ● ●
73 BOLT; MUD COVER BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 0804-1004 ●
73 BOLT; MUD COVER BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1005- ● ●
92 NUT; MUD COVER
M8 SPIRE NUT 		8-98039-860-2 02 1 0804-1004 ●
92 NUT; MUD COVER
M8 SPIRE NUT 		8-98039-860-2 02 1 1005- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98001-319-2 01 1 0804-1004 ●
103 BRACKET ASM; RR MUD FLAP 8-98001-319-2 01 1 1005- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98001-315-2 01 1 0804-1004 ●
103 BRACKET ASM; RR MUD FLAP 8-98001-315-2 01 1 1005- ● ●
219 FLAP; MUD GUARD 8-98072-933-0 02 1 0804-1004 ●
219 FLAP; MUD GUARD 8-98072-933-0 02 1 1005- ● ●
285 BRACKET; MUD COVER
(A) 		8-98001-320-3 01 1 0804-1004 ●
285 BRACKET; MUD COVER
(A) 		8-98001-320-3 01 1 1005- ● ●
285 BRACKET; MUD COVER
(B) 		8-98001-314-2 01 1 0804-1004 ●
285 BRACKET; MUD COVER
(B) 		8-98001-314-2 01 1 1005- ● ●
686 FLAP ASM; MUD 8-98049-236-3 01 1 0804-1004 ●
686 FLAP ASM; MUD 8-98049-236-3 01 1 1005- ● ●
686 FLAP ASM; MUD 8-98049-237-3 01 1 0804-1004 ●
686 FLAP ASM; MUD 8-98049-237-3 01 1 1005- ● ●

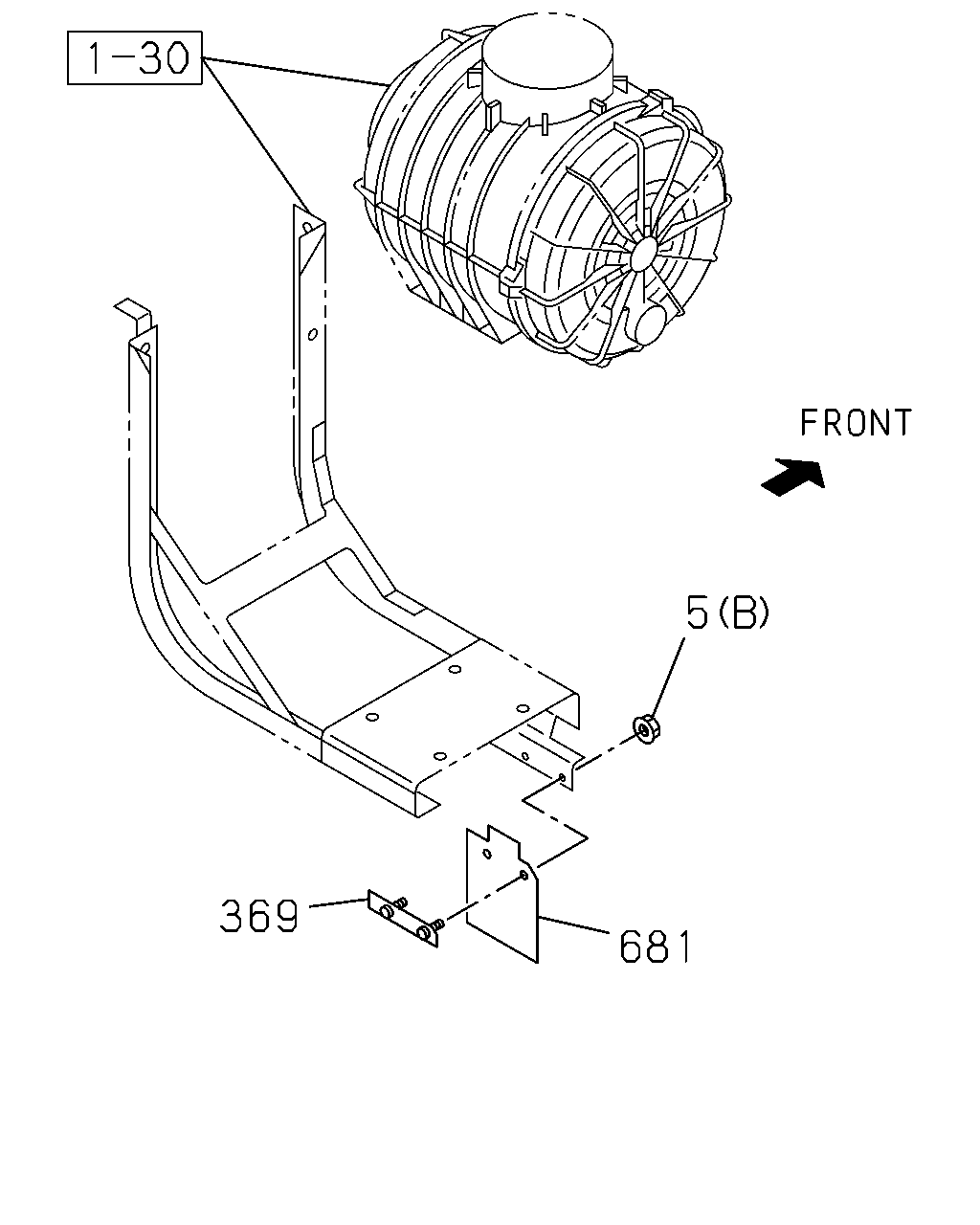

çizim 122041
5 369 681
BalonParca AdiParca NoAdetTipApplied Date A B
5 NUT; FLAP RUBBER
(B) M6 FLANGE SOU 		0-91180-106-0 02 1 1005- ●
5 NUT; FLAP RUBBER
(A) M6 SOU 		0-91110-506-0 12 1 0804-1004 ●
5 NUT; FLAP RUBBER
(A) M6 SOU 		0-91110-506-0 12 1 1005-1209 ● ●
5 NUT; FLAP RUBBER
(A) M6 		8-98227-380-0 12 1 1210- ● ●
369 PLATE 8-98061-674-0 01 1 1005- ●
681 FLAP; AIR CLEANER 8-98061-671-0 01 1 1005- ●
