◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#3410) — 73 parça

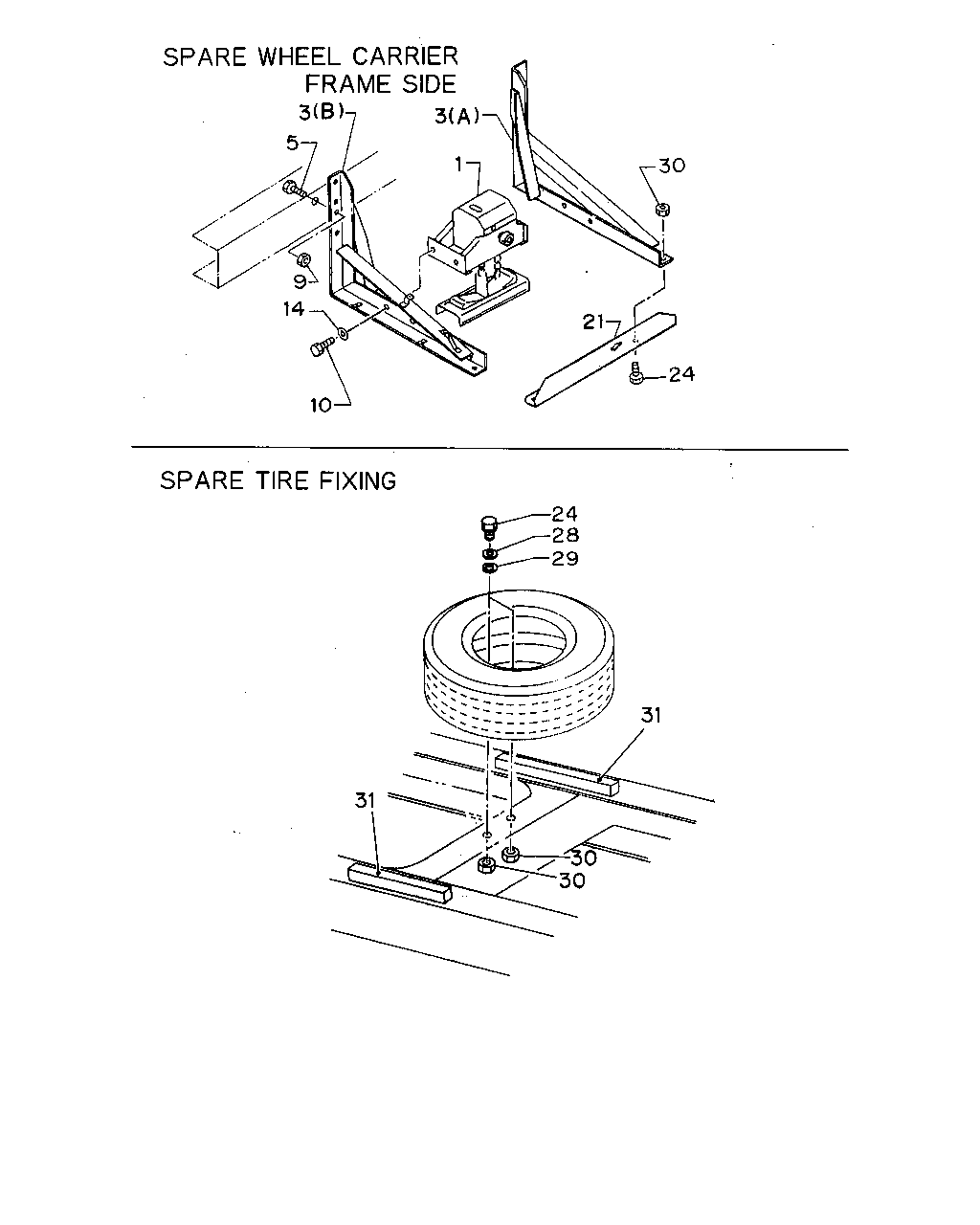

çizim 37123
3 5 3 9 14 10 1 21 24 30 24 28 29 31 30 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9002- ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9002-9402 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> CAUTIONS CHINESE<SL7> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>, CAUTIONS CHINESE<SL7> 		1-53630-146-1 02 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9002- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS CHINESE<SL7> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>, CAUTIONS CHINESE<SL7> 		1-53630-146-1 01 1 9403- ● ● ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> (B) 		1-53631-176-8 01 1 9002-9310 ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> (A) 		1-53631-207-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> (A) 		1-53631-276-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> (B) 		1-53631-277-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> (B) 		1-53631-337-0 01 1 9311- ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-176-8 01 1 9002-9306 ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-207-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-337-0 01 1 9307- ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M12X40 		9-01911-240-0 04 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9006-9307 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M12X40 FLANGE 		0-28081-240-0 04 1 9308- ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 		9-01911-240-0 06 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X40 		9-01911-240-0 06 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9006-9307 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9006-9307 ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28081-240-0 06 1 9308- ●
5 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X40 FLANGE 		0-28081-240-0 06 1 9308- ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M12 		9-99110-412-0 04 1 9002-9304 ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M12 		9-99110-512-0 04 1 9305- ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 06 1 9002-9304 ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12 		9-99110-412-0 06 1 9002-9304 ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9305- ●
9 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12 		9-99110-512-0 06 1 9305- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006- ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002- ● ● ●
21 BRACKET; SPARE TIRE HANGER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> 		1-53631-278-1 01 1 9002- ●
21 BRACKET; SPARE TIRE HANGER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9002- ●
21 BRACKET; SPARE TIRE HANGER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> 		1-53631-128-1 01 1 9002- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		9-92041-480-0 02 1 9002-9204 ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		0-20801-480-0 02 1 9205- ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M8X25 W/LK WASHER 		9-01910-825-0 04 1 9002-9005 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9006-9302 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M8X25 FLANGE 		0-28080-825-0 04 1 9303-9306 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 		9-01911-225-0 02 1 9002-9005 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X25 		9-01911-225-0 02 1 9002-9005 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9307 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9307 ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ●
24 BOLT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X100 		9-92046-400-0 02 1 9002-9305 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X100 		0-20801-400-0 02 1 9306- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9002- ● ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9002- ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 08 1 9002- ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9002- ● ● ●
30 NUT; SPARE TIRE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FUEL TANK 300L<RF5> M8 		9-09110-408-0 04 1 9002- ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9002- ● ● ●

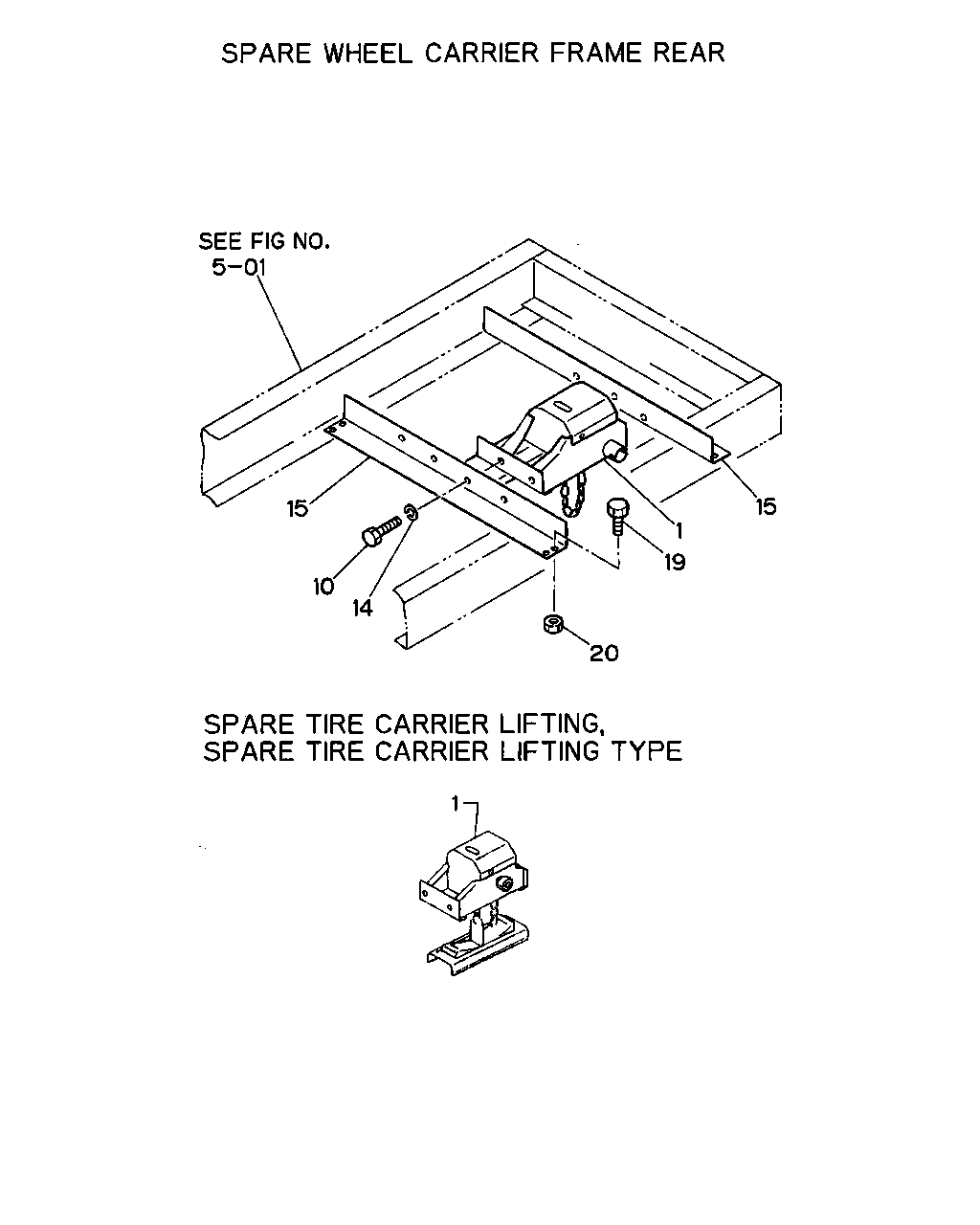

çizim 39069
15 10 14 20 19 1 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9002- ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9002-9402 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> CAUTIONS CHINESE<SL7> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>, CAUTIONS CHINESE<SL7> 		1-53630-146-1 02 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9002- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> CAUTIONS CHINESE<SL7> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9403- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>, CAUTIONS CHINESE<SL7> 		1-53630-146-1 01 1 9403- ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006- ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002- ● ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-201-0 02 1 9002- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-241-0 02 1 9002- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X28 W/LK WASHER 		0-50041-028-0 08 1 9002- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 W/LK WASHER 		0-50041-035-0 08 1 9002- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9002- ● ●
