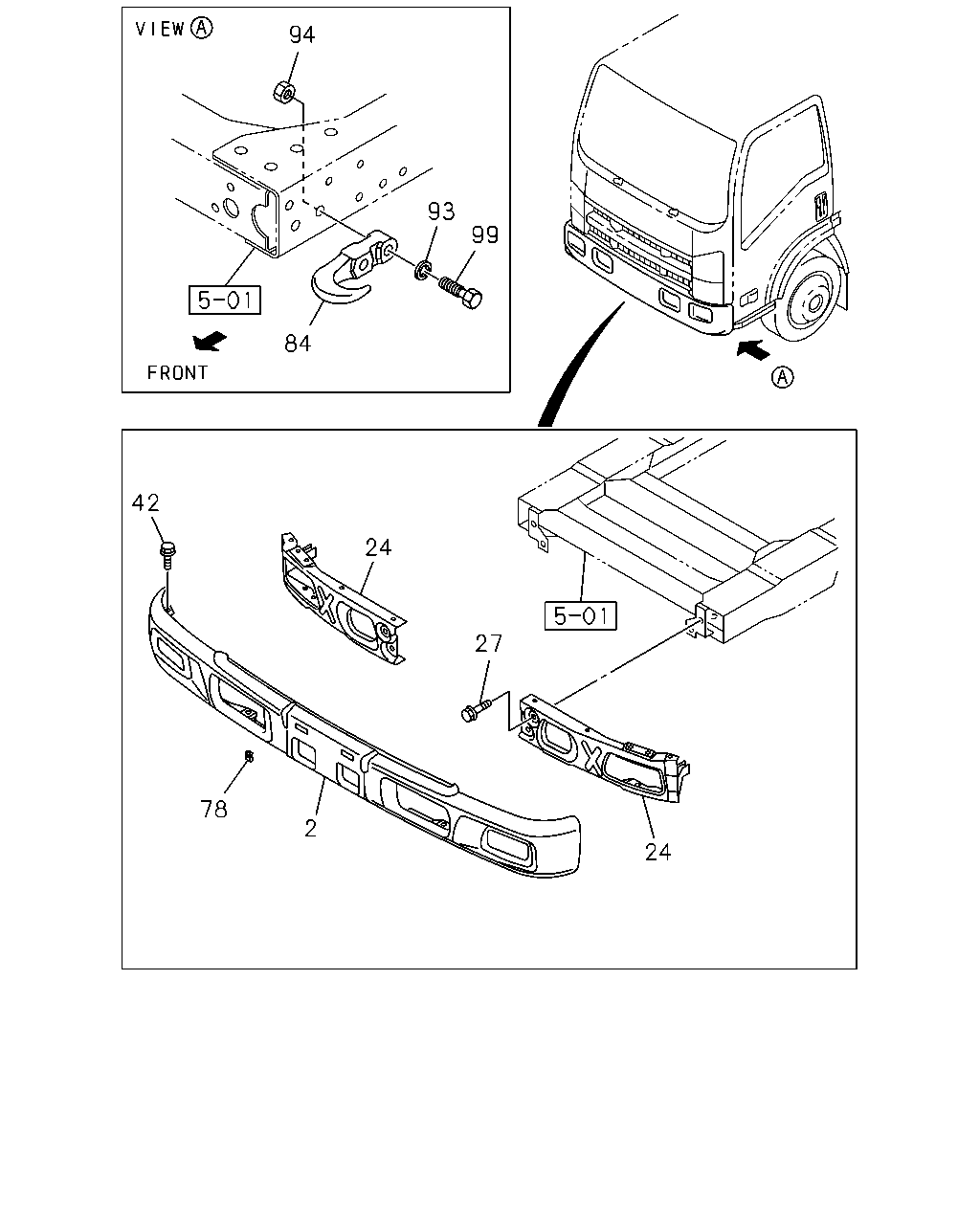

6-01 — FRONT BUMPER (#34090) — 32 parça

94 93 99 84 42 24 27 78 2 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	0804-1004	●
2	BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER FRT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	0804-1004	●
2	BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> WHITE	8-97405-635-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> BLUE	8-97405-636-5	01	1	0804-1004	●
2	BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	1005-	●	●
2	BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	1005-	●	●
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	1005-	●	●
2	BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	1005-	●	●
2	BUMPER; FRT,CENTER FRT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	1005-	●	●
2	BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	1005-	●	●
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> WHITE	8-97405-635-5	01	1	1005-	●	●
2	BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> BLUE	8-97405-636-5	01	1	1005-	●	●
24	BAR; FRT BUMPER	8-98025-185-5	01	1	0804-	●
24	BAR; FRT BUMPER	8-98025-184-5	01	1	0804-	●
27	BOLT; BUMPER TO BACK BAR M10X30 W/TORQUES	8-98092-250-0	04	1	0804-1004	●
27	BOLT; BUMPER TO BACK BAR M10X30 W/TORQUES	8-98092-250-0	04	1	1005-	●	●
42	BOLT; BUMPER M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	0804-	●
78	NUT; SPIRE M6	8-98029-416-0	02	1	0804-	●
84	HOOK SOU	8-97387-665-0	01	1	0804-1004	●
84	HOOK SOU	8-97387-665-0	01	1	1005-	●	●
93	WASHER; LK,HOOK ID=14.2 SOU	0-91510-814-0	02	1	0804-1004	●
93	WASHER; LK,HOOK ID=14.2 SOU	0-91510-814-0	02	1	1005-	●	●
94	NUT; HOOK M14 SOU	0-91110-514-0	01	1	0804-1004	●
94	NUT; HOOK M14 SOU	0-91110-514-0	01	1	1005-	●	●
99	BOLT; HOOK M14X50 SOU	0-10856-450-0	02	1	0804-1001	●
99	BOLT; HOOK M14X55	0-10956-455-0	02	1	1002-1004	●
99	BOLT; HOOK M14X55	0-10956-455-0	02	1	1005-1103	●	●
99	BOLT; HOOK M14X55	8-97301-262-0	02	1	1104-	●	●
