◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#3409) — 46 parça

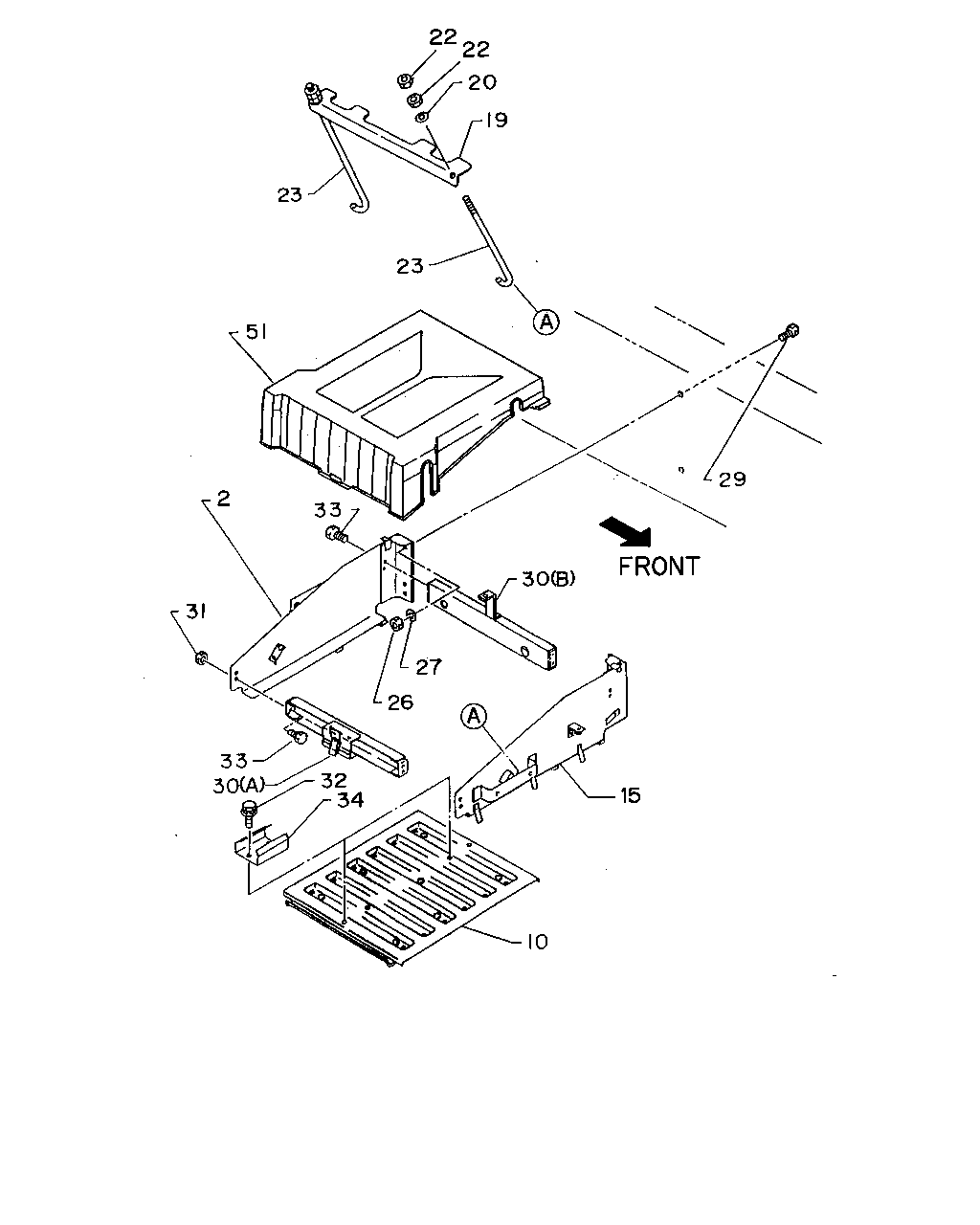

çizim 37213
22 19 20 22 23 23 51 2 33 31 33 30 32 34 26 10 15 27 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BRACKET; BATTERY
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53613-378-2 01 1 9307- ● ● ●
2 BRACKET; BATTERY 1-53613-274-3 01 1 9002-9306 ● ●
2 BRACKET; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53613-274-3 01 1 9002-9306 ●
2 BRACKET; BATTERY
TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53613-292-2 01 1 9002-9306 ●
2 BRACKET; BATTERY
6RB1 STD ENG(07L) 		1-53613-379-2 01 1 9307- ● ●
2 BRACKET; BATTERY
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53613-379-2 01 1 9307- ● ●
10 COVER; BATTERY
SILENCER SINGLE VERTICAL<N28> 		1-53612-036-0 01 1 9002-9106 ● ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53612-036-0 01 1 9002-9106 ●
10 COVER; BATTERY
SILENCER SINGLE VERTICAL<N28> 		1-53612-042-0 01 1 9107- ● ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53612-042-0 01 1 9107- ●
10 COVER; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53619-063-0 01 1 9002-9106 ● ●
10 COVER; BATTERY
6RB1 STD ENG(07L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-063-0 01 1 9002-9106 ●
10 COVER; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53619-082-0 01 1 9307- ● ●
10 COVER; BATTERY
TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-082-0 01 1 9307- ●
10 COVER; BATTERY
10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-062-0 01 1 9002-9106 ●
10 COVER; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53619-062-1 01 1 9107-9306 ● ●
10 COVER; BATTERY
TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-062-1 01 1 9107-9306 ●
15 BRACKET; BATTERY 1-53613-268-4 01 1 9002-9306 ● ● ●
15 BRACKET; BATTERY
6RB1 STD ENG(07L) 		1-53613-347-1 01 1 9307- ● ●
15 BRACKET; BATTERY
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53613-347-1 01 1 9307- ● ●
15 BRACKET; BATTERY
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53613-346-1 01 1 9307- ● ● ●
19 STAY; BATTERY 1-53618-039-1 01 1 9002- ● ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 9002- ● ● ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 9002- ● ● ●
23 BOLT; STAY
L=250 L=260 		1-53616-109-0 02 1 9002- ● ● ●
26 NUT; BRKT
M14 		9-99110-414-0 04 1 9002- ● ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 9002- ● ● ●
29 BOLT; BRKT TO FRAME
M14X45 		9-92051-445-0 04 1 9002-9005 ● ● ●
29 BOLT; BRKT TO FRAME
M14X45 		0-20801-445-0 04 1 9006- ● ● ●
30 PLATE; BATTERY
(B) 		1-53619-058-0 01 1 9002-9306 ● ● ●
30 PLATE; BATTERY
(A) 		1-53619-060-0 01 1 9002-9106 ● ● ●
30 PLATE; BATTERY
(A) 		1-53619-085-0 01 1 9107- ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 04 1 9002- ● ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205-9302 ● ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 FLANGE 		0-28080-816-0 04 1 9303- ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
33 BOLT; PLATE TO BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9002-9204 ● ● ●
33 BOLT; PLATE TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9302 ● ● ●
33 BOLT; PLATE TO BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9303-9306 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
34 SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> 		1-53619-061-0 02 1 9002-9106 ● ● ●
34 SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> 		1-53619-084-0 02 1 9107- ● ● ●
51 COVER; BATTERY 1-53612-033-0 01 1 9002-9106 ● ● ●
51 COVER; BATTERY 1-53612-040-1 01 1 9107- ● ● ●
