Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

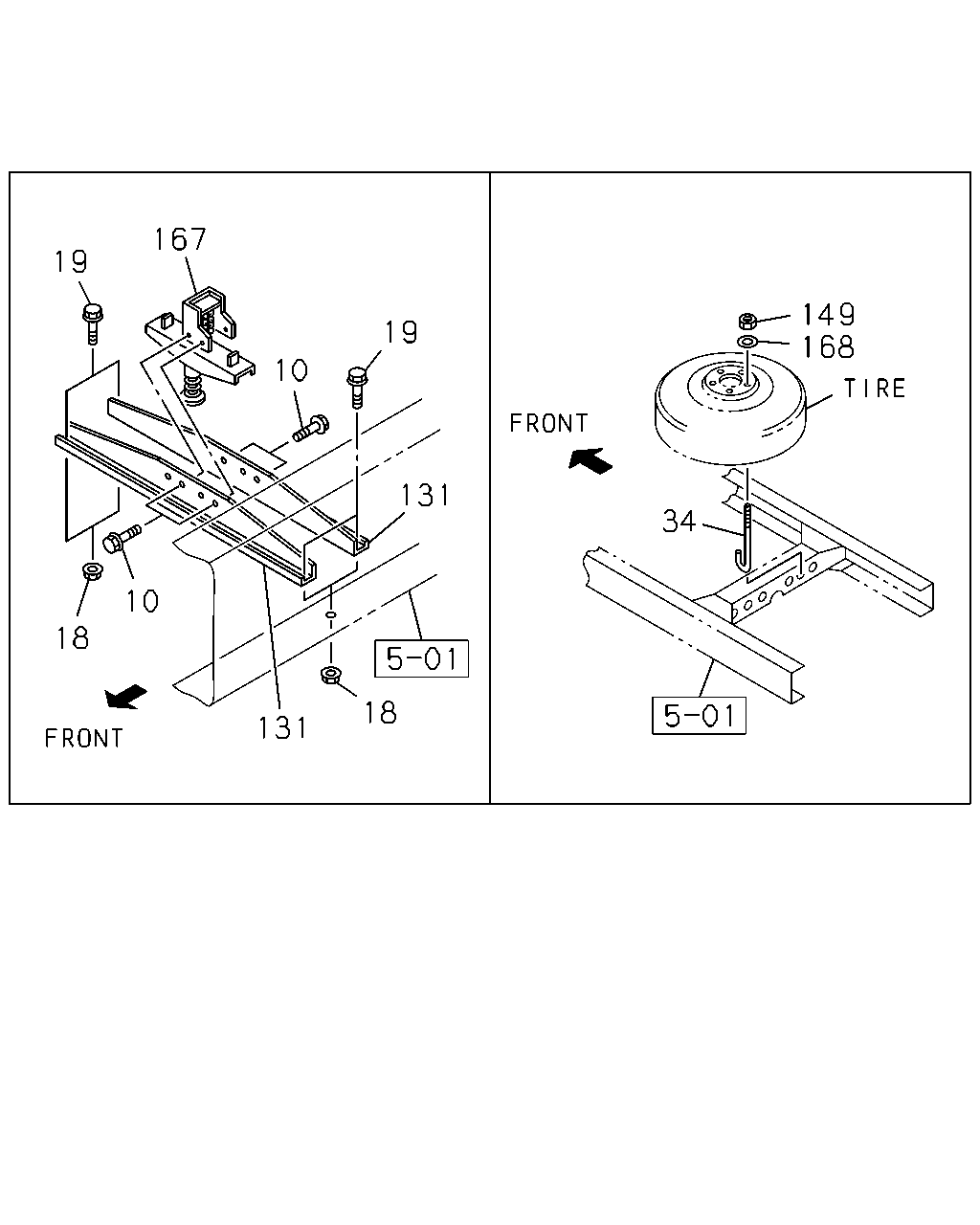

5-30 — SPARE TIRE CARRIER AND COVER
(#34089) — 18 parça
Tümü
A - NPS5SN
B - NPS5WN
167
19
149
168
19
10
131
34
10
18
18
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
BOLT; TIRE HANGER
M8X25 FLANGE SOU
0-28650-825-0
04
1
0804-1004
●
10
BOLT; TIRE HANGER
M8X25 FLANGE SOU
0-28650-825-0
04
1
1005-
●
●
18
NUT; MEMBER
M10 FLANGE SOU
0-91180-110-0
04
1
0804-1004
●
18
NUT; MEMBER
M10 FLANGE SOU
0-91180-110-0
04
1
1005-
●
●
19
BOLT; C/MBR
M10X30 FLANGE SOU
0-28651-030-0
04
1
0804-1004
●
19
BOLT; C/MBR
M10X30 FLANGE SOU
0-28651-030-0
04
1
1005-
●
●
34
BOLT; SPARE TIRE
M12X305 SOU
8-94441-189-0
02
1
0804-1004
●
34
BOLT; SPARE TIRE
M12X305 SOU
8-94441-189-0
02
1
1005-1209
●
●
34
BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1210-
●
●
131
CROSSMEMBER; SPARE TIRE
8-98035-827-1
02
1
0804-1004
●
131
CROSSMEMBER; SPARE TIRE
8-98035-827-1
02
1
1005-
●
●
149
NUT; CARRIER
M12 SOU
0-91110-512-0
02
1
0804-1004
●
149
NUT; CARRIER
M12 SOU
0-91110-512-0
02
1
1005-
●
●
167
HANGER; TIRE
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V)
8-98049-238-0
01
1
0804-0809
●
167
HANGER; TIRE
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
8-98049-238-0
01
1
0810-1004
●
167
HANGER; TIRE
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
8-98049-238-0
01
1
1005-
●
●
168
WASHER; SPARE TIRE
ID=12.5 OD=54 SOU
8-94466-483-0
02
1
0804-1004
●
168
WASHER; SPARE TIRE
ID=12.5 OD=54 SOU
8-94466-483-0
02
1
1005-
●
●
