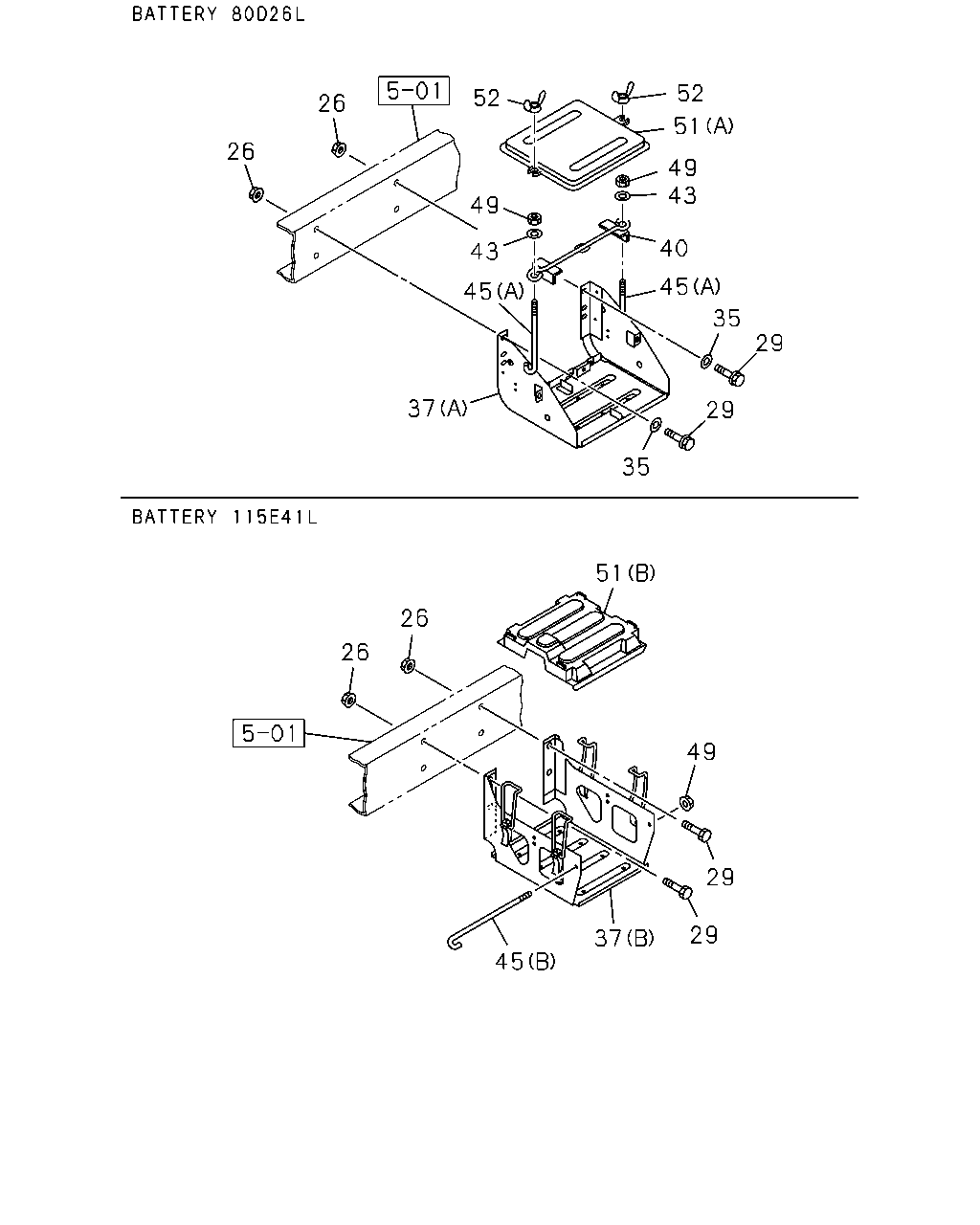

5-20 — BATTERY CARRIER (#34088) — 26 parça

52 52 26 51 26 49 43 49 40 43 45 45 35 29 37 29 35 51 26 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	0804-1004	●
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1005-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	0804-1004	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1005-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-1004	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1005-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0804-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1005-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0804-1004	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1005-	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	0804-1004	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1005-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1> ID=8.4 OD=22	0-91614-708-0	02	1	0804-1004	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1> ID=8.4 OD=22	0-91614-708-0	02	1	1005-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B)	8-97134-740-0	02	1	0804-1004	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B)	8-97134-740-0	02	1	1005-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) SOU	9-53616-615-0	02	1	0804-1004	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) SOU	9-53616-615-0	02	1	1005-	●	●
49	NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE SOU	0-91180-108-0	02	1	0804-1004	●
49	NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE SOU	0-91180-108-0	02	1	1005-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	0804-1004	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1005-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	0804-1004	●
51	COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1005-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	0804-1004	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1005-	●	●
