5-01 — FRAME AND OTHER PARTS (#34085) — 131 parça

140 196 217 139 198 198 74 201 344 130 74 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-583-0	02	1	0804-1004	●
74	GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-583-0	02	1	1005-	●	●
74	GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-584-0	02	1	0804-1004	●
74	GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-584-0	02	1	1005-	●	●
130	MEMBER; CROSS,END SOU	8-97080-872-0	01	1	0804-1004	●
130	MEMBER; CROSS,END SOU	8-97080-872-0	01	1	1005-	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0804-1004	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	1005-	●	●
140	BRACKET; S/ABS,RR	8-97080-884-0	02	1	0804-1004	●
140	BRACKET; S/ABS,RR	8-97080-884-1	02	1	1005-	●	●
196	BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0804-1004	●
196	BRACKET; STAB TO FRAME	8-98033-523-0	02	1	1005-	●	●
198	GUSSET; 6TH C/MBR SOU	8-98092-777-0	01	1	0804-1004	●
198	GUSSET; 6TH C/MBR SOU	8-98092-777-1	01	1	1005-	●	●
198	GUSSET; 6TH C/MBR SOU	8-98092-778-0	01	1	0804-1004	●
198	GUSSET; 6TH C/MBR SOU	8-98092-778-1	01	1	1005-	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0804-1004	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	1005-	●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0804-1004	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	1005-	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	0804-1004	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	1005-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 118 67 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	18	1	0804-1004	●
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	18	1	1005-	●	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	0804-1004	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	1005-	●	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE	0-28051-030-0	04	1	0804-1004	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE	0-28051-030-0	04	1	1005-	●	●
176	BOLT; C/MBR,ENG MTG (A) M10X25 FLANGE SOU	0-28651-025-0	02	1	0804-1004	●
176	BOLT; C/MBR,ENG MTG (A) M10X25 FLANGE SOU	0-28651-025-0	02	1	1005-	●	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-1004	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1005-	●	●
221	BOLT; RAD MTG BRKT,FRAME M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
221	BOLT; RAD MTG BRKT,FRAME M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
222	NUT; RAD MTG BRKT,FRAME M8 FLANGE SOU	0-91180-208-0	02	1	0804-1004	●
222	NUT; RAD MTG BRKT,FRAME M8 FLANGE SOU	0-91180-208-0	02	1	1005-	●	●
296	BOLT; 3RD C/MBR M10X30 FLANGE SOU	0-28651-030-0	16	1	0804-1004	●
296	BOLT; 3RD C/MBR M10X30 FLANGE SOU	0-28651-030-0	16	1	1005-	●	●
376	RIVET; FRAME (A) D8X24 TAPER END	9-06750-824-0	AR	1	0804-1004	●
376	RIVET; FRAME (A) D8X24 TAPER END	9-06750-824-0	AR	1	1005-	●	●
376	RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	0804-1004	●
376	RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	1005-	●	●
376	RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0804-1004	●
376	RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	1005-	●	●
376	RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0804-1004	●
376	RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	1005-	●	●
376	RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0804-1004	●
376	RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	1005-	●	●
376	RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	0804-1004	●
376	RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	1005-	●	●
376	RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	0804-1004	●
376	RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	1005-	●	●
376	RIVET; FRAME (H) D10X36 TAPER END	9-06751-036-0	AR	1	0804-1004	●
376	RIVET; FRAME (H) D10X36 TAPER END	9-06751-036-0	AR	1	1005-	●	●
376	RIVET; FRAME (I) D11X26 TAPER END	9-06751-126-0	AR	1	0804-1004	●
376	RIVET; FRAME (I) D11X26 TAPER END	9-06751-126-0	AR	1	1005-	●	●
376	RIVET; FRAME (J) D11X30 TAPER END	9-06751-130-0	AR	1	0804-1004	●
376	RIVET; FRAME (J) D11X30 TAPER END	9-06751-130-0	AR	1	1005-	●	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	0804-1004	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	1005-	●	●
376	RIVET; FRAME (L) D12X36 TAPER END	9-06751-236-0	AR	1	0804-1004	●
376	RIVET; FRAME (L) D12X36 TAPER END	9-06751-236-0	AR	1	1005-	●	●
376	RIVET; FRAME (M) D12X40 TAPER END	9-06751-240-0	AR	1	0804-1004	●
376	RIVET; FRAME (M) D12X40 TAPER END	9-06751-240-0	AR	1	1005-	●	●

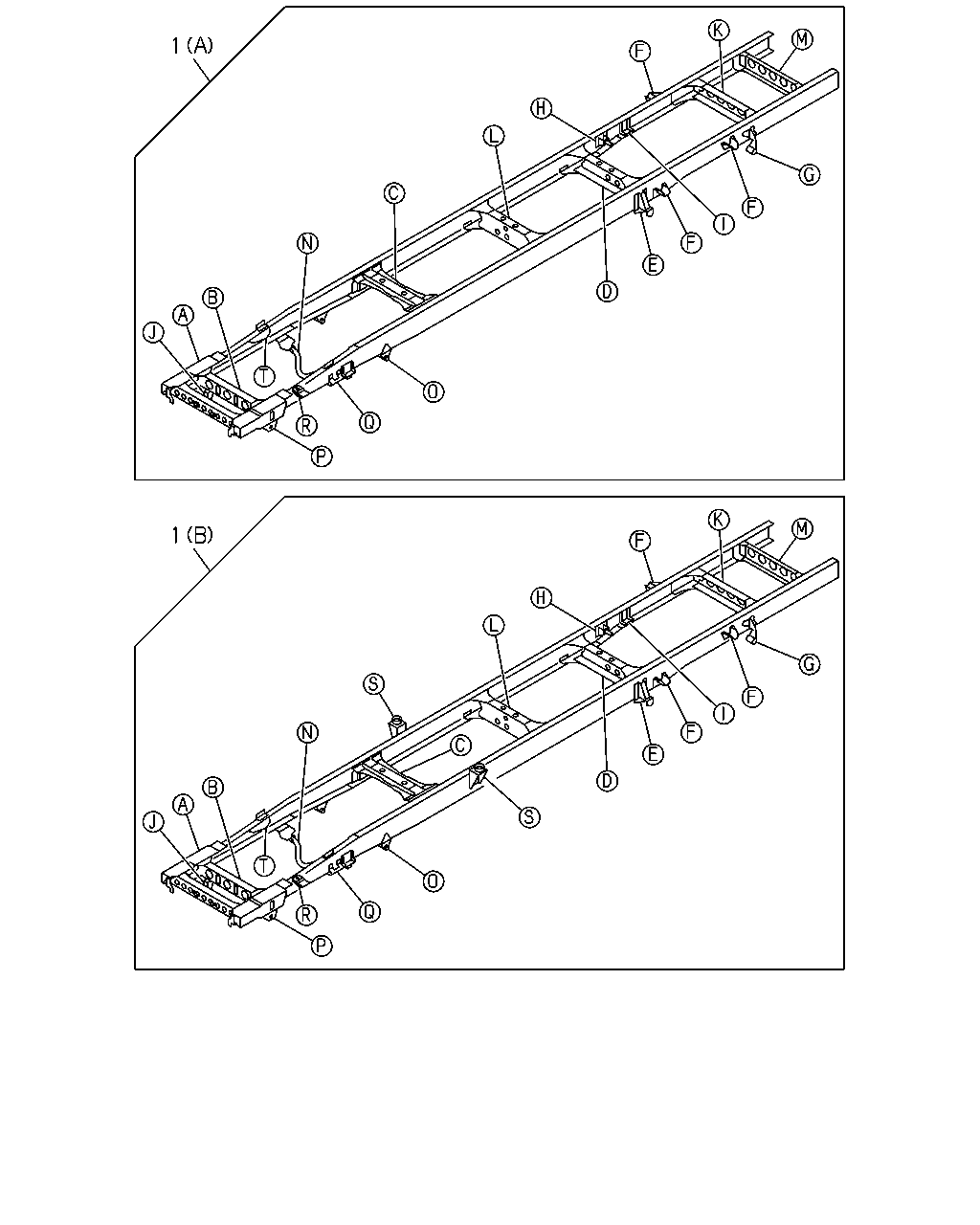

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-751-4	01	1	1005-		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98162-924-2	01	1	1005-		●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-749-4	01	1	0804-	●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98071-748-4	01	1	0804-	●

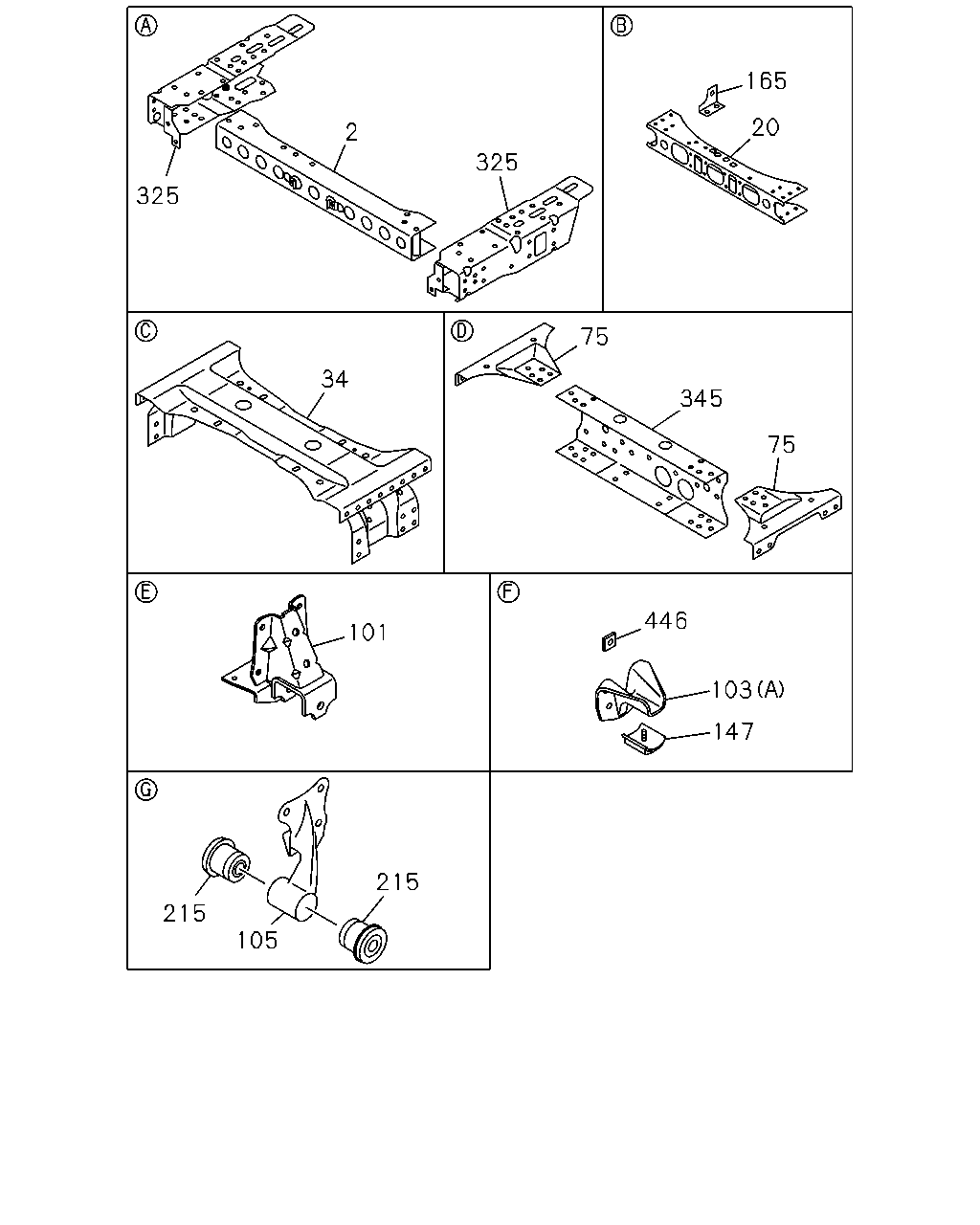

165 20 2 325 325 75 34 345 75 446 101 103 147 215 215 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97387-866-4	01	1	0804-1004	●
2	MEMBER; CROSS,1ST	8-97387-866-5	01	1	1005-	●	●
20	MEMBER; CROSS,2ND	8-98014-074-4	01	1	0804-1004	●
20	MEMBER; CROSS,2ND	8-98014-074-7	01	1	1005-	●	●
34	MEMBER; CROSS,3RD SOU	8-98074-639-3	01	1	0804-1004	●
34	MEMBER; CROSS,3RD SOU	8-98074-639-4	01	1	1005-	●	●
75	GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-583-0	02	1	0804-1004	●
75	GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-583-0	02	1	1005-	●	●
75	GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-584-0	02	1	0804-1004	●
75	GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-584-0	02	1	1005-	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0804-1004	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1005-1505	●	●
101	BRACKET; RR SPR,FRT	8-98243-605-0	02	1	1506-	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0804-1004	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	1005-	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0804-1004	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	1005-	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-488-0	01	1	0804-1004	●
105	BRACKET; RR SPR,RR SOU	8-98032-488-0	01	1	1005-	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-489-0	01	1	0804-1004	●
105	BRACKET; RR SPR,RR SOU	8-98032-489-0	01	1	1005-	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0804-1004	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	1005-	●	●
165	BRACKET; RAD STAY SOU	8-98000-886-0	01	1	0804-1004	●
165	BRACKET; RAD STAY SOU	8-98000-886-0	01	1	1005-	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0804-1004	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	1005-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-348-1	01	1	0804-1004	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-348-1	01	1	1005-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-349-0	01	1	0804-1004	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-349-0	01	1	1005-	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-344-1	01	1	0804-1004	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-344-1	01	1	1005-	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-345-0	01	1	0804-1004	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-345-0	01	1	1005-	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	0804-1004	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	1005-	●	●
446	STIFFENER; SPRING STOPPER	8-97122-173-0	02	1	0804-1004	●
446	STIFFENER; SPRING STOPPER	8-97122-173-0	02	1	1005-	●	●

51 42 51 31 31 39 103 43 24 63 141 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT	8-98059-775-0	02	1	0804-1004	●
24	BRACKET; FRT SPR,FRT	8-98059-775-0	02	1	1005-	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0804-1004	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	1005-	●	●
39	BRACKET; FRT SPR,RR	8-98070-113-0	01	1	0804-1004	●
39	BRACKET; FRT SPR,RR	8-98070-113-0	01	1	1005-	●	●
39	BRACKET; FRT SPR,RR	8-98070-114-0	01	1	0804-1004	●
39	BRACKET; FRT SPR,RR	8-98070-114-0	01	1	1005-	●	●
42	MEMBER; CROSS,ENG MTG	8-98067-960-0	01	1	0804-1004	●
42	MEMBER; CROSS,ENG MTG	8-98067-960-0	01	1	1005-	●	●
43	BRACKET; CAB MTG,RR	8-98061-560-1	01	1	1005-		●
43	BRACKET; CAB MTG,RR	8-98061-561-1	01	1	1005-		●
51	BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	01	1	0804-1004	●
51	BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	01	1	1005-	●	●
63	BRACKET; RAD MTG	8-97115-668-0	01	1	0804-1004	●
63	BRACKET; RAD MTG	8-97115-668-0	01	1	1005-	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0804-1004	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	1005-	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0804-1004	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	1005-	●	●
141	STIFFENER	8-98064-354-0	01	1	0804-1004	●
141	STIFFENER	8-98064-354-2	01	1	1005-	●	●
141	STIFFENER	8-98064-355-0	01	1	0804-1004	●
141	STIFFENER	8-98064-355-2	01	1	1005-	●	●
