Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

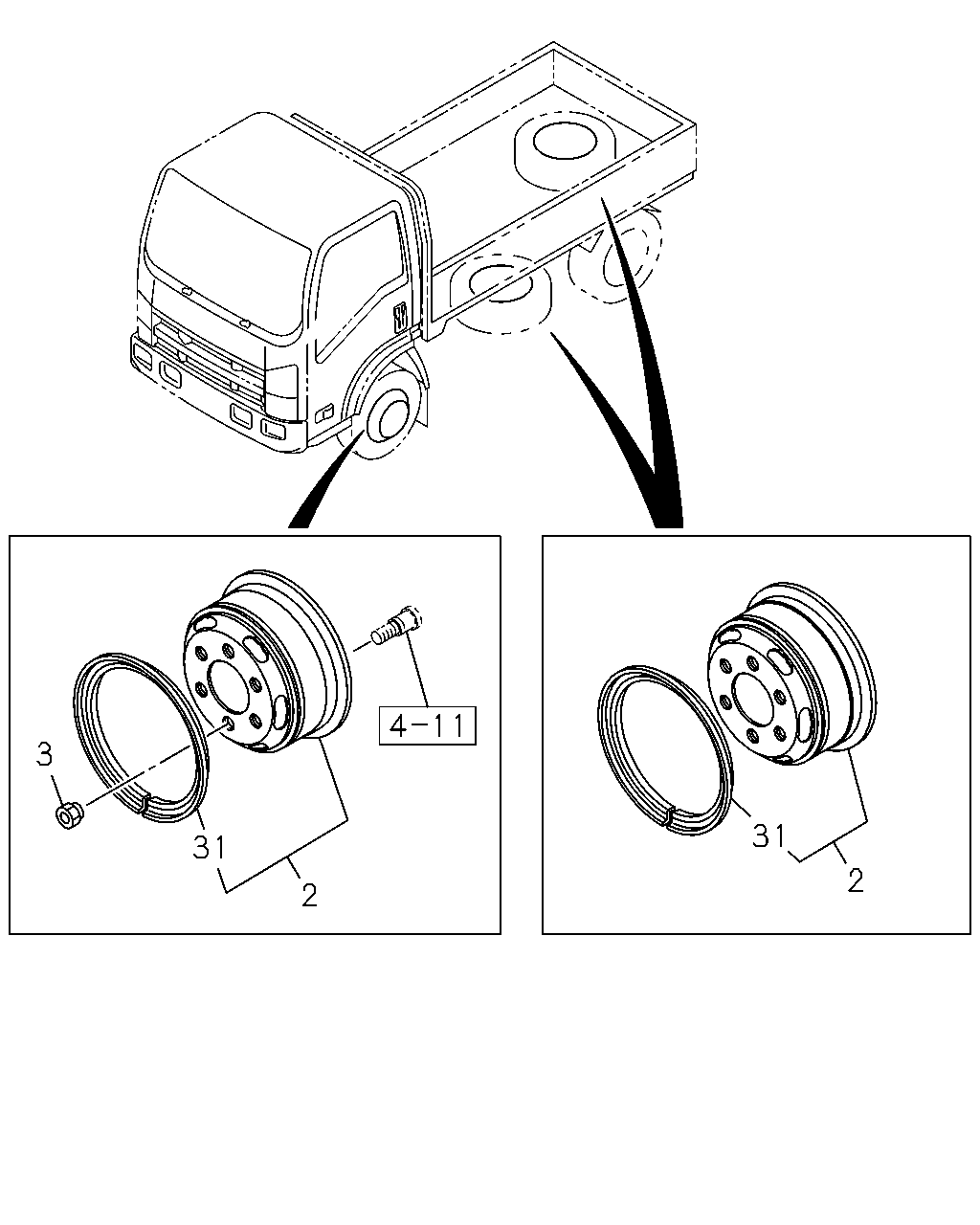

4-80 — ROAD WHEEL (#34084) — 42 parça

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0804-0809	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0810-1004	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	1005-	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0804-0809	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0810-1004	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	1005-	●	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M20 LH THREAD	8-97359-808-0	06	1	0804-0809	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 LH THREAD	8-97359-808-0	06	1	0810-1004	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 LH THREAD	8-97359-808-0	06	1	1005-	●	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M20 RH THREAD	8-97359-807-0	06	1	0804-0809	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 RH THREAD	8-97359-807-0	06	1	0810-1004	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 RH THREAD	8-97359-807-0	06	1	1005-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0804-0809	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0810-1004	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	1005-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0804-0809	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0810-1004	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	1005-	●	●

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0804-0809	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0810-1004	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	1005-	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0804-0809	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0810-1004	●
2	WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	1005-	●	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M30 LH THREAD SOU	8-97359-810-0	06	1	0804-0809	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 LH THREAD SOU	8-97359-810-0	06	1	0810-1004	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 LH THREAD SOU	8-97359-810-0	06	1	1005-	●	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M30 RH THREAD SOU	8-97359-809-0	06	1	0804-0809	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 RH THREAD SOU	8-97359-809-0	06	1	0810-1004	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 RH THREAD SOU	8-97359-809-0	06	1	1005-	●	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	0804-0809	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	0810-1004	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	1005-	●	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	0804-0809	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	0810-1004	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	1005-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0804-0809	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0810-1004	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	1005-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0804-0809	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0810-1004	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	1005-	●	●
