◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#34069) — 46 parça

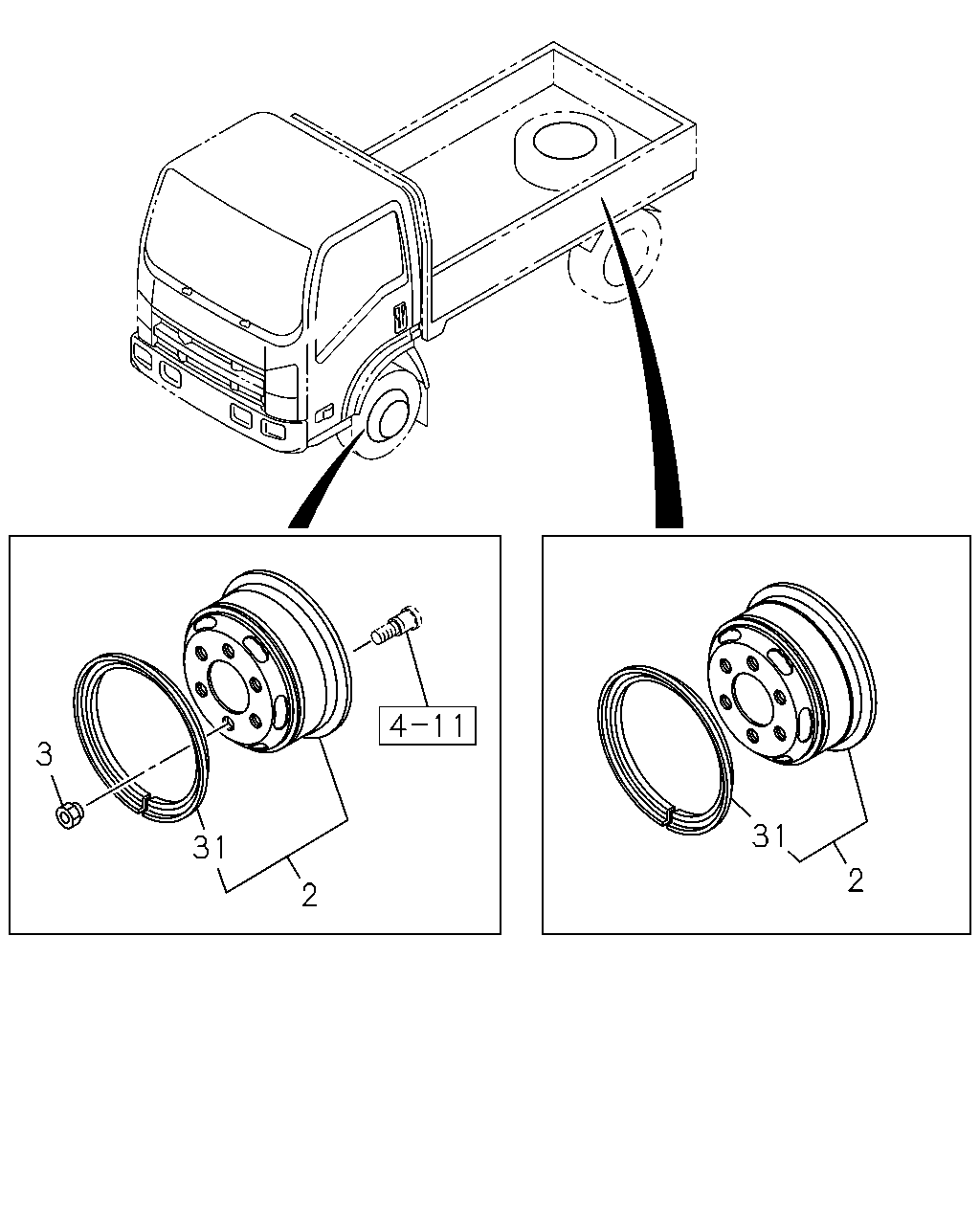

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0901-0902
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0903-1003
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1004-1004
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1005-1208
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1209-
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0901-0902
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0903-1003
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1004-1004
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1005-1208
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1209-
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0901-
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0901-
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1209-
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1209-

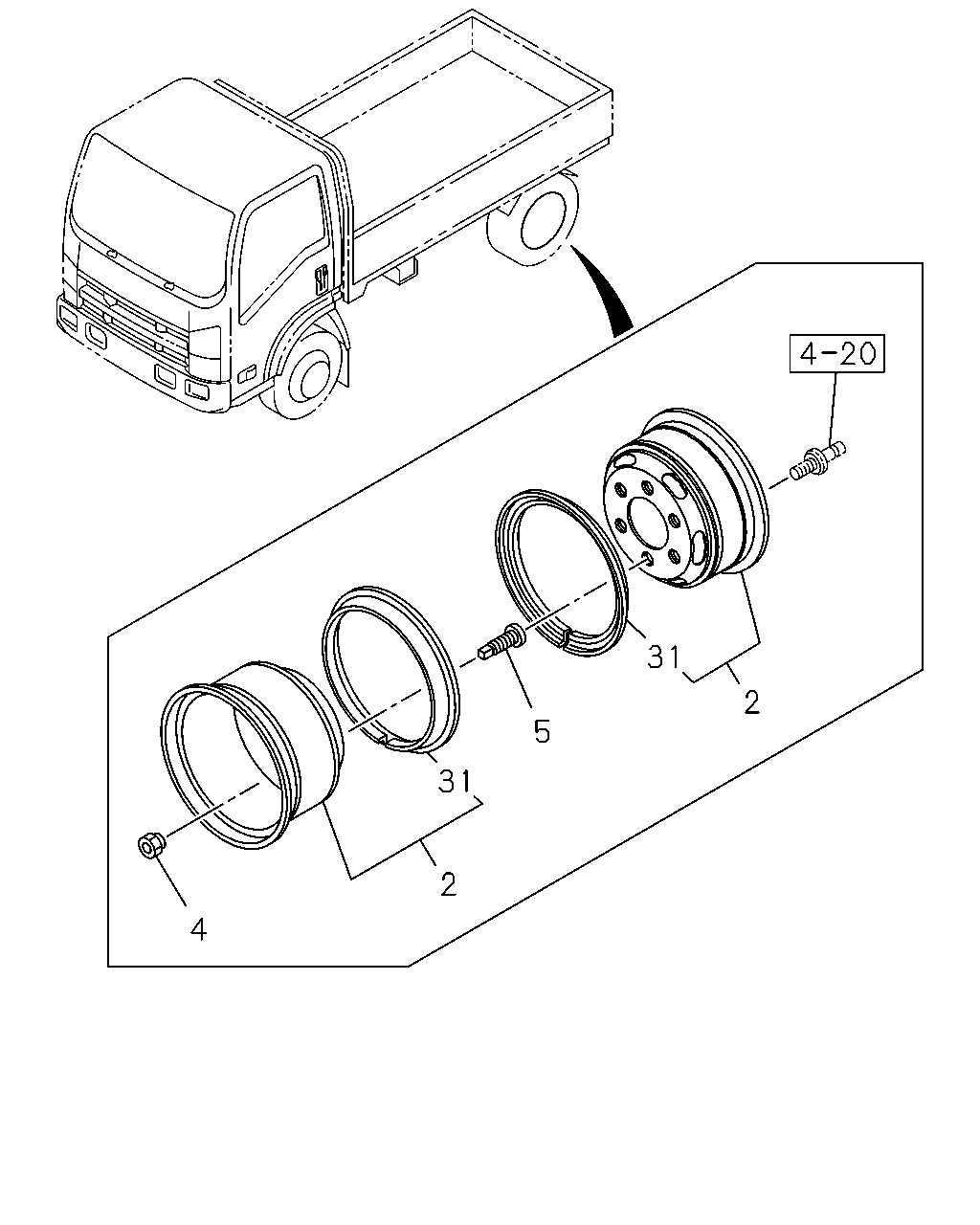

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0901-0902
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0903-1003
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1004-1004
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1005-1208
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	1209-
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0901-0902
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0903-1003
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1004-1004
2	WHEEL; DISC FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1005-1208
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	1209-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	06	1	0901-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	06	1	0901-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	06	1	0901-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	06	1	0901-
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	1209-
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	1209-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
