4-42 — POWER STEERING OIL PUMP (#34063) — 17 parça

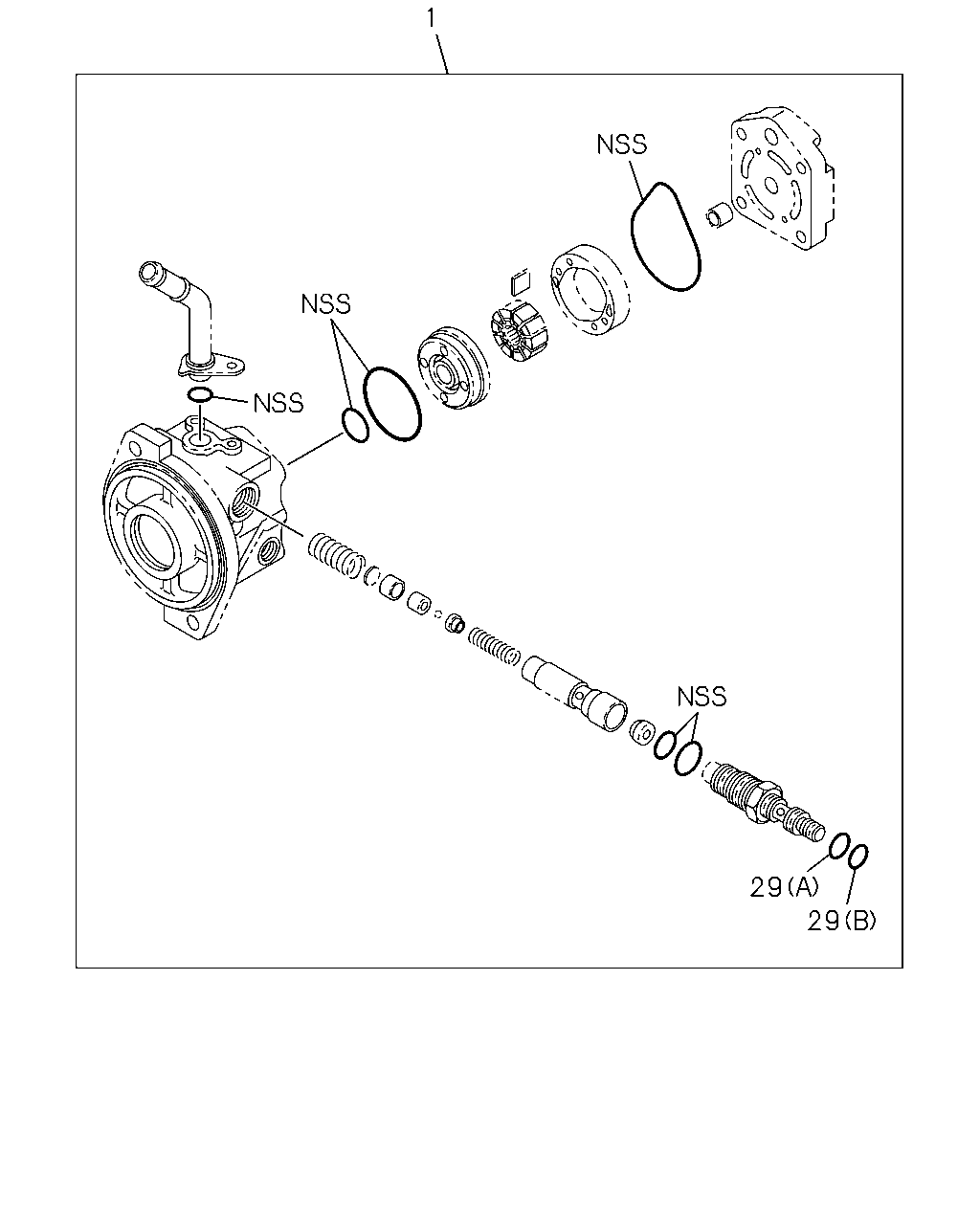

1 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-98058-096-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97075-581-0	01	1	-

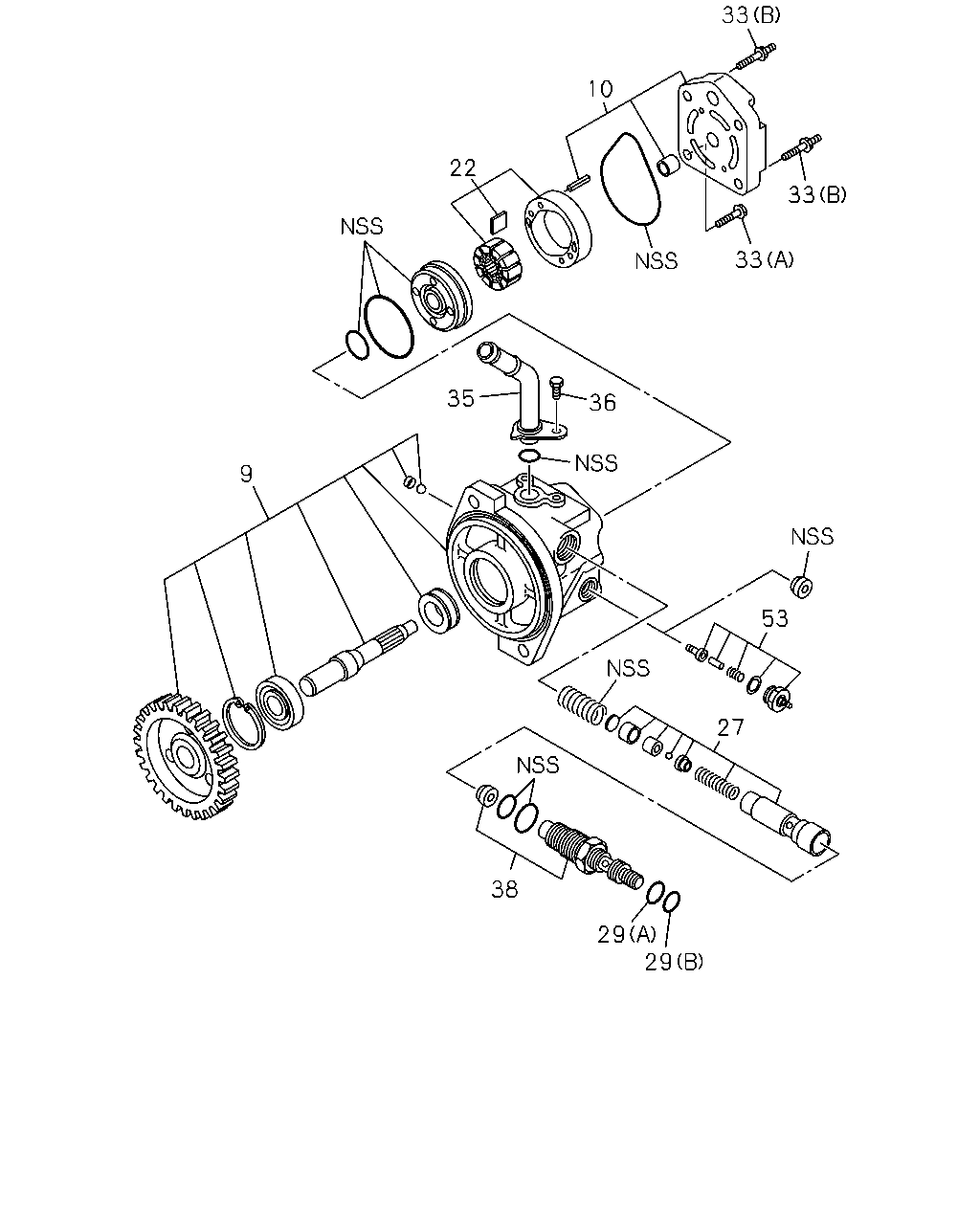

33 10 22 33 33 35 36 9 53 27 38 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98165-116-2	8-98058-097-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98052-674-3	8-98065-056-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-98116-059-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98052-674-3	8-98058-088-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98165-116-2	8-98216-517-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-98058-091-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97075-581-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97184-761-0	02	1	-
33	BOLT; COVER (B) ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97184-762-0	02	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-98078-235-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97184-763-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-98052-674-3, B = 8-98165-116-2	8-97093-504-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: A = 8-98052-674-3	8-98065-061-0	01	1	-
