◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#3406) — 192 parça

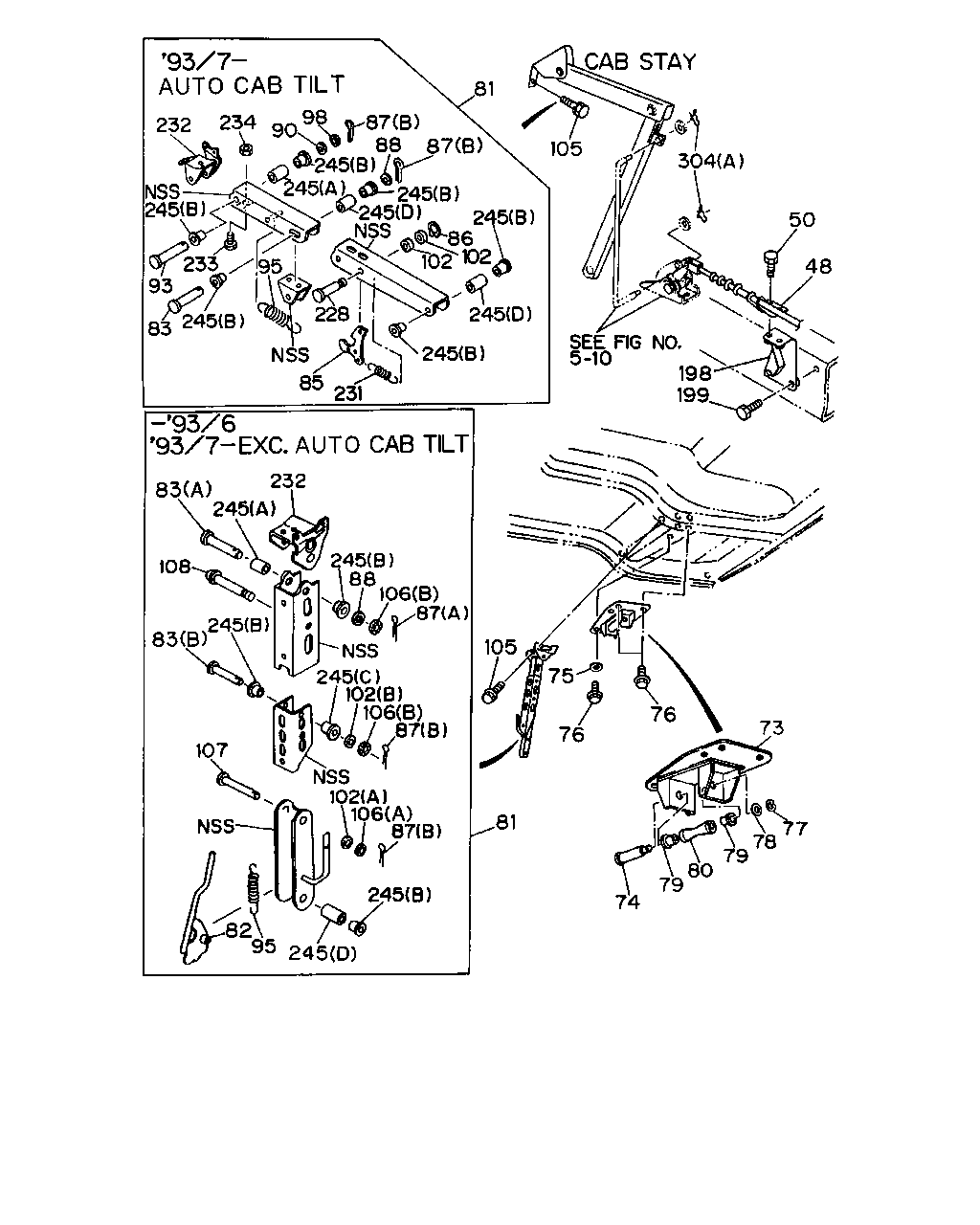

çizim 4363
232 234 98 90 87 245 87 88 245 245 245 245 245 93 233 95 83 245 228 85 231 245 245 102 102 86 232 83 108 245 83 245 245 88 106 87 245 102 106 87 107 102 106 87 245 245 95 82 81 74 79 80 79 78 77 73 76 76 75 199 198 48 50 304 105 81 105
BalonParca AdiParca NoAdetTipApplied Date A B C
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53458-436-4 01 1 9307- ● ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9307- ● ● ●
73 PAD; TORSION BAR 1-53459-645-0 02 1 9002-9306 ● ● ●
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9307- ● ● ●
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9307- ● ● ●
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002- ● ● ●
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002- ● ● ●
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9002- ● ● ●
77 RING; SNAP 1-09588-032-0 02 1 9002- ● ● ●
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002- ● ● ●
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002- ● ● ●
80 ROLLER 1-53459-357-2 02 1 9002- ● ● ●
81 STAY ASM; CAB TILT 1-65570-214-1 01 1 9002-9306 ● ● ●
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9307- ● ● ●
81 STAY ASM; CAB TILT
AUTO CAB TILT<WV2> 		1-62500-656-2 01 1 9307- ● ● ●
82 LEVER; CAB STAY LK 1-62500-416-0 01 1 9002-9306 ● ● ●
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9307- ● ● ●
83 PIN; JOINT,CAB STAY
(A) OD=14 L=62 		9-08234-462-0 01 1 9002-9306 ● ● ●
83 PIN; JOINT,CAB STAY
(B) OD=14 L=66 		9-08234-466-0 01 1 9002-9306 ● ● ●
83 PIN; JOINT,CAB STAY
AUTO CAB TILT<WV2> 		1-09744-116-0 01 1 9307- ● ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9307- ● ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9307- ● ● ●
85 LEVER; LOCK,CAB STAY
AUTO CAB TILT<WV2> 		1-61100-003-1 01 1 9307- ● ● ●
86 RING; SNAP,LOCK LEVER,CAB STAY
AUTO CAB TILT<WV2> ID=6 		9-09185-406-0 01 1 9307- ● ● ●
87 PIN; SPLIT,CAB STAY PIN
(B) L=30 L=30 		1-09987-080-0 02 1 9002- ● ● ●
87 PIN; SPLIT,CAB STAY PIN
(A) OD=2.8 L=18 		9-08113-018-0 01 1 9002-9306 ● ● ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 9307- ● ● ●
88 WASHER; PL,CAB STAY PIN
ID=15 		9-09160-514-0 01 1 9002- ● ● ●
90 WASHER; PL,CAB STAY
AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9307- ● ● ●
93 PIN; CAB STAY
AUTO CAB TILT<WV2> OD=14 L=66 		9-08234-466-0 01 1 9307- ● ● ●
95 SPRING; RETURN,CAB STAY 1-09585-064-1 01 1 9002-9306 ● ● ●
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9307- ● ● ●
95 SPRING; RETURN,CAB STAY
AUTO CAB TILT<WV2> 		1-62500-655-0 01 1 9307- ● ● ●
98 WASHER; CAB STAY
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9307- ● ● ●
102 WASHER; PL,CAB STAY
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9306 ● ● ●
102 WASHER; PL,CAB STAY
(B) ID=15 		9-09160-514-0 01 1 9002-9306 ● ● ●
102 WASHER; PL,CAB STAY
AUTO CAB TILT<WV2> 		1-09503-174-1 02 1 9307- ● ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9307- ● ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9307- ● ● ●
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002- ● ● ●
106 WASHER; WAVE,CAB STAY
(A) ID=11.3 		5-09550-001-0 01 1 9002-9306 ● ● ●
106 WASHER; WAVE,CAB STAY
(B) ID=15 OD=25 		8-11053-111-0 02 1 9002-9306 ● ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=11.3 		5-09550-001-0 01 1 9307- ● ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 OD=25 		8-11053-111-0 02 1 9307- ● ● ●
107 PIN; LK LEVER 9-08234-033-0 01 1 9002-9306 ● ● ●
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9307- ● ● ●
108 PIN; ADJ,CAB STAY 1-62500-518-0 01 1 9002-9306 ● ● ●
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9307- ● ● ●
198 BRACKET; CABLE
AUTO CAB TILT<WV2> 		1-53459-924-3 01 1 9307- ● ● ●
199 BOLT; BRKT
AUTO CAB TILT<WV2> M10X40 W/LK WASHER 		0-50041-040-0 02 1 9307- ● ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY
AUTO CAB TILT<WV2> 		1-62500-563-0 01 1 9307- ● ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY
AUTO CAB TILT<WV2> 		1-09583-229-0 01 1 9307- ● ● ●
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002-9306 ● ● ●
232 BRACKET; SUPPORT,CAB TILT STAY
EXC. AUTO CAB TILT<WV2> 		1-65570-215-1 01 1 9307- ● ● ●
232 BRACKET; SUPPORT,CAB TILT STAY
AUTO CAB TILT<WV2> 		1-65500-228-2 01 1 9307- ● ● ●
233 BOLT; LIMIT SW ADJ,CAB STAY
AUTO CAB TILT<WV2> 		1-09000-330-0 01 1 9307- ● ● ●
234 NUT; LIMIT SW ADJ BOLT,CAB STAY
AUTO CAB TILT<WV2> M8 		9-09111-408-0 01 1 9307- ● ● ●
245 BUSHING; CAB STAY
(A) L=41.0 		1-53459-626-0 01 1 9002- ● ● ●
245 BUSHING; CAB STAY
(C) L=31.5 		1-53459-627-0 01 1 9002-9306 ● ● ●
245 BUSHING; CAB STAY
(D) L=27.5 		1-53459-628-0 01 1 9002-9306 ● ● ●
245 BUSHING; CAB STAY
(B) L=12.0 		1-53459-971-0 06 1 9002- ● ● ●
245 BUSHING; CAB STAY
AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 02 1 9307- ● ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=31.5 		1-53459-627-0 01 1 9307- ● ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 01 1 9307- ● ● ●
304 PIN; SNAP
AUTO CAB TILT<WV2> (A) L=17.9 		1-09747-015-0 02 1 9307- ● ● ●
304 PIN; SNAP
AUTO CAB TILT<WV2> (B) 		1-09987-141-0 01 1 9307- ● ● ●

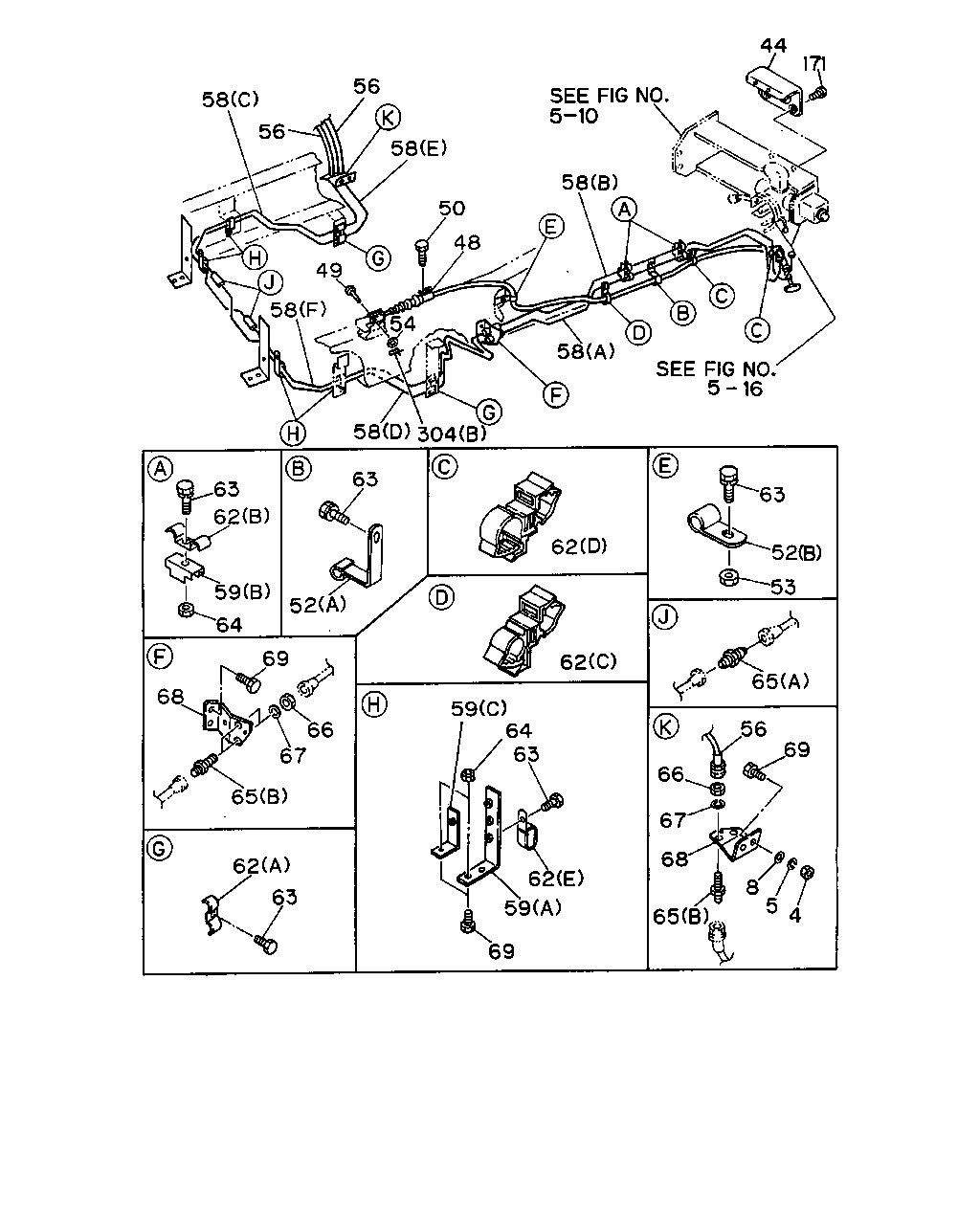

çizim 4365
58 56 56 58 49 50 48 58 54 58 304 58 58 44 171 63 52 53 65 69 66 56 67 68 65 8 5 4 69 59 62 63 62 64 62 59 63 52 69 66 67 65 62 63 68 64 62 59 63
BalonParca AdiParca NoAdetTipApplied Date A B C
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307- ● ● ●
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9307- ● ● ●
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9307- ● ● ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53458-232-1 01 1 9307- ● ● ●
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53458-436-4 01 1 9307- ● ● ●
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-823-0 01 1 9307- ● ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9307- ● ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=10 		1-09700-725-0 01 1 9307- ● ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) ID=9 		9-09524-845-0 01 1 9307- ● ● ●
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307- ● ● ●
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9307- ● ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> UP L=500 		1-09364-530-2 01 1 9307- ● ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> DOWN L=400 		1-09364-835-1 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1634 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1639 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (D) L=1801 SERVICED BY L=2000 		1-49111-450-0 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (E) L=1819 SERVICED BY L=2000 		1-49111-450-0 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (C) L=1644 SERVICED BY L=1650 		1-49111-464-0 01 1 9307- ● ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (F) L=1702 SERVICED BY L=1800 		1-49111-465-0 01 1 9307- ● ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 02 1 9307- ● ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) 		1-47476-718-1 02 1 9307-9309 ● ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (C) 		1-47475-455-0 02 1 9310- ● ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) 		1-09700-651-0 04 1 9307- ● ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=9 & 9 L=15 & 15 		1-09700-654-0 01 1 9307- ● ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-1 02 1 9307- ● ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (D) ID=6-10 & 10-14 		1-09709-201-1 01 1 9307- ● ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (E) ID=9X2 L=20 		9-09534-835-0 04 1 9307- ● ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 07 1 9307- ● ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X50 FLANGE 		0-28080-850-0 03 1 9307- ● ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X16 FLANGE 		0-28080-816-0 01 1 9307- ● ●
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307- ● ● ●
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> (A) M14 STRAIGHT 		9-09223-008-1 02 1 9307- ● ● ●
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> (B) M14 		9-09223-308-1 04 1 9307- ● ● ●
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9307- ● ● ●
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9307- ● ● ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 02 1 9307- ● ● ●
69 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 		0-20800-820-0 02 1 9307- ● ● ●
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9307- ● ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ● ●
304 PIN; SNAP
AUTO CAB TILT<WV2> (A) L=17.9 		1-09747-015-0 02 1 9307- ● ● ●
304 PIN; SNAP
AUTO CAB TILT<WV2> (B) 		1-09987-141-0 01 1 9307- ● ● ●

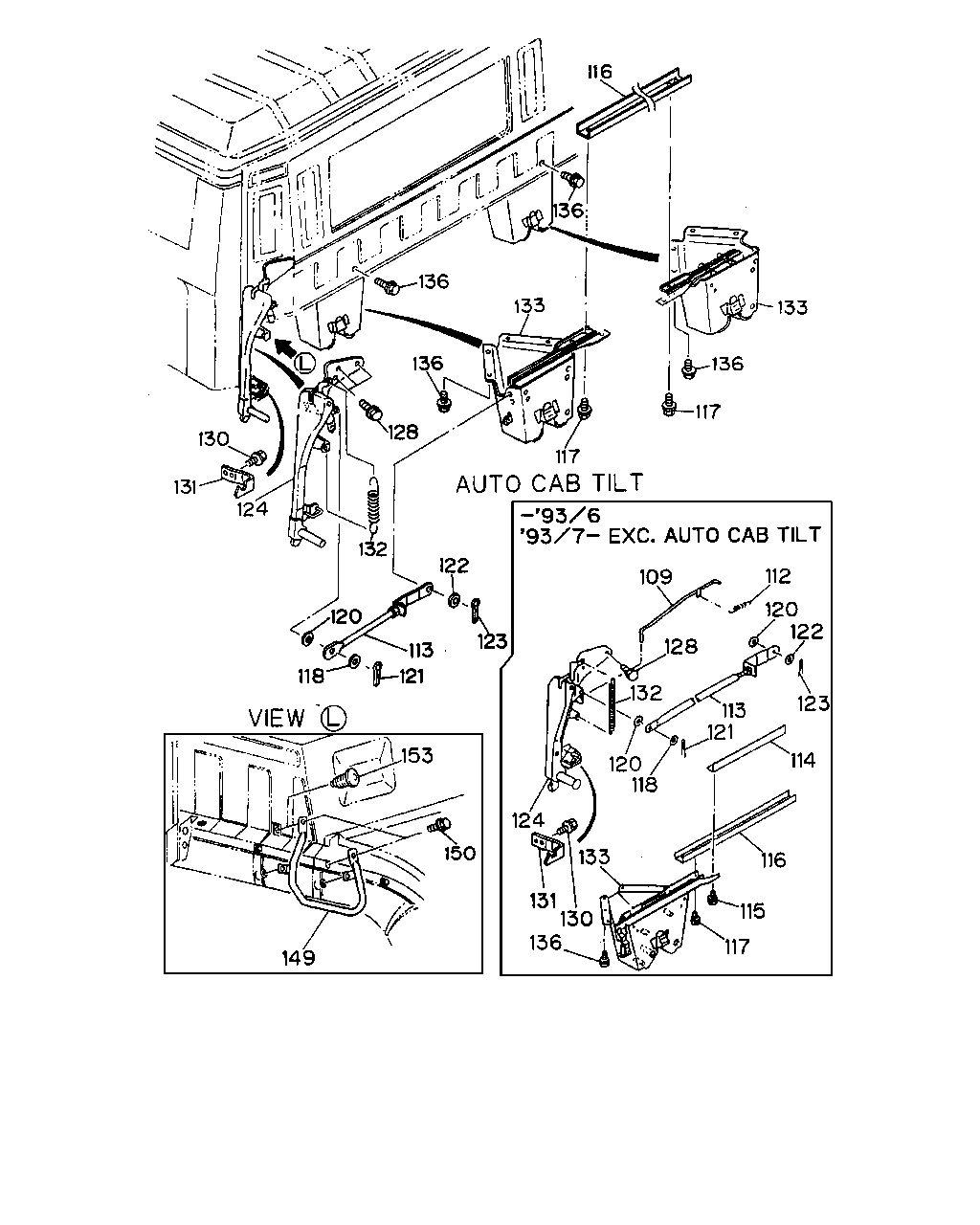

çizim 4930
116 136 133 136 136 133 136 117 117 128 130 131 132 124 122 123 120 113 121 118 153 150 149 136 130 133 131 124 117 115 116 114 118 121 120 132 113 123 122 128 120 109 112
BalonParca AdiParca NoAdetTipApplied Date A B C
109 ROD; SAFETY,CAB LK 1-79717-446-3 01 1 9002-9306 ● ● ●
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9307- ● ● ●
112 SPRING; RETURN,SAFETY ROD 1-79717-417-0 01 1 9002-9306 ● ● ●
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9307- ● ● ●
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002- ● ● ●
114 ARM ASM; CONN,SAFETY 1-79717-469-1 01 1 9002-9306 ● ● ●
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9307- ● ● ●
115 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002-9306 ● ● ●
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9307- ● ● ●
116 ARM ASM; CONN 1-79717-435-1 01 1 9002- ● ● ●
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ● ●
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002- ● ● ●
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ● ●
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002- ● ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002- ● ● ●
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002- ● ● ●
124 LEVER ASM; HAND,CAB LK 1-79717-494-9 01 1 9002-9306 ● ● ●
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-494-9 01 1 9307- ● ● ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> 		1-79717-595-2 01 1 9307- ● ● ●
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ● ●
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002- ● ● ●
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002- ● ● ●
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002- ● ● ●
133 LOCK ASM; CAB 1-79717-506-6 01 1 9002-9306 ●
133 LOCK ASM; CAB
EXC. CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB 1-79717-505-6 01 1 9002-9306 ●
133 LOCK ASM; CAB
EXC. CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-614-1 01 1 9307- ● ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-613-1 01 1 9307- ● ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2>,CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9307- ● ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2>,CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9307- ● ● ●
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-532-0 01 1 9002- ● ●
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-531-0 01 1 9002- ● ●
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002- ● ● ●
149 HANDLE; TILT 1-71997-490-1 01 1 9002-9306 ● ● ●
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2> 		1-71997-490-1 01 1 9307- ● ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9002-9306 ● ● ●
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9307- ● ● ●
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9307- ● ● ●
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9307- ● ● ●

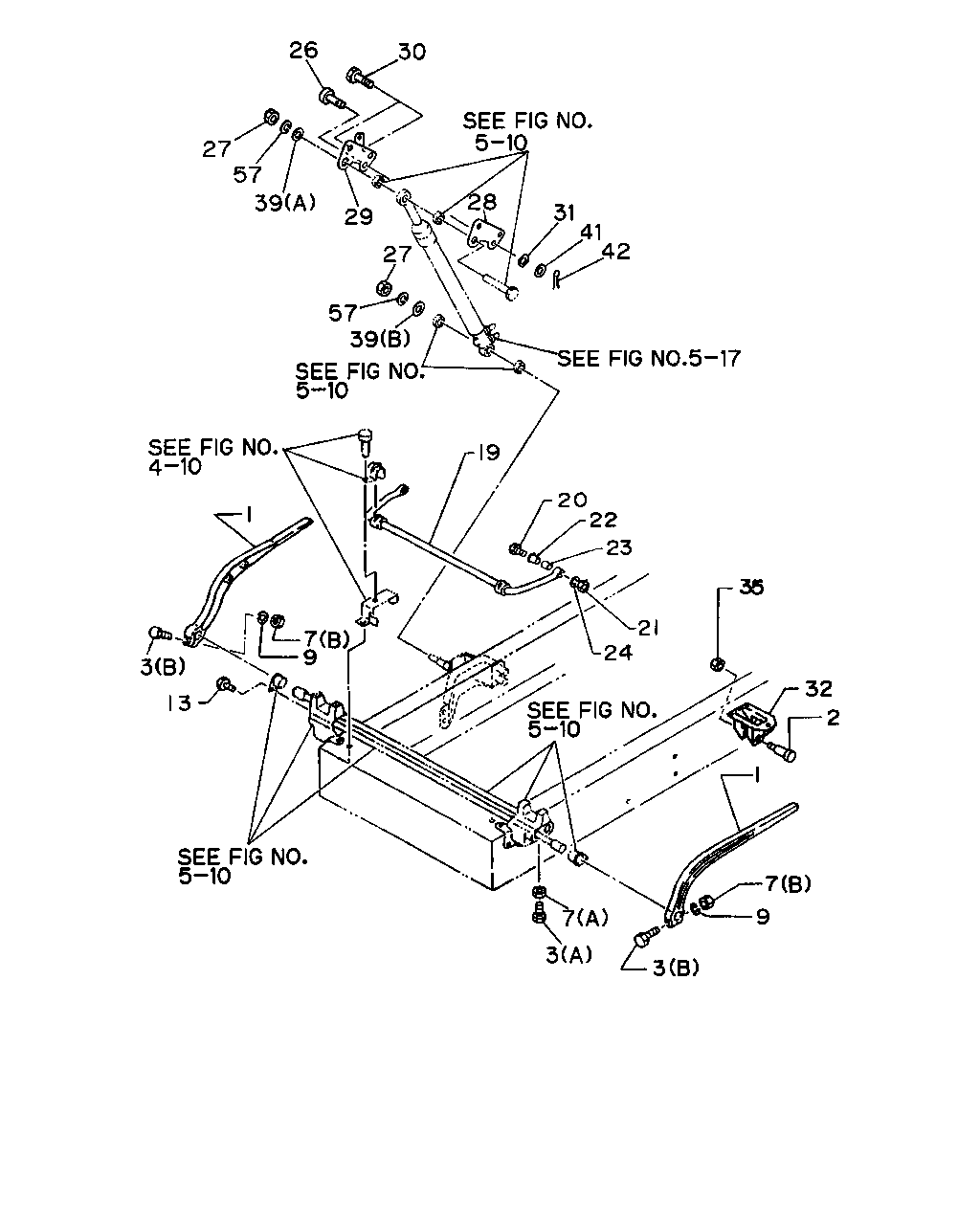

çizim 36180
26 30 27 39 57 29 28 31 41 42 27 57 19 39 20 22 23 21 24 35 32 2 7 9 3 3 7 9 13 3 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER; TORSION BAR 1-53459-342-4 01 1 9002- ●
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-342-4 01 1 9002- ● ●
1 LEVER; TORSION BAR 1-53459-341-4 01 1 9002- ●
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-341-4 01 1 9002- ● ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID(W71) 		1-53459-572-2 01 1 9002- ● ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID(W71) 		1-53459-571-2 01 1 9002- ● ●
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9307- ● ● ●
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 9002- ● ● ●
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 9002- ● ● ●
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 9002- ● ● ●
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 9002- ● ● ●
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002- ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005 ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006- ● ● ●
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 9002-9404 ●
19 BAR; STAB,CAB SUSP
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-788-1 01 1 9002-9404 ● ●
19 BAR; STAB,CAB SUSP
EXC. TAIWAN EQUIPMENT(WW5) 		1-53459-788-1 01 1 9405- ●
19 BAR; STAB,CAB SUSP
EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71) 		1-53459-788-1 01 1 9405- ● ●
19 BAR; STAB,CAB SUSP
TAIWAN EQUIPMENT(WW5) 		1-53458-612-0 01 1 9405- ●
19 BAR; STAB,CAB SUSP
TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71) 		1-53458-612-0 01 1 9405- ● ●
20 BOLT 1-09000-353-0 02 1 9002- ●
20 BOLT
EXC. CAB SUSPENSION RIGID(W71) 		1-09000-353-0 02 1 9002- ● ●
21 NUT
M10 		9-09111-410-0 02 1 9002- ●
21 NUT
EXC. CAB SUSPENSION RIGID(W71) M10 		9-09111-410-0 02 1 9002- ● ●
22 BUSHING; STABILIZER 1-53459-786-1 01 1 9002- ●
22 BUSHING; STABILIZER
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-786-1 01 1 9002- ● ●
23 TUBE; DIST 1-53459-787-3 02 1 9002- ●
23 TUBE; DIST
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-787-3 02 1 9002- ● ●
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002- ●
24 WASHER; LK
EXC. CAB SUSPENSION RIGID(W71) ID=10.2 		9-09150-510-0 02 1 9002- ● ●
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9307- ● ● ●
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9307- ● ● ●
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-842-0 01 1 9307- ● ● ●
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-841-0 01 1 9307- ● ● ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9307- ● ● ●
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9307- ● ● ●
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9307- ● ● ●
35 NUT; BRKT
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307- ● ● ●
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307- ● ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (A) ID=15 		9-09160-514-0 01 1 9307- ● ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (B) ID=15 OD=30 		9-09160-614-0 01 1 9307- ● ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9307- ● ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 01 1 9307- ● ● ●
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9307- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
