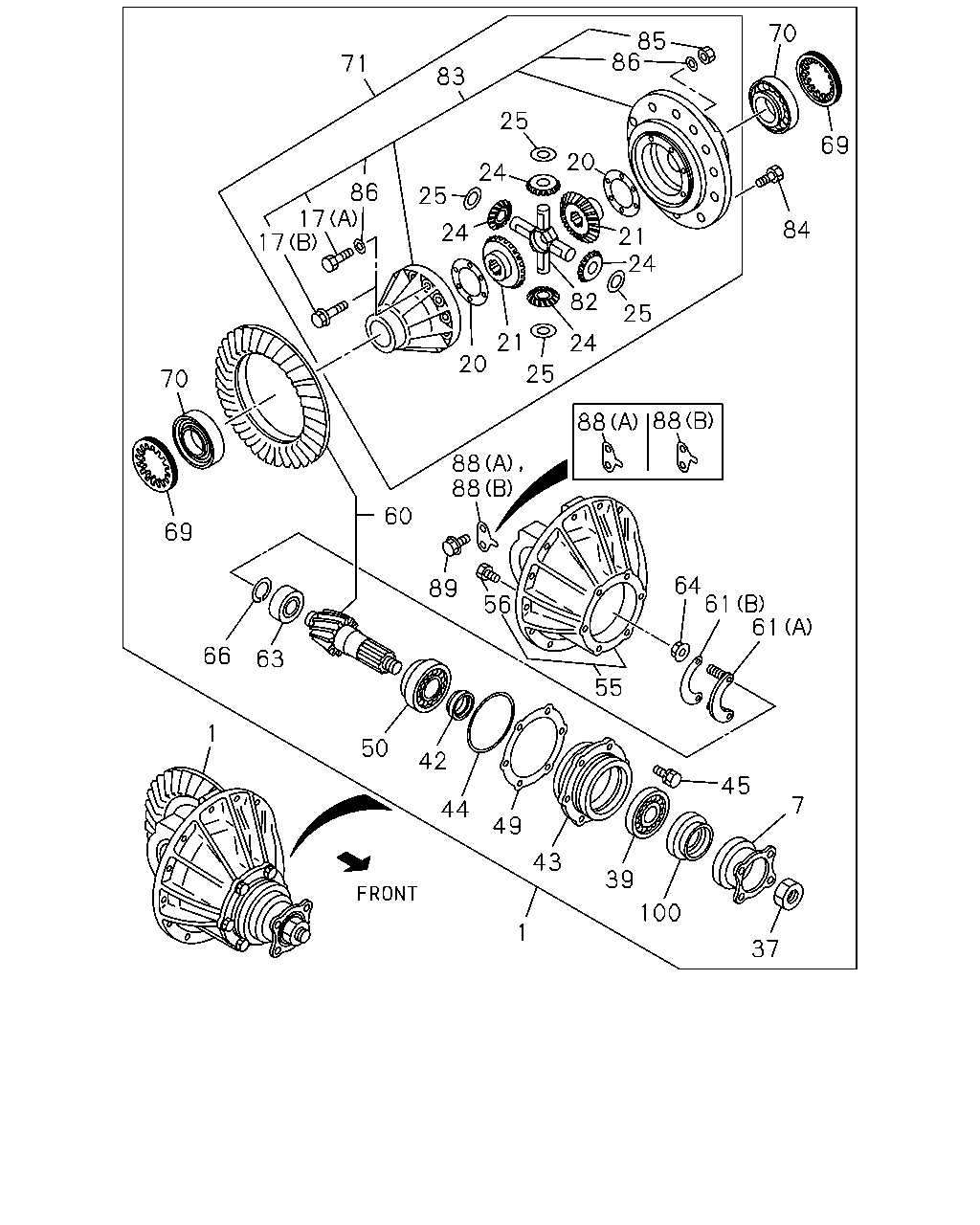

4-25 — REAR FINAL DRIVE (#34056) — 67 parça

71 83 25 20 24 25 24 21 24 25 82 21 20 25 24 84 69 86 85 70 86 17 17 70 88 88 88 88 64 61 61 55 56 89 60 63 66 69 50 42 44 49 43 39 100 37 7 45 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-98065-942-0	01	1	0901-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9<S2J> 43/9	8-97388-708-0	01	1	0901-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97388-709-0	01	1	0901-
7	FLANGE; FINAL	8-97073-802-2	01	1	0901-
17	BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	0901-1208
17	BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0901-
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0901-1004
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0901-1004
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0901-
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0901-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0901-1002
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0901-
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0901-
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0901-
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0901-0909
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0901-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0901-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0901-
55	CARRIER; DIFF	8-97094-637-0	01	1	0901-
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0901-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8<R40> 43/8	8-98043-095-0	01	1	0901-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9<S2J> 43/9	8-97061-850-0	01	1	0901-1505
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9<S2J> 43/9	8-98092-146-0	01	1	1506-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-97174-099-0	01	1	0901-1505
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8<RU1> 41/8	8-98092-137-0	01	1	1506-
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0901-
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0901-
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0901-
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0901-
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	0901-
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0901-
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0901-
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0901-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97047-100-4	01	1	0901-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9<S2J>	8-97047-099-4	01	1	0901-
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0901-1004
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97047-117-2	01	1	0901-1208
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-98219-707-0	01	1	1209-
83	CAGE ASM; DIFF FINAL GEAR RATIO 43/9<S2J>	8-97047-101-2	01	1	0901-1208
83	CAGE ASM; DIFF FINAL GEAR RATIO 43/9<S2J>	8-98219-705-0	01	1	1209-
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0901-
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0901-
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0901-1208
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	PLATE; LK,ADJ NUT (A) T=2.3	8-97087-821-0	AR	1	0901-
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	AR	1	0901-
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	04	1	0901-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0901-
