◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#34050) — 189 parça
çizim 123383
39 116 165 39 184 165 184
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-1205
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-97329-628-0 02 1 1206-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98124-755-1 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0910
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1102
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1103-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-

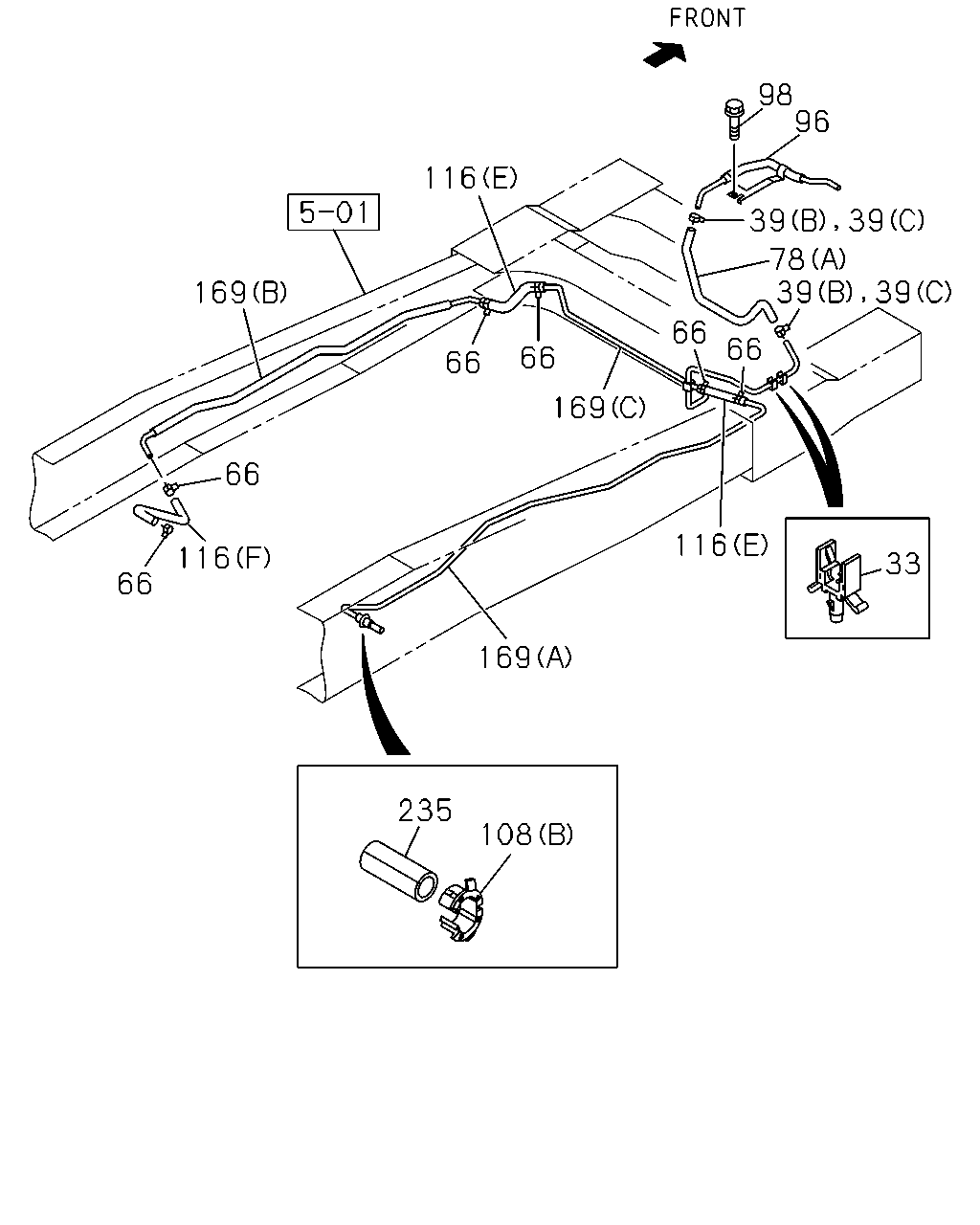

çizim 123387
98 96 116 78 169 66 66 66 66 169 66 116 116 66 169 235 108 39 39 39 39 33
BalonParca AdiParca NoAdetTipApplied Date
33 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0901-
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-1205
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-97329-628-0 02 1 1206-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 04 1 0901-0911
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 04 1 0912-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-104-4 01 1 0901-1103
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98189-106-0 01 1 1104-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0901-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98082-309-1 01 1 0901-
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0901-1205
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206-
98 BOLT; VAC PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0901-
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0901-
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98124-755-1 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 0901-
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98082-406-1 01 1 0901-0901
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98132-683-1 01 1 0901-
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98111-766-0 01 1 0901-
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 0901-

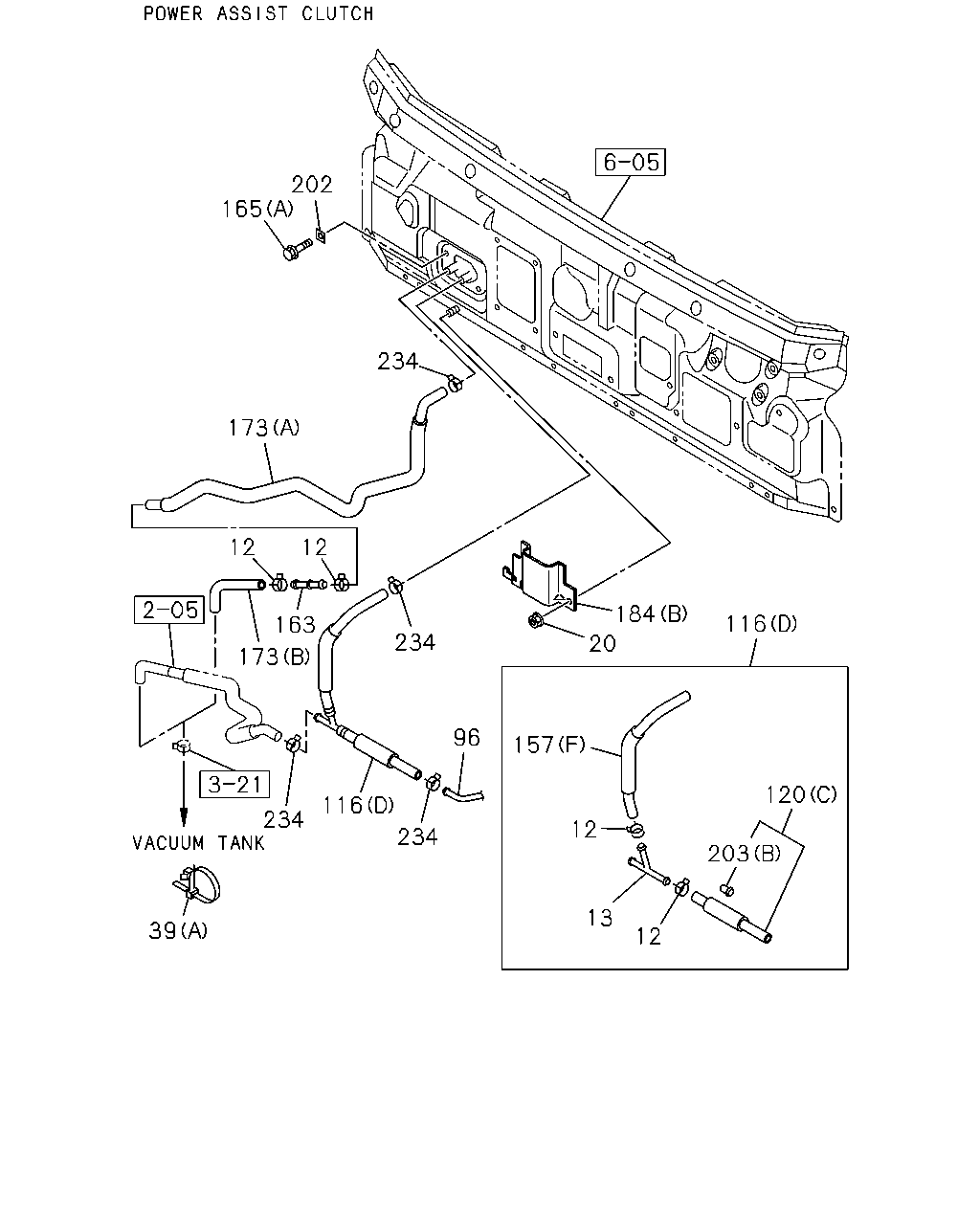

çizim 123388
202 165 234 173 12 12 184 116 163 234 20 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0901-
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-1205
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-97329-628-0 02 1 1206-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0901-1205
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98124-755-1 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH<S2T> 		8-97353-668-0 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0910
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1101-
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1102
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1103-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
202 SEAL 8-97856-616-0 02 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0901-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0901-

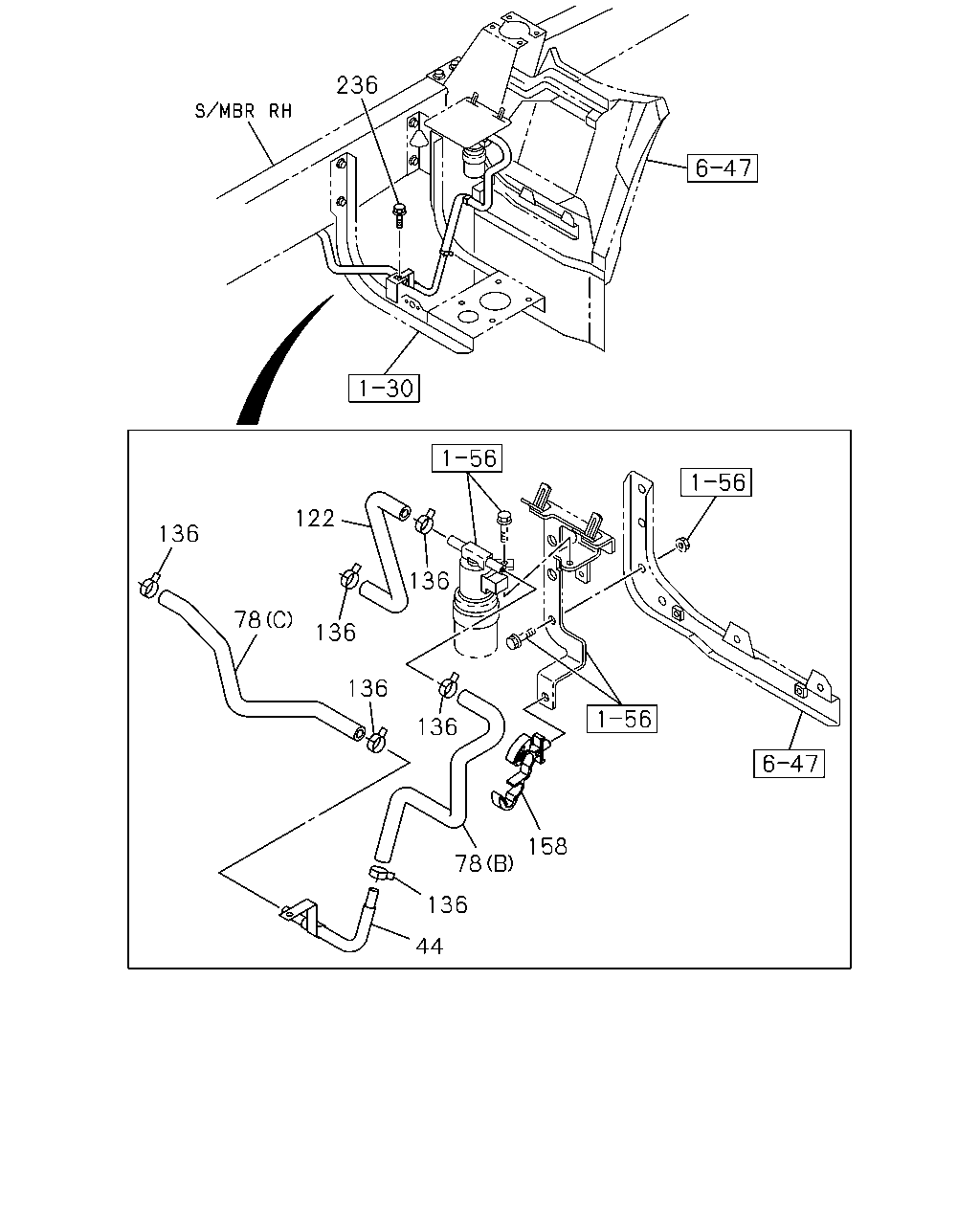

çizim 123389
236 122 136 136 78 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> 		8-98034-281-1 01 1 0901-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-104-4 01 1 0901-1103
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98189-106-0 01 1 1104-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 0901-
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98082-309-1 01 1 0901-
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0901-1103
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> THA 		8-98189-104-0 01 1 1104-
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-94238-568-0 06 1 0901-0911
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 THA 		8-98008-098-0 06 1 0912-
158 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 		8-97061-603-0 01 1 0901-
236 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-

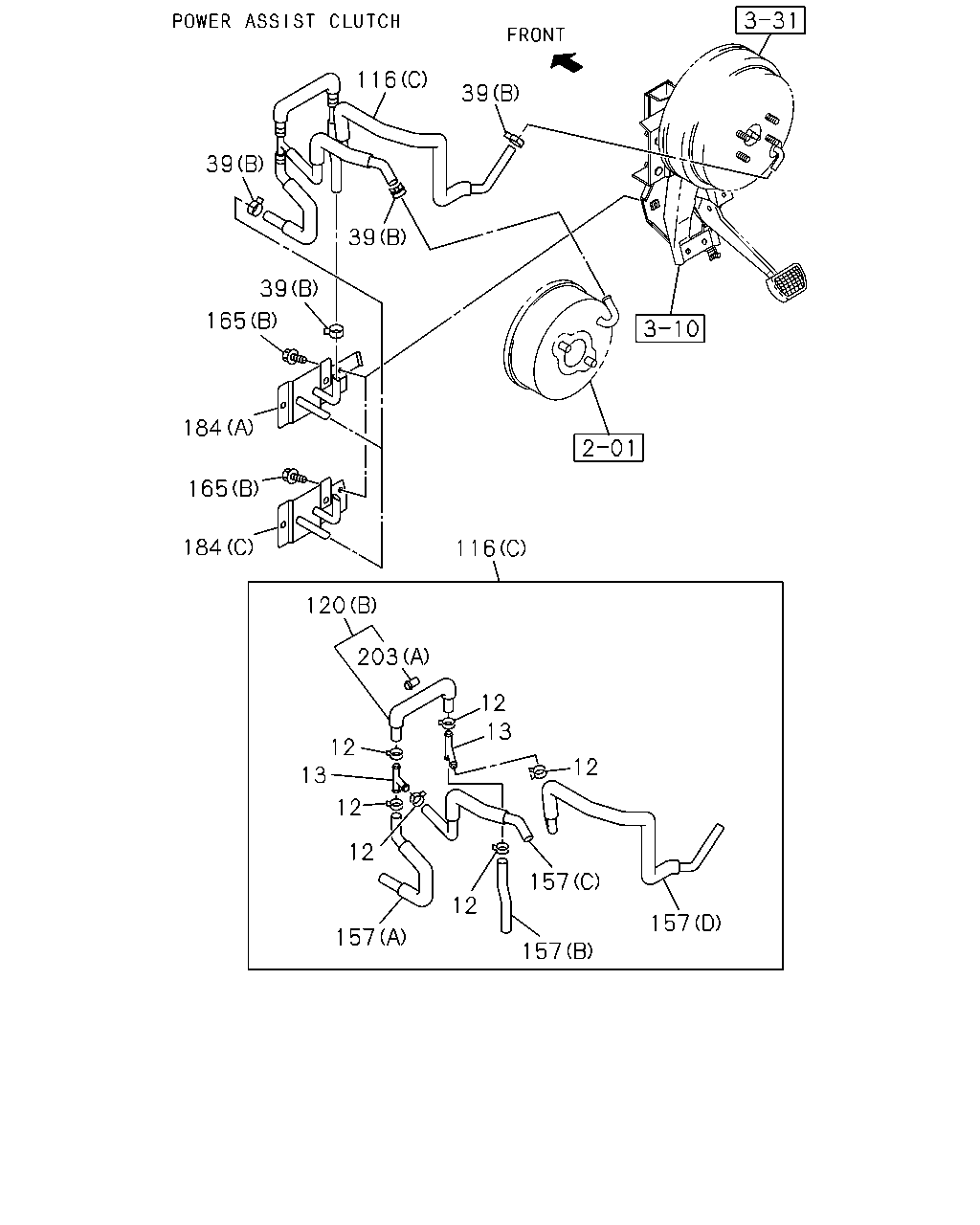

çizim 123391
116 39 39 39 39 165 184 165 184 116 120 203 12 13 12 13 12 12 12 157 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-1205
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-97329-628-0 02 1 1206-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98124-755-1 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0910
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1102
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1103-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
çizim 123394
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0901-
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-1205
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-97329-628-0 02 1 1206-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98046-550-0 01 1 0901-1205
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1206-
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 0901-
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		9-09956-353-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0901-
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (F) 		8-98124-755-1 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0910
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1101-
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1102
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1103-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
202 SEAL 8-97856-616-0 02 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0901-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0901-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
