Sayfa 5-10 - Isuzu EPC

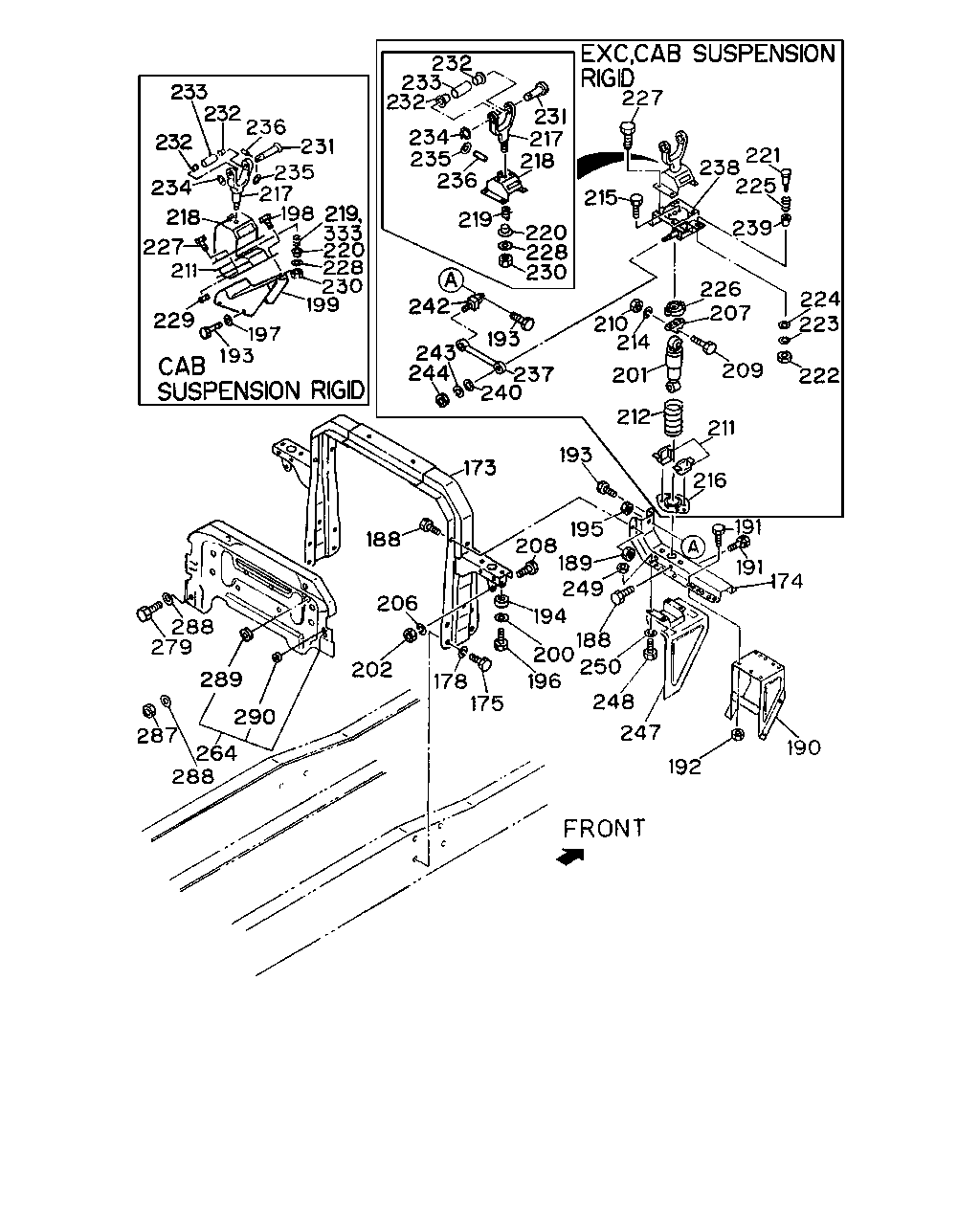

5-10 — CAB MOUNTING; FRAME SIDE (#3405) — 378 parça

233 232 232 234 236 218 217 235 231 198 219 227 333 211 229 199 193 197 230 228 220 232 231 233 232 217 234 218 235 219 236 220 228 230 242 244 243 193 237 210 240 214 201 212 215 227 238 221 239 225 226 224 223 222 207 209 211 216 193 173 195 191 191 174 190 192 248 247 250 249 194 189 188 208 200 196 175 188 206 178 202 290 289 264 288 287 279 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9002-9306	●	●	●
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-485-3	01	1	9307-	●	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>	1-53450-510-4	01	1	9307-	●	●	●
174	OUTRIGGER	1-53456-153-6	02	1	9002-9210	●	●	●
174	OUTRIGGER	1-53456-242-1	02	1	9211-	●	●	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9002-	●
175	BOLT; MEMBER TO FRAME M14X40	9-92061-440-0	08	1	9002-		●	●
178	WASHER; LK,MEMBER ID=14.2	9-09150-614-0	08	1	9002-	●	●	●
188	BOLT; OUTRIGGER M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-		●	●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●	●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-		●	●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-		●	●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005		●	●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-		●	●
189	NUT; OUTRIGGER M12	9-99110-412-0	02	1	9002-9304	●
189	NUT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304		●	●
189	NUT; OUTRIGGER M12	9-99110-512-0	02	1	9305-	●
189	NUT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-		●	●
189	NUT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-9304		●	●
189	NUT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9305-		●	●
190	BRACKET; MUD GUARD	1-79930-477-3	02	1	9002-	●	●	●
191	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●	●
191	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●	●	●
192	NUT; BRKT FIX M10	9-09110-410-0	08	1	9002-9009	●	●	●
192	NUT; BRKT FIX M10	9-09110-410-0	01	1	9010-9304	●	●	●
192	NUT; BRKT FIX M10	9-09110-510-0	03	1	9305-	●	●	●
193	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-		●	●
193	BOLT; BRKT M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●	●
193	BOLT; BRKT M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-		●	●
193	BOLT; BRKT CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	0-50041-030-0	08	1	9002-		●	●
194	SEAT; RUBBER	1-53459-320-0	04	1	9002-	●
194	SEAT; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-320-0	04	1	9002-		●	●
195	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-	●
195	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-		●	●
196	BOLT; CAB SUSP MTG	1-09009-090-0	04	1	9002-	●
196	BOLT; CAB SUSP MTG EXC. CAB SUSPENSION RIGID(W71)	1-09009-090-0	04	1	9002-		●	●
197	WASHER; PL CAB SUSPENSION RIGID(W71) ID=10.5	9-09164-510-0	08	1	9002-		●	●
198	BOLT; RUBBER TO BRKT CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-		●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID(W71)	1-53459-289-1	02	1	9002-		●	●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	08	1	9002-9101	●	●	●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	04	1	9102-	●	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-152-0	02	1	9002-9404	●
201	ABSORBER ASM; SHOCK,RR MTG EXC. CAB SUSPENSION RIGID(W71)	1-51630-152-0	02	1	9002-9404		●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-450-1	02	1	9405-	●
201	ABSORBER ASM; SHOCK,RR MTG EXC. CAB SUSPENSION RIGID(W71)	1-51630-450-1	02	1	9405-		●	●
202	NUT; S/ABS M12	9-99110-412-0	02	1	9002-9304	●
202	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304		●	●
202	NUT; S/ABS M12	9-99110-512-0	02	1	9305-	●
202	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-		●	●
206	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●
206	WASHER; LK,S/ABS EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	02	1	9002-		●	●
207	BRACKET; S/ABS	1-51681-299-0	02	1	9002-	●
207	BRACKET; S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-51681-299-0	02	1	9002-		●	●
208	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●
208	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	9-91056-255-0	02	1	9002-9005		●	●
208	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●
208	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	0-10806-255-0	02	1	9006-		●	●
209	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●
209	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	9-91056-255-0	02	1	9002-9005		●	●
209	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●
209	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	0-10806-255-0	02	1	9006-		●	●
210	NUT; S/ABS M12	9-99110-412-0	02	1	9002-9304	●
210	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304		●	●
210	NUT; S/ABS M12	9-99110-512-0	02	1	9305-	●
210	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-		●	●
211	RUBBER; CUSHION,S/ABS	1-53366-050-1	04	1	9002-	●
211	RUBBER; CUSHION,S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-53366-050-1	04	1	9002-		●	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION RIGID(W71)	1-53459-406-1	02	1	9002-		●	●
212	SPRING; COIL TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-09580-416-0	02	1	9210-9404	●	●	●
212	SPRING; COIL TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9002-9106	●		●
212	SPRING; COIL EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9002-9106		●
212	SPRING; COIL TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9107-9209	●		●
212	SPRING; COIL EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9107-9209		●
212	SPRING; COIL EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9210-9306		●
212	SPRING; COIL CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9210-9306			●
212	SPRING; COIL EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-09580-353-0	02	1	9002-9106	●		●
212	SPRING; COIL EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71),CHINA EQUIPMENT(YT2)	1-09580-353-0	02	1	9107-9306	●		●
212	SPRING; COIL EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9307-9404		●	●
212	SPRING; COIL	1-09580-351-0	02	1	9405-	●
212	SPRING; COIL EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9405-		●	●
214	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●
214	WASHER; LK,S/ABS EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	02	1	9002-		●	●
215	BOLT; BRKT TO HOLDER M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●
215	BOLT; BRKT TO HOLDER EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-		●	●
216	HOLDER; COIL SPR,CAB BACK	1-53459-319-0	02	1	9002-	●
216	HOLDER; COIL SPR,CAB BACK EXC. CAB SUSPENSION RIGID(W71)	1-53459-319-0	02	1	9002-		●	●
217	JAW; CAB HOOK	1-53459-373-1	02	1	9002-	●	●	●
218	HOLDER	1-53459-838-0	02	1	9002-9106	●
218	HOLDER EXC. CAB SUSPENSION RIGID(W71)	1-53459-838-0	02	1	9002-9106		●	●
218	HOLDER	1-53458-290-0	02	1	9107-	●
218	HOLDER EXC. CAB SUSPENSION RIGID(W71)	1-53458-290-0	02	1	9107-		●	●
218	HOLDER CAB SUSPENSION RIGID(W71)	1-53459-745-3	02	1	9002-		●	●
219	SPRING; COIL,CAB HOOK	1-09580-350-1	02	1	9002-	●
219	SPRING; COIL,CAB HOOK EXC. CAB SUSPENSION RIGID(W71)	1-09580-350-1	02	1	9002-		●	●
219	SPRING; COIL,CAB HOOK CAB SUSPENSION RIGID(W71)	1-09580-350-1	01	1	9002-		●	●
220	GUIDE; SPR	1-53459-374-0	02	1	9002-	●	●	●
221	PLATE AUTO CAB TILT<WV2>	1-53459-546-1	01	1	9307-	●	●	●
222	NUT; PLATE FIX AUTO CAB TILT<WV2> M10	9-09110-510-0	01	1	9307-	●	●	●
223	WASHER; LK AUTO CAB TILT<WV2> ID=10.2	9-09150-510-0	01	1	9307-	●	●	●
224	WASHER; PL AUTO CAB TILT<WV2> ID=10.5 OD=22	9-09160-610-0	01	1	9307-	●	●	●
225	SPRING AUTO CAB TILT<WV2>	1-09580-400-0	01	1	9307-	●	●	●
226	RUBBER; BUFFER	1-53459-539-0	02	1	9002-	●
226	RUBBER; BUFFER EXC. CAB SUSPENSION RIGID(W71)	1-53459-539-0	02	1	9002-		●	●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005		●	●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-9306	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-9306		●	●
227	BOLT; BUFFER RUBBER ROD M8X25 FLANGE	0-28080-825-0	08	1	9307-	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 FLANGE	0-28080-825-0	08	1	9307-		●	●
227	BOLT; BUFFER RUBBER ROD CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-		●	●
228	WASHER; PL	1-09503-152-0	02	1	9002-	●	●	●
229	NUT CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	08	1	9002-		●	●
230	NUT M14	9-99110-514-0	02	1	9002-	●	●	●
231	PIN; CAB HOOK	1-53459-375-0	02	1	9002-	●	●	●
232	BUSHING; COLLAR	5-33659-053-0	04	1	9002-	●	●	●
233	COLLAR; CAB HOOK	1-53459-376-0	02	1	9002-	●	●	●
234	RING; SNAP	1-09588-032-0	02	1	9002-	●	●	●
235	ROLLER; GUIDE	1-53459-377-0	02	1	9002-	●	●	●
236	PIN; SPR,ROLLER	1-09748-018-0	02	1	9002-	●	●	●
237	ROD ASM; LATERAL	1-53459-337-5	02	1	9002-9012	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53459-337-5	02	1	9002-9012		●	●
237	ROD ASM; LATERAL	1-53459-730-1	02	1	9101-9207	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53459-730-1	02	1	9101-9207		●	●
237	ROD ASM; LATERAL	1-53458-288-0	02	1	9208-	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53458-288-0	02	1	9208-		●	●
238	BRACKET; BUFFER,RH	1-53459-330-4	01	1	9002-9108	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53459-330-4	01	1	9002-9108		●	●
238	BRACKET; BUFFER,RH	1-53458-292-0	01	1	9109-	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53458-292-0	01	1	9109-		●	●
238	BRACKET; BUFFER,RH	1-53459-329-4	01	1	9002-9108	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53459-329-4	01	1	9002-9108		●	●
238	BRACKET; BUFFER,RH	1-53458-291-0	01	1	9109-9306	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53458-291-0	01	1	9109-9306		●	●
238	BRACKET; BUFFER,RH AUTO CAB TILT<WV2> EXC. CAB SUSPENSION RIGID(W71)	1-53458-328-0	01	1	9307-	●	●	●
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>,CAB SUSPENSION RIGID(W71)	1-53458-291-0	01	1	9307-	●	●	●
239	BUSHING; BRKT,BUFFER AUTO CAB TILT<WV2>	1-09330-055-0	01	1	9307-	●	●	●
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	04	1	9002-	●
240	WASHER; PL,BRKT EXC. CAB SUSPENSION RIGID(W71) ID=12.5	9-09160-512-0	04	1	9002-		●	●
240	WASHER; PL,BRKT AUTO CAB TILT<WV2> ID=10.5 OD=32	9-09164-810-0	01	1	9307-	●	●	●
242	BRACKET; LATERAL ROD	1-53454-224-2	01	1	9002-	●
242	BRACKET; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71)	1-53454-224-2	01	1	9002-		●	●
242	BRACKET; LATERAL ROD	1-53454-223-2	01	1	9002-	●
242	BRACKET; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71)	1-53454-223-2	01	1	9002-		●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	04	1	9002-	●
243	WASHER; LK,LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	04	1	9002-		●	●
244	NUT; LATERAL ROD M12	9-99110-412-0	04	1	9002-9304	●
244	NUT; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-9304		●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	04	1	9305-	●
244	NUT; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9305-		●	●
247	PROTECTOR ASM; HEAT	1-79930-378-6	01	1	9002-9306	●
247	PROTECTOR ASM; HEAT EXC. CAB SUSPENSION RIGID(W71)	1-79930-378-6	01	1	9002-9306		●	●
247	PROTECTOR ASM; HEAT	1-79930-379-6	01	1	9002-9306	●
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L) EXC. CAB SUSPENSION RIGID(W71)	1-79930-379-6	01	1	9002-9306		●	●
247	PROTECTOR ASM; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71)	1-79930-378-6	01	1	9307-	●	●	●
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71)	1-79930-379-6	01	1	9307-	●	●	●
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-9009	●
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-9009		●	●
248	BOLT; HEAT PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-9306	●	●	●
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-9306	●	●	●
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9009	●
248	BOLT; HEAT PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9009		●	●
248	BOLT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-	●	●	●
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-	●	●	●
249	NUT; PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-9306	●	●	●
249	NUT; PROTECTOR 10PD1 STD ENG(40L) EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-9306	●	●	●
249	NUT; PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9307-	●	●	●
249	NUT; PROTECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9307-	●	●	●
250	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●	●	●
250	WASHER; LK 10PD1 STD ENG(40L) EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●	●	●
250	WASHER; LK EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●	●	●
250	WASHER; LK 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-314-1	01	1	9411-	●	●	●
279	BOLT TAIWAN EQUIPMENT(WW5)	0-28280-822-0	02	1	9411-	●	●	●
287	NUT TAIWAN EQUIPMENT(WW5) M8 FLANGE	5-09440-005-0	02	1	9307-9412	●	●	●
287	NUT TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91150-108-0	02	1	9501-	●	●	●
288	WASHER; PL TAIWAN EQUIPMENT(WW5) ID=8.4 OD=26	9-09164-808-0	04	1	9411-	●	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9411-	●	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9411-	●	●	●
333	SPRING CAB SUSPENSION RIGID(W71)	1-09580-350-1	01	1	9002-		●	●

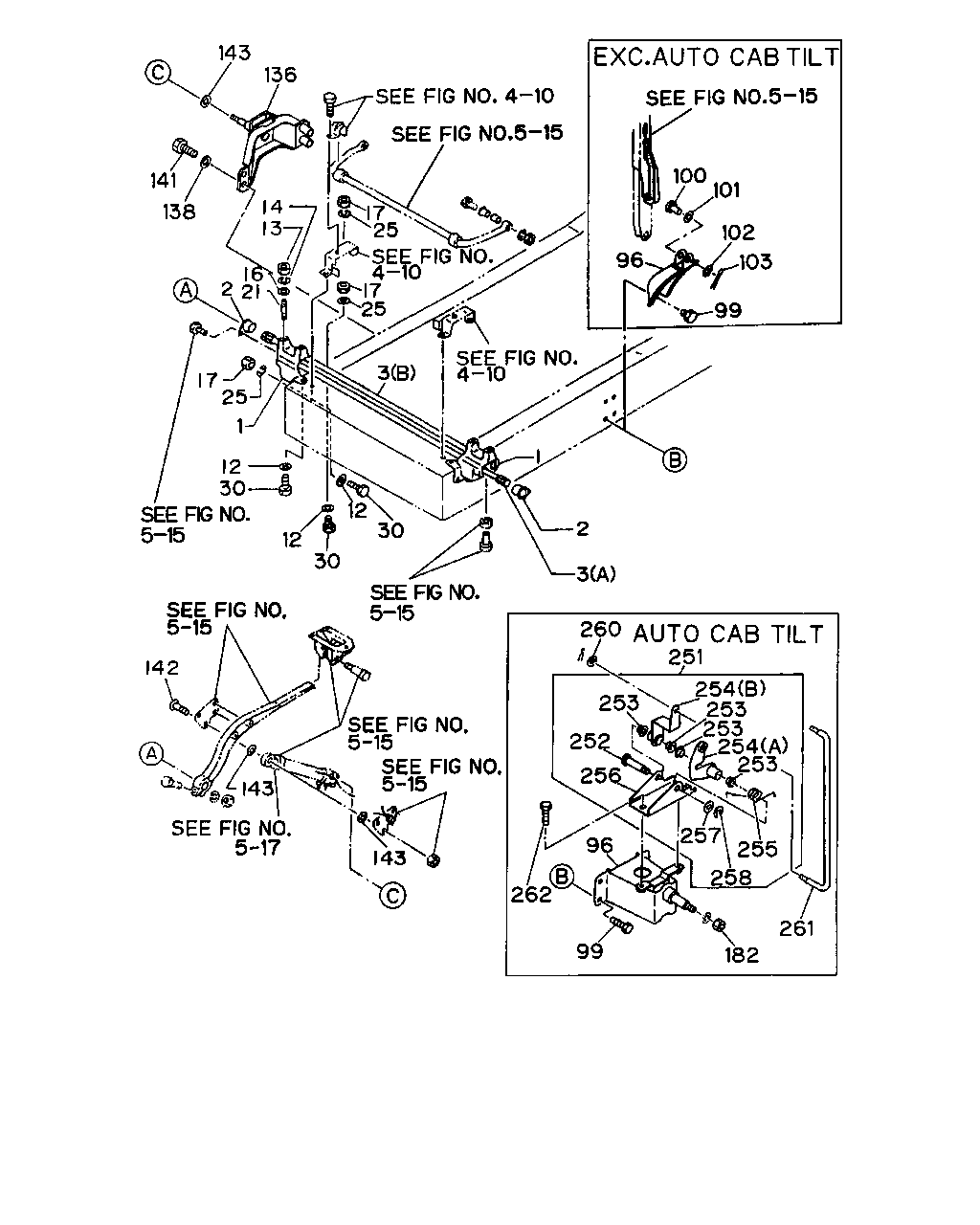

143 141 136 138 14 16 13 17 21 2 25 17 3 25 17 12 25 30 1 12 30 12 30 142 143 143 262 99 96 182 261 258 255 257 253 256 253 252 254 253 254 253 260 251 3 2 96 99 103 102 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG	1-53453-037-3	02	1	9002-	●	●	●
2	BUSHING; TORSION BAR	1-53459-837-0	02	1	9002-	●	●	●
3	TORSION BAR (A) YELLOW	1-09585-089-1	01	1	9002-	●	●	●
3	TORSION BAR (B) WHITE	1-09585-090-1	01	1	9002-	●	●	●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	10	1	9002-	●	●	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9002-	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9002-		●	●
13	NUT; BUSHING TO STUD CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	08	1	9002-		●	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9002-	●
14	WASHER; LK,STUD EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-612-0	04	1	9002-		●	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9002-	●	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	10	1	9002-	●	●	●
21	STUD; BRKT,CAB TILT	9-94321-235-0	04	1	9002-	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION RIGID(W71)	9-94321-235-0	04	1	9002-		●	●
21	STUD; BRKT,CAB TILT CAB SUSPENSION RIGID(W71)	1-09302-113-0	04	1	9002-		●	●
25	WASHER; LK,BRKT,CAB TILT ID=14.2	9-09150-614-0	10	1	9002-	●	●	●
30	BOLT; CAB FRT FOOT M14X75	1-09000-292-0	02	1	9002-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION RIGID(W71) M14X75	1-09000-292-0	02	1	9002-		●	●
30	BOLT; CAB FRT FOOT M14X55	9-91066-455-0	02	1	9002-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION RIGID(W71) M14X55	9-91066-455-0	02	1	9002-		●	●
30	BOLT; CAB FRT FOOT M14X50	9-91066-450-0	06	1	9002-	●	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION RIGID(W71) M14X55	9-91066-455-0	04	1	9002-		●	●
96	BRACKET; CAB STAY	1-53459-622-0	01	1	9002-9306	●	●	●
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>	1-53459-622-0	01	1	9307-	●	●	●
96	BRACKET; CAB STAY AUTO CAB TILT<WV2>	1-53459-893-1	01	1	9307-	●	●	●
99	BOLT; BRKT M12X35	9-01911-235-0	04	1	9002-9005	●	●	●
99	BOLT; BRKT M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-9306	●	●	●
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER	0-50041-235-0	04	1	9307-	●	●	●
99	BOLT; BRKT AUTO CAB TILT<WV2> M10X30 W/LK WASHER	0-50041-030-0	04	1	9307-	●	●	●
100	PIN; JOINT	9-08234-455-0	01	1	9002-9306	●	●	●
100	PIN; JOINT EXC. AUTO CAB TILT<WV2>	9-08234-455-0	01	1	9307-	●	●	●
101	WASHER; WAVE ID=15 OD=25	8-11053-111-0	01	1	9002-9306	●	●	●
101	WASHER; WAVE EXC. AUTO CAB TILT<WV2> ID=15 OD=25	8-11053-111-0	01	1	9307-	●	●	●
102	WASHER; PL,CAB STAY ID=15	9-09160-514-0	01	1	9002-9306	●	●	●
102	WASHER; PL,CAB STAY EXC. AUTO CAB TILT<WV2> ID=15	9-09160-514-0	01	1	9307-	●	●	●
103	PIN; SPLIT,CAB STAY OD=3.7 L=25	9-08114-025-0	01	1	9002-9306	●	●	●
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=3.7 L=25	9-08114-025-0	01	1	9307-	●	●	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	1-53458-329-1	01	1	9307-	●	●	●
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> ID=12.2	9-09150-612-0	04	1	9307-	●	●	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M12X45	9-91066-245-0	02	1	9307-	●	●	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M12X70	9-91066-270-0	02	1	9307-	●	●	●
142	PIN; OIL CYL,UPR AUTO CAB TILT<WV2>	1-53459-352-0	01	1	9307-	●	●	●
143	SPACER; OIL CYL,LWR AUTO CAB TILT<WV2>	1-53459-463-0	04	1	9307-	●	●	●
182	NUT; BRKT AUTO CAB TILT<WV2> M10 FLANGE	0-91150-110-0	01	1	9307-	●	●	●
251	LEVER ASM; RELAY AUTO CAB TILT<WV2>	1-53459-894-2	01	1	9307-	●	●	●
252	PIN; LEVER AUTO CAB TILT<WV2>	9-08214-064-0	01	1	9307-	●	●	●
253	BUSHING; RELAY LEVER AUTO CAB TILT<WV2>	5-33619-001-1	04	1	9307-	●	●	●
254	LEVER; RELAY AUTO CAB TILT<WV2> (B)	1-53459-895-0	01	1	9307-	●	●	●
254	LEVER; RELAY AUTO CAB TILT<WV2> (A)	1-53459-970-0	01	1	9307-	●	●	●
255	SPRING; RETURN,LEVER AUTO CAB TILT<WV2>	1-53458-446-0	01	1	9307-	●	●	●
256	BRACKET; RELAY LEVER AUTO CAB TILT<WV2>	1-53459-896-2	01	1	9307-	●	●	●
257	WASHER; PL,LEVER AUTO CAB TILT<WV2> ID=10.5 OD=18	9-09160-510-0	01	1	9307-	●	●	●
258	RING; SNAP,LEVER AUTO CAB TILT<WV2> ID=8	9-09185-408-0	01	1	9307-	●	●	●
260	WASHER; PL,LINK ROD AUTO CAB TILT<WV2> ID=6.4	9-09160-506-0	02	1	9307-	●	●	●
261	ROD; LINK AUTO CAB TILT<WV2>	1-09765-255-0	01	1	9307-	●	●	●
262	BOLT; RELAY LEVER AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●	●

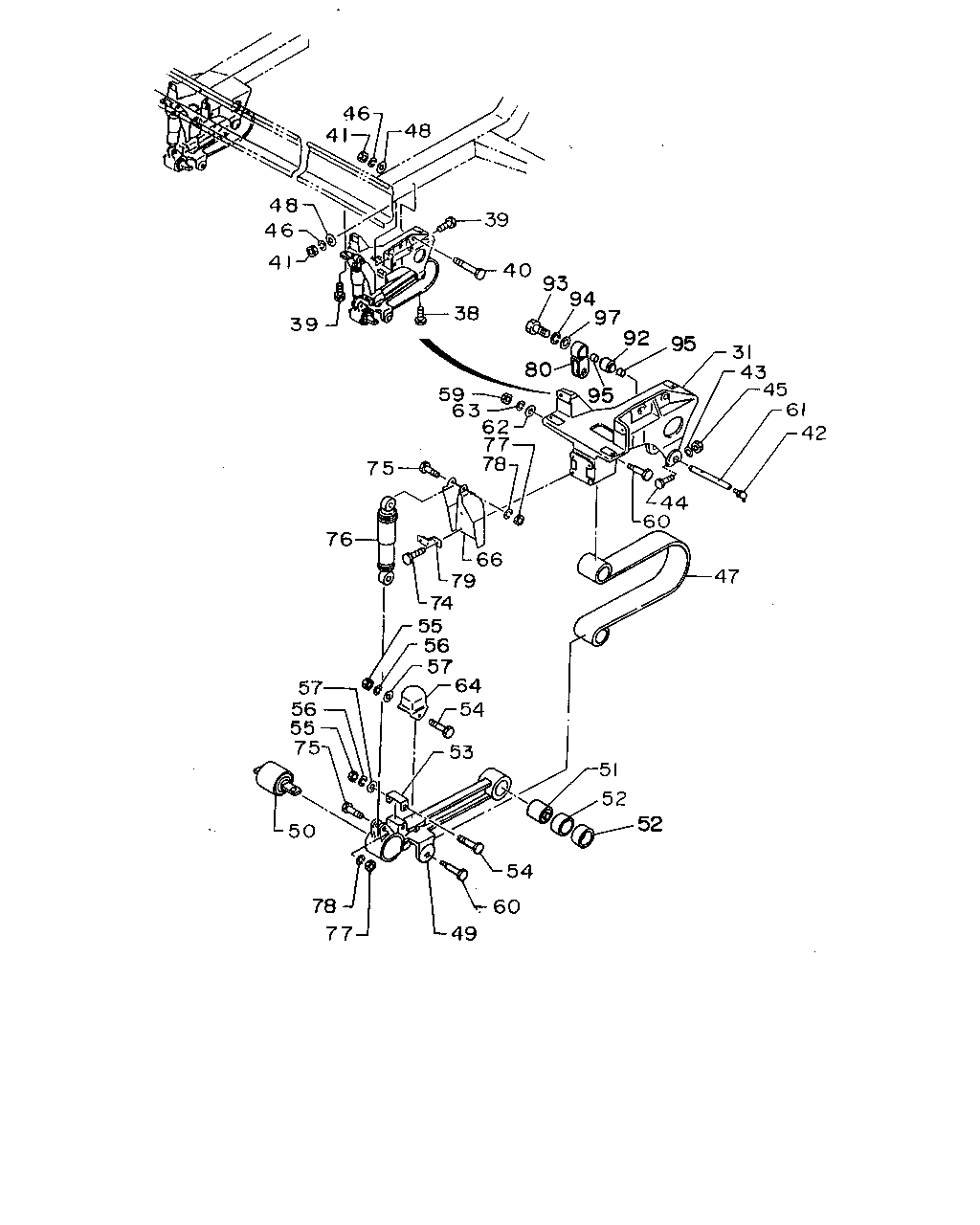

46 41 48 48 46 39 41 39 40 93 94 38 97 92 95 80 95 31 43 45 61 42 44 60 47 78 77 62 63 59 75 76 66 79 74 55 56 57 64 54 53 57 56 55 75 50 78 77 49 60 54 52 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BRACKET; CAB	1-53453-033-4	01	1	9002-	●
31	BRACKET; CAB EXC. CAB SUSPENSION RIGID(W71)	1-53453-033-4	01	1	9002-		●	●
31	BRACKET; CAB	1-53453-032-4	01	1	9002-	●
31	BRACKET; CAB EXC. CAB SUSPENSION RIGID(W71)	1-53453-032-4	01	1	9002-		●	●
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
38	BOLT; CAB TO BRKT,RR EXC. CAB SUSPENSION RIGID(W71) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●	●
39	BOLT; CAB TO BRKT M10X30	1-09980-546-0	08	1	9002-	●
39	BOLT; CAB TO BRKT EXC. CAB SUSPENSION RIGID(W71) M10X30	1-09980-546-0	08	1	9002-		●	●
40	BOLT; CAB TO BRKT M10X100	1-09980-547-0	04	1	9002-	●
40	BOLT; CAB TO BRKT EXC. CAB SUSPENSION RIGID(W71) M10X100	1-09980-547-0	04	1	9002-		●	●
41	NUT M10	9-09110-410-0	08	1	9002-	●
41	NUT EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-410-0	08	1	9002-		●	●
42	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●
42	NIPPLE; GREASE EXC. CAB SUSPENSION RIGID(W71) PT1/8 ELBOW	9-09031-210-0	02	1	9002-		●	●
43	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-	●
43	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=8.2	9-09150-508-0	02	1	9002-		●	●
44	BOLT; PIN LOCK M8X50	9-01050-850-0	02	1	9002-9005	●
44	BOLT; PIN LOCK EXC. CAB SUSPENSION RIGID(W71) M8X50	9-01050-850-0	02	1	9002-9005		●	●
44	BOLT; PIN LOCK M8X50	0-10810-850-0	02	1	9006-	●
44	BOLT; PIN LOCK EXC. CAB SUSPENSION RIGID(W71) M8X50	0-10810-850-0	02	1	9006-		●	●
45	NUT M8	9-09110-408-0	02	1	9002-	●
45	NUT EXC. CAB SUSPENSION RIGID(W71) M8	9-09110-408-0	02	1	9002-		●	●
46	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●
46	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.2	9-09150-510-0	04	1	9002-		●	●
47	SPRING; LEAF,"U" TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-53459-640-0	02	1	9210-9404	●	●	●
47	SPRING; LEAF,"U" EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9307-9404	●	●	●
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9405-	●
47	SPRING; LEAF,"U" EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9405-		●	●
47	SPRING; LEAF,"U" TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9002-9106	●		●
47	SPRING; LEAF,"U" EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9002-9106		●
47	SPRING; LEAF,"U" TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9107-9209	●		●
47	SPRING; LEAF,"U" EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9107-9209		●
47	SPRING; LEAF,"U" EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9210-9306		●
47	SPRING; LEAF,"U" CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9210-9306			●
47	SPRING; LEAF,"U" EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-53459-395-4	02	1	9002-9106	●		●
47	SPRING; LEAF,"U" EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71),CHINA EQUIPMENT(YT2)	1-53459-395-4	02	1	9107-9306	●		●
48	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-	●
48	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=26	9-09160-710-0	04	1	9002-		●	●
49	ARM; LINK	1-53459-297-2	02	1	9002-	●
49	ARM; LINK EXC. CAB SUSPENSION RIGID(W71)	1-53459-297-2	02	1	9002-		●	●
50	BUSHING; RUBBER	1-53459-308-2	02	1	9002-9004	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-308-2	02	1	9002-9004		●	●
50	BUSHING; RUBBER	1-53459-974-0	02	1	9005-9108	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-974-0	02	1	9005-9108		●	●
50	BUSHING; RUBBER	1-53458-293-1	02	1	9109-	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53458-293-1	02	1	9109-		●	●
51	BUSHING; RUBBER	1-53459-315-2	02	1	9002-	●
51	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-315-2	02	1	9002-		●	●
52	BUSHING; RUBBER	1-09330-068-0	04	1	9002-	●
52	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-09330-068-0	04	1	9002-		●	●
53	RUBBER; STOPPER	1-53459-314-0	02	1	9002-	●
53	RUBBER; STOPPER EXC. CAB SUSPENSION RIGID(W71)	1-53459-314-0	02	1	9002-		●	●
54	BOLT; RUBBER M8X70	9-01055-870-0	04	1	9002-9005	●
54	BOLT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8X70	9-01055-870-0	04	1	9002-9005		●	●
54	BOLT; RUBBER M8X70	0-10805-870-0	04	1	9006-	●
54	BOLT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8X70	0-10805-870-0	04	1	9006-		●	●
55	NUT; RUBBER M8	9-09110-408-0	04	1	9002-	●
55	NUT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8	9-09110-408-0	04	1	9002-		●	●
56	WASHER; LK ID=8.2	9-09150-508-0	04	1	9002-	●
56	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=8.2	9-09150-508-0	04	1	9002-		●	●
57	WASHER; PL ID=8.4	9-09160-508-0	08	1	9002-	●
57	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=8.4	9-09160-508-0	08	1	9002-		●	●
59	NUT M10	9-09110-410-0	04	1	9002-	●
59	NUT EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-410-0	04	1	9002-		●	●
60	PIN; "U" LEAF SPRING	1-53459-307-3	04	1	9002-	●
60	PIN; "U" LEAF SPRING EXC. CAB SUSPENSION RIGID(W71)	1-53459-307-3	04	1	9002-		●	●
61	PIN; BRKT TO LINK ARM	1-53459-540-0	02	1	9002-	●
61	PIN; BRKT TO LINK ARM EXC. CAB SUSPENSION RIGID(W71)	1-53459-540-0	02	1	9002-		●	●
62	WASHER; PL ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●
62	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	04	1	9002-		●	●
63	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●
63	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.2	9-09150-510-0	04	1	9002-		●	●
64	RUBBER; CUSHION	1-53366-089-0	02	1	9002-9010	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-089-0	02	1	9002-9010		●	●
64	RUBBER; CUSHION	1-53366-122-0	02	1	9011-9404	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-122-0	02	1	9011-9404		●	●
64	RUBBER; CUSHION	1-53366-110-0	02	1	9405-	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-110-0	02	1	9405-		●	●
66	BRACKET; S/ABS	1-53459-305-2	02	1	9002-	●
66	BRACKET; S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-53459-305-2	02	1	9002-		●	●
74	BOLT; BRKT FIX M8X22	9-01910-822-0	08	1	9002-9005	●
74	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M8X22	9-01910-822-0	08	1	9002-9005		●	●
74	BOLT; BRKT FIX M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-	●
74	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-		●	●
75	BOLT; S/ABS M12X60	9-91056-260-0	04	1	9002-9005	●
75	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X60	9-91056-260-0	04	1	9002-9005		●	●
75	BOLT; S/ABS M12X60	0-10806-260-0	04	1	9006-	●
75	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X60	0-10806-260-0	04	1	9006-		●	●
76	ABSORBER ASM; SHOCK	1-51630-151-0	02	1	9002-9404	●
76	ABSORBER ASM; SHOCK EXC. CAB SUSPENSION RIGID(W71)	1-51630-151-0	02	1	9002-9404		●	●
76	ABSORBER ASM; SHOCK	1-51630-449-1	02	1	9405-	●
76	ABSORBER ASM; SHOCK EXC. CAB SUSPENSION RIGID(W71)	1-51630-449-1	02	1	9405-		●	●
77	NUT M12	9-99110-412-0	04	1	9002-	●
77	NUT EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-		●	●
78	WASHER; LK ID=12.2	9-09150-512-0	04	1	9002-	●
78	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	04	1	9002-		●	●
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9002-9106	●
79	BRACKET; FLEX SHAFT EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-83129-033-1	02	1	9002-9106			●
79	BRACKET; FLEX SHAFT EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71),CHINA EQUIPMENT(YT2)	1-83129-033-1	02	1	9107-9209	●		●
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9210-9306	●
79	BRACKET; FLEX SHAFT TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-83129-033-1	02	1	9210-9306		●
79	BRACKET; FLEX SHAFT EXC. CAB SUSPENSION RIGID(W71),CHINA EQUIPMENT(YT2)	1-83129-033-1	02	1	9210-9306			●
79	BRACKET; FLEX SHAFT TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-83129-033-1	02	1	9307-9404	●	●	●
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9405-	●
79	BRACKET; FLEX SHAFT EXC. CAB SUSPENSION RIGID(W71)	1-83129-033-1	02	1	9405-		●	●
80	LINK ASM; STABILIZER W/BUSHING	1-53459-608-0	02	1	9002-	●
80	LINK ASM; STABILIZER EXC. CAB SUSPENSION RIGID(W71) W/BUSHING	1-53459-608-0	02	1	9002-		●	●
92	BUSHING; RUBBER	1-53459-417-2	02	1	9002-	●
92	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-417-2	02	1	9002-		●	●
93	BOLT; PIN	1-09000-354-0	02	1	9002-	●
93	BOLT; PIN EXC. CAB SUSPENSION RIGID(W71)	1-09000-354-0	02	1	9002-		●	●
94	WASHER; DISH	1-09500-007-0	02	1	9002-9105	●
94	WASHER; DISH EXC. CAB SUSPENSION RIGID(W71)	1-09500-007-0	02	1	9002-9105		●	●
94	WASHER; DISH	1-09500-028-0	02	1	9106-	●
94	WASHER; DISH EXC. CAB SUSPENSION RIGID(W71)	1-09500-028-0	02	1	9106-		●	●
95	BUSHING; RUBBER	1-09330-069-0	04	1	9002-	●
95	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-09330-069-0	04	1	9002-		●	●
97	WASHER; PL ID=17	9-09160-516-0	02	1	9002-	●
97	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=17	9-09160-516-0	02	1	9002-		●	●

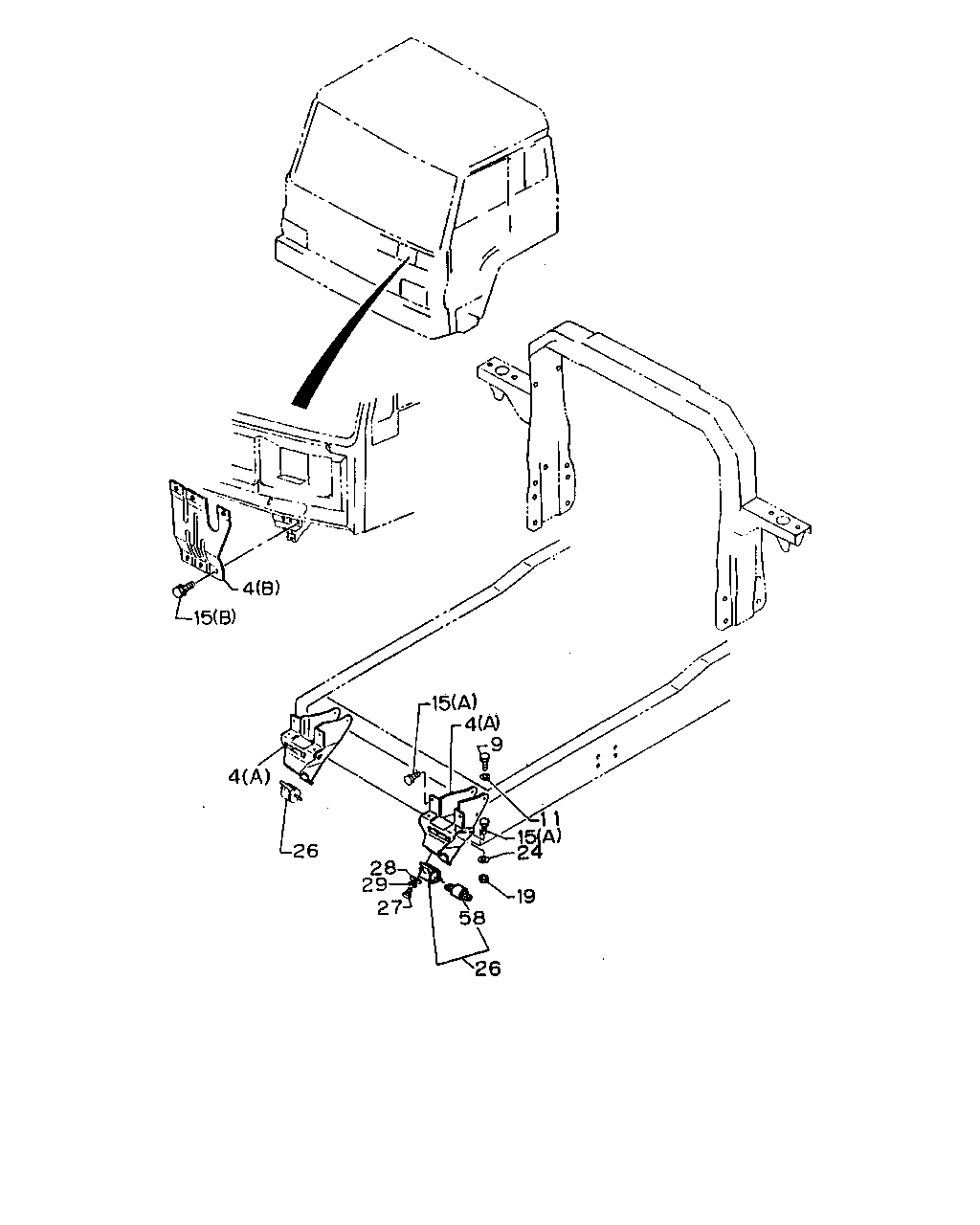

4 15 15 4 26 28 29 27 26 19 58 24 11 15 9 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (A)	1-62570-829-7	01	1	9002-	●	●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (B)	1-62570-845-2	01	1	9002-	●	●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (A)	1-62570-828-8	01	1	9002-	●	●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (B)	1-62570-844-2	01	1	9002-	●	●
9	BOLT CAB SUSPENSION RIGID(W71) M10X100	1-09980-547-0	02	1	9002-	●	●
11	WASHER; LK CAB SUSPENSION RIGID(W71) ID=10	1-09985-180-0	02	1	9002-	●	●
15	BOLT; SET CAB SUSPENSION RIGID(W71) (A) M10X25 W/LK&PL WASHER	1-09980-488-0	10	1	9002-	●	●
15	BOLT; SET CAB SUSPENSION RIGID(W71) (B) M8X20 W/LK&PL WASHER	1-09980-512-0	12	1	9002-	●	●
19	NUT CAB SUSPENSION RIGID(W71) M10	1-09984-121-0	02	1	9002-	●	●
24	WASHER; PL CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	1-09985-173-0	02	1	9002-	●	●
26	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-455-1	01	1	9002-	●	●
26	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-454-1	01	1	9002-	●	●
27	BOLT; BUSHING CAB SUSPENSION RIGID(W71) M12X30	1-09000-470-0	04	1	9002-	●	●
28	WASHER; BUSHING CAB SUSPENSION RIGID(W71) ID=12.2	1-09503-224-0	04	1	9002-	●	●
29	WASHER; LK,BUSHING CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-812-0	04	1	9002-	●	●
58	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-537-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
